micro:bit creator shield round Expansion board STEM electronic sticker wearable shield

Feedback Ratings
  • 2-4 Pieces
    US $6.00
  • 5-9 Pieces
    US $5.88
  • 10-199 Pieces
    US $5.70
  • >=200 Pieces
    US $3.60
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1000 Pieces)
Customized packaging (Min. Order:: 1000 Pieces)

More

Graphic customization (Min. Order:: 1000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-01C136A
Product Name:
micro:bit creator shield
Condition:
Original 100%
Payment term:
Trade Assurance \ TT \ Paypal
Shipping Term:
TNT DHL Fedex UPS EMS
Material:
PCB
Brand:
ALSRobot
Weight:
25g

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X9X11 cm
Single gross weight:
0.3 kg
Package Type:
Standard package
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 2 To be negotiated

Description

micro:bit makes programming more interesting. Have you ever thought that you can learn some circuit knowledge while mastering micro:bit programming, but those sensors and electronic modules are so difficult to use.Don't worry, micro:bit sticker book shiled will help you solve this problem. You can connect the ALSRobot electronic sticker module to micro:bit creator shield like do manual.In addition, you can also make micro:bit truly wearable by using small round holes on the outer ring of the shield plate to sew the circuit on clothes, hats and scarves through conductive sewing thread.

Specifications

  • Item name: micro:bit creator shield
  • Item Code: RB-01C136A
  • Brand: ALSRobot
  • Place of origin: China

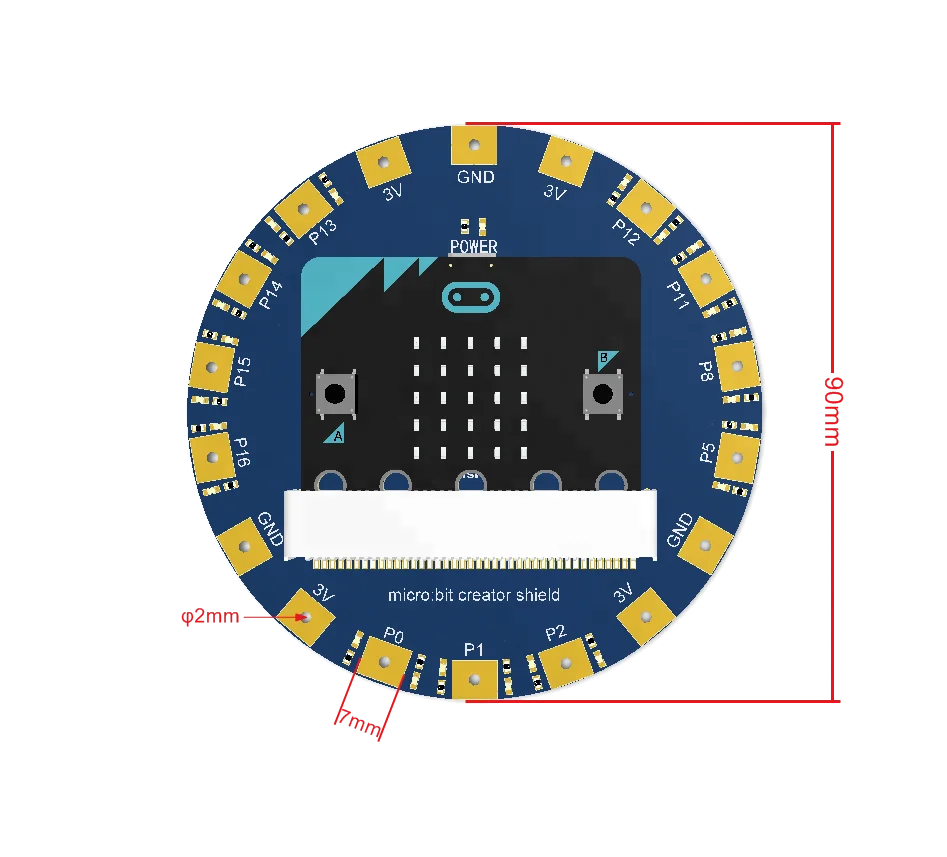

  • Size: R=45mm
  • Working voltage: external 3V power supply or power supply via micro: usb interface on bit. 3V
    button battery is recommended
  • Working current: static power consumption is less than or equal to 20mA
  • Pin definition:
    digital interface: P5, P8, P11, P12, P13, P14, P15, P16
    simulation interface: P0, P1 and P2
    power supply: 3 v
    ground: GND
  • Working temperature: - 10 ℃ to 50 ℃
  • Indicator light
  • POWER: POWER light, red, light up after POWER supply
  • IO mouth level refers to the LED: the outer ring of LED light in corresponding IO mouth to
    lower levels;The inner ring LED lights up at the IO port for high power

pictures

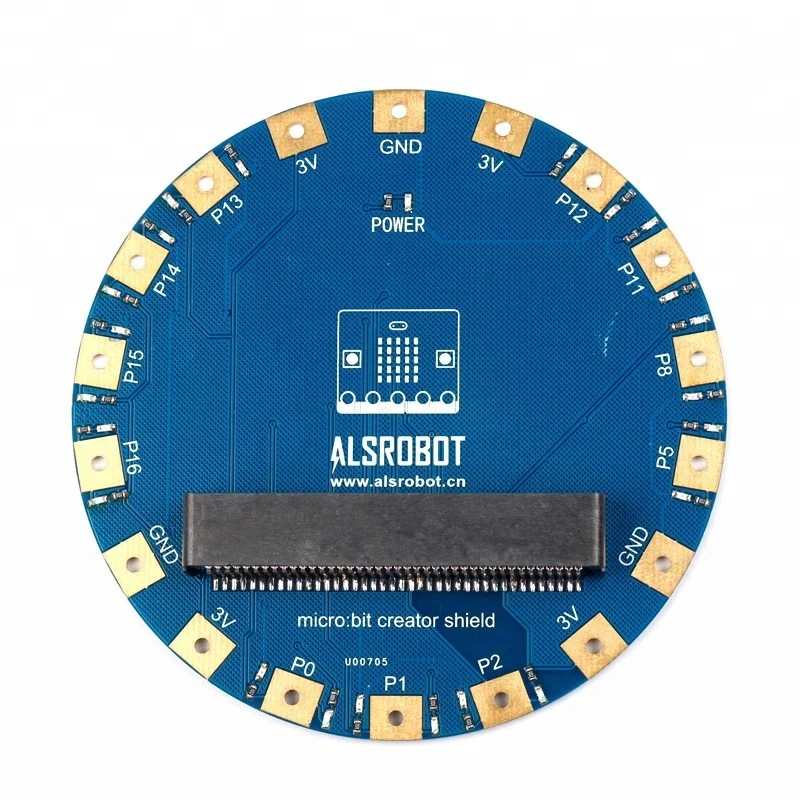

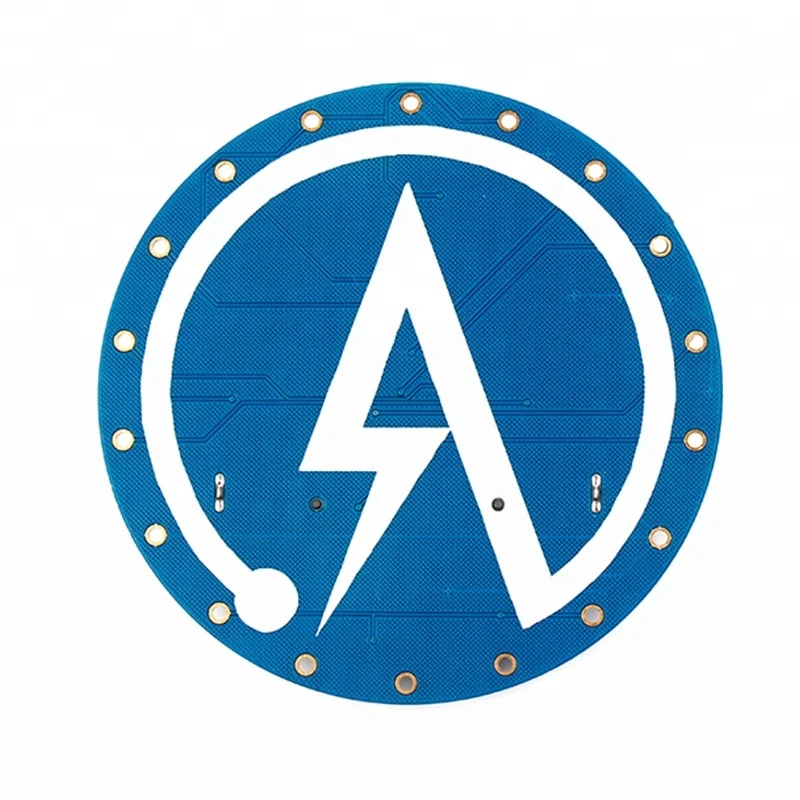

RB-01C136A-microbit(1)RB-01C136A-microbit(3)RB-01C136A-microbit(2)RB-01C136A-microbit(1)
