micro differential pressure transmitter

FOB Reference Price:Get Latest Price
US $50.2-99 / Pieces | 1 Piece/Pieces micro differential pressure transmitter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
FM-108/FM-112
Name:
micro differential pressure transmitter
Material:
ABS
Pressure:
0-100000pa
Pressure connection:
Ribbed 6.2 mm
Cable gland For cables:
8 mm maximum
Accuracy:
±1.0%FS
Compensated temperatures:
-10~+60℃
Over pressure capacity:
15 times
Output signal:
0~5/10VDC\3-wire 4~20mA\2-wire
Supply voltage:
0~5/10VDC\16~30VDC\10~30VDC
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month micro differential pressure transmitter
Packaging & Delivery
Packaging Details
micro differential pressure transmitter
Antistatic plastic bags and Corrugated box.
Other package mode also can be customized.
Port
All ports
Lead Time :
7 days
PRESSURE TRANSMITTER
Product Description

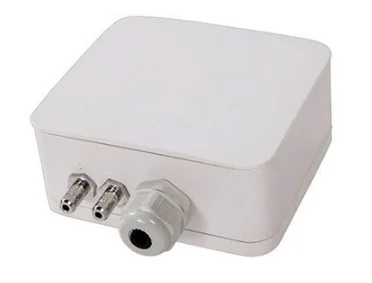

Description of Micro differential pressure transmitter

Micro differential pressure transmitter detect differential pressure or gauge pressure then convert this pressure difference to a proportional analogue output signal. Two output version are offered: Voltage output of 0~10VDC, and a current output 4-20mA. Differential pressure transmitter ranges from 0~±50Pa to 0~±10000Pa. These transmitters boast of their outstanding performance,high quality and economical pricing. This micro differential pressure sensor is mainly for clean air and gas, to measure micro differential pressure.

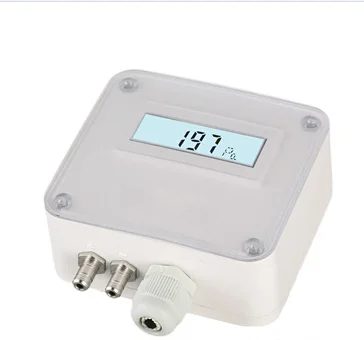

Detailed Image

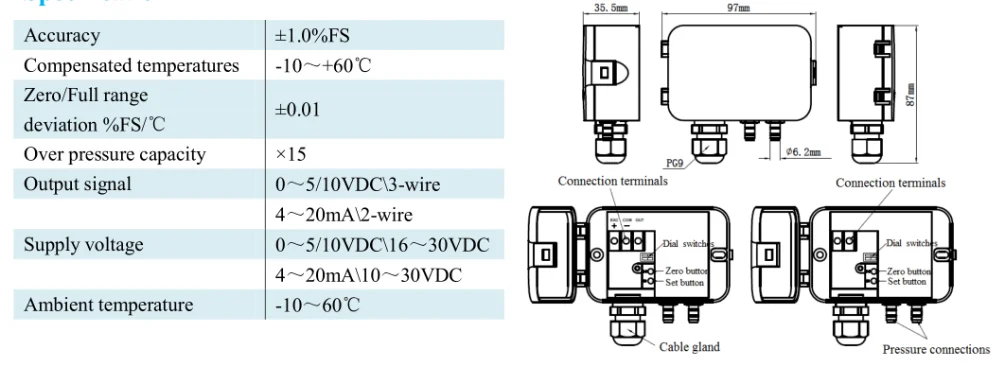

Specification

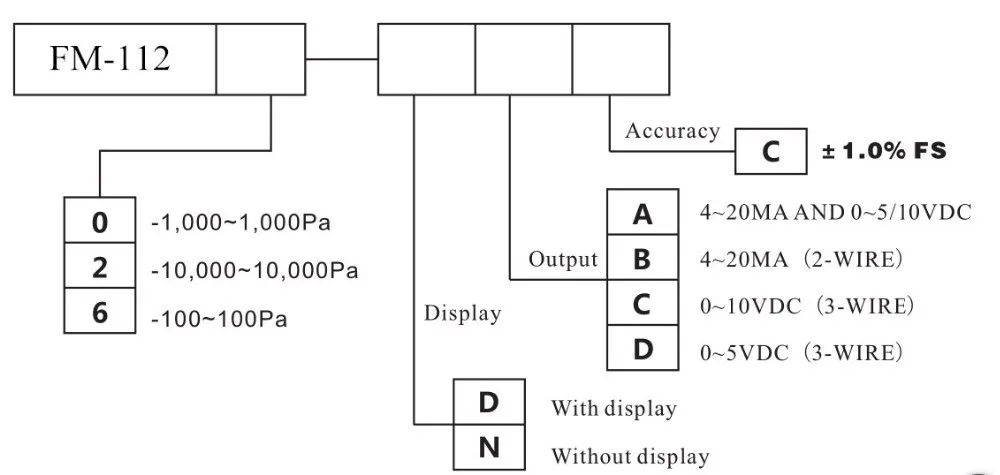

Secification of FM-112 pressure transmitter

Range:0 ~ ±10Pa/0 ~ ±10,000Pa
Accuracy:±1.0%
Supply Voltage:16 ~ 30VAC/VDC (2-wire)
Output signal:0~5VDC、0~10VDC、4~20mA
both 2- wire and 3-wire available
Auto zero point when power on
Selectable response time field adjustable from20mS ~2S
Manual zero point push button

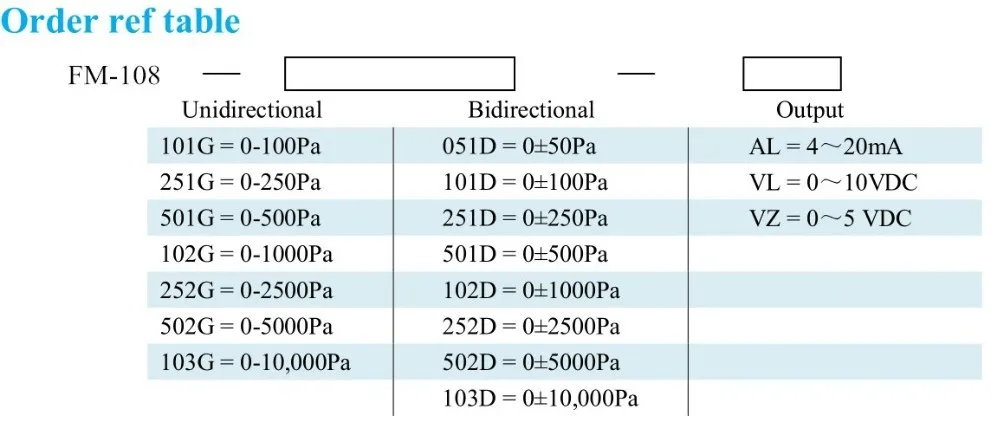

Unidirectional
Bidirectional
Output
101G = 0-100Pa
051D = 0±50Pa
AL = 4~20mA
251G = 0-250Pa
101D = 0±100Pa
VL = 0~10VDC
501G = 0-500Pa
251D = 0±250Pa
VZ = 0~5 VDC
102G = 0-1000Pa
501D = 0±500Pa
252G = 0-2500Pa
102D = 0±1000Pa
502G = 0-5000Pa
252D = 0±2500Pa
103G = 0-10,000Pa
502D = 0±5000Pa
103D = 0±10,000Pa
Features

Features of micro differential pressure transmitter

Material:  Industrial plastic,fire resistance, level per UL94-V0.

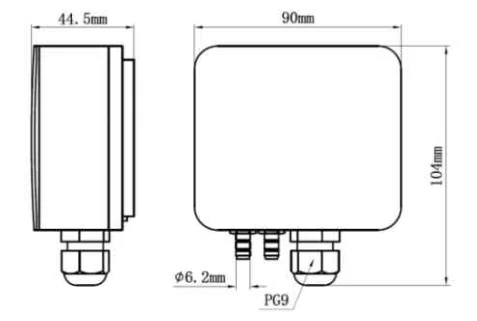

Pressure connection: Ribbed Ø 6.2 mm
Cable gland: For cables Ø 8 mm maximum
Weight:  140g


Application

Application of micro differential pressure transmitter

◆ Heating, Ventilation and Air Conditioning (HVAC)                                             ◆ Energy Management System
◆ Static Duct Pressure                                                                                              ◆ Clean Room Pressure
◆ Over Pressurization and Furnace Draft Control                                                  ◆ Media:Air and neutral gases.
