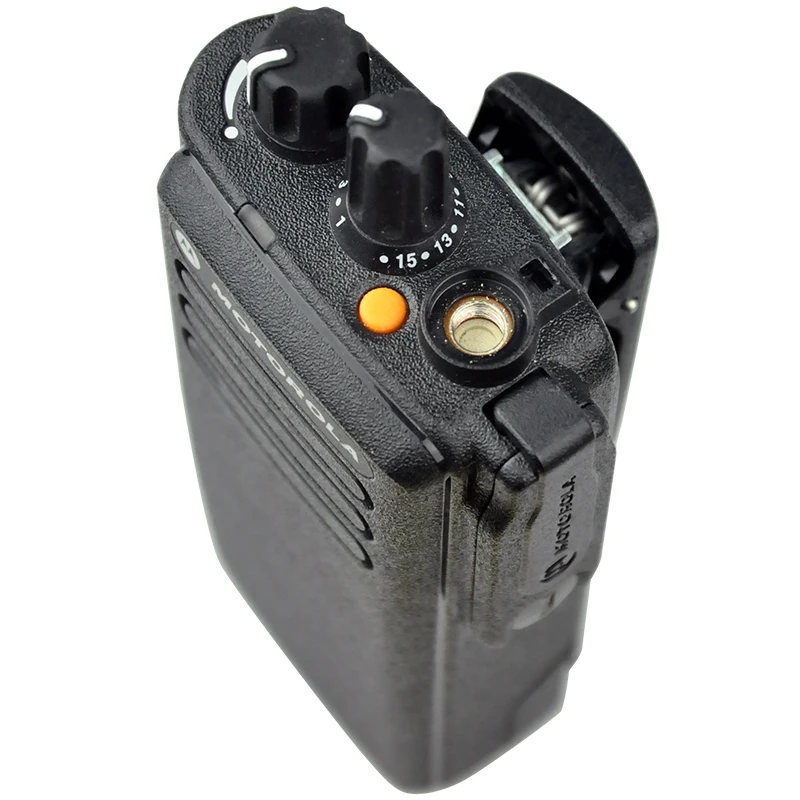

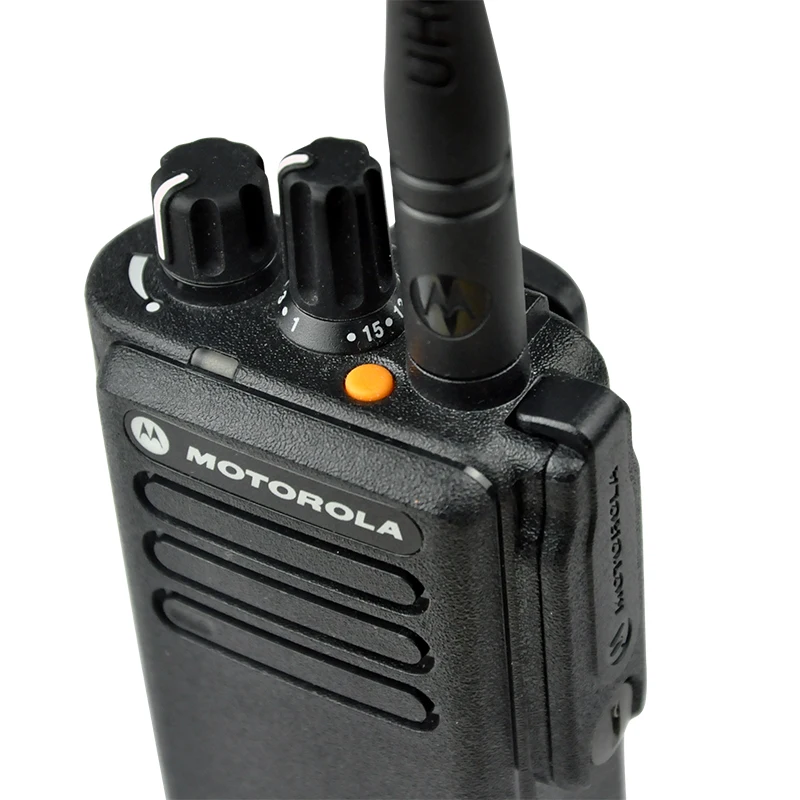

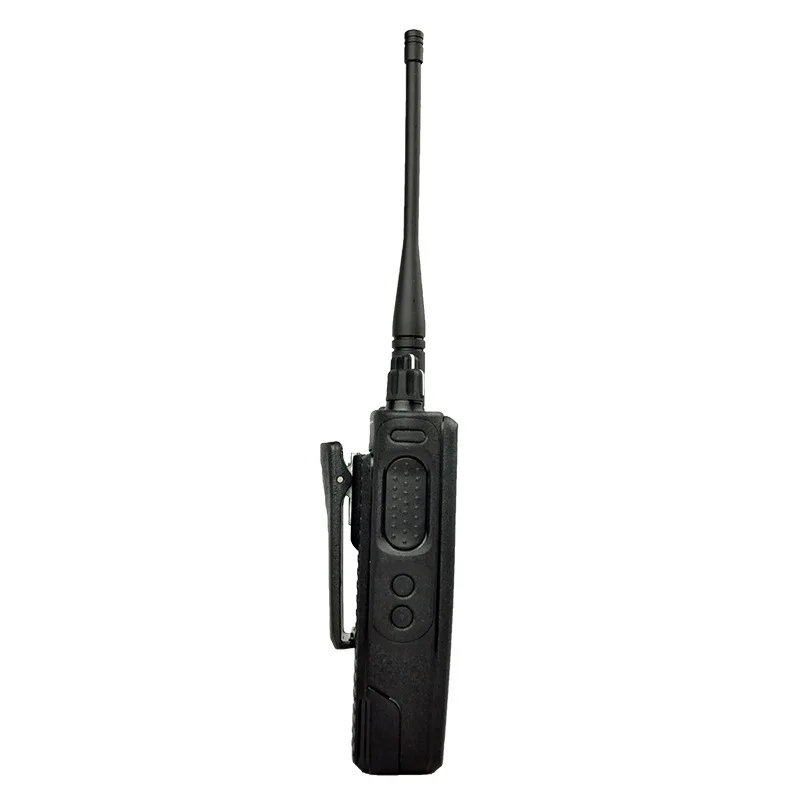

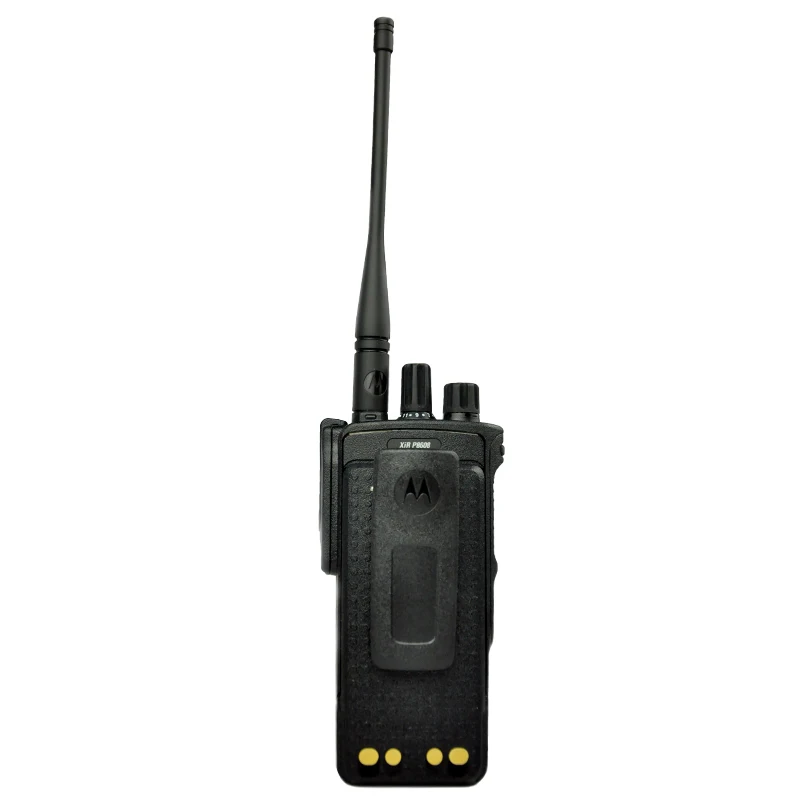

2015 New XIR P8608/DP4401 Two Way Radio Wifi Walkie Talkie
2. Description Of Walkie Talkie
136-174 MHz 403-527 MHz
with NiMH Battery 1400Mah 130.3 x 55.2 x 38.7 mm

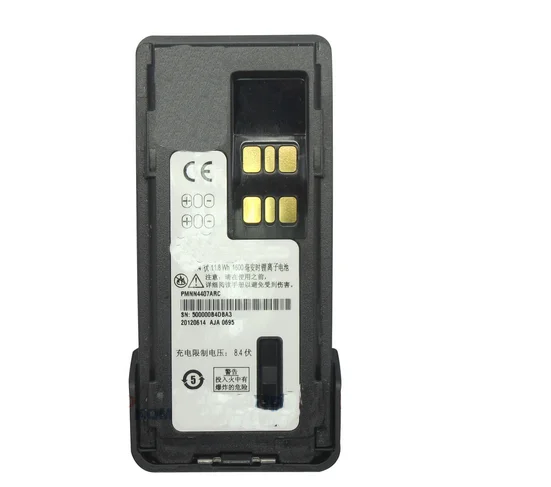

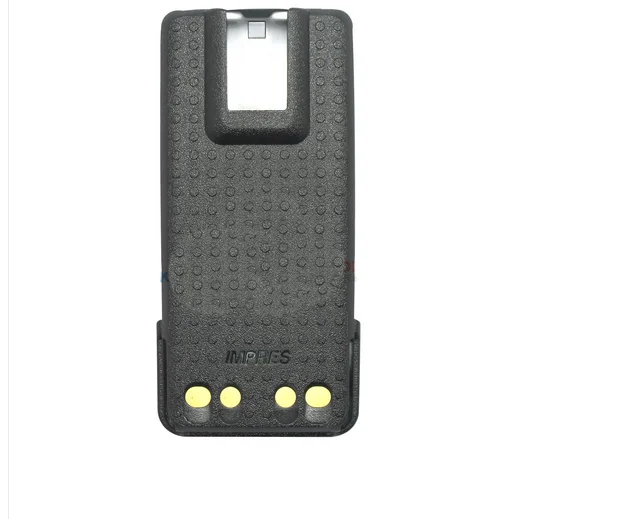

IMPRES Li-ion Slim (1600mAh) battery 130.3 x 55.2 x 35.8 mm
IMPRES Hi-Cap Li-ion (2250 mAh) battery 130.3 x 55.2 x 41.1 mm
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 130.3 x 55.2 x 41.1 mm
Weight with battery:
with NiMH Battery 1400Mah 425.5 g (15.01 oz)
IMPRES Li-ion Slim (1600mAh) battery 335.5 g (11.83 oz)
IMPRES Hi-Cap Li-ion (2250 mAh) battery 355.5 g (12.54 oz)
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 365.5 g (12.89 oz)
7.5 V (Nominal)
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power
IMPRES LiIon Std Battery
Analogue: 8 hrs/Digital: 11.8 hrs
IMPRES LiIon HiCap Battery
Analogue: 11.5 hrs/Digital: 17 hrs
IMPRES FM LiIon Battery
Analogue: 12.3 hrs/Digital: 18.1 hrs
Analogue: 7 hrs/ Digital: 10.2 hrs
136-174 MHz;403-527 MHz
12.5 kHz/ 20/25 kHz
+/- 0.5 ppm
0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD); 0.4 uV (20 dB SINAD)
5% BER: 0.3 uV
Adjacent Channel Selectivity
60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz
Audio Distortion @ Rated Audio
Hum and Noise
-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz
+1, -3 dB
Conducted Spurious Emission
136-174 MHz;403-512 MHz
12.5 kHz/ 20/25 kHz
+/- 1.5 ppm (DP3600)
+/- 2.5 kHz @ 12.5 kHz
+/- 4 kHz @ 20 kHz
+/- 5.0 kHz @ 25 kHz
FM Hum and Noise
-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz
Conducted / Radiated Emission
-36 dBm < 1 GHz;-30 dBm > 1 GHz
Adjacent Channel Power
-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz
+1, -3 dB
Digital Vocoder Type
ETSI-TS 102 361-1, 2 & 3
-30° C / +60° C
-40° C / +85° C
Water and Dust Intrusion
Accuracy specs are for long-term tracking (95th percentile values > 5 satellites visible at a nominal -130 dBm signal strength)
TTFF (Time To First Fix) Cold Start
< 2 minutes
TTFF (Time To First Fix) Hot Start
< 10 seconds
< 10 meters
Supports Bluetooth? 2.1 + EDR Specification
Bluetooth Headset Profile (HSP), Serial Port Profile
(SPP), Motorola fast push-to-talk.
Radio supports 1 Bluetooth audio accessory and 1
Bluetooth data device simultaneously
Class 2, 10 metres
Guangzhou Minxing Communication Equipment Co., Ltd. was established in 2008, is a professional engaged in radio research and development, production of the manufacturers. All of our products meet international quality standards. Since its establishment, thousands of products have been exported to over 120 countries and regions in Pakistan, India, Australia, Russia, Colombia, Ukraine, Georgia and the United States.

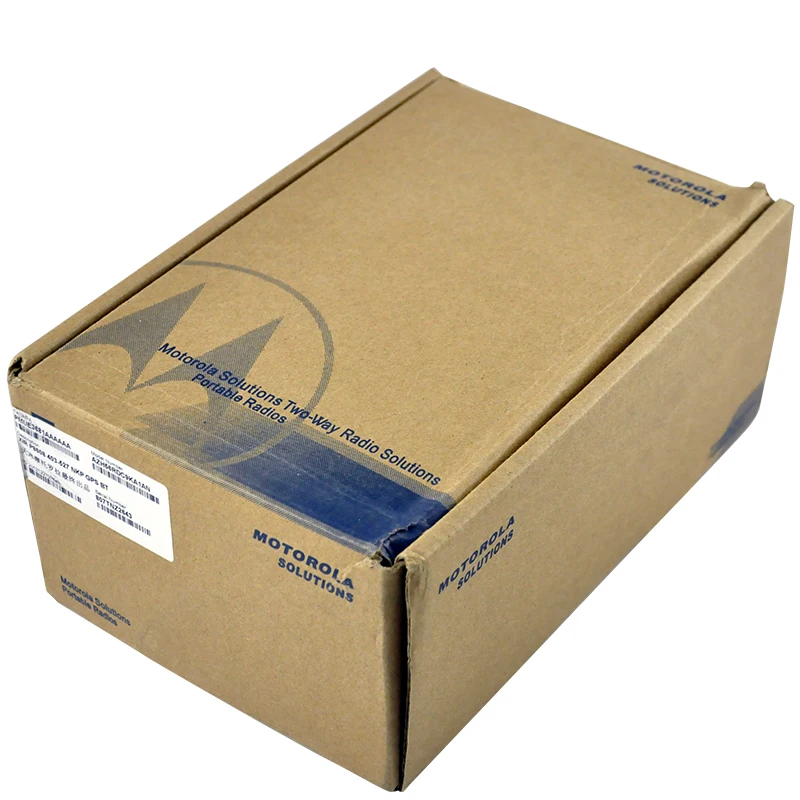

Packaging & Shipping
1.Q: Are you a manufacturer?
A: Founded in 2008, owning a 23,000 square meters manufacturing base, more than 200 R&D engineers and 300 manufacturing workers, we are among one of the top manufacturer and designer in China mainland for two-way radios and systems.
2.Q: What is MOQ (Minimum order quantity)
A: 2 pcs for sample test first is recommended. The price policy sets MOQ for bulk order based on cooperation relationship with us as a distributor, dealer or premium dealer, or OEM cooperation. Please contact us for details.
3.Q: Do you accept customized?
A: Rebranding is acceptable and OEM&ODM is welcomed.
4. Q: Could you offer free sample to test?
A: Sample will be charged firstly, but will be refund to you when you put bulk order on us.
5.Q: When can I find tracking information of sample?
A: We will send you the tracking number of sample within 2 days after delivery.
