mud logging sensor named Pump Stroke Sensor

Feedback Ratings
US $415.00 / Piece | 5 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
CNPS
Model Number:
Stroke-1
Usage:
mud logging
Theory:
Pump Stroke Sensor
Output:
high and low voltage
Product name:
Pump Stroke Sensor
working temperature:
-25 ~ 70 ℃
Rated working voltage:
5~30VDC
maximum output current:
200mA
effective action distance:
≤ 30mm
the highest working frequency:
100Hz
polarity and short circuit protection:
Yes
Warranty:
1 year

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X8X8 cm
Single gross weight:
1.0 kg
Package Type:
paper box
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(day) 7 To be negotiated
Product Description

Application

In addition to be used in mud logging, this proximity switch sensor is also suitable for various control such as machine limit, detection, counting, speed measurement, liquid level signal, automatic protection, etc. It is widely used in machinery, mining, metallurgy, plastics, textile, chemical industry, light industry. , tobacco, electricity, railways, military and other departments.

SPECIFICATIONS FOR PROXIMITY SENSOR
working temperature
 -25 ~ 70 ℃
rated working voltage
5~30VDC
the maximum output current
200mA
effective action distance
≤ 30mm
the highest working frequency
100Hz

Main Features

The CNPS-BC Pump Punch Speed Sensor is an inductive proximity switch sensor used in the oil field to measure pump or turntable speed. It has a wide range of power supply voltage, high repeatability, fast frequency response, long service life, vibration resistance, corrosion resistance and waterproof.with polarity and short circuit protection

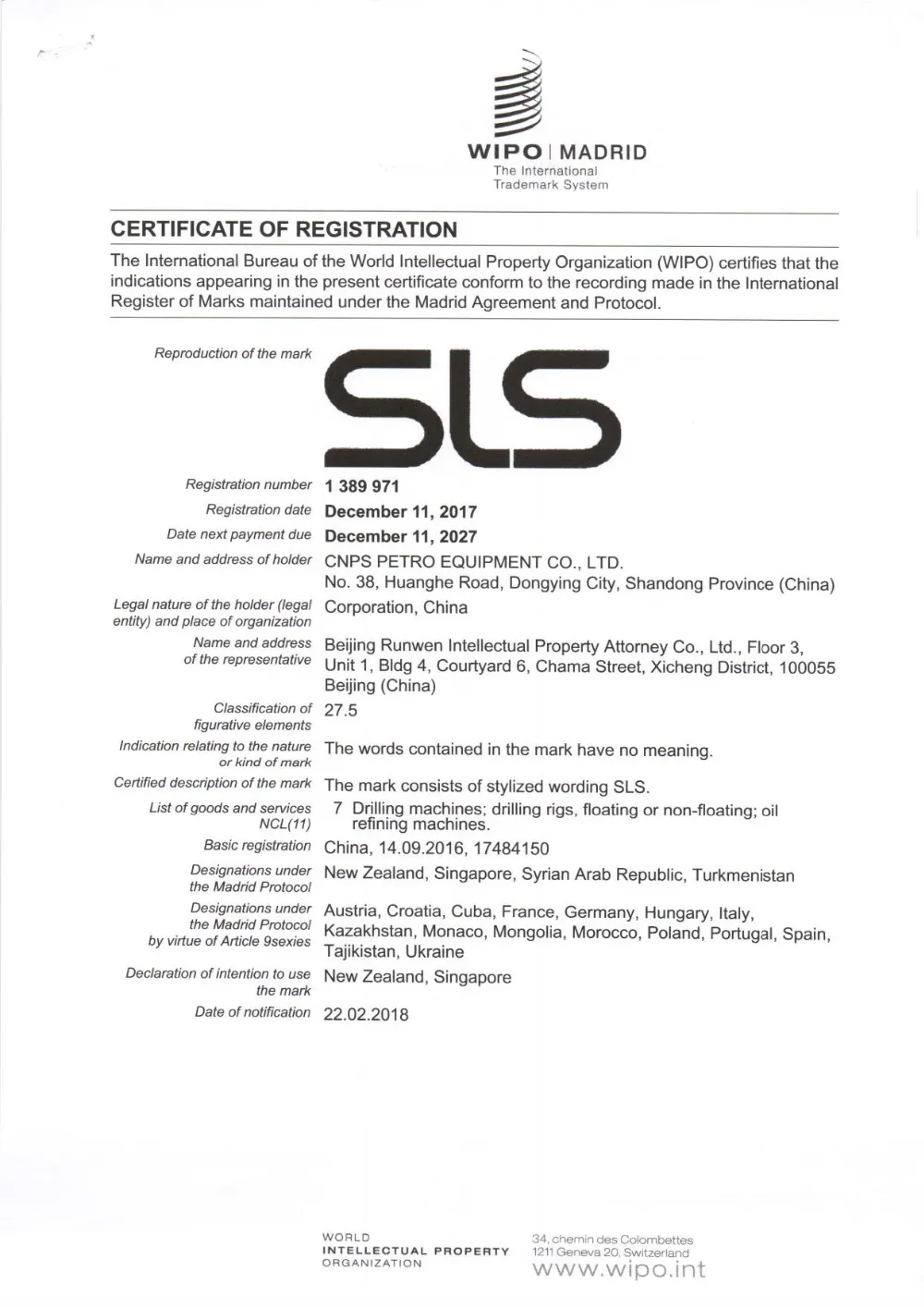

Certifications

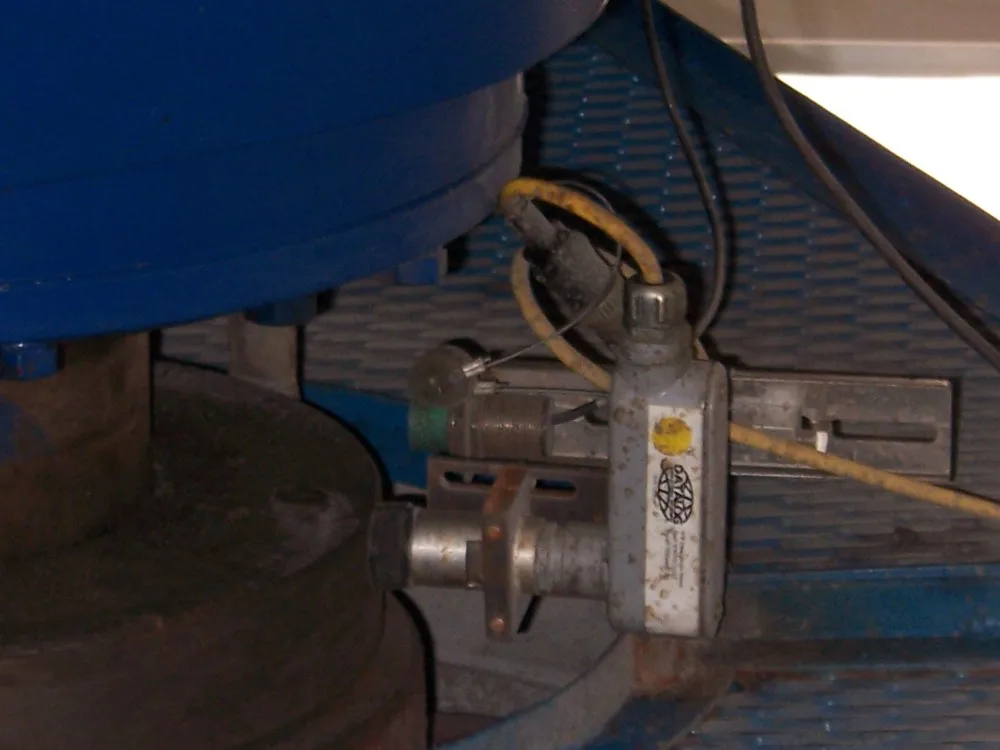

Installation

Note:

1.The pumping sensor can be fixed to the mud pump head by the bracket, or the appropriate part of the turntable, and the closest distance between the position of the sensing surface of the measured object and the end surface of the sensor is within 30 mm. (According to the influence of the use environment, the rated working distance is generally taken. 80%), plus the working voltage, when the end of the inductive sports sensor is close, the indicator light is on; when away from the sensor, the indicator is off.

2.The turntable speed sensor can be fixed to the appropriate part of the drive shaft of the turntable with the bracket. It should be convenient to install and repair. The model of the drill is selected. A piece of iron with a length and width of 30mm is welded on the shaft of the drive shaft or the airbag clutch. The position of the end face should be close to the end face of the sensor. Adjust the fixing nut of the sensor so that the distance between the iron sensor is within the effective range of the working distance.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Free fixing during warranty.

* Reply within 24 hours

Packing & Delivery
Packaging
Size
25 (L) * 8 (W) * 8(D) cm
Weight
1kg



Packaging Details


we will use paper box for packing or pack it according to customers special request
FAQ

1. Why do you choose our company?

We are trading company, founded a perfect oil and gas equipment product supply chain. We have worked in the oil industry for about 10 years(follow ISO9001 standard).We will checked our mill every months to make sure their quality. The after-service are charged by ourselves.So we can reply any problem within 24 hours.

2. How can you guanranty your quality?

Every time we will inspect our factories first. This inspect will include the persons, the present products, their scale etc. If everything is ok, we will start to cooperate. During cooperation, we will go to the factories to test the products to guanranty the products has good quality. If it doesn't meet our requirement, the goods will be refused.

3. Do you have price advantage?

For us, the quality is our first consideration. And the second consideration is the price. We couldn't say we have the lower price, because of quality issue. We need to say we have the best price.

4. How long do you do the export business?

For our sales persons, they have 8-10years experience to do the international business. They understand each step for the export and do good service for each of our clients.
