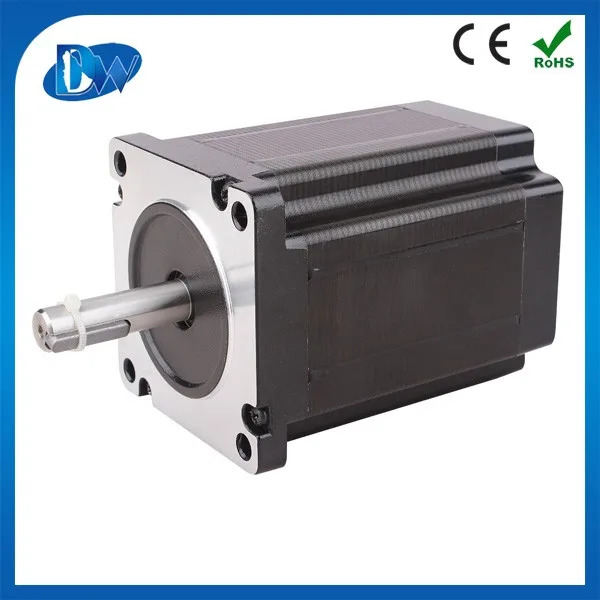

nema 34 3axis 1666 Oz-in cnc kits stepper motor

FOB Reference Price:Get Latest Price
$320.00 - $399.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
DEWO
Model Number:
DW86HS156-5504
Step Angle(degrees):
1.8 Degree
Holding Torque:
1666 Oz-in
Phase:
2
Type:
Hybrid
Current / Phase:
5.5A
Certification:
CCC, CE, ISO, ROHS
Product name:
nema 34 3axis 1666 Oz-in cnc kits stepper motor
Key words:
cnc kit
motor torque:
12nm
Frame size:
86*86*156mm
kit:
3pcs motor,3pcs driver ,3pcs power supply and 1 breakout board
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export packing, cartons
Port
Shanghai
Product Description

Mach 3 cnc kits





Model No.

Step Angle

(°)

Voltage /Phase (V)Current /Phase (A)

Resistance /Phase

(Ω)

Inductance Phase  (mH)Holding Torque (kg.cm)Detent Torque (g.cm.Max)Rotor Inertia (g.cm²)Motor Length (mm)Lead Wires No. Motor Weight (kg)
86HS65-30041.83.331.16.52880010006541.7
86HS68-40041.81.340.331.635100012006841.7
86HS78-40041.81.540.382.535120014007842.3
87HS78-42041.81.94.20.45445120014007842.3
87HS78-60081.83.060.5445120014007882.3
87HS82-45041.81.44.50.322.845130015008242.5
86HS82-56081.82.05.60.35350130015008282.5
86HS100-50041.82.550.54682000210010043.2
86HS100-50081.82.550.54652000210010083.2
86HS118-60041.83.660.66852400270011843.7
86HS118-56081.83.45.60.66852400270015683.7
86HS156-55041.83.95.50.791203600400015645.5
86HS156-62041.83.66.20.7591223600400015685.5



Dimensions:                                                                                              Wiring  Diagram:

(Unit=mm)

 L1 and L2 canbe customized according to customers' requirements.







5 Axis CNC Breakout Board



Features

  • Full support for MACH3, KCAM4, EMC2, and support parallel port to control the host computer software;
  • 5output signal ,can connect 5 stepper motor driver ;
  • 5 input port, Can connect to the limit switch, emergency stop, or other Input devices ,5 input signal indication LED;
  • One relay, it can be used to control spindle start and stop,1 signal indication LED beside relay;
  • Power supply have 2 choice, USB power form computer or an external 5V power supply;
  • Pulse and direction signal shaping,enhanced, data transfer speeds
  • Have 2 kinds connector ,the 4PIN XH connector can connect driver convenient and efficient .



Note: power port 1 and power port 2,Can only choose one, cannot be used at the same time!



Packaging & Shipping

We provide standard packing for products.

Plastic foam will be put in carton boxes.

We deliver our goods by sea, air and courier service.

You may contact us to check the shipping status of your order.



Shipping time, after confirmed the details, usually one week is enough for us to make stepper motor sample. Bulk order delivery time depends on the quantity that you need.

  Except stepper motor , we also supply breakout board, power supply and so on ,pls check following items.



Company Information

Changzhou Dewo Motor Co., Ltd., exporting stepper motors, servo motor,spindle motor,BLDC motor and their driver ,VFD. We spcialize in this field for many years, with the strength of high quality and competitive price in China.

We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!
