polycarbonate sheet industrial greenhouse with shading net

FOB Reference Price:Get Latest Price
  • 400 - 1999
    US $6.34
  • 2000 - 4999
    US $5.70
  • >=5000
    US $5.62
Supply Ability:
50000 Square Meter/Square Meters per Month greenhouse with shading net
Port:
SHANGHAI/QINGDAO
Report Suspicious Activity
Overview
Quick Details
Size:
Small
Type:
Single-Span Agricultural Greenhouses, polycarbonate sheet greenhouse
Cover Material:
Film
Material:
PE
Layer:
Single
Model Number:
HF, SG006-009
Place of Origin:
Henan, China (Mainland)
Brand Name:
Huifa
Frame:
hot galvanized steel pipe with 275g/sqm
Application:
Flower /vegetabltome/ato/cucumber/farming
Length:
Customize
Width:
6-9m
Shouler Height:
1.3(M)
Covering:
PE Film
Optional system:
Cooling System.irrigation System.ventilation.etc
Ventilation:
sides ventilation with roll up machine
Packaging & Delivery
Packaging Details
Packaging Details:
5000m2/20ft container;
10000m2/40ft container
Delivery Detail: Shipped in 7-10 days after payment
Delivery Time
Stocks will be delivered within 7days
Product Description
polycarbonate sheet industrial greenhouse with shading net

1.Hot dip galvanized frame
          This kind of special treated steel has good anticorrosion and antirust effects, which extends the service life of the greenhouse. Special designed structure and accessories make sure the outstanding performance of the greenhouse.
2.High quality covering material
       With the more than 89% light transmission and low cost,the PE is one of the best material to be widely used in the greenhouse.
3.One stop service
         We can offer one stop service for the customer from designing, manufacturing, to testing, installation. All the greenhouse can be fabricated  customized according to customers’ demand and will be professional advice according to our experience.

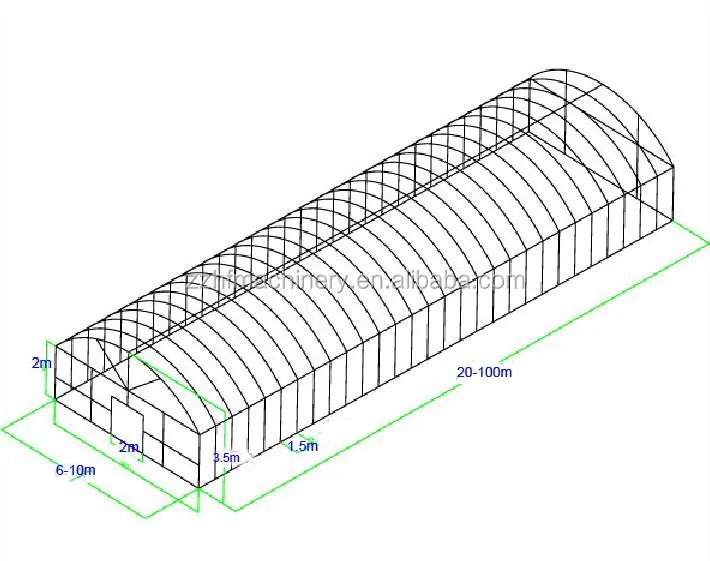

Technical parameter for single sapn greenhouse :

Modle
Width
Length(m)
Distance between 2 archs
Shoulder height
Top height
Pipe Dia
SG008
8m
customize
0.8-1.0m
1.3m
3-3.3m
25/32/48/62mm
for choice
SG007
7m
customize
0.8-1.0m
1.3m
2.7-3m
SG006
6m
customize
0.8-1.0m
1.3m
2.5m
SG009
9m
customize
0.8-1.0m
1.3m
2.5m


Option
Item
ventilitaion system with roll up machine (side or roof ventilation)
Heating system (water, oil, coal heating)
Cooling system (cooling pad and fan)

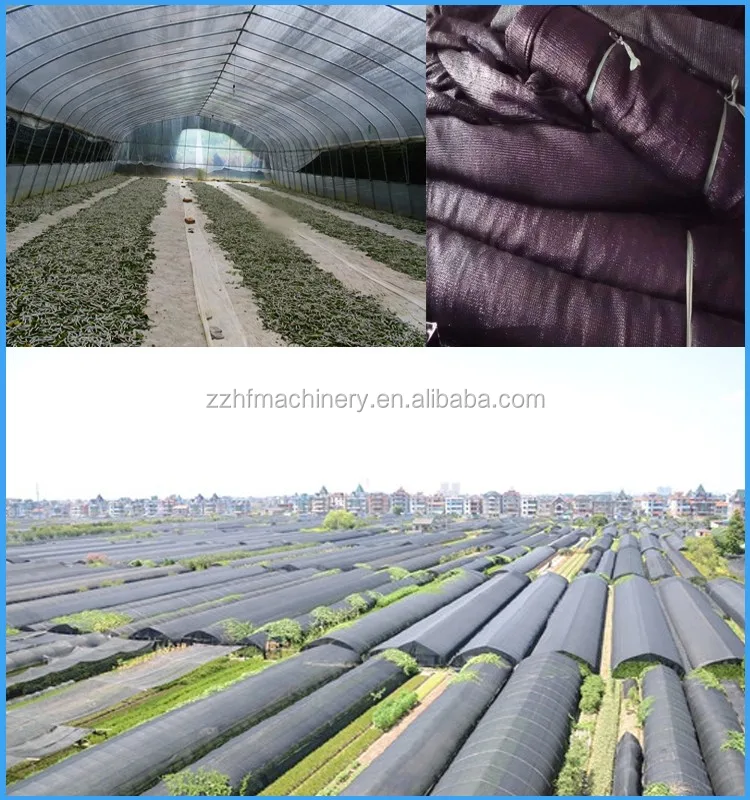

Shading system (inside or outside shading)
Irrigation system (Drip /Micro sprinkler irrigation )
Wind load
0.35KN/m^2
Snow load
0.25KN/m^2
Plants hanging load
0.15KN/m^2
Rainful
140mm/h
Covering film
80-200micro



Detailed Images

Plastic film

Material: PE+EVA
Characteric: Anti-dew and dustproof , Anti-dripping,anti-fog,anti-aging
Thickness:80/ 100/120/130/140/150/200micro
Light transmission:>89%
Diffusion:53%
Temperature range: -40 to 60C
UV transmission:300-390%

Frame material:

1.The main framework designed to meet the "GB50017- 2003Steel Design Code";
2.The steel material meets the "GB700-88carbon steel";
3.Hot dip galvanizing layer steel products technical requirements hot galvanization ,smooth surface,zinc coating thinkness>70um

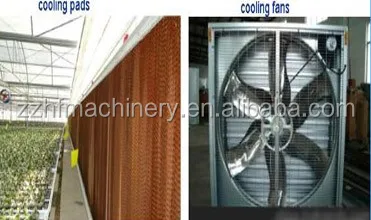

Cooling System


 1380×1380x400mm Stainless steel blade Fan flow:40000m3/h 380V,1100W 4sets for 1sets 36x16m greenhouse


Ventilation

Sides Vent: The greenhouse 2 sides can be roll up & down by manual roll up machine, 40mesh insect net will be offered for vents
Top vent :customized


Our Service

Pre-Sales Service

1.OEM&ODM is welcome.
2.Customization according to your need .
3. Overseas technical support is available.
4.Necessary test and certification can be obtained
as your request.

After-Sales Service

1.We provide installation and spare parts at any time
2.The whole machine is 1 year guarantee.
3.Engineer overseas service available,to guide installation, testing, training customer’s worker;
4.English version use manual, video, spare parts deliver together with goods;

What we need to know to design a solution
1.Max wind speed:
2.Max temperature and average temperature in summer:
3.Min temperature and average temperature in winter:
4.Temperature you want to maintain inside the greenhouse:
5.Plants you want to grow:
6.Grow the plants on the ground or by hydroponic system:
7.How many square meter or square feet of greenhouse you want to build:
8.Your AC or DC power Voltage, Hz and phrase:

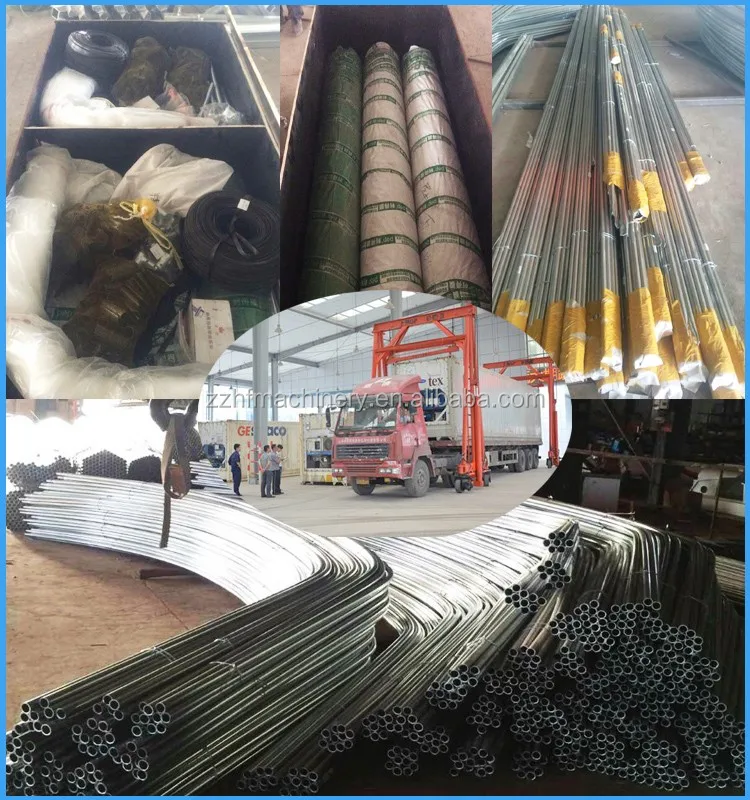

Packing & Delivery
Our Company


Zhengzhou Huifa Machinery Co.Ltd is located in central China.provincial capital Zhengzhou,and covering the area of 11000 square meters.After 8 years of development,Huifa has grown from a small factory to a competitive factory in the field of greenhouse researching and production.
We based on the spirit of "reputation first ,customer first"principle,adhere steady and long-term operation development,at the same time,by virtue of strong talent resources,strict production management to provide you with good quality ,competitive price greenhouse products.
Our greenhouse has been exported to :
America: America,Canada,Mexico,Guatemala,Peru,Brazil,Chile,Bolivia,Paraguay.etc,.
Africa: Zimbabwe,Zambia,Angola,Mozambique,Botswana,Kenya,Tanzania,Senegal.etc.
Asia:Philippines,Thailand,Indonesia,India,Turkey,Uzbekistan,Yemen.etc,.
Oceania:Australia,French Polynesia
Europe:Norway,Moldova,Bulgaria,Serbia,Portugal

FAQ

1.Can you give me a preferential price?
It depends on the quantity of your order.More quantity,better price.
2.How can you ensure the legality and security during transaction?
We are a member of Alibaba Trade Assurance which is safeguarding buyer's payment to supplier to ensusre supplier fullfill their abligations regarding delivery and product quality.
3.How about packaging and shipping?
The goods are loaded into container car in the factory .Usually the port is Qingdao/Shanghai.
4.How to ensure the quality of the products ?
Before delivery,our inspection department will examine and test the products thoroughly and carefully. Necessary test and certification can be obtained as your request.
5.How do I install the structure or is your company coming to install it?
It is easy to install,We send install video together with greenhouse in container.Or welcome visiting our factory.We will guide you how to install it in our factory.
6.How many people and days will take to install greenhouse in one 20ft container?
6person/set,2-3 days / set.
