pool heater solar collectors

FOB Price: US $50 - 490 / Set Get Latest Price
Min.Order Quantity: 1 Set/Sets
Supply Ability: 3000 Set/Sets per Month
Port: Shanghai
Payment Terms: L/C,T/T
Add to My Favorites

Quick Details

Place of Origin:
Zhejiang China (Mainland)
Brand Name:
Sunwe/OEM
Model Number:
C01
Type:
Vacuum Solar Collector
Application:
Solar Thermal
Pipe Material:
Evacuated Vacuum Tube
Solar Collector Certificate:
Solar keymark
Solar collector type:
Heat pipe solar collector
Solar collector tube:
10 to 35 available
Solar collector standard:
En12975 certified

Packaging & Delivery

Packaging Detail: Cartons or according to customer requirement
Delivery Detail: 7 to 10days

Specifications

solar keymark collector
1) Certificate: Solar keymark & SRCC
2) Anti-freeze Max. Minus 50
3) 10 years warranty



Type

C01-10

C01-15

C01-20

C01-25

C01-30

C01-15B

C01-30B

Number of tubes

10

15

20

25

30

15

30

Gross area (m²)

1.63

2.40

3.17

3.93

4.70

1.33

2.42

Aperture area (m²)

0.94

1.41

1.88

2.35

2.82

0.63

1.30

Absorber area (m²)

0.805

1.24

1.65

2.06

2.48

0.54

1.08

Peak power (W / Collector)

659

900

1199

1499

1799

450

900

Allowable operating pressure (bar)

6

6

6

6

6

6

6

Test pressure (bar)

10

10

10

10

10

10

10

Max. stagnation temperature

232°C

200°C

200°C

200°C

200°C

200°C

200°C

Max. operating temperature

95°C

95°C

95°C

95°C

95°C

95°C

95°C

Flow rate (l / m2h)

50-150

50-150

50-150

50-150

50-150

50-150

50-150

Absorber material

CU/AI/SS/N2 Borosilicate glass

Coating

ALN/SS-ALN/CU

Absorption coefficient

 94%

 94%

 94%

 94%

 94%

 94%

 94%

Emission coefficient

 7%

 7%

 7%

 7%

 7%

 7%

 7%

Weight (kg)

36.4

55

77

96

116

32

65

Liquid content

0.62L

0.93L

1.24L

1.55L

1.82L

0.93L

1.82L

Mounting angle

15 - 75°

15 - 75°

15 - 75°

15 - 75°

15 - 75°

15 - 75°

15 - 75°

Frame

2mm Aluminum Alloy

Heat pipe

8mm red copper

Long-term stable vacuum (Pa)

<5*10-3

<5*10-3

<5*10-3

<5*10-3

<5*10-3

<5*10-3

<5*10-3

Glass tube diameter

58mm

58mm

58mm

58mm

58mm

58mm

58mm

Vacuum tube wall thickness

1.6mm

1.6mm

1.6mm

1.6mm

1.6mm

1.6mm

1.6mm

Insulation

Compressed Rockwool

Collector width

800mm

1175mm

1550mm

1925mm

2300mm

1175mm

2300mm

Collector length

2043mm

1200mm

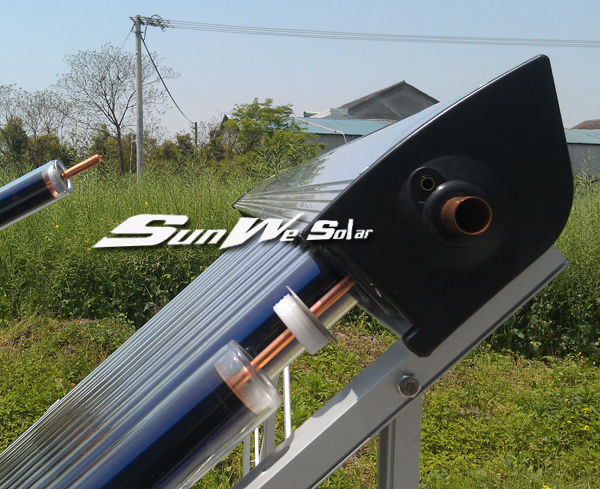

Manifold

38mm red copper

Tube length

1800mm

850mm

Pressure drop

<5mbar(80L/h), 12mbar (150L/h)







solar keymark EN12975 srcc OG100 certified 58/1800 evacuated vacuum tube heat pipe pressurized solar hot water collector

solar thermal collector is a solar hot water collector designed to collect heat by absorbing sunlight. The term is applied to solar hot water panels, but may also be used to denote more complex installations such as solar parabolic, solar trough and solar towers or simpler installations such as solar air heat. The more complex collectors are generally used in solar power plants where solar heat is used to generate electricity by heating water to produce steam which drives a turbine connected to an electrical generator. The simpler collectors are typically used for supplemental space heating in residential and commercial buildings. A collector is a device for converting the energy in solar radiation into a more usable or storable form. The energy in sunlight is in the form of electromagnetic radiation from the infrared (long) to the ultraviolet (short) wavelengths. The solar energy striking the Earth's surface depends on weather conditions, as well as location and orientation of the surface, but overall, it averages about 1,000 watts per square meter under clear skies with the surface directly perpendicular to the sun's rays.

The Sunwe Solar Collector or Solar Water Heater is a device that absorbs thermal energy from the sun and converts it into usable heat. The heat is normally absorbed by water, or a freeze resistant water mix, which can then be used to supplement hot water heating, space heating and even space cooling via use of an absorption chiller or dessicant cooler technology.



FAQ

QuestionWhat is solar water heater?
AnswerSolar water heater or solar hot water systems comprise several innovations and many mature renewable energy technologies that have been well established for many years. Solar water heater has been widely used in Australia, Austria, China, Cyprus, Greece,
QuestionWhat is the Collector?
AnswerCollector - A solar collector is not really a solar water heater. A solar water heater is a system which may include a tank, pump, controller and solar collector panel. A solar collector is that part of the system which absorbs the sun's energy and converts it into heat.
QuestionHow is the Solar Collector Efficiency measured?
AnswerEfficiency: Solar collector efficiency is usually expressed as a percentage value, or in a performance graph. When assessing a collector's performance make sure it is based on the correct surface area values. Eg. If performance values are based on gross area, then the gross area must be used when determining total heat output. IAM values have a significant influence on actual heat output throughout the day, and should be considered. Looking at just the percentage efficiency value will not give a true indication of daily heat output.
QuestionWhat is a heat-pipe?
AnswerHeat Pipe: An evacuated rod or pipe used for heat transfer.
QuestionWhat is Insolation?
AnswerInsolation: Don't confuse this with insulation - the one letter change makes a big difference. Insolation refers to the amount of sunlight falling on the earth.
QuestionWhat is Insulation?
AnswerInsulation: The ability to protect against transfer of heat/cold. Solar collectors use compressed glass wool or polyurethane insulation to insulate the header from heat loss. Glass wool has excellent insulation properties, is very light and can withstand high temperatures, making it an ideal choice for a solar collector. It is made from a least 80% old glass bottles and can be recycled so is very environmentally friendly.
QuestionWhat is Irradance?
AnswerIrridance, Irridation: Basically the same as Insolation
QuestionWhat is IAM?
AnswerIncidence Angle Modifier (IAM): refers to the change in performance as the sun's angle in relation to the collector surface changes. Perpendicular to the collector (usually midday) is expressed as 0', with negative and positive angles in the morning and afternoon respectively. Collectors with a flat absorber surface, only have 100% efficiency at midday (0'), whereas solar tubes provide peak efficiency mid morning and mid afternoon, at around 40' from perpendicular. This results in good stable heat output for most of the day. What is the Aperture? The part of the collector through which light enters. For evacuated tubes this refers to the cross-sectional surface area of the outer clear glass tube measured using the internal diameter, not the outside diameter.(Eg. 0.0548m x 1.72m = 0.094m2). 1.72m is the exposed length of the evacuated tube.
QuestionWhat is Absorber?
AnswerAbsorber: The part of the collector that actively absorbs the light rays. For solar tubes this is defined as the cross-sectional area of the inner tube (selective coated) measured using the outside diameter. (Eg. 0.047 x 1.72m = 0.08m2) This value is used when calculating efficiency values. For solar tube collectors with reflective panels, the entire circumferential surface area of the inner tube is often used when calculating absorber area, as the reflective panel is supposed to reflect light onto underside of the evacuated tube.
QuestionAre Vacuum Tube Collectors Better than Flat Plate?
AnswerFlat plate thermal solar collectors have been in use for several decades, but only in relatively small numbers, particularly in Western countries. Evacuated tubes have also been in use for more than 20 years, but have been much more expensive than flat plate, and therefore only chosen for high temperature applications or by those with money.In recent years the production volume of evacuated tubes has exploded, resulting in greatly lower manufacturing and material costs. The result is that evacuated tubes are now similar in price to flat plate, but with the insulating benefits of the evacuated tube, they are set to become the default choice for thermal solar applications worldwide.
QuestionIs solar water heating a viable alternative to gas or electricity?
AnswerSolar should not be seen as an alternative to gas or electricity, but rather a supplement. Solar cannot totally replace the need for gas or electric heating as there are sometimes days when there is little sunlight. When averaged over a year, a correctly sized solar system can provide 60%-70% of a household's hot water needs. Providing more than this is unadvisable, as too much heat will be produced in the summer. The hot water system can easily be automated, so hot water is guaranteed regardless of sunlight levels.
QuestionHow long will it take to recoup my investment?
AnswerSolar collectors are much more affordable than many other solar hot water heaters. For a household of 4, the price of a full system may not be too much more than a new electric or gas system. Depending on your location (solar levels) and current hot water usage the annual electricity or gas saving will differ. However in a normal household that spends 25% of its electricity bill on hot water heating, the full cost of the purchase may be recouped as quickly as 4-5 years in reduced bills. You will definitely make considerable savings during the life of the solar hot water heater.
QuestionCan solar collectors be used in cold conditions?
AnswerYes. collectors can be used in temperatures as low as -30'C, although performance is greatly reduced in such extreme conditions. Good heat output is still achieved in mild sub-zero conditions.
QuestionWhat is Flow Rate?
AnswerFlow Rate: The volume of water flowing through plumbing in a given period of time. Usually measured in volume/minute or volume/hour. 1 Litre/min
QuestionWhat is the gross area of a solar collector?
AnswerThe total surface area of the collector including the frame, manifold and absorber. This area is often used when comparing collectors, but a better comparison to use is value for money. Roof size is not usually a limiting factor for domestic solar water heating installations, so the size of the collector is not really that important.
QuestionWhat happens if one of the solar tubes is broken?
AnswerFirstly, tubes are very strong and not easily broken, but if the worst should happen, solar tubes can be replaced very easily. They are inexpensive and available though The Solar Shop. The solar collectors can operate with several broken tubes, but the efficiency will be reduced, so it is recommended that broken tubes be replaced immediately.
QuestionWill water be heated on a cloudy day?
AnswerAlthough the heat output of the solar collector is reduced on overcast days, it will still be able to provide heating. If it is a heavily clouded day or raining, then more gas or electric boosting may be required to maintain water at the required temperature. This system will be automated so you don't have to worry about running out of hot water on a rainy day.
QuestionCan I use a solar collector with my existing hot water system?
AnswerNormally yes. But it depends on your existing system.
QuestionAre the solar collectors noticeable on the roof?
AnswerIf only the collector is mounted on the roof it should blend into the roof design quite well. Our solar collectors are very thin and can be flush mounted on a roof. From a distance they look somewhat like a skylight. You may have to check with your local council regarding building restrictions when installing your solar collector. Can solar collectors be mounted on a flat surface
QuestionWhat is the benefits of solar water heating?
AnswerHot water throughout the year: the system works all year round, though you'll need to heat the water further with a boiler or immersion heater during the winter months. Cut your bills: sunlight is free, so once you've paid for the initial installation your hot water costs will be reduced. Cut your carbon footprint: solar hot water is a green, renewable heating system and can reduce your carbon dioxide emissions.
QuestionWhat is solar water heaters?
AnswerSolar water heaters—also called solar domestic hot water systems—can be a cost-effective way to generate hot water for your home. They can be used in any climate, and the fuel they use—sunshine—is free.
QuestionWhat is indirect or closed loop solar water heater systems?
AnswerIndirect or closed loop solar water heater systems use a heat exchanger that separates the potable water from the fluid, known as the "heat-transfer fluid" (HTF), that circulates through the collector. The two most common HTFs are water and an antifreeze/water mix that typically uses non-toxic propylene glycol. After being heated in the panels, the HTF travels to the heat exchanger, where its heat is transferred to the potable water. Though slightly more expensive, indirect systems offer freeze protection and typically offer overheat protection as well
QuestionOverheat protection?
AnswerWhen no hot water has been used for a day or two, the fluid in the collectors and storage can reach very high temperatures in all systems except for those of the drainback variety. When the storage tank in a drainback system reaches its desired temperature, the pumps are shut off, putting an end to the heating process and thus preventing the storage tank from overheating. One method of providing over heat protection is to dump the heat into a hot tub. Some active systems deliberately cool the water in the storage tank by circulating hot water through the collector at times when there is little sunlight or at night, causing increased heat loss. This is particularly ineffective in systems that use evacuated tube collectors, due to their superior insulation. No matter the collector type, however, they can still overheat and ultimately rely on the operation of temperature and pressure relief valves.
QuestionFreeze protection?
AnswerFreeze protection measures prevent damage to the system due to the expansion of freezing transfer fluid. Drainback systems drain the transfer fluid from the system when the pump stops. Many indirect systems use antifreeze (e.g. propylene glycol) in the heat transfer fluid. In some direct systems, the collectors can be manually drained when freezing is expected. This approach is common in climates where freezing temperatures do not occur often, but is somewhat unreliable since the operator can forget to drain the system. Other direct systems use freeze-tolerant collectors made with flexible polymers such as silicone rubber
QuestionTypes of solar water heating systems?
AnswerSolar water heaters can be either active or passive.[disambiguation needed ] An active system uses an electric pump to circulate the heat-transfer fluid; a passive system has no pump. The amount of hot water a solar water heater produces depends on the type and size of the system, the amount of sun available at the site, proper installation, and the tilt angle and orientation of the collectors. Solar water heaters are also characterized as open loop (also called "direct") or closed loop (also called "indirect"). An open-loop system circulates household (potable) water through the collector. A closed-loop system uses a heat-transfer fluid (water or diluted antifreeze, for example) to collect heat and a heat exchanger to transfer the heat to household water.
QuestionTypes of solar water heating systems?
AnswerSolar water heaters can be either active or passive.[disambiguation needed ] An active system uses an electric pump to circulate the heat-transfer fluid; a passive system has no pump. The amount of hot water a solar water heater produces depends on the type and size of the system, the amount of sun available at the site, proper installation, and the tilt angle and orientation of the collectors. Solar water heaters are also characterized as open loop (also called "direct") or closed loop (also called "indirect"). An open-loop system circulates household (potable) water through the collector. A closed-loop system uses a heat-transfer fluid (water or diluted antifreeze, for example) to collect heat and a heat exchanger to transfer the heat to household water.
QuestionSolar water heating?
AnswerSolar water heating (SWH) or solar hot water (SHW) systems comprise several innovations and many mature renewable energy technologies that have been well established for many years. SWH has been widely used in Greece, Turkey, Israel, Australia, Japan, Austria and China. In a "close-coupled" SWH system the storage tank is horizontally mounted immediately above the solar collectors on the roof. No pumping is required as the hot water naturally rises into the tank through thermosiphon flow. In a "pump-circulated" system the storage tank is ground or floor mounted and is below the level of the collectors; a circulating pump moves water or heat transfer fluid between the tank and the collectors. SWH systems are designed to deliver hot water for most of the year. However, in winter there sometimes may not be sufficient solar heat gain to deliver sufficient hot water. In this case a gas or electric booster is normally used to heat the water.
QuestionEvacuated tube collectors?
AnswerMost (if not all) vacuum tube collectors use heat pipes for their core instead of passing liquid directly through them. Evacuated heat pipe tubes (EHPTs) are composed of multiple evacuated glass tubes each containing an absorber plate fused to a heat pipe.[4] The heat from the hot end of the heat pipes is transferred to the transfer fluid (water or an antifreeze mix—typically propylene glycol) of a domestic hot water or hydronic space heating system in a heat exchanger called a "manifold". The manifold is wrapped in insulation and covered by a sheet metal or plastic case to protect it from the elements. The vacuum that surrounds the outside of the tube greatly reduces convection and conduction heat loss to the outside, therefore achieving greater efficiency than flat-plate collectors, especially in colder conditions. This advantage is largely lost in warmer climates, except in those cases where very hot water is desirable, for example commercial process water. The high temperatures that can occur may require special system design to avoid or mitigate overheating conditions. Glass-glass evacuated tube Some evacuated tubes (glass-metal) are made with one layer of glass that fuses to the heat pipe at the upper end and encloses the heat pipe and absorber in the vacuum. Others (glass-glass) are made with a double layer of glass fused together at one or both ends with a vacuum between the layers (like a vacuum bottle or flask) with the absorber and heat pipe contained at normal atmospheric pressure. Glass-glass tubes have a highly reliable vacuum seal but the two layers of glass reduce the light that reaches the absorber and there is some possibility that moisture will enter the non-evacuated area of the tube and cause absorber corrosion. Glass-metal tubes allow more light to reach the absorber and protect the absorber and heat pipe (contained in the vacuum) from corrosion even if they are made from dissimilar materials (see galvanic corrosion). The gaps between the tubes may allow for snow to fall through the collector, minimizing the loss of production in some snowy conditions, though the lack of radiated heat from the tubes can also prevent effective shedding of accumulated snow
Questionypes of solar collectors for heat?
AnswerSolar collectors fall into two general categories: non-concentrating and concentrating. In the non-concentrating type, the collector area (i.e. the area that intercepts the solar radiation) is the same as the absorber area (i.e., the area absorbing the radiation). In these types the whole solar panel absorbs the light. Flat plate and evacuated tube solar collectors are used to collect heat for space heating, domestic hot water or cooling with an absorption chiller.
QuestionWhat is Solar Thermal Collector?
AnswerA solar thermal collector is a solar collector designed to collect heat by absorbing sunlight. The term is applied to solar hot water panels, but may also be used to denote more complex installations such as solar parabolic, solar trough and solar towers or simpler installations such as solar air heat. The more complex collectors are generally used in solar power plants where solar heat is used to generate electricity by heating water to produce steam which drives a turbine connected to an electrical generator. The simpler collectors are typically used for supplemental space heating in residential and commercial buildings. A collector is a device for converting the energy in solar radiation into a more usable or storable form. The energy in sunlight is in the form of electromagnetic radiation from the infrared (long) to the ultraviolet (short) wavelengths. The solar energy striking the Earth's surface depends on weather conditions, as well as location and orientation of the surface, but overall, it averages about 1,000 watts per square meter under clear skies with the surface directly perpendicular to the sun's rays.
QuestionSolar Thermal Introduction?
AnswerSolar thermal systems are based on a simple principle known for centuries: the sun heats up water contained in a dark vessel. Solar thermal technologies are efficient and highly reliable, providing solar energy for a wide range of applications like domestic hot water and space heating in residential and commercial buildings, support to district heating, solar assisted cooling, industrial process heat, desalination and swimming pools.
QuestionSolar Domestic Hot Water and Space Heating
AnswerEven the simplest solar thermal systems can provide a large part of the domestic hot water needs. With some more initial investment, 100% of the hot water demand and a substantial share of the space heating needs can be covered with solar energy. Natural flow systems work without any need for pumps or control stations. They are widely used in Southern Europe. Forced circulation systems are more complex and can cover also space heating. They are more and more common in Central and Northern Europe.

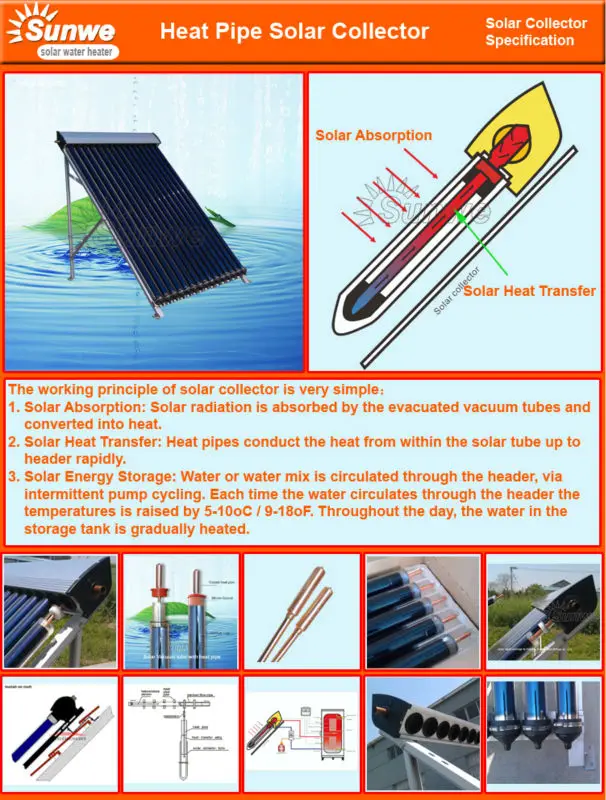

The working principle of solar collector is very simple.
1. Solar Absorption: Solar radiation is absorbed by the evacuated vacuum tubes and converted into heat.

2. Solar Heat Transfer: Heat pipes conduct the heat from within the solar tube up to header.
3. Solar Energy Storage: Water or water mix is circulated through the header, via intermittent pump cycling. Each time the water circulates through the header the temperatures is raised by 5-10oC / 9-18oF. Throughout the day, the water in the storage tank is gradually heated.
