powdery vibratory screening separator hemp seed sifter sieve

FOB Reference Price:Get Latest Price
$1,850.00 - $3,100.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SY400 SY600 SY800 SY1000 SY1200 SY1500 SY1800
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Circular
Application:
Food Processing
Place of Origin:
Henan, China
Brand Name:
sanyuantang
Voltage:
220V/380V/415V/450V
Power(W):
1.1kw
Dimension(L*W*H):
diameter 1500*900mm
Weight:
230kg
Certification:
CE / ISO9001:2008
Warranty:
1 year
Name:
powdery vibratory screening separator hemp seed sifter sieve
The alias:
vibratory screening separator
Material:
Carbon steel / 304 stainless steel
Keyword:
vibrating sifter
Function:
Separater/grading/sorting/removing impurities
deck:
1-5 decks
Motor:
YZUL5-4 Vertical Vibrating Motor
Screen mesh:
4-500 mesh
Usage:
Fine Particles Grading
Capacity:
0.5-8t/h
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
85 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Port
Shanghai,Qingdao
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 7 To be negotiated

powdery vibratory screening separator hemp seed sifter sieve

Vibratory sieve shaker machine adopt new type dynamic generator,making three dimension powers more obviously and successfully, making the scale of processed materials enlarged.

Accordingly this makes vibratory screen capable of processing various kinds of materials.

Product Description

Best price vibrating screen / sieve / sifter machine specifiction:

Model

SY-400, SY-600, SY-800, SY-1000, SY-1200, SY-1500, SY-1800

Diameter

400mm,600mm,800mm,1000mm,1200mm,1500mm,1800mm

Layer

1~5 layers

Mesh

2~500 mesh

Material:

Stainless steel 304,316L,carbon steel,plastic

Feature:

Dust-proof, oil-proof, heat-proof,Low carbon, energy-saving, environmental

Using Range:

Powder, granulas,liquid

Cleaning screen device:

Bouncing bal,brush,ultrasonic system

Voltage:

3 phase, 380V, 50HZ or
3 phase, 415V, 50HZ or other.(Customized)

Power:

0.25kw,0.55kw, 0.75kw, 1.1kw, 1.5kw,2.2kw,3.0kw

Screening ratio

≥95%

Warranty:

12 months

Standard models and parameters

ModelScreen DeckScreen DiameterMotor PowerDimensions(mm)Weight
SY-4001400mm0.25KW580×580×56055kg
2400mm580×580×67065kg
3400mm580×580×78075kg
SY-6001600mm0.55KW800×800×75098kg
2600mm4575×1546×890118kg
3600mm4854×1549×1030138kg
SY-8001800mm0.75KW900×900×750158kg
2800mm4765×2159×890196kg
3800mm4765×2159×1030238kg
SY-100011000mm1.47KW1160×1160×810245kg
21000mm1160×1160×950305kg
31000mm1160×1160×1090365kg
SY-120011200mm1.84KW1360×1360×885330kg
21200mm1360×1360×1050408kg
31200mm1360×1360×1275488kg
SY-150011500mm2.2KW1850×1850×990478kg
21500mm1850×1850×1185578kg
31500mm1850×1850×1380678kg
1. Which industry can use vibrating sieve machine?
2. Which material can be separator by vibrating sieve machine?
All kinds of power, particle, liquid could be separate by size.

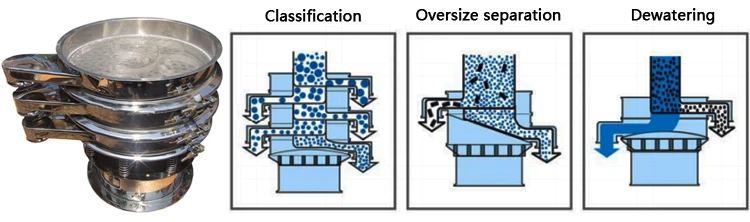

3. What is vibro screen machine effect?
Classification by size, separator over size impurity, remove the solid from liquid.
4,What is the answer to difficult-to-screen materials? (Sticky, easy to reunion, static)

Bouncing ball clearing device:Bouncing ball is the most common clearing device. Its shape is round, the material can be divided into two kinds of rubber material and silicone material. Its working principle is evenly distributed on the board.The vibrating screen machine in the vibrating at the same time bouncing the ball also will jump to hit the screen, so as to play the purpose of clear network.Bouncing ball clearing device is the most common type of rotary vibration screen.

Rotary brush cleaning device: Rotary brush cleaning device is composed of cylindrical silica gel, the rotary brush installed in the center of the screen frame, a coupling connected to start the screen when the machine rotation The brush starts at the same time, thus cleaning the screen at the bottom of the screen frame. The device commonly used models for the vibrating screen.

Ultrasonic cleaning device: The device is the use of ultrasonic vibration on the screen cleaning sieve work. Its main components are ultrasonic power supply, transducer and ultrasonic grid. Its principle is through the ultrasonic power will be converted to conventional high-frequency electrical power, through the role of the transducer in the grid, In order to solve the high fine material cleaning and efficient screening work. The device is mostly used in ultrasonic vibration sieve, also can be modified as needed for linear vibrating screen or swing sieve.

Photos

Do you have some customer sites?

Yes, we have so much successful customer sites can be view if you are interested in.

Company Information

      Xinxiang Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise.Our company is located in XINXIANG CITY HENAN PROVINCE CHINA, We are one of leading manufacturer who specialize.
        At present, the main range of products include kinds of series of Vibrating Sieve/Screen, Conveyors ,Honey Processing Machine,etc.
        We have advanced manufacture equipment, abundant technology power, complete testing measures, strict management system and favorable corporation credit-standing.

Our Services

Pre-sale serices:
1,Selecting equipment type;
2,Designing and fabricating the products in accordance with the special requirements of the clients;
3,Training technical personnel for our clients;
4,Providing technology consultations or working out proper construction schemes for those new,special or difficult projects.

Services provided during the sale;
Respect our clients;present the clients with ease,relaxation and a surprise;devote ourselves to improve the total value of our clients.
1,Checking products acceptance ahead of delivery;
2,Introducing the service systerm to our clients.

After-sale services;
Improve the added value of our products,and let the clients free from the using troubles;
1,Assisting the clients preparing for the first construction scheme;
2,Installing and testing the equipment;
3,Training the first-line operators on site.

Related suggestion



FAQ
1,What is the material you want to sieve? (Could you send us some pictures)
For example: flour powder.

2,How about the features of your material?(Like moisture and bulk density)
Like: 1%-10%; 1.25g/cm3

3,What's the mesh size (material/particle size) you need?
Answer:80 mesh(0.18mm), 100mesh(0.15mm)

4,How much the capacity (kg/h) you want?
Like: 600-800kg/h.
