price 330 watt solar panel 320 330w modules

$0.21 / Watt | 10000 Watts (1 lot) (Min. Order)
1 batch = 10000 Watts
Material:
Polycrystalline Silicon
Max. Power:
320 325 330 335 340
Number of Cells:
72
$0.21
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 10000 Watts)
Customized packaging (Min. Order: 10000 Watts)

More

Graphic customization (Min. Order: 10000 Watts) Less
Samples: $0.23 /Watt, 1 Watt (Min. Order): Buy Samples
Contact Supplier
Samples - $0.23 /Watt, 1 Watt (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Brand Name:
LUXEN
Model Number:
LNSF-POLY
Size:
1956*992*40
Product name:
Polycrystalline solar panles
Certificate:
TUV
Solar cell:
156.75*156.75mm
Application:
Solar Power System
Junction Box:
IP 68 Rated
Warranty:
25 Years Output Power Guarantee
Type:
Poly Solar Panel, Standard Solar Panel
Connector:
MC4 Compatible Connector
Frame:
Anodized Aluminium Alloy
Front Glass:
Glass 3.2mm tempered

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X50 cm
Single gross weight:
68.0 kg
Package Type:
Good Packing
Picture Example:
package-img
package-img
Lead Time :
Quantity(Watts) 1 - 10000 >10000
Est. Time(days) 15 To be negotiated
Video Description



LUXEN polycrystalline 72 cells solar panel PV module

PV Module.jpg




Parameters

Electrical Characteristics 72 cells of Solar Panel



 LNSF-320PLNSF-325P  LNSF-330PLNSF-335PLNSF-340P
 Maximum Power (Pmax)320W 325W 330W  335W  340W
Open Circuit Voltage (Voc)45.7V 46.03V46.36V 46.68V 47.00W
Short Circuit Current (Isc)0.17A9.23A9.30A9.36A9.43A
Voltage at Maximum Power (Vmpp)36.95V37.19V37.39V37.59V37.79A
Current at Maximum Power (Impp)8.66A8.74A8.83A8.91A9.00A
Module  Efficiency16.49%16.75%17.01%17.26%17.52%

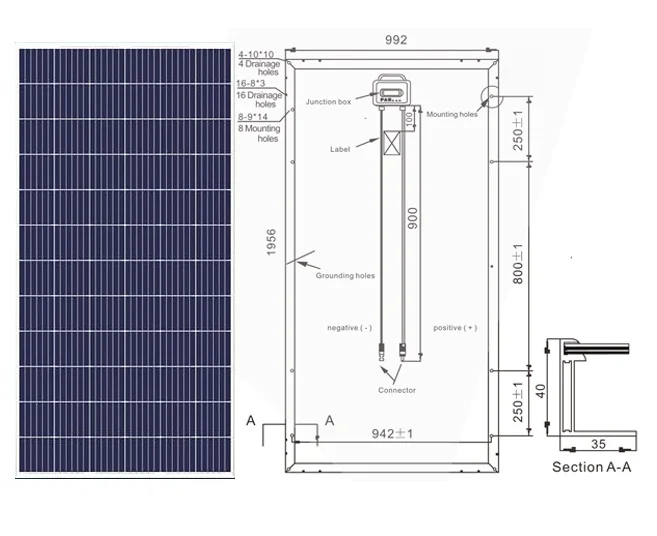

Mechanical Characteristics of Mono Solar Panels



Solar Cell156.75 × 156.75 mm
No. of Cells72 (6 × 12)
Dimensions1956 × 992 × 40mm
Weight23.0 kgs
Front Glass 3.2 mm  tempered glass
Frame Anodized aluminium alloy
Junction Box IP67 / IP68 rated (3 bypass diodes)
Output Cables

4.0 mm2, symmetrical lengths

 (-)    900mm  and (+) 900 mm

ConnectorsMC4 connectable
Mechanical load test5400Pa



Need a price? Please click here.



Product Description

Top Brands of Raw Materials Guarantee The Product Quality

Solar Cells:

*We use JASOLAR cells, which is the top     brand of solar cells.

*High power efficiency
*Stable performance under weak light         conditions
*PID free treatment upon request

JUNCTION BOX:

*We use QC/XT, which is the top brand of junction box.
*IP 67 protection grade
*High quality diodes for electric safety
*1500V system voltage available

PV modules.jpg


FRAME:

*We use Kaibbao products, which is the top     brand of aluminum material.

*Strong mechanical load resistance up to   5400 Pa
*Anodic oxidation layer resistant to chemical   corrosion
*Silver and black color optional

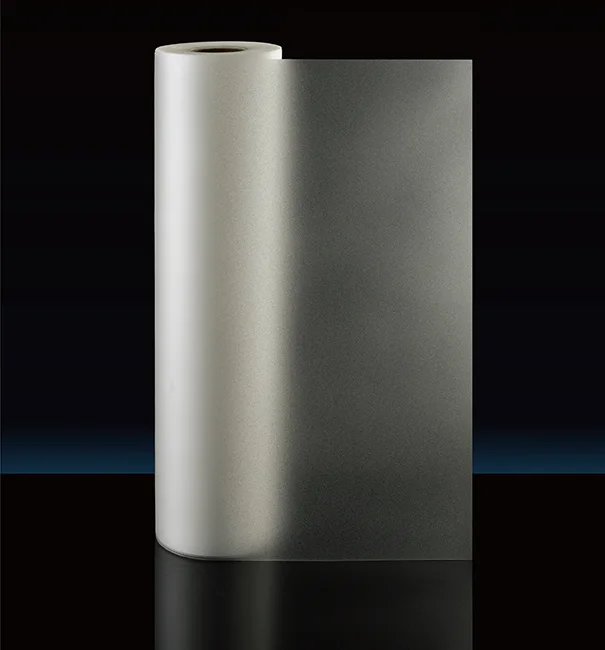

EVA FILM:

*We use First PV brands, which is the top one brand   of EVA material.

*Light transmittance more than 92%
*Snail trail prevention treatment
*UV resistance against ageing

FIRST EVA.png

GLASS:

*We use CSG glass, which is the top brand    of pv module glass.

*Anti-reflective coating to increase the module

  efficiency up to 2%
*Light transmittance improvement above 3%

  Self-cleaning function

BACK SHEET:
*We use Huitian brand, which is the top brand of back
  sheet materials.
*Low moisture permeability against snail trail defect
*Excellent electric insulation for high system voltage up to 1500V
*Outstanding weatherproof performance


Solar Panels.jpg



PV module.jpg
photovoltaic (1).jpgphotovoltaic (2).jpgPV modules.jpg

Packing Configuration

Container 20’ GP40’ GP
Pieces per pallet 2626
Pallets per container1022
Pieces per container260572





FAQ

1. Are you trading company or factory?

We are factory loacted at Suzhou,China. 20 minutes to Shanghai by High-speed rail.



2.How about the quality and price?

We use brand JASOLAR cell to guaranteed quality stability.

And we can negotiate the price depends on the quantity.



3. When can you send the PV module if I order now?

If less than 3*20'GP containers, can be sent in one week.

If more than 3*20GP containers, can be sent in one month.

The shortest delivery time record is in five days with 5*40'HP containers.



4.How to pay?

We accept WesternUnion,TT,HSBC. And we accept  L/C.

If you need other ways, please contact us for sure.
