quanshun 12*3.5inch 1500W 48V 55kph BLDC E-Scooter Hub Motor Kits Power Train with EM50SP controller for electric motorcycle

$244.00 / Piece | 1 Piece (Min. Order)
Voltage(V):
48V-60V
Output Power:
1500w
$244.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
QSMOTOR
Model Number:
BLDC Motor
Usage:
Electric scooter/motorcycle
Certification:
CCC, CE, ISO/TS
Type:
Gearless motor
Torque:
113N.m
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
IP54
Speed(RPM):
670rpm
Continuous Current(A):
31A
Efficiency:
88%
Motor Manufacturer:
Taizhou Quanshun (QS) Motor Co., Ltd.
Design:
Out Rotor In-Wheel Hub Motor
Max. speed:
55kph
Color:
Black,
Feature:
High-Efficiency
Size:
12inch

Packaging & Delivery

Selling Units:
Single item
Single package size:
43X43X34 cm
Single gross weight:
15.0 kg
Package Type:
QS Standard export packing 1. polyfoam + carton box 2. Or according to customer's requirements
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 1 >1
Est. Time(days) 20 To be negotiated

quanshun 12*3.5inch 1500W 48V 55kph BLDC E-Scooter Hub Motor Kits Power Train with EM50SP controller for electric motorcycle



It's QS electric In-Wheel Scooter Hub kits, suit for electric scooter 48V 55km/h.

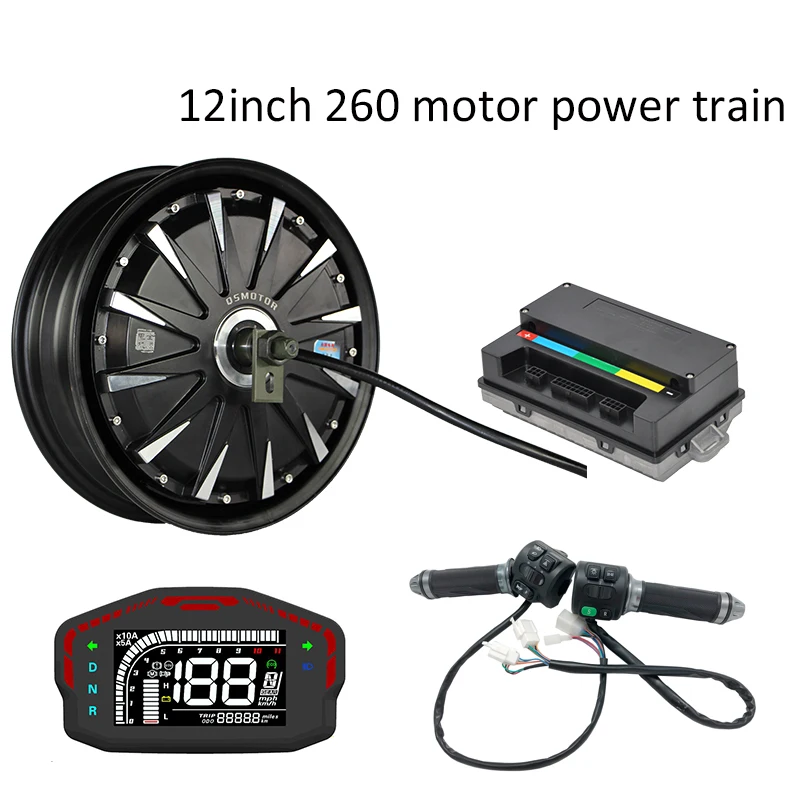

One set including below kits



1. 1pcs X QS 12*3.5inch 1500W V1.12 BLDC E-Scooter In-Wheel Hub Motor

2. 1pcs X Votol EM50SP motor controller with standards CANBUS

3. 1pcs X DKD LCD speedometer with standard CAN-BUS

4. 1pcs X Z6 throttle with combination switch



Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



Product description

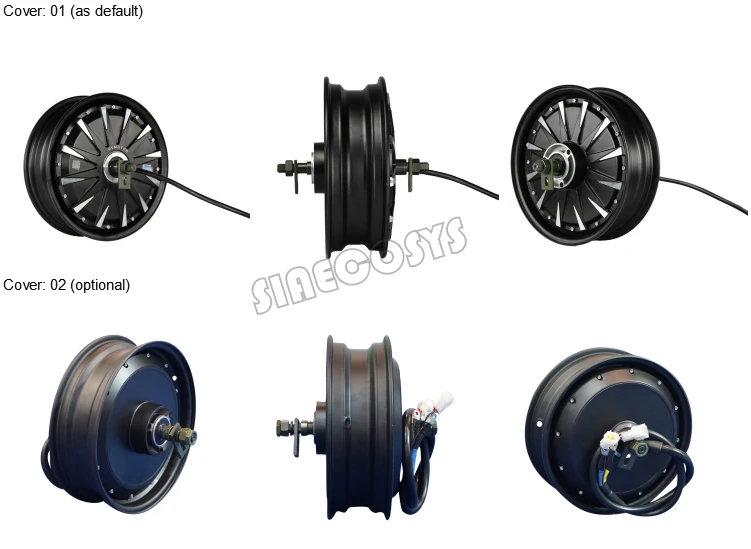

1. QS 12*3.5inch 1500W V1.12 BLDC E-Scooter In-Wheel Hub Motor

Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand: QS Motor, QSMOTOR

Motor Design: Double axle with 12inch moped rim (integrated)

Rim Size:12x2.5inch(Narrow Tire as default), matched tire:90/90-12 etc

        12x3.5inch(Wide Tire), matched tire: 120/70-12 etc

Magnet Height: 30mm, 24 pole pairs

Stator: Steel Core

Rated Power: 1500W

Speed: 30KPH-55KPH, 48V 55KPH 670RPM as default.

Work voltage range: 48V-96V, 48V as default.

Max Torque: approx 113.0N.m

Thermic Probe: KTY83-122 (as default, optional)

Max Efficiency approx 88%

Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

Drop-outs: 200mm

Single Hall with waterproof connectos

6mm² Phase Wire

Hall Sensor Phasing angle: 120 degree

Waterproof Grade: IP54

Color: Black (As default)

N.W./G.W.: approx 13kg

Package Dimension: 43cm*43cm*34cm/piece

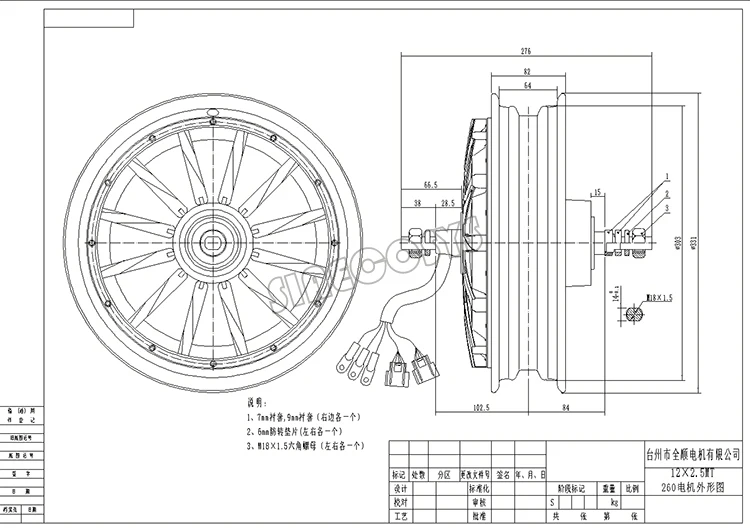

Dimension Drawing:

12*2.50inch in-wheel hub motor



12*3.5 inch in-wheel hub motor:





Test Report:

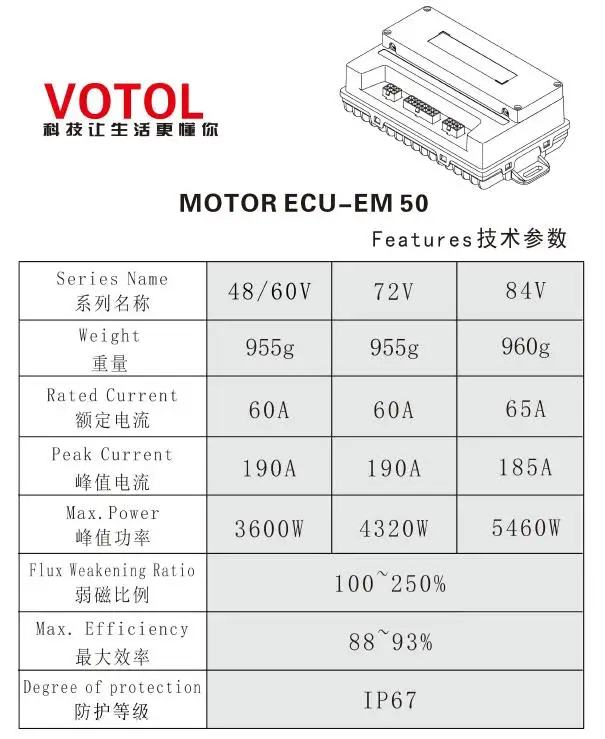

2.Votol EM50SP motor controller with standards CANBUS







3.DKD LCD speedometer with standard CAN-BUS

It display D N R, P, S gear, and battery current X5/10

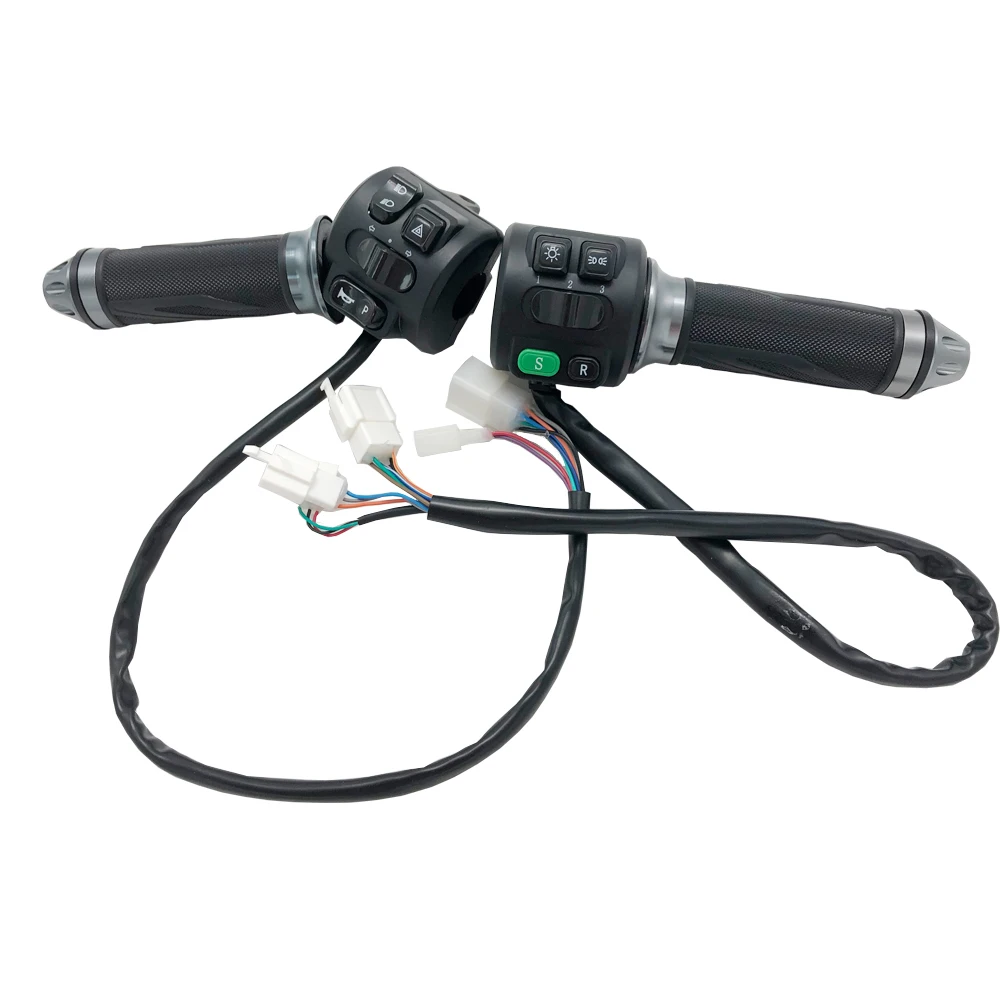

4. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.









Please noted:



Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

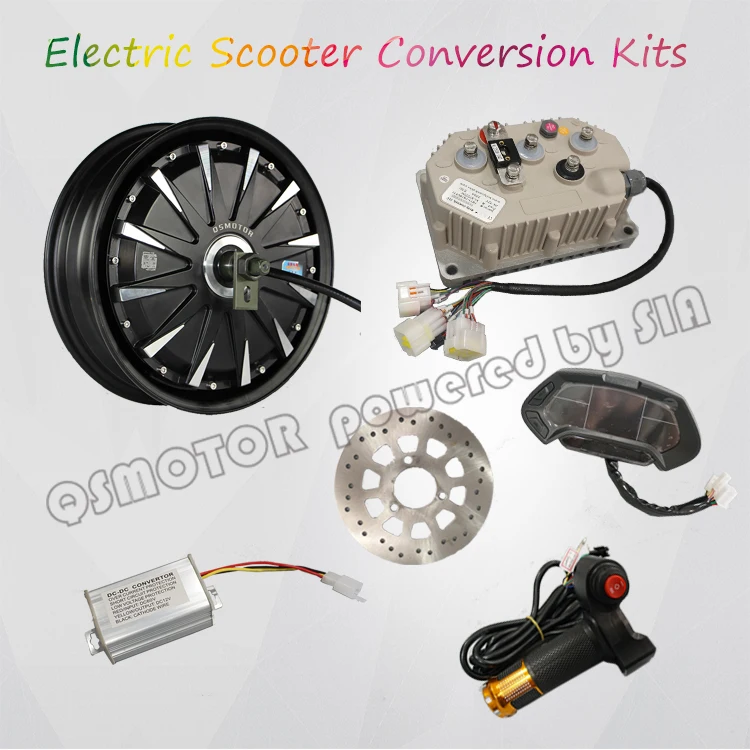

Conversion kits for 12inch in-wheel hub motor



We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.







Application for 12inch in-wheel hub motor
