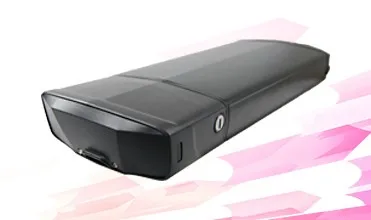

rear rack 48v electric bike battery with led lamp for 500w-1000w motor

FOB Reference Price:Get Latest Price
  • 1 - 29 Sets
    $179.00
  • 30 - 99 Sets
    $156.00
  • >=100 Sets
    $149.00
Report Suspicious Activity
Overview
Quick Details
Type:
Lithium Battery, Lithium ion battery
Voltage:
48v
Capacity:
10 - 20Ah, 48V 14Ah
Material:
Li-polymer
Charge current:
2A
Charger:
100-240V automatic, smart charging
Cycle life:
About 800 cycles
Charging time:
5-8 hours
Warranty:
1 Year
Rear rack:
Yes
BMS:
Yes
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard carton package for rear rack battery 45*45*20cm
Port
shanghai
Lead Time :
7-15 days for Lithium ion battery
Product Description

This "Guangmang" type rear rack battery, can put in 52PCS 18650 cylinder cells, come with a double-deck luggage carrier and 2A smart charger. When you received it you can start to use it, no more need to prepare anything.


Lithium ion Battery Optional Specifications

Capacity
Voltage
Battery cell
Cycle life
Combination
10.4Ah
36V
3.7V 2600mAh






800(70%)
10S4P
11.6Ah
36V
3.7V 2900mAh
10S4P
13Ah
36V
3.7V 2600mAh
10S5P
14.5Ah
36V
3.7V 2900mAh
10S5P
17.5Ah
36V
3.7V 3500mAh
10S5P
10.4Ah
48V
3.7V 2600mAh
13S4P
11.6Ah
48V
3.7V 2900mAh
13S4P
14Ah
48V
3.7V 3500mAh
13S4P
Detailed Images

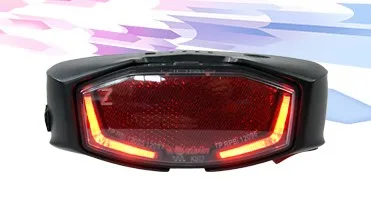

Integrated with Spanninga Lineo rear light

Have an independent power switch
The whole battery waterproof grade is IP65

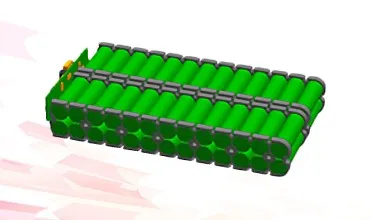

Maximum can put 52pcs battery cell into the case

Can take 5P10S or 4P13S combination

Built-in BMS, ensure battery safety.

Have an controller box at the front of the battery

30Amps high performance blade type discharge fuse
6Pins discharging plug with nickel-plating

Power switch

Four levers LED capacity indicator

DC2.1 charging Port

Related Products

Down tube lithium battery

CM700B city e-bike

G510 mid motor kit

Our Company

We manufacture a variety of products such as, electric bike conversion kits, mountain and city electric bikes, fat tyre electric bikes and relative parts for electric bicycles. Our factory is certified by CE, SGS, CCC, EEC and other related certifications. Our products are reliable and durable. We export to Europe, the USA, Canada, Southeast Asia, Australia and many other countries . Our customers have given us high praise for our products and service. The business philosophy at our company is that the customers are first, employees are second and shareholders are last.

Packing & Delivery

Thick foam box protection

Standard carton packing

International express, air and sea transportation

Certifications
FAQ

Q:How many years will my battery last?
A:The average rider can use a lithium battery for 2-3 years before feeling like it needs to be replaced. This depends on riding conditions, the weight of the rider, amount of use and discharge rate over time. Discharging your lithium battery quickly under high current will lower the battery capacity over time.

Q:How should I charge the battery?
A:To achieve the longest life from your battery it is best to charge the battery after each use or at least once daily if used every day. It should also be charged once every month if not used for a long period of time. All bikes come with smart chargers which stop charging when the battery is at capacity, so it is okay to leave you bike plugged in at all times.


Q:What does the battery management system do and do your batteries have them?
A: Yes, all of our lithium ion batteries come with battery management systems. The battery management system (BMS) is a small piece of circuitry incorporated as part of the lithium ion battery packs; it is designed to protect against overcharge, excessive discharge and to balance the charge between the individual cells. It’s very important to have this for safety and for enhanced battery life.

Q:What type of battery do you use ?
A:We use only Lithium-ion batteries: they are lighter than lead batteries and last longer. Their durability and reliability are also much better.
