semi- automatic plastic PET water bottle making on stretch blow molding machine with 2 cavitiestic

Feedback Ratings
  • 1 Sets
    $6,500.00
  • >=2 Sets
    $6,000.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Blow Moulding Type:
Stretch Blow Moulding
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TONVA
Voltage:
380V/50HZ
Dimension(L*W*H):
1.6*0.6*0.7
Certification:
CE ISO SGS
Name:
PET Bottle Blow Moulding Machine
Color:
Orange
Brand:
TONVA
Capacity:
1000-1400pcs/hour
max volume:
2000ml
Suitable bottle:
Drink/oil Bottle
Type:
Pneumatic
Place of origin:
China
Automactic:
Yes
Weight:
1500kg
After-sales Service Provided:
Engineers available to service machinery overseas
Model Number:
MS-2000
Warranty:
One Year
Power(W):
16kw
Automatic:
Other

Packaging & Delivery

Selling Units:
Single item
Single package size:
180X50X160 cm
Single gross weight:
1100.0 kg
Package Type:
film or wooden case
Lead Time :
45
Product Description

Product Application

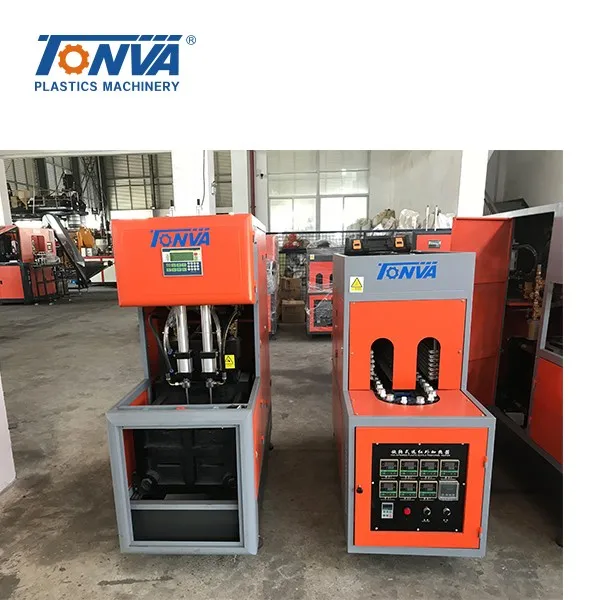

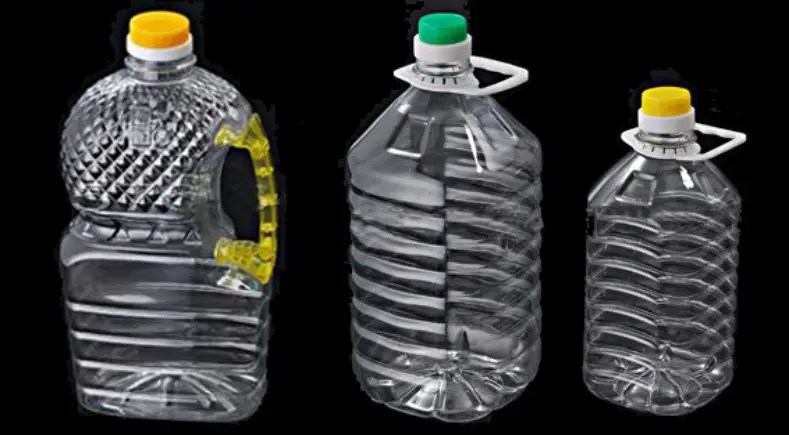

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

Main Parts Item Unit FA-2000-4.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Detailed Images

Machine Parts

Name: Preform feeding

Brand: schneider

Original: Germany

Performs put into loading hopper, then the conveyor raise the performs to perform unsbrella, hence the performs will be arranged well on the guider. The performs will go into equipment automatically. This type of loading complete automatic control, high efficiency without damage to performs.And then robot hand will take preforms on convey automatically.

Main Features

Name: Bliwing Cylinder
Brand: schneider
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits  sliding sleeve shift.

Machine Parts

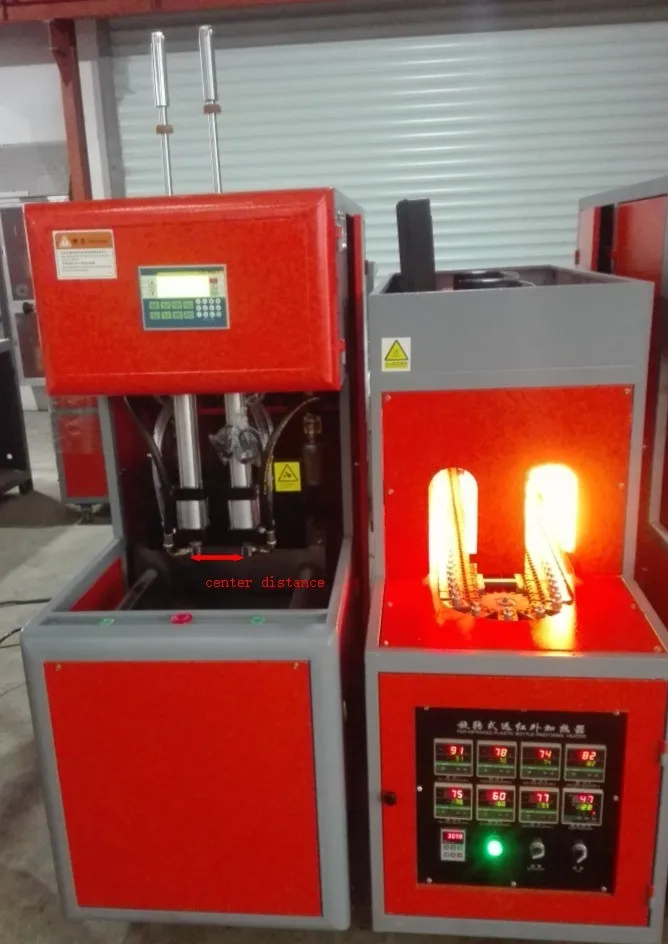

Name:Heating system
 The heating head will receive performs automatic and continuously, and performs average round self running, can get suitable reasonable heating when moving through heating area.

Main Features

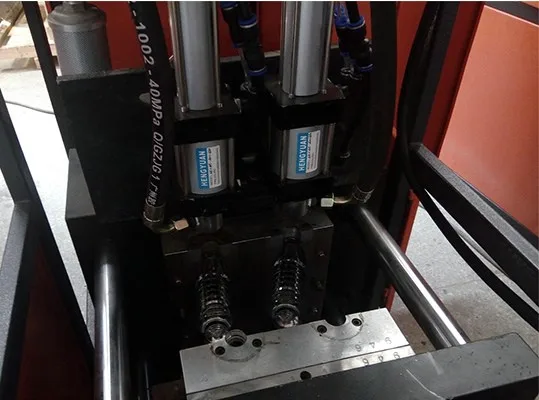

Name: Strentch blowing
PLC can control the mold frame open and close precisely. Easy and stable mold frame structure, lead to easier mold changing. Mold locking and pressure enlarging system is special. Blowing data of each cavity is controlled by touch screen very easier, it has good testing function. The special structure of the blow mouth ensures stable sealing no matter different blowing pressure, and also ensures finished bottle rate.

Our Service

Pre-Sales Service


1,Instruction for Installation and Debugging:
* Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.
3,Warranty Period:
The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

After-Sales Service


* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
User Training:
Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

Packing & Delivery
Packaging
Size
1.8 (L) * 0.6 (W) *1.5 (D)
Weight
1000kgs



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
