sf6 gas dead tank circuit breaker 72kv factory direct price

Feedback Ratings
US $15999.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
DAELIM
Model Number:
LW24
Type:
High Voltage
Poles Number:
3
Product name:
sf6 gas dead tank circuit breaker 72kv factory direct price
Rated voltage:
72.5kv
Rated current:
1200/1500/2000/2500/3150A
Rated frequency:
50/60 Hz
Rated short circuit breaking current:
31.5/40KA
Temperature:
-45~40°C
Mechanical Life:
20000 Times
Certificate:
ISO9001
Standard:
IEC60898
Warranty life:
24 months

Packaging & Delivery

Selling Units:
Single item
Single package size:
1600X1000X5000 cm
Single gross weight:
850.0 KG
Package Type:
International Standard Wooden Case. One unit, one case for sf6 gas dead tank circuit breaker 72kv factory direct price
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(day) 30 To be negotiated

sf6 gas dead tank circuit breaker 72kv factory direct price



Specifications

1.the spring operating mechanism.
2.new generation can type SF6 circuit breaker
3.sf6 gas circuit breaker

summary
       sf6 gas circuit breaker  LW38-126 open combinations are new type products which developed by our company. Compared with foreign similar products, the product can meet the needs of domestic electric power market. Our company can according to the different needs of users, not only design the layout form of flexible and varied, and can be Practice the whole substation a devices (including interval bearing busbar, tower, etc.) and the secondary equipment of general contracting. LW38-126 open combination electric appliance, advanced structure, good performance, technical parameters can completely satisfy the requirements of GB and IEC standards. The product has both closed-end structure tight combination Gather together, cover an area of an area small features, and has the advantages of open electric price is cheap, convenient maintenance, compared to the conventional power station to reduce its covers an area of about 60%, especially for city network and substation mountainous area and industrial and mining enterprises to choose.

The products include indoor and outdoor two arrangement forms and arrangement of each interval can be divided into the circuit breaker and measurement interval. Each interval are composed of fixed part and moving part of two parts. Fixed department Points, including isolation, grounding switch plug and on-site operation control cabinet, etc. Moving part in the base car while different electrical components assembled together can be mobile electronics module as a whole. Circuit breaker interval of movable parts can from type SF6 circuit breaker, current transformers and isolation of plugs, etc. Measurement interval of movable part consists of voltage transformer, lightning arrester and isolation of the plug, etc.

product feature

Circuit breaker for a new generation can type SF6 circuit breaker, the spring operating mechanism. The structure of circuit breaker protection interval and test interval. Cars and earthing switch with electric operating mechanism, including circuit breaker, can be in situ in operation control cabinet for close control operation. From the on-site operation control cabinet to the secondary wiring for each of these components is plug type, you can also provide intelligent control cabinet, to realize unattended. A flexible connection mode, does not affect users continuous electricity maintenance. Overall layout simple and beautiful, can apply to indoor, can also be suitable for outdoor.





                               Technical specifications



technical specifications.jpgtechnical specifications2.jpg

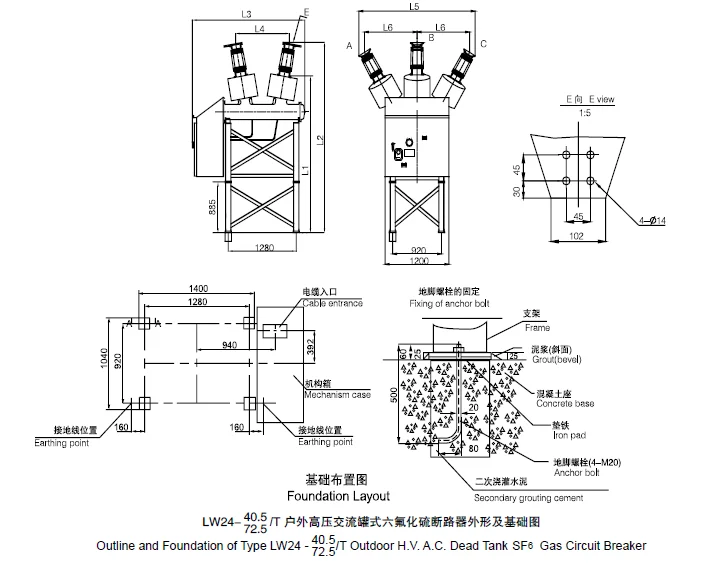

                                        Outline dimension



DT 40.5 72.5



Packaging & Shipping

transformerpacking and shipping.jpg

Company Information

Beijing Daelim Green EP Tech Co., Ltd. is mainly engaged in the import & export of electric products and equipment. Our business team has more than 15 years' foreign business experience, and also has a unique understanding of electrical products and overseas markets. We have established and extended business relationships with customers and partners in Southeast Asia, the Middle East, Europe, Africa, North America and South America.


The main products and equipment we are dealing with: power transformer, current transformer, potential transformer, vacuum & SF6 circuit breaker, load break switch, disconnector, switchgear panel, power plant, transmission line equipment.


We provide competitive prices, high quality products, timely shipment and efficient services to develop our cooperation with all of our customers. We are trading in accordance with international traditions and practices. We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit..


Application

Our products include: Power transformer, Circuit breaker, Disconnector switch,.Current transformer & Potential transformer which are wildly applied to power station, transformer substaion,  power distribution station.

power transformer application1.jpg

power transformer application3.jpg

Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.

2, We can arrange technicians to install the equipments and train your staff on site.

3, Anytime, we provide considerate technical consultation.

4, Prompt reply for your inquiry and feedback.

transformer factory and installation.jpg
