shenzhen best 4ch1080P gps 3g 4g wifi SD card hdd fuel sensor movil mdvr

  • 10-99 Pieces
    $274.00
  • >=100 Pieces
    $227.00
Type:
DVR MDVR
Channels:
4
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
KOPDA
Model Number:
KD-MDR9704P-GPS/4G/WiFi
Product name:
1080p mdvr
Resolution:
1920x1080
Recording:
SD card and HDD
Storage:
128GB+2TB
Video input:
4 Channels
Power Supply:
9-36VDC voltage
Warranty:
12 Months
keyword:
mdvr gps 3g wifi
4g:
optional

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X17X7 cm
Single gross weight:
1.48 kg
Package Type:
MVR Size: 162*153*52mm 1.48KG/PCs 30*16.5*7cm/box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 5 To be negotiated
Video Description
Product Description

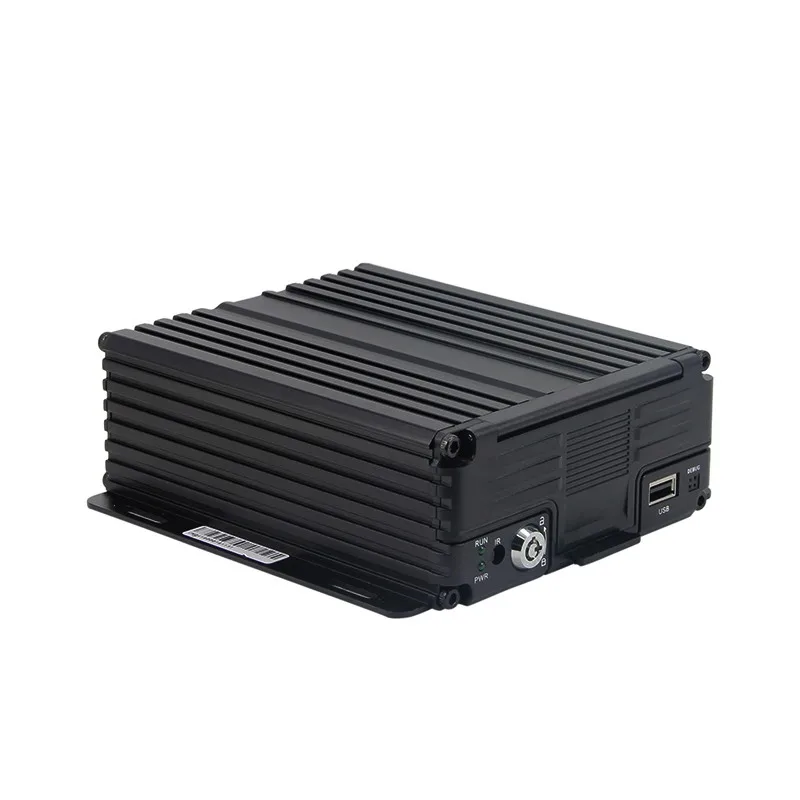

shenzhen best 4ch1080P gps 3g 4g wifi SD card hdd fuel sensor movil mdvr

AHD 1080P mobile DVR,Hisilicon chip

4 ch video and audio input,1ch audio output,1ch VGA output

1. Power adapter:

Professional design for vechile 9-36VDC voltage input(Standard ISO7637-P5A-200V/Static electricity GB/T-17626/RE radiation EN55022)

protection circuit for undervoltage, short circuit, reverse connection ect. suit for any typle vechile.

Support intelligent power management identification, low power automatic shutdown, turn off low power consumption;

2. data storage:

 The use of special file management mechanism, the data encryption, effective protection of data security;

 proprietary SD card bad sectors detection technology, both to ensure video continuity, but also extend the SD life;

 Built-in super capacitor, to avoid abnormal power loss and SD card damage;

Support 2.5" HDD or SSD Max. 1*2TB

Support SD card storage, support 128G;

3. the interface transmission:

Support GPS / BD positioning, high sensitivity, fast positioning;

   Support WIFI wireless download, support 802.11b / g / n, frequency 2.4GHz;

4. Support 3G/4G module, LTE/HSUPA/HSDPA/WCDMA/EVDO

Item
Device parameter
Performance
System
Main processor
Hi3520DV400
Operating system
Embedded Linux OS
Operating language
Chinese/English
Operating interface
GUI, support mouse
Password security
User password/Admin password
Audio and video
Video standard
PAL/NTSC
Video compression
H.265
Image resolution
1080P/720P /960H/D1/CIF
Playback quality
1080P/720P/D1/CIF
Compound mode
Any combination of video
Decoding ability
1ch 720P real time
Recording quality
Class 1-6 optional
Image display
Single/QUAD display optional
Audio Compression
G.726
Audio recording
Audio & Video synchronized recording
Recording & Playback
Recording mode
Manual/Alarm
Video bit rate
Full frame 4096Mbps,6 classes image quality optional
Audio bit rate
8KB/s
Storage media
SD card + HDD/SSD storage
Video inquiry
Inquiry by channel/Recording type
Local playback
Playback by file
Firmware upgrading
Upgrading mode
Manual/Automatically/Remote/Emergency Recovery
Upgrading method
USB disk/Wireless network/SD card

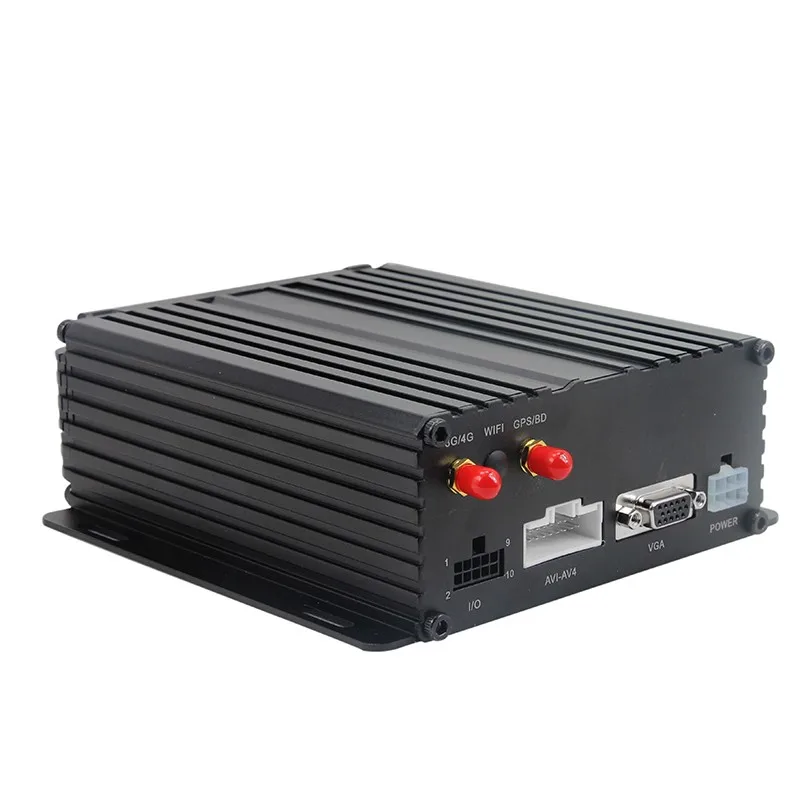

Interface
AV input
4ch aviation interface
AV output
1ch VGA video output, 1ch aviation AV output
Alarm input
4 digital inputs (2 Positive trigger, 2 Positive/Negative trigger)
HDD/SSD
1 HDD/SSD (up to 2TB, support hot plug/unplug)
SD card
1 SDXC High speed card (up to 256GB)
USB interface
1 USB 2.0 (support U disk/mouse)
Ignition input
1 ACC signal
UART
1 LVTTL Level

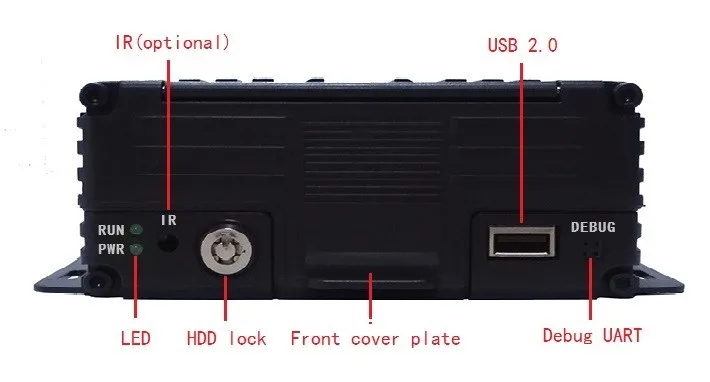

LED Indication
PWR/RUN
Disk lock
1
Debug port
1
Function extention
GPS/BD
Support detecting antenna Plug in/Unplug/Short circuit
3G/4G
Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
WIFI
802.11b/g/n, 2.4GHz
Others
Power input
10~36V DC
Power output
5V 300mA
Power consumption
Standby 3mA
Maximum consumption 18W @12V 1.5A @24V 0.75A
Working temperature
-20 --- 70℃
Storage
1080P 0.75G/h/channel
720P 0.55G/h/channel
Dimension
162mm*153mm*52mm
Detailed Images
Main products

SD card recording

720P/960P/1080P

720P/960P/1080P

2.1mm lens wide angle

7inch and 9inch optional

Use for public bus
FAQ

Is the sample free?
Not, the sample is cost.

How long will it take for sample?
1~3 working days

Do you have MOQ ?
No.

Do you accept PAYPAL?
For sample order and small order, we accept PAYPAL.

Can we laser our Logo?
We have MOQ 30PCs for laser Logo.

Do you accept dropshipping?
Yes

Hong long is your warranty?
One year

Do you accept OEM?
Yes


Can you supply CO.(Certificate of Origin)

Yes


Can you supply SASO?

Yes
