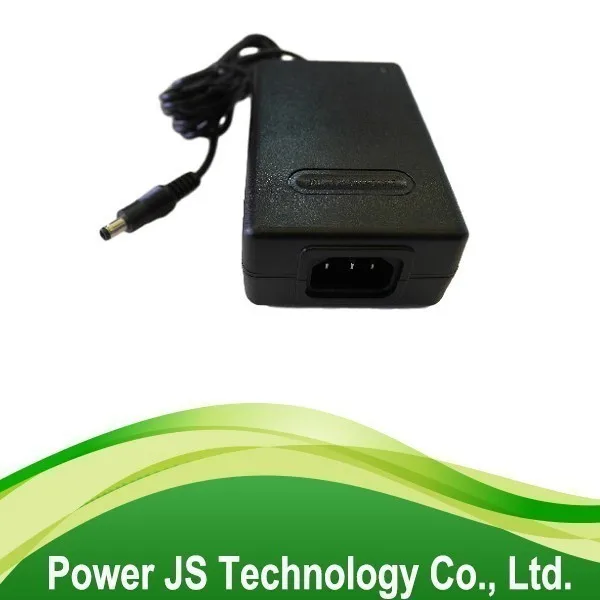

sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma

FOB Reference Price:Get Latest Price
$8.00 - $10.00 / Pieces | 500 Piece/Pieces Order (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JS
Model Number:
JSMDKE30-033
Output Type:
DC
Connection:
Desktop
ac adapter 2500ma Input Current:
0.8 ~ 0.4 A Max.
ac adapter 2500ma Input Frequency:
50 - 60 Hz
ac adapter 2500ma MTBF:
100,000 hours minimum
ac adapter 2500ma Connection:
Desktop
ac adapter 2500ma Safety:
IEC60601
ac adapter 2500ma Standard:
Family Medical Class
ac adapter 2500ma High Efficiency:
VI(MEPS)
ac adapter 2500ma Warranty:
3 years
ac adapter 2500ma Color:
black or white
ac adapter 2500ma Case Size:
106 x 67 x 36 mm
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma
JS Standard Packing : BULK
Port
Shenzhen

sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma

medical power supply

desktop power adaptor

ac adapter 2500ma

JSMDKE30-033

Product Description



sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma

sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma

Output Power Output Voltage Output Current
30 W Max.3 ~ 48 V 0.63 ~ 5.0 A
Safety : UL,cUL,GS,CE,FCC,SAA,MEPS,CEC,LPS, PSE,CCC,CB C - Tick.



sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma

Features :
Single Output .
Compact package.
Universal input voltage.
Meet 60601-1-3rd edition.
Three years limited warranty.
High effiviency & Reliability.
Optional Output Connectors.
Possess risk analysis report.

sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma
Output Voltage (VDC)Output Current(A)Max. Output Power(W)Ripple Max.(mV)Efficiency(%)Measure at the Output of
3 ~ 552530653.3
5 ~ 65.00 ~ 4.172530685
6 ~ 84.17 ~ 3.132530707.5
8 ~ 113.75 ~ 2.733040749
11 ~ 132.73 ~ 2.3030507512
13 ~ 162.30 ~ 1.8830607515
16 ~ 211.88 ~ 1.4330707618
21 ~ 271.43 ~ 1.1130807824
27 ~ 331.11 ~ 0.90301007828
33 ~ 480.90 ~ 0.63301007848


Note :(1) Weight : Approx 370 ~ 375 g.

            (2) Optional output connectors.



sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma

Specification :

Over voltage protection : Provided on outputs set at 112~132% of its nominal output voltage
Over current protection : All outputs protected to short circuit conditions.
Short Protection : Auto Recovery
Load regulation : ±5% variations from minimum to maximum output current.
Operating temperature : 0°C ~ + 40°C.
Storage temperature : -40°C to + 85°C.
Operating Relative Humidity : 5% to 95% non - condensing.
Withstand Voltage :  5656VDC from input to output .
Insulation Resistance : 50Mohm minimum from output to ground .
EMI Requirements :  (A)EN60601-1-2 : 2007 (B)FCC PART 15& PART 18 CLASS B
Safety Requirements : Meets or Exceeds(A)UL : ES60601 - 1 : 2005 (B)CSA : C22.2 NO.60601 - 1 : 2008
                                     (C)IEC60601 - 1 : 2005 (D)EN60601 - 1 : 2006
sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma

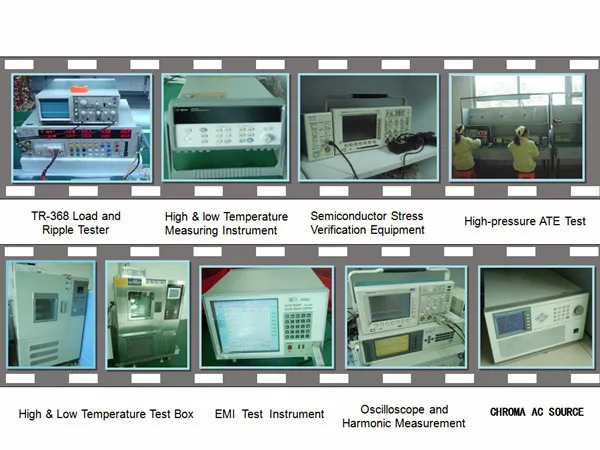

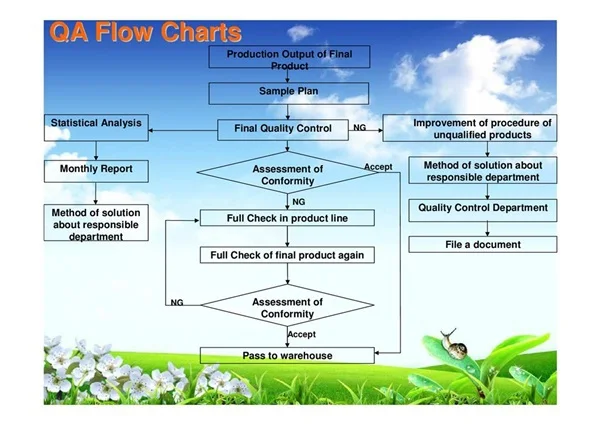

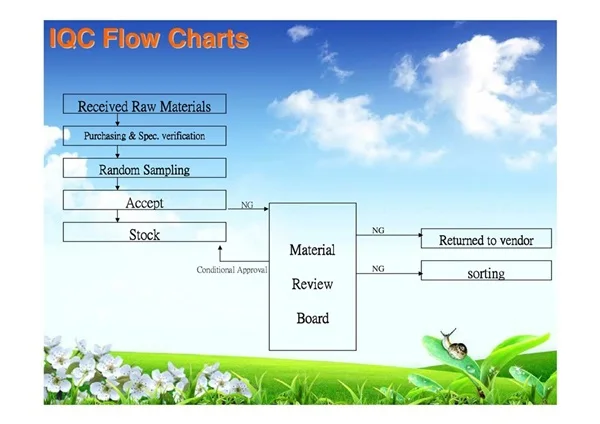

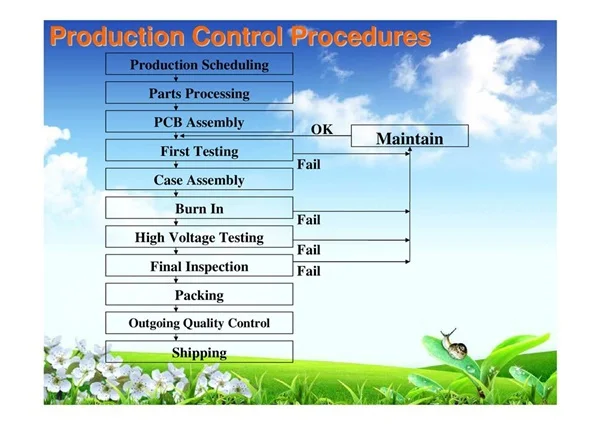

Production Flow



Certifications





Packaging & Shipping






Our Services



Besides standard products and samples offering, Power JS also accept customized services, if you have special requirement, please do not hesitate to contact us, Power JS will be serve you in the most professional manner to meet your needs for customized products.


Power JS Technology Co., Ltd. / Main Products

Max. Output power

Switching Power Adapter

AC DC Adapter

Plug Adapter

60W Max.

Switching Power Adaptor

AC DC Adaptor

Laptop Adapter

180W Max.

Switching Adapter

USB Charger

Wall Charger

15W Max.

Switching Adaptor

Interchangeable Plug Adapter

Multi plug adapter

40W Max.

Switching Power Supply

Dual & Triple Voltage Adapter

Multiple output power supply

50W Max.

POE Power Supply

POE Adapter

Plug Adapter

24W Max.

POE Power Adapter

POE Adaptor

Desktop Adapter

48W Max.

Power Supply

Open Frame

Switching Mode Power Supply

40W Max.

Medical Power Supply

medical adapter

Plug Adaptor

15W Max.

Medical Power Supply

medical adaptor

Desktop Adaptor

70W Max.

Medical Power Supply

medical interchangeable plug adaptor

Interchangeable plug power adapter

18W Max.

Linear Power Supply

Linear AC Adapter

AC AC Adapter

54W Max.

linearity Electronics Adapter

Linear DC Adapter

AC DC Adapter

45W Max.

AC Adaptor Transformer

Linear Adapter

Wall Adapter

40W Max.

AC Adaptor Class 2 Transformer

Linear Adaptor

Desktop Adapter

54W Max.

Power Transformer

High Frequency Transformer

High Voltage Transformer

Custom Design

Transformer

Low Frequency Transformer

Low Voltage Transformer

Custom Design

Car Charger

Car Adapter

Car Charger Adapter

60W Max.





Company Information



With power range from 5W to 150W, and single, dual and triple output, our S/P adaptors have
the best quality and reliable performance. They are second to none in the market.
All models can be delivered as standard or modified units to meet your needs or special requirements.
Our products are all PSE, UL, CUL, FCC, CEC, CCC, TUV, CE, CB, SAA, MEPS, and C-Tick safety
agency approved. We guarantee every unit we ship and offer is with fast delivery.
Please contact us on how we can solve your needs.


Power JS Technology Co., Ltd. is a leading Manufacturer, Supplier and Exporter of Switching Power Adapter, with a factory in Taiwan & China. We supply and export consistently high class Switching Power Supply, Medical Adapter, POE Power Supply, Car Power Supply, USB Power Supply, Linear Adapter, Power Transformer, Interchangeable Adapter and continually improve upon the manufacturing processes and work environment through total employee involvement and strict adherence to fair business ethics. We have gained several patents in the field. Our sincerity and hard work has helped us to match our quality with international standards. If you are interested in any styles of our products, please feel free to contact us.

Our policy is to achieve customers' satisfaction both by providing them with high level Switching Power Adaptor

and services that meet or exceed their expectation. It is our force to manufacture products to suit the exact requirement of our client ranging from small industries to manufacturing units.

We are offering our clients a world-class range of Switching Power Adapter

that is manufactured at par with international quality standards. In addition to this, our entire product range can be availed in various eye soothing shades and different sizes to meet the specific requirements of clients. Owing to our client centric approach, we offer quality products at industry leading prices and ensure to deliver the ordered consignments within the stipulated time frame. Our device has moderately good load and line regulation, but significantly higher ripple and output noise than linear regulated power supplies. With an advance manufacturing unit and ultra modern production facilities, we offer superior quality products to our valued clients. They are the manufacturer and exporter who offers rubber labels at all affordable prices. With the abundant experiences of providing the Switching Power Adaptor to worldwide customers, we sincerely welcome more global partners to cooperate to form a new business. Our device also has a slow transient response, but high efficiency. Our skilled professionals manufacture this product using advanced technology and quality material to ensure durability. Our products are constructed with accurate dimensions, easy to use and less maintenance these are highly appreciated by our clients throughout the world. Further the innovative technology and cost effective procedures applied at our production facilities enable us to offer our clients a wide choice in our machinery range at competitive prices.


FAQ



sk761k dc plug 15v power adaptor 12v medical ac adapter 2500ma

Q: Can you provide a sample ?



A : Yes,we offer free sample.



Q : Whether to provide customized design?



A : Yes,modified and customer design is available.



A : Payment Terms?

Q : Paypal, T/T, Others.


Q: How about the Leadtime for production ?



A : 4 weeks.



Q : How about the Leadtime for the sample?



A : 5 ~ 7 days.



A : How about the warranty for your adapter?

Q : 24 months.
