Steam heating/electric heating/direct fire heating
3mm for inner container/2mm for outer shell
After-sales Service Provided:
Engineers available to service machinery overseas, Engineers available to service machinery overseas
Miller board or Ice water belt
1,5 bar in cylindrical-part (filled-up tank, at 20°C)
20 Set/Sets per Month micro brewery system
Packaging & Delivery
1. Packaging Details: by independent containers or by bulk carriers PVC film, or ply wooden case for beer brewing equipment
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, all equipments will be well fixed to the containers.
4. Delivery Detail: 40 days, depend on the condition.
45 working days after the deposit
small scale 100l 200l micro brewery system
System Introduction • micro brewery system is a good choice for ginshop, barbecue, and restaurant who brew beer for customer at scene. So the micro brewery system can better come true dream for brew master. • Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste. • Excellent 100l 200l micro brewery system production process can promise to give you a high quality beer brewing equipment. micro brewery system may be faced with polished brass, copper besides stainless steel. • Also, the 100l 200l micro brewery is placed behind a glass partition that allows visitors to observe the process of making beer.
Top manway/Side manway Drying hop port to brew IPA Dimple Plate Cooling jacket Carbonation port to fill CO2
Yeast Adding Tank
SUS304 Stainless Steel
Glycol Water tank
Equiped with PU level indicator
UL/CE certified electric elements,Copeland compressor
SUS304 full welded
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller
Brewhouse Separate PLC Controller
Craft micro brewery system detail information
Various combination of brewhouse
Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc.

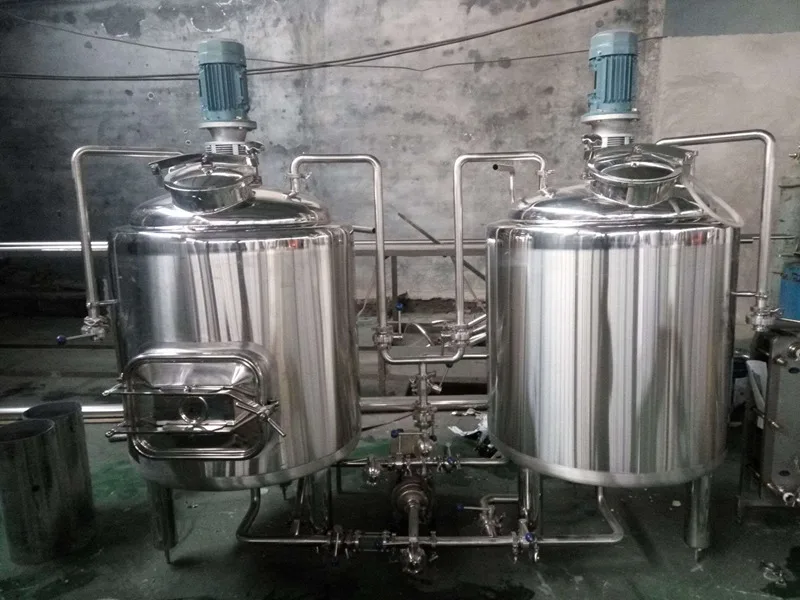

2 Vessel Brewhouse
Mash/Lauter Tun + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank
3 Vessel Brewhouses
Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
Mash(kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun
Fermentation System: Fermenters are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), primary fermentor or unitanks as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting. Stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as overpressure and under pressure valve, CIP cleaning jet, sanitary sample valve, manhole,etc. The design is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.
Cooling System: -Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing -Efficiency chillers or refrigerators with fryonto supply cooling energy -Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger -All pipes, fitting, insulation materials are included
Controlling Unit: -Electrical controlling cabinet with temperature, on-off controlling for brewhouse -Electrical controlling cabinet with temperature, on-off controlling for cooling parts -Temperature controller, thermocouple, solenoid valves etc are included -PLC with touch screen panel for special request
micro brewery system design: individual dedicated tank process (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks) integrated process piping including platform for combining the necessary vessels integrated pump system milled false bottoms separated CIP for individual tanks and to prevent cross product interference
micro brewery system sanitary design: polished internal tank surface and welds easy and fast cleaning.
100l 200l micro brewery system user friendly: master brew interface control system, semi-automatic (pump on/off, temperature control, flow regulation) all systems can be engineered with client input for defined process.
Please Click " Contact us" soon
We can supply design service free according to customers’ request.
We can supply budget assessment service upon our many years’ experience.
Customers are welcome to come to our plant base to visit and inspect, and we would like to give a warm reception.
Our brew masters or engineers are available to supply service at buyers’ appointed places.
We will give timely effective instruction about application of equipment as best as we can.
We supply turn-key project.
Packaging & Shipping
Packaging & shipping
With plastic paper firstly then outside by iron frame (Export standard packaging)
1.Sound production management and Reliable sea forwarder for many years guarantee the timely delivery.
2.Experienced package guarantee the quality of micro brewery system and ensure customers’ satisfying.
3.Packing details: packing with steel stainless and wood cases, standard export package
4. Delivery details: delivery time within 35 days from Qingdao.
Shandong Shendong Equipment Technology Co., Ltd is one of the biggest and best professional micro brewery system manufacturer and exporter in China. Our products include all kinds of large, medium and small brewery equipment, daily output from 50L~5000L and even larger capacity micro brewery system for beer plant. All the equipment can be customized.
Our company strictly follow German micro brewery system production technology, design and manufacture micro brewery system applying to domestic and foreign customers. With our perfect before and after sales service, we serve the customers all over the world. You are welcomed to visit our factory and office.
Shendong's products include micro brewery system and fruit wine brewing equipment. All micro brewery system are equipped along with the amazing Chill-Wizard System, Pro-Level Fermenters, Conditioning tanks, several superb brewing kettles and a wide variety of related equipment. You'll find our systems in university food science departments, brewer laboratories, pubs and restaurants, as well as in the back yards of advanced home-brewers and chefs worldwide.
And of course, we have full support for any brewing issue you may encounter.
Any interests? Just ask!
1. Q: Are you trading company or manufacturer? A: We are a professional beer equipment manufacturer in this field. 2. Q: Do your products could be customized? A: Yes, our equipments could be customized according to your requirements.
3. Q: How long will the full set of equipment be shipped to us if we order it? A: It will take 10-30 working days to produce the full set of equipment. 4. Q: How long will the full set of equipment be guaranteed? A: Three years warranty for main machine, one year warranty for the accessories, all life service.
5. Q: What should we do if there are problems during using the equipment? A: Firstly, communicate through email, skype or telephone with us, if any accessory parts lead to the problems, new accessory parts will be posted to you. If problems cannot be solved by all above mentioned method, our engineer will go abroad to solve for you. 6. Q: Do you provide after-sales service? A: Yes, we could provide after-sales service. We have 6 full-time engineers and other 4 part-time engineers available to go abroad to train installing and brewing. 7. Q: How is the proportion of your domestic market and foreign market? A: 40% for domestic market, and 60% for foreign market. 8. Q: Do you also sell raw materials of brewing beer? A: Yes, we do. We sell different kinds of raw materials including hops, yeast and malt.
