ss Triclamp tri clamp flange 304 316 3 way welded ball valve stainless steel sanitary pneumatic electric motorized ball valve

  • 2 - 19 Units
    $15.00
  • 20 - 49 Units
    $14.50
  • >=50 Units
    $14.00
Size:
1/4in 3/8in 1/2in 3/4IN 1in 1 1/4in 1 1/2in 2in 2 1/2in
Material:
Stainless Steel
Pressure:
Medium Pressure
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 1 Units)
Graphic customization (Min. Order: 1 Units)

More

Customized logo (Min. Order: 1 Units) Less
Samples:
$100.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
BALL VALVES
Place of Origin:
Zhejiang, China
Brand Name:
KOSUN
Model Number:
KS-MP-50
Application:
General
Temperature of Media:
Medium Temperature
Power:
pneumatic motorized electric
Media:
Water
Port Size:
1/2in-4in
Structure:
ball
Body material:
304 304L 316 316L
Packaging & Delivery
Packaging Details
Carton/Plywood case
Port
Ningbo ,shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

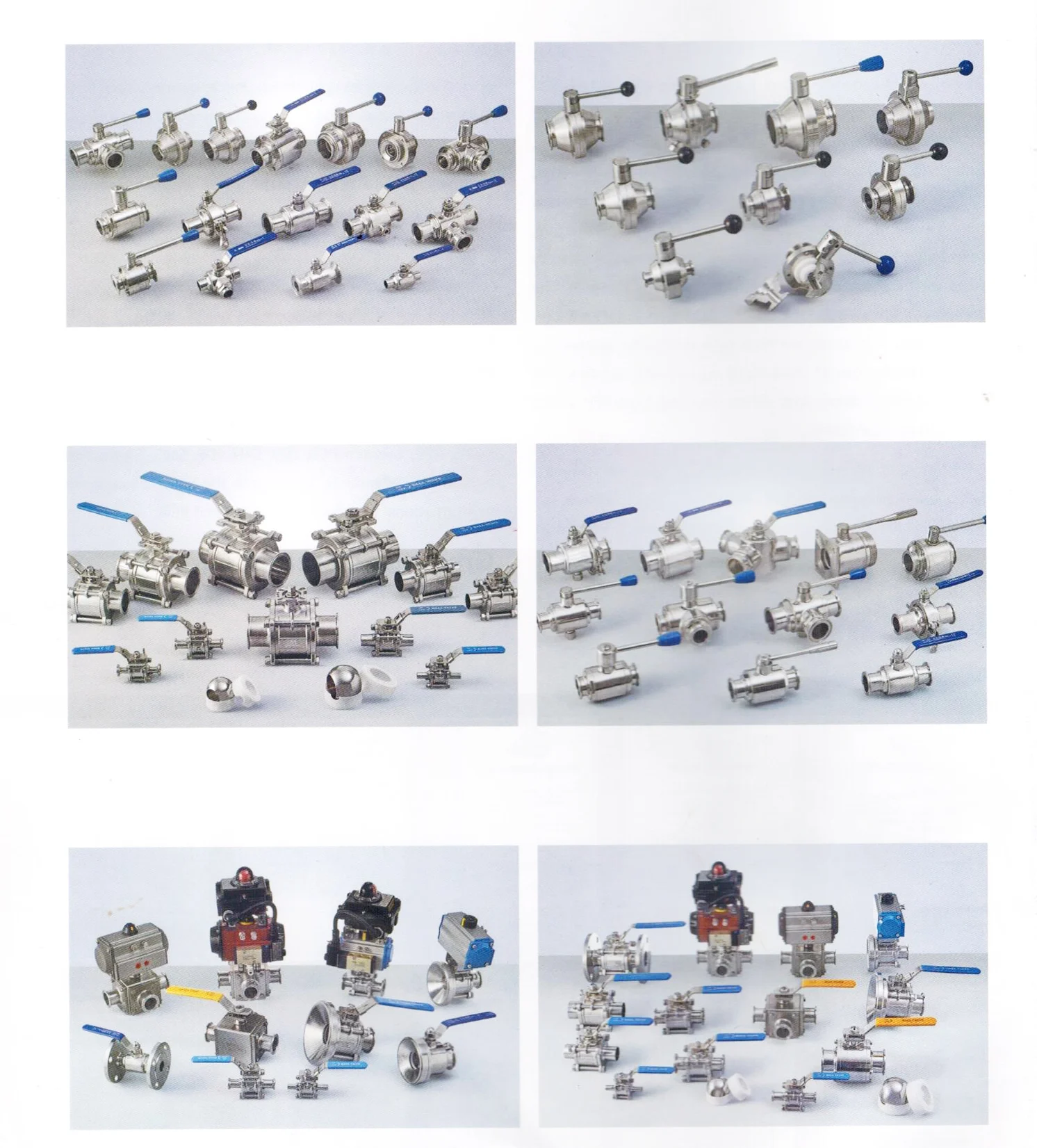

Applications: SS304 SS316L 304 manual ss stainless steel ball valve are used to transfer controlling the material, Which extensively use to food beverage processing and pharmacy, chemical industry areas Standard Design: Have different standard of valve series can supply for custommers, they are the DIN standard series, 3A standard series, SMS standard series, ISO/IDF standard series, BS/RJT standard series, ASME/BPE etc. The constitute elements of ball valve always included:one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal The specification of stainless steel ball valve series are welded ball valve clamped ball valve threaded ball valve etc. Working Principle: Through 90°degree rotary handle, drive the ball body which have transfixing cavity and precise manufacture, to open or close the valve, reach control the flow rate of medium Material: SUS304, SUS3169L; PTFE, PPL; Steel Parts: SUS304, SUS316L;Sea: PTFE, PPL
Technical Parameters




Metal material
304SS Or 316SS
Ball valve type available
Straight through ball valve, 3 Way ball valve, Tank bottom ball valve
Seal Material
PTFE
Drive type
Manual, Electric, Pneumatic
Max working temperature
Normally 140 ℃,  For 140℃ Above Need to be customized
Max working pressure
16 bar, Higher pressure could be Customized
Surface Finish
Ra≥0.4-0.8
Connection type
welding, clamp, male and female, flange, etc
Ball valve size Available
1/2 inch upto 6 inch
