standard car spotter dent puller for car repair tool with auto body

FOB Reference Price:Get Latest Price
$260.00 - $350.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangxi, China
Brand Name:
SG
Model Number:
SG-6500
Rated Capacity:
4KVA
Rated Duty Cycle:
60%
Dimensions:
5840mmX440mmX960mm
Usage:
Spot Welding
Voltage:
220/380v
Certification:
CE ISO
Frequency:
50HZ/60HZ
Floating Voltage:
6-12V
Welding Current:
200-6500A
Duty Cycle:
15%
Adjustable Gear:
1-7
Automatic Working Time:
0.1-2.5s
Color:
Customers' Request
Function:
Spot Welder Repair Stainess Steel Moulds
Application:
Automobile Body Repair
Machine type:
Auto Repair Tools
Warranty:
1 Year
After-sales Service Provided:
No overseas service provided
Power:
20KVA
Weight:
78kg
Supply Ability
Supply Ability:
300000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard packing
standard car spotter dent puller for car repair tool with auto body
Port
Shanghai and Ningbo
Lead Time :
Shipped in 15 days after payment

standard car spotter dent puller for car repair tool with auto body





Technical Parameters





TYPE

SG-4500

SG-6500

SG-7500

INPUT VOLTAGE

2PH380V

2PH380V

2PH380V

FREQUENCY



50Hz

50Hz

50Hz

RATED POWER



3.5KVA

4KVA

4.5KAV

FLOATING VOLTAGE

6-12V

6-12V

6-12V

WELDING CURRENT

200-4500A

200-6500A

200-7500A

MAX OUTPUT POWER

17KVA

18KVA

19KVA

DUTY CYCLE



0.15

15%

15%

RATED GRADE



7F

7F

7F

AUTOMATIC WORKING TIME

0.1--1S

0.1---1S

0.1---1S

DIMENSIONS(LxWxH)

340x450x850mm

430x600x970mm

380x480x920mm

WEIGHT



45KG

47KG

52KG



TYPE



SG-8500

SG-9500

SG-9900

INPUT VOLTAGE

2PH380V

2PH380V

2PH380V

FREQUENCY



50Hz

50Hz

50Hz

RATED POWER



5KVA

5.5KVA

6KVA

FLOATING VOLTAGE

6-12V

6-12V

6-12V

WELDING CURRENT

200-8500A

200-9500A

200-9900A

MAX OUTPUT POWER

20KVA

22KVA

23KVA

DUTY CYCLE



15%

15%

15%

RATED GRADE



7F

7F

----

AUTOMATIC WORKING TIME

0.1--1S

0.1---1S

0.1---2.5S

DIMENSIONS(LxWxH)

380x480x920mm

380x480x920mm

410x520x1050mm

WEIGHT



53KG

55KG

75KG



Functions And Features



The spot welder features: easy maneuverability, simple operation and high output power. The welder can be used for a wide variety of applications, such as dent pulling, carbon heating and shrinking, single-sided spot welding, stud bolt welding, sheet plate cutting and sheet metal welding. Using this versatile welder in body repair work, panels will need to be replaced less frequently and repair jobs will be completed in a shorter space of time.

Microprocessor control system optimizes the welding parameters. User friendly design, all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality

1.  Automatic mains voltage monitoring

2.The welding gun testing function evaluates the usage status of the welder more comprehensively

3.  Overheating protection

4.  High precision time and power adjustment system

5.  Complete with triangle washers for dent pulling

6.  Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud welding, OT washer welding, triangle washer welding etc

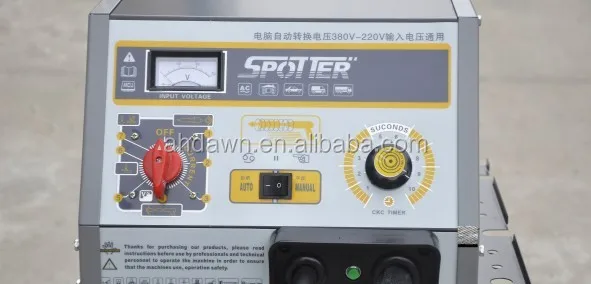

7.  Digital display

8.  Large pulling hammer and waveform wire welding

9. With several welding currents to choose from



Standard  Accessories



MULTIFUNCTION  PULLER

1

PC



1-SIDE WELDING HEAD

1

PC

MULTI-CLAW PULLER

1

PC



ROUND WASHER

10

PC

EARTH CLAMP

1

PC



TRIANGLE WASHER

5

PC

TRIANGLE WASHER PULLER

1

PC



CARBON ROD HEAD

1

PC

CARBON ROD

2

PC



HOST

1

PC

CASTOR

4

PC



INSTRUCTIONS

1

PC

WAVEFORM SOLDER WIRE

5

PC



WARRANTY CARD

1

PC

WASHER WELDING HEAD

1

PC











Constructed Specification


1.Pneumatic sucker
2.Multifunction puller
3.Sport welding puller

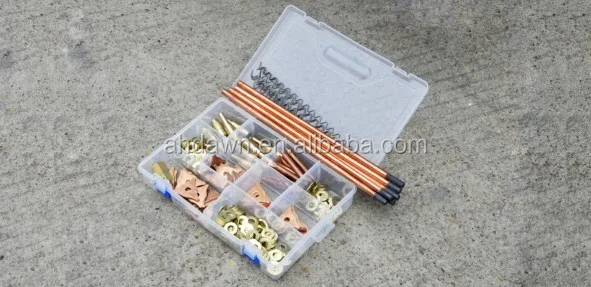

Dedicated accessories case for welding head,washer,triangle washer,iron wire,carbon rod,etc.

Using the industrial mute wheel with high bearing capacity.
The microprocessor control system optimizes the welding parameters.Using advanced digital control technology and user friendly design,all you have to do is select the welding current corresponding to the work piece thickness to achieve the best welding results.
High precision time adjustment system.
Automatic mains voltage monitoring.
A welding gun test function to evaluate the usage status of the welder.
Overheating protection with multiple welding gear,can be arbitrarily chosen.


Using hige standard mains lead and cable with International CE and Chinese CCC.
