tube in tube type pasteurizing machine

FOB Reference Price:Get Latest Price
US $51,500-54,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Month
Port:
Shanghai port China
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
GoFun
Model Number:
GFM-TS
Usage:
Fruit & Vegetable
Type:
Ultra High Temperature
Voltage:
220/380/440v
Power(W):
10000-30000w
Weight:
8000kg
Dimension(L*W*H):
8000x2000x2600
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
the product's name:
Automatic Tubular Sterilizer
Apply to:
Fruits & Vegetables juice and pulp
Processing type:
High Temperature Sterilizing
Processing capacity:
1-8t/h
Material:
SUS 304 stainless steel
certificate:
CE
The end product:
aseptic fruit juice
dynamic:
electric
advantage:
high quality and better after-sales service
package:
export standard packing
Packaging & Delivery
Packaging Details:
International exporting standard packing
Product Description

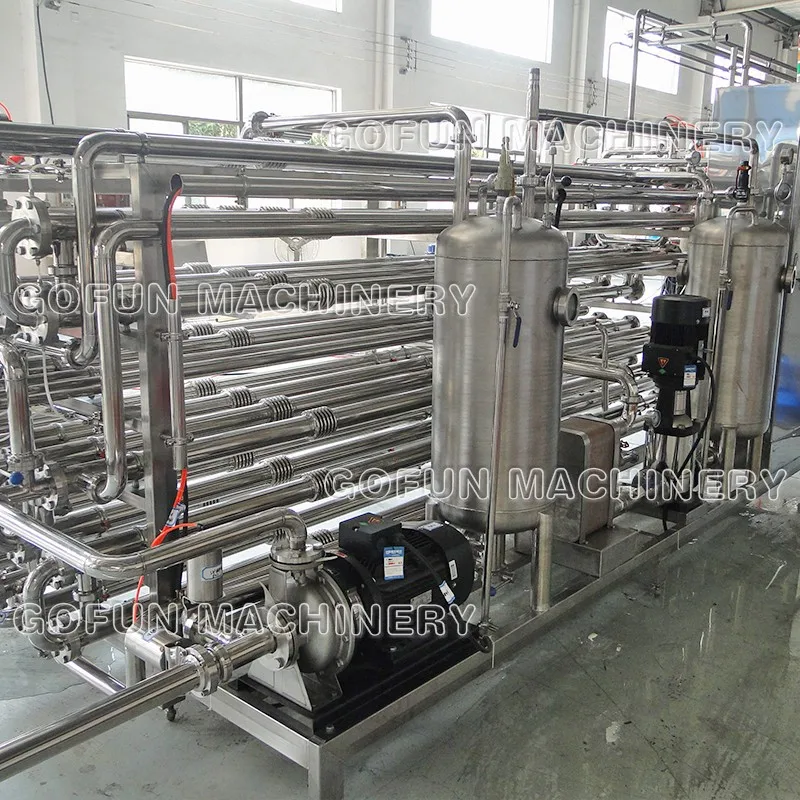

Tube in tube type sterilizer

Gofun Company has created the advanced automatic tube in tube sterilizer by learning and absorbing the high tech from Italy. The tube in tube sterilizer is widely used for the concentrated fruit paste and other products with high viscosity.
The Sterilizer has 4 layers tubular structures, the inner two layers and the outside layer will go through with the hot water and the middle layer will be running with the product. The product will be heated by the hot water to the setting temp and then hold the product under this temp for few time to completely sterilized the product and then cool down the product by the cooling water or chilled water. The sterilizer will be consist of the product tank, the pump, the heat exchanger, the holding tubes and the control system.

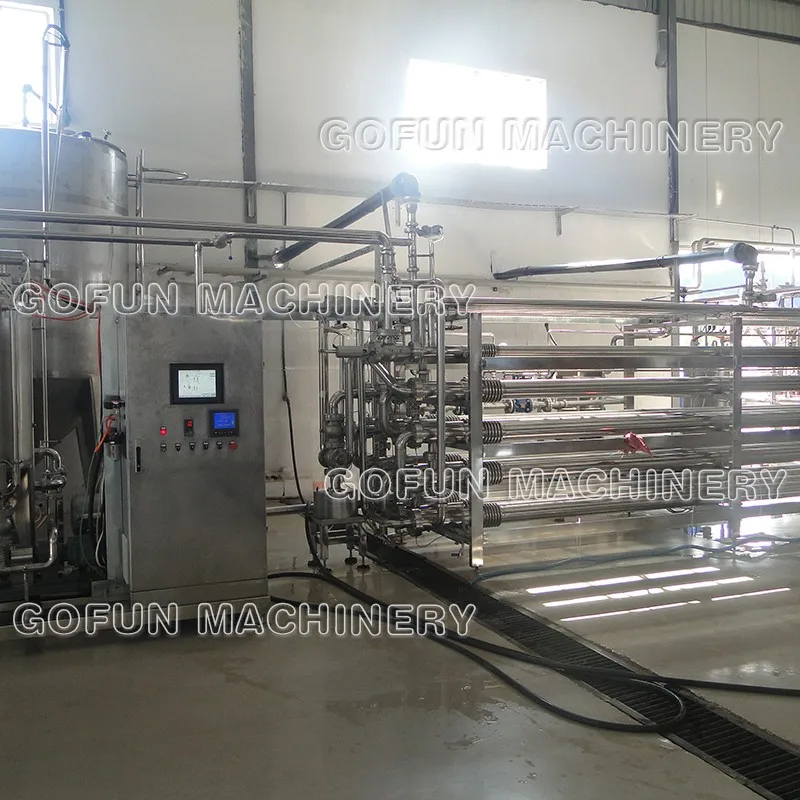

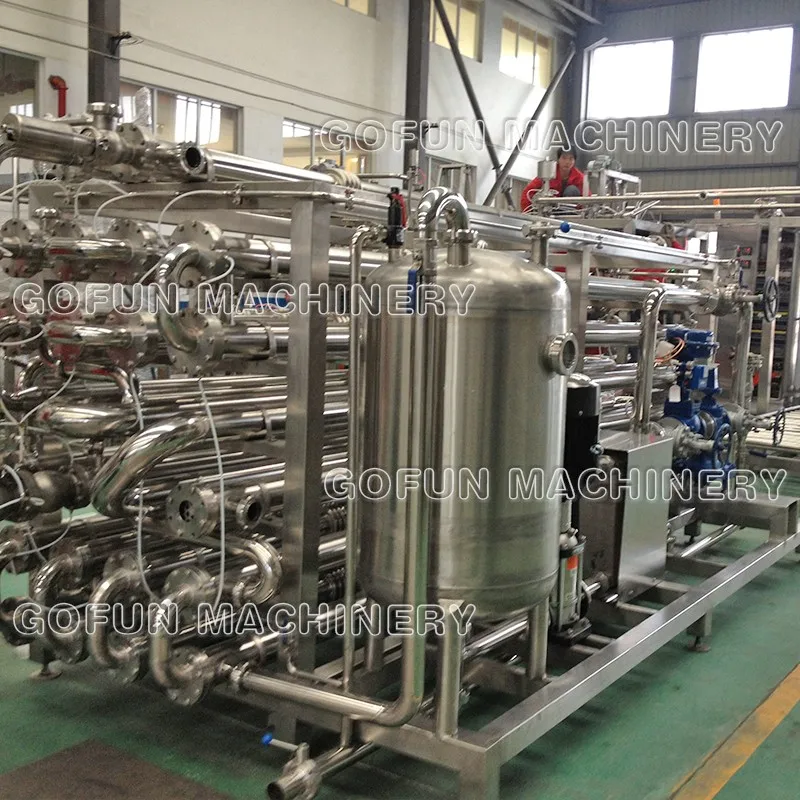

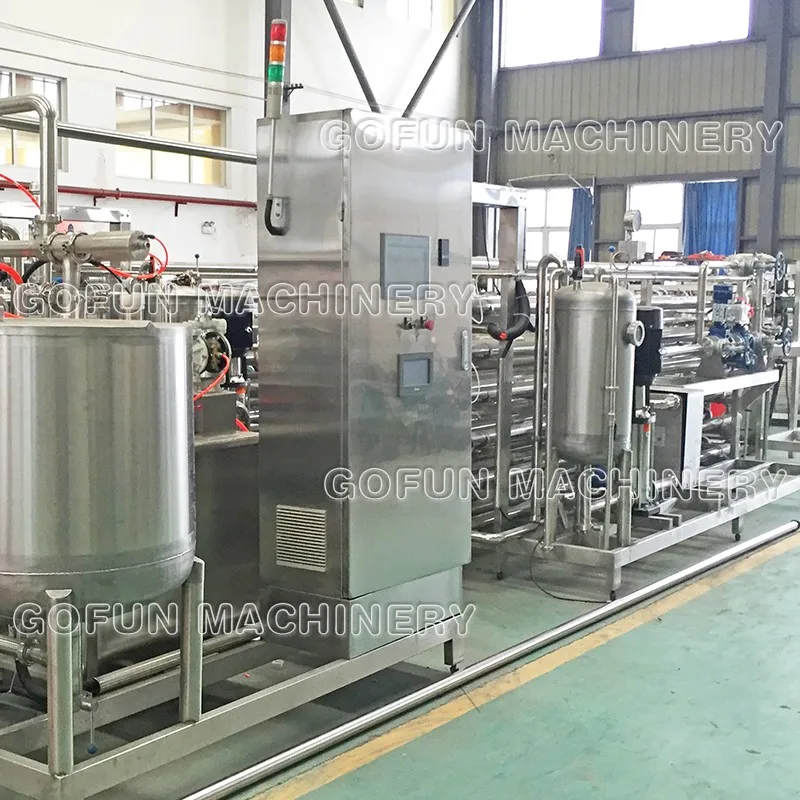

Detailed Images

Specification:

Main structure with SUS304 stainless steel.
Combined Italian technology and conform to Euro-standard.
Great heat exchange area, low energy consumption and easy maintenance.
Adopt mirror welding tech and keep the smooth pipe joint.
Auto return flow if not enough sterilization.
All the junction and joint with steam protection.
Liquid level and temp controlled on real time.

Separate control panel, PLC and human machine interface.

CIP and auto SIP available together with aseptic bag filler.

Working principle:

Put the product from a storage tank mounted for the sterilizer into the heat exchanger unit.
Heat the product by superheated water till the sterilizing temp and hold the product under the temp for sterilizing the product, then cool down into filling temperature by cooling water or chilled water.
Before each production shift, sterilize in place the system with aseptic filler together by superheated water.
After each production shift, clean in place the system with aseptic filler together by hot water, alkali liquid and acid liquid.

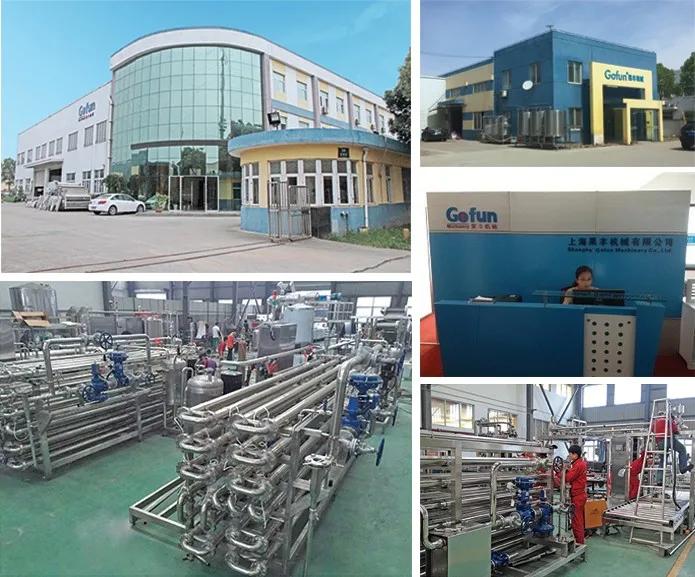

Our Company

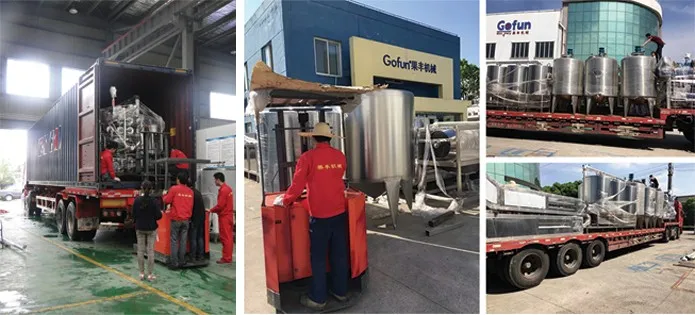

Packing & Delivery

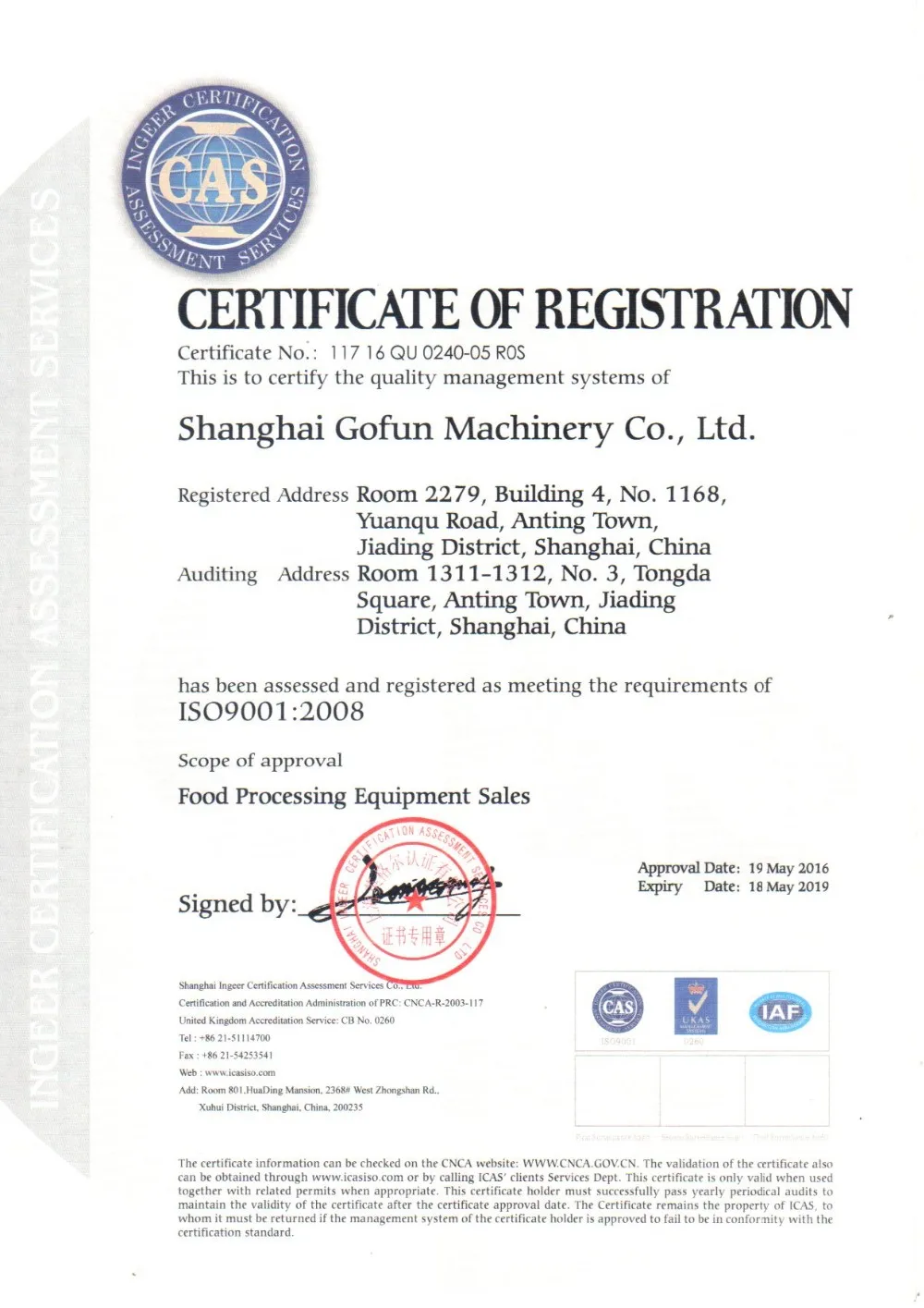

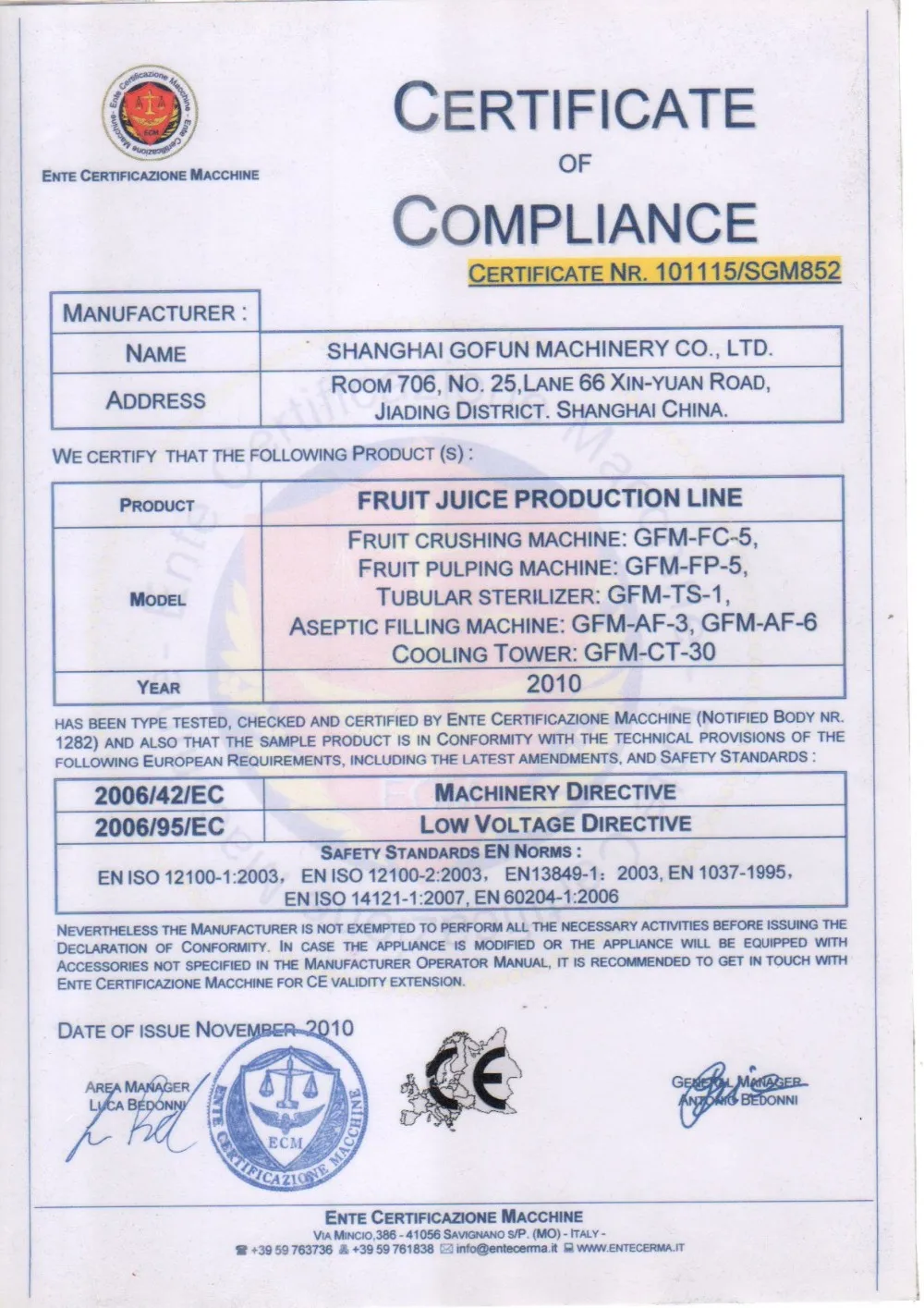

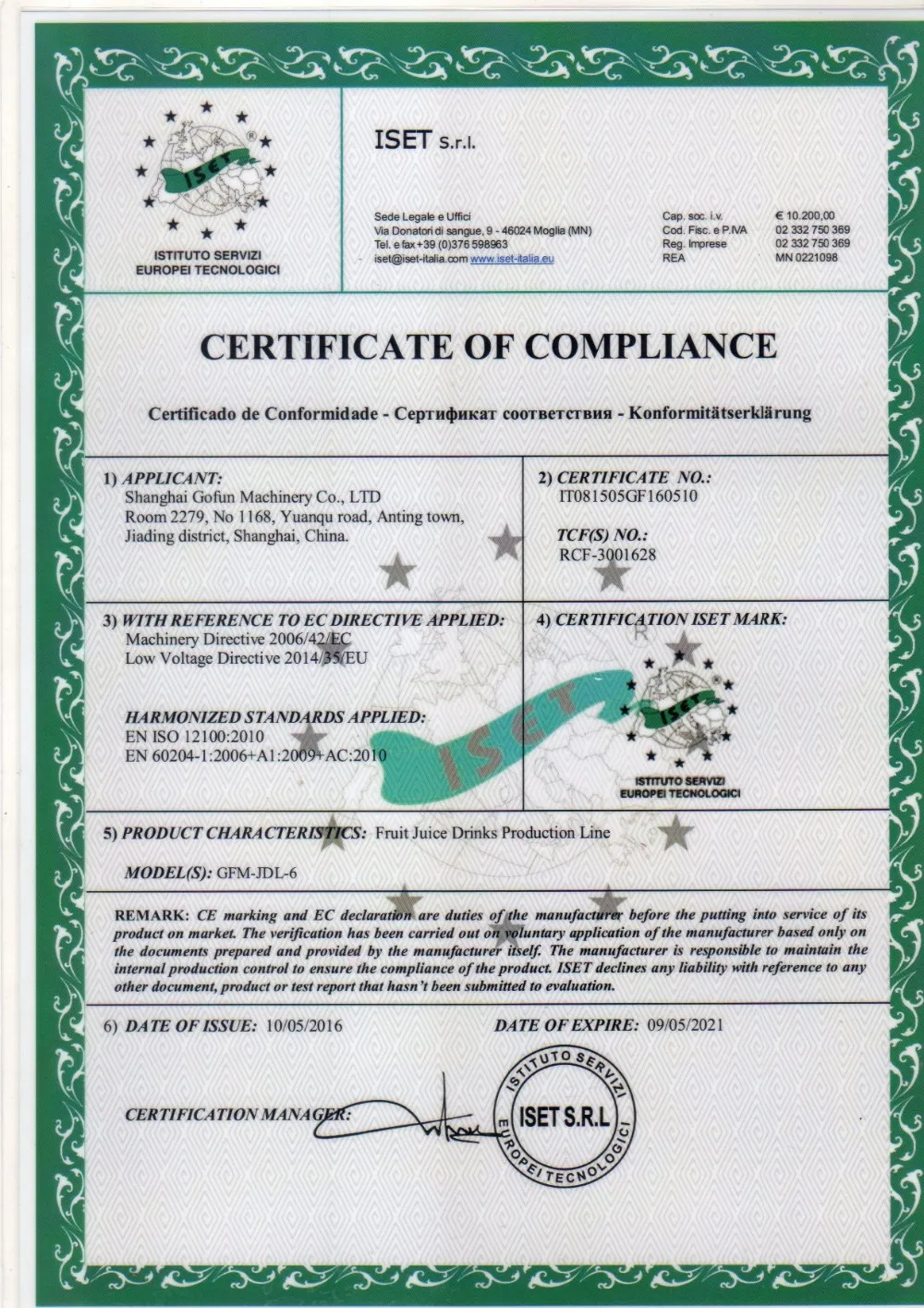

Certificate
