water bottling equipment/PET bottle filling line/water filling machinery with factory price

FOB Reference Price:Get Latest Price
$2,000.00 - $50,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
3KW
Model Number:
water bottling equipment
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year, 1 Year
Packaging Type:
Bags, Barrel, Bottles, Cans, Cartons, Case, Stand-up Pouch
Packaging Material:
Glass, Metal, Plastic, Wood
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Free spare parts, Engineers available to service machinery overseas
Place of Origin:
Shanghai, China, Shanghai, China (Mainland)
Brand Name:
Paixin
Voltage:
220V/380V
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Weight:
800kg
Automatic Grade:
Automatic
Certification:
ISO
Driven Type:
Electric
Dimension(L*W*H):
1100*578*1358MM
Name:
water bottling equipment
Machine material:
Stainless Steel 304/316 Optional
Processing Types:
Washing Filling Capping
Capacity:
2000-20000bph
HS code:
8422 3030 90
Product advantage:
Space saving/Effective cost/Easy operation
Eligibility rate:
≥99%
Supply Ability
Supply Ability:
20 Set/Sets per Month water bottling equipment
Packaging & Delivery
Packaging Details
with strong wooden case or pallet
as standard export and customer's requirement.
Port
shanghai

   water bottling equipment/PET bottle filling line/water filling machinery with factory price



QQ20160713180141



Introduction:

This  water bottling equipment is mainly used for washing, filling and capping 3 in 1 machine for mineral water,pure water and so on which is designed according to the requirements of ISO,CE. This unit is made of high quality SUS 304 stainless steel. Capping parts use the transverse torque and automatic slipping unit.

Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.water bottling equipment






characteristics:



1.Using the air conveyor access and move wheel in the bottle technology; canceled screw and conveyor chains, this enables to change different shapes of bottles more easily.



2.The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth in order to avoid secondary pollution.



3.High-speed large gravity flow filling valve, filling fast, filling accurate and no liquid lose.



4.Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Mitsubishi, Schneider, Siemens, Omron.

Technical Data

1

production name

Automatic water bottling equipment

2

production capacity(b/h)

3000-5000(customized)

3

filling volume

100-1000ml(customized)

4

washing-filling-capping

8-8-3(customized)

5

filling accuracy(%)

99

6

air source pressure(MPA)

0.6

7

air consumption(L/min)

800

8

Power(kw)

2.2

9

Dimension(mm)

2800*2000*2500(L*W*H)

10

weight(kg)

3500

Detials

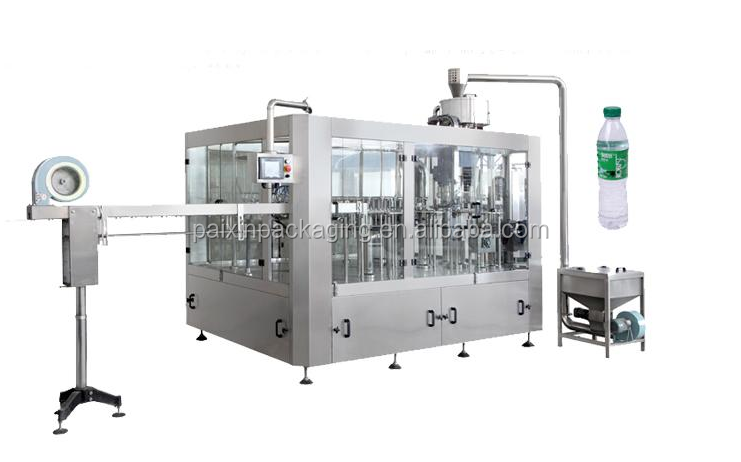

3 in1 water filling machine

carbonated 3 in 1.jpg

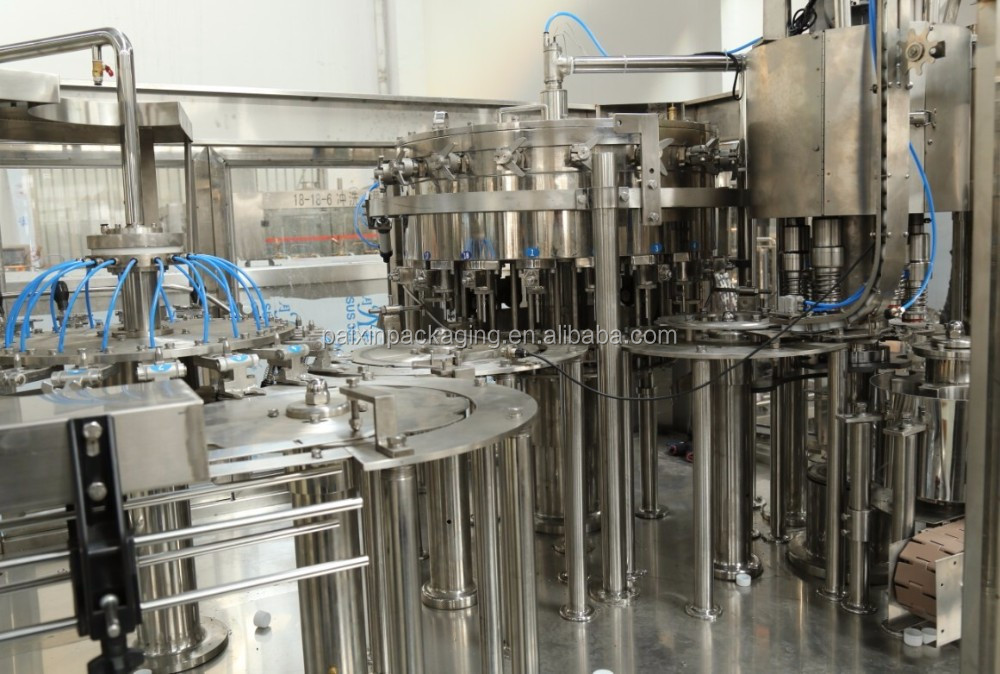

Washing machine

.jpg

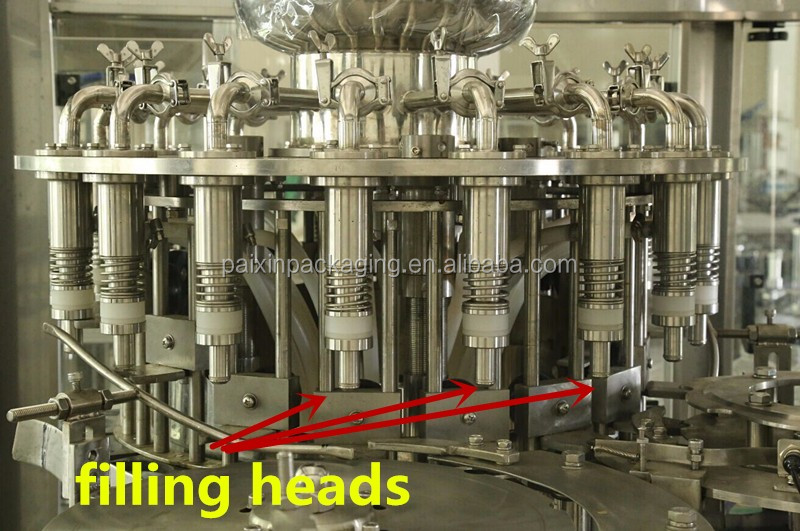

Filling heads

QQ20150619184830_

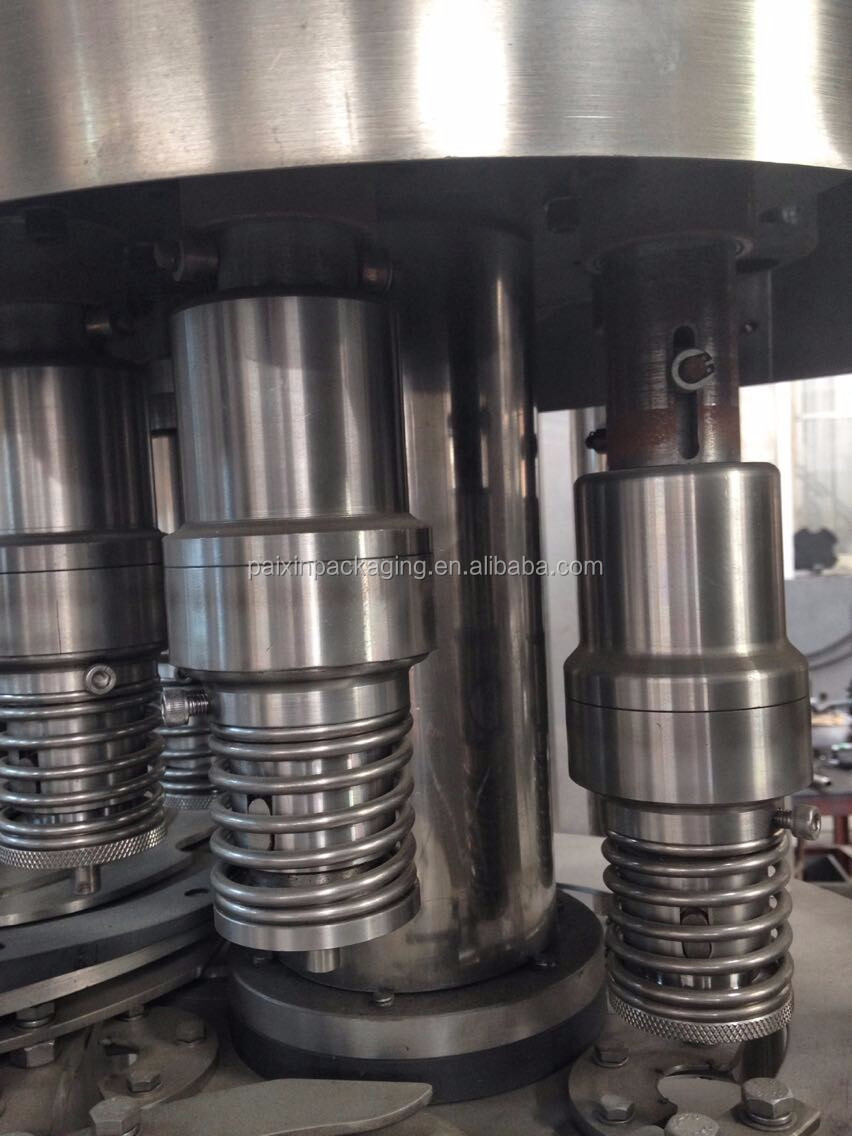

Capping machine

capping 2.jpg

The samples

water samples



We believe that a good machine is not only a simple combination of many good components.

we not only have the best quality world famous components,but also have the most reasonable and humanity design,we are constantly improving our technology.

We can guarantee that our machine can work with no problem for over 6 years.

Company Information

Shanghai Paixie Packing Machinery CO.,LTD is a manufacturer of Bottle feeding machine, bottle washer,Filling machine for bottles,filling machine for cans,packaging machine for bags, aerosol spray filling machine,liquid filling machine, jam filling machine,labeling machine, mixer machine, Sealing machine, capping machine,Charging machine, Weigher, Ink Jet Printer, Water-bath Checking, Capping machine, Air compressor, etc, with well-equipped testing equipment and strong technical force.



With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food medicine industry chemical industry and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

4

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

QQ20160712165916

Packaging & Shipping
Packaging Details: With strong wooden case or pallet as standard export and customer's requirement.
Delivery Detail:Shipped in 30 days after payment

packaging

FAQ

Q:Are you manufacturer?

A:Yes,we are manufacturing filling machine with rich experience,our Engineer Team with over 20 year’s experience.



Q:How can I know your machine has good quality?

A:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.



Q: What certifications do you have?

A: Fully in accordance with the GMP&ISO standard production and passed CE certification



Q:What is your Quality Warranty?

A:Two year warranty; Lifelong Maintenance and Technical Support.

QQ20160705145452

Cooperation brands:



Our Services

After-sales service:

We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial

factors within one year, we will freely provide them or maintain them for you. After one year, if you need

to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you

have technical question in using it, we will freely do our best to support you.

Guarantee of quality :

The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract. Quality guarantee period is within 12 months from B/L date. The Manufacturer would repair the contracted machines free of charge during the quality guarantee period. If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair parts cost.

Installation and Debugging:

The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.



 The machines can be customized according to your requirements.
