Wellav DMP900 MPEG4 and MPEG2 Transcoder Radio & TV Broadcasting Equipment

Product Description

OVERVIEW

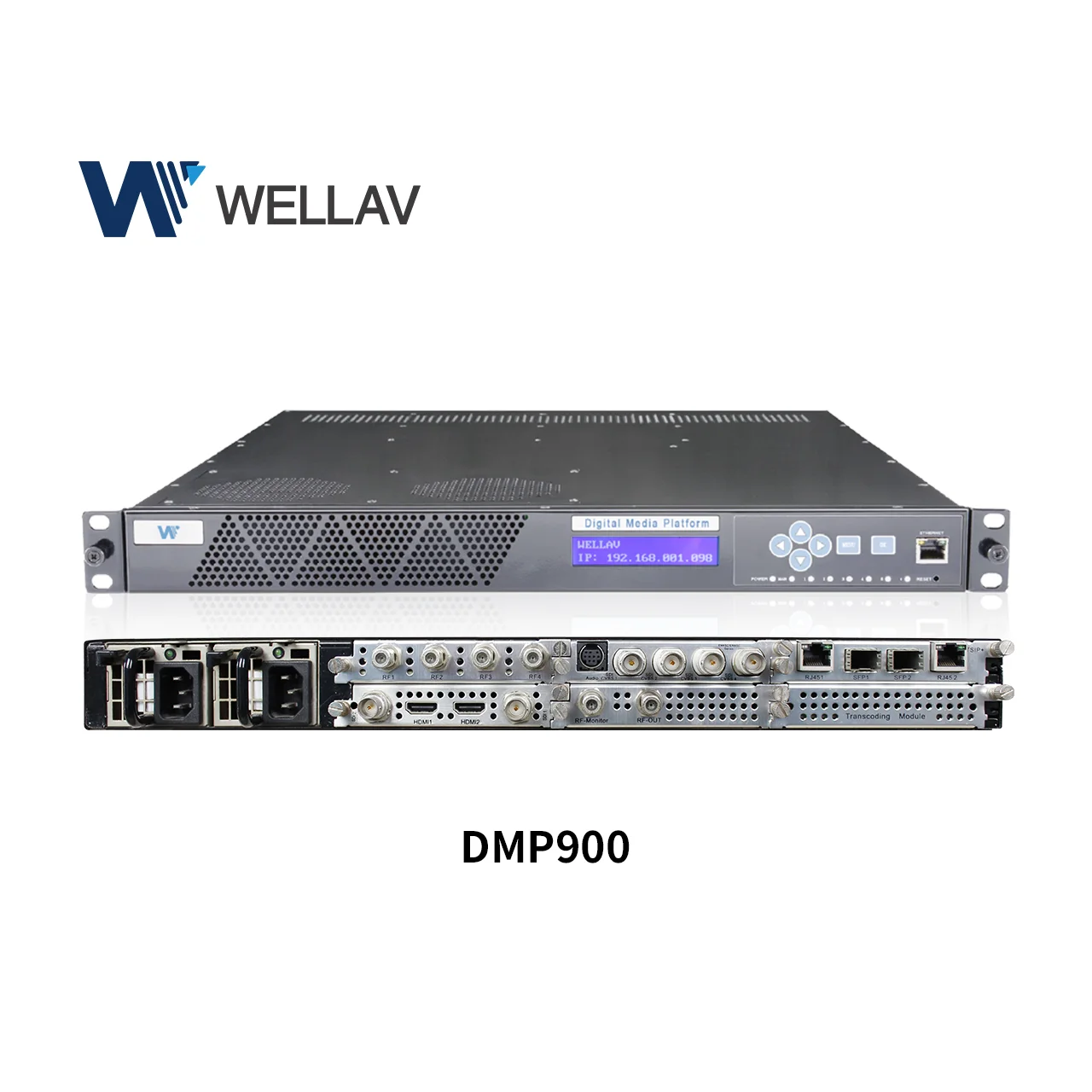

The DMP900 is Wellav's most advanced productfor service operators.It provides proven headendtechnology in a compact,1RU chassis. With over30 different input and output module optionsthat can be combined as needed, it offers a true,comprehensive video delivery solution.





Whether it is for multiplexing, receiving, encoding,transcoding, modulating, scrambling or descramblingapplications, the DMP900 provides more capacity,flexibility and reliability while requiring less space,fewer connections and less power.



KEY FEATURES

• Any input to any output capability
• Dense and modular design: 1RU with up to 6 modules.
• Supports up to 6Gbps video multiplexing and TS streammultiplexing/grooming
• Stream/Port/Service level redundancy
• Supports ElT multiplexing and EPG/Sl insertion(both DVB and ATSC standard)
• Hot swappable, dual, redundant power supply. Easy configuration tools: Web-Ul and SNMP
• Easy upgrades to support new technologies by swappingmodules
• Low power consumption and high reliability with MTBF≥100,000 hours
• Multi-function: multiplexing, receiving, encoding,transcoding, modulation, scrambling and more

APPLICATIONS

Encoding/Transcoding

• Up to 20 SD or HD programs of encoding
• Up to 20 SD or 10 HD programs of transcoding.
• Multi-audio MPEG/AAC/AC3 encoding

Receiving/Digital-Turn-Around

• 20 channels or frequencies of DVB-S/S2/C/T/T2,ISDB-T and 8VSB receiving
• Descramble, remultiplex and pass-through to ASI,lP or RF output

Modulation

• Up to 40 channels of OAM modulating
• Up to 20 channels of OFDM/DVB-T modulating. 16 channels of trans-modulation to OAM(fromDVB-S/S2T/T2,ISDB-T or 8VSB)

Stream Processing

• Up to 6Gbps processing (approx.1500 programs).
• 24 ASl ports of multiplexing
• 20 ports ASl to lP gateway
• lnternal multiplexing or pass-through capabilities.EIT multiplexing
• Supports Sl and EPG data insertion


SPECIFICATIONS

Digital Media Platform



Chassis
Capacity	6Gbps (approx.1500 programs)
Slot Number	6 hot-swappable slots





Multiplexing
Routing	Any input to any output
Table Supported	SI/PSI/PSIP
PID Processing	Pass-through, remapping, filtering
EIT Processing	Re-multiplexing and pass-through
External Data	EPG and Sl insertion



Management
Hardware lnterface	1 x RJ45 (100Mbps)
User Interface	LED indicators LCD screen Front panel control Web Ul SNMP(monitoring only)



Physical & Environment
Input Voltage	90~260 VAC
Dual Power Supply	Support, hot-swappable
Power Consumption	Max.120W (fully loaded)
Chassis Dimension	480mm x 44m x 490mm (WxHxD),1RU
Operating Temperature	o C~50℃
Storage Temperature	-10℃ ~70℃
Operating Humidity	<95%
MTBF	≥100,000 hours



ORDERING INFORMATION

Part Number	Description
WAV-DMP90O-CHASSIS	Standard chassis with 6 slots
WAV-DMP900-CHASSIS-DC	48V DC 6-slot chassis
WAV-DMPSMP-DVBS2-V2	DVB-S/S2 receiving module (4CH, or 2CH with 16/32APSK), supports multi-stream receiving
WAV-DMPSMP-DVBC	DVB-C receiving module (4CH, Annex A/C)
WAV-DMPSMP-OAM-B	QAM-B receiving module (4CH,Annex B)
WAV-DMPSMP-8VSB	8VSB/ATSC receiving module (4CH)
WAV-DMPSMP-DVBT2	DVB-T2/T receiving module (4CH)
WAV-DMPSMP-ISDBT-V2	ISDB-T receiving module (4CH)
WAV-DMPSMP-TSIP-256I256O	Enhanced TSIP module (2 x SFP+2x RJ45,256In256Out)
WAV-DMPSMP-TSIP-64I32O	TS-IP /O module (2 x SFP+2x RJ45,64In32Out)
WAV-DMPSMP-IP-ASI	2-in-1 IP/ASl module (2 x RJ45+2xASl, 64In32Out)
WAV-DMPSMP-ASI	4CH DMP-SMP ASI I/O Module
WAV-DMPSMP-ASI-SWITCH	ASl switch module (5CH)
WAV-DMPSMP-CI	Descrambling module (2 Cl slots,CAS or BlSS options)
WAV-DMPSMP-CAS-PLUS	Scrambling module (CAS,BISS or AES options)
WAV-DMPSMP-IQAM	Non-adjacent QAM modulating module (max.16CH,Annex AC or B)
WAV-DMPSMP-QAM	QAM modulating module (8CH Annex A/C or 4CH Annex B)
WAV-DMPSMP-LQAM	QAM modulating module (4CH Annex A/C, 1 or 2CH Annex B, local RF combination)
WAV-DMPSMP-OFDM-MOD-4CH	OFDM modulating module (4CH)
WAV-DMPSMP-8VSB-MOD-2CH	8VSB modulating module (2CH)
WAV-DMPSMP-ISDBT-MOD-1CH	ISDBT modulating module (1CH)
WAV-DMPSMP-EN4SC-2M2Axx	H.264 HD/SD or MPEG-2SD SDl encoding module (2CH, MPEG1L2,AC-3,AAC options)
WAV-DMPSMP-EN4SC-4M2Axx	H.264 HD/SD or MPEG-2 SD SDl encoding module (4CH,MPEG1L2,AC-3,AAC options)
WAV-DMPSMP-EN4SC-2M2Axx	H.264 HD/SD or MPEG-2SD SDl encoding module (2CH, MPEG1L2,AC-3,AAC options)
WAV-DMPSMP-EN4SC-4M2Axx	H.264 HD/SD or MPEG-2 SD SDl encoding module (4CH,MPEG1L2,AC-3,AAC options)
WAV-DMPSMP-EN4HDMI-xM2Axx	H.264/MPEG-2 HDMl encoder (max.4xH.264 SD/HD or 4 x MPEG-2 SD,MPEG1L2,AAC,AC-3 options)
WAV-DMPSMP-EN2SDI-2HV3xx	H.264/MPEG-2 encoder (2 SDHD,SDI/CVBS, teletext encoding,MPEG1L2)
WAV-DMPSMP-ENAUDIO	4CH audio encoder module,MPEG1L2
WAV-DMPSMP-EN5-1U-4H	1CH UHD or 4CH HD HEVC/H.265 encoding module (4 x SDI,1 x HDMI)
WAV-DMPSMP-TC4-2M2Axx	Transcoder to 2xH.264 SDHD or MPEG-2 SD (MPEG1L2,AAC,AC-3 options)
WAV-DMPSMP-TC4-4M2Axx	Transcoder to 2xH.264 HD or 4 x MPEG-2/4SD(MPEG1L2,AAC,AC-3 options)
WAV-DMPSMP-TCMS-M	Multi-screen low-bitrate transcoder (2 services, 13x H.264 profiles), MPEG1L2 (support), AC3 (optional), AAC (optional)
WAV-DMPSMP-TCHD-M	Low bit-rate transcoder to H.264/MPEG-2 HD/SD programs (2CH HD-to-HD or 8CH SD-to-SD)
WAV-DMPSMP-DECODER-HD-CCV2	2CH H.264/MPEG-2 HD SDI/HDMI Decoder Module With cc
WAV-DMPSMP-DECODER-SD	2HD or 4SD CVBs decoder



*All the modules are not listed here due to page limitation, please find us if you can't find or need more details.
