wind grid tie inverter 5KW inverter for wind generator on grid inverter 5KW

$935.00 / Piece | 1 Piece (Min. Order)
Output Power:
1 - 200KW
Input Voltage:
120V/220V/240V/380V
Output Voltage:
110V/220V/230V/240V
$935.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Deming
Model Number:
DMWG-5KD
Size:
45kg
Weight:
640*570*340mm
Output Type:
Single
Type:
DC/AC Inverters
Output Frequency:
50HZ/60HZ
Output Current:
20A
Color:
RED
Warranty:
5 Year
Output waveform:
Pure Sine Wave Output
Display:
LCD
Certificate:
CE
Efficiency:
94% Max
Product name:
5KW inverter for wind generator on grid inverter 5KW

Packaging & Delivery

Selling Units:
Single item
Single package size:
64X57X34 cm
Single gross weight:
35.0 kg
Package Type:
wind turbine grid tie single phase inverter 5KW Wood packaging
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 15 To be negotiated



Product Description




Product advantages:
1. Using IGBT from Mitsubishi company as the power components
2.Using American ATEMEL company microprocessor as figure controller3. Perfect protection and warning functions
3.Wind turbine MPPT technology, real-time tracing wind turbine max. output power
4. Disturbance detection technology, anti-island control
5.Circuit frame compact, Max. Efficiency≥94%
6.Outdoor stainless steel shell, fully sealed installation
7. Input voltage within the broad, the maximum reach 1150VDC
8. With RS485/RS232, Ethernet, GPRS (optional) interfaces, remote data collection and surveillance
9. Pure sine wave output, automatic synchronization grid connected, non-polluting to the power grid, no impact
10. Inverting current close-cycle control, power to control and adjustable
11.Big-screen English LCD, perfect display, interface-friendly

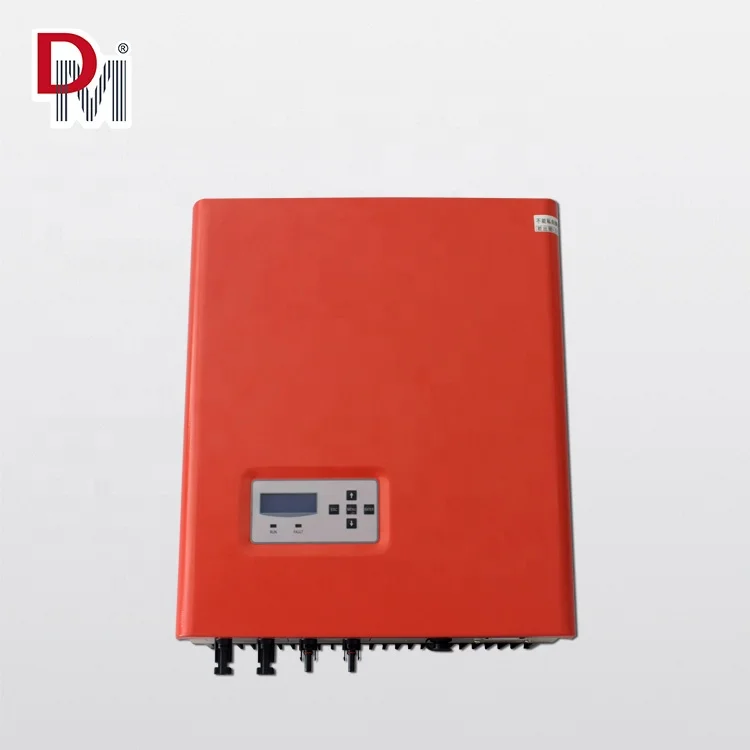

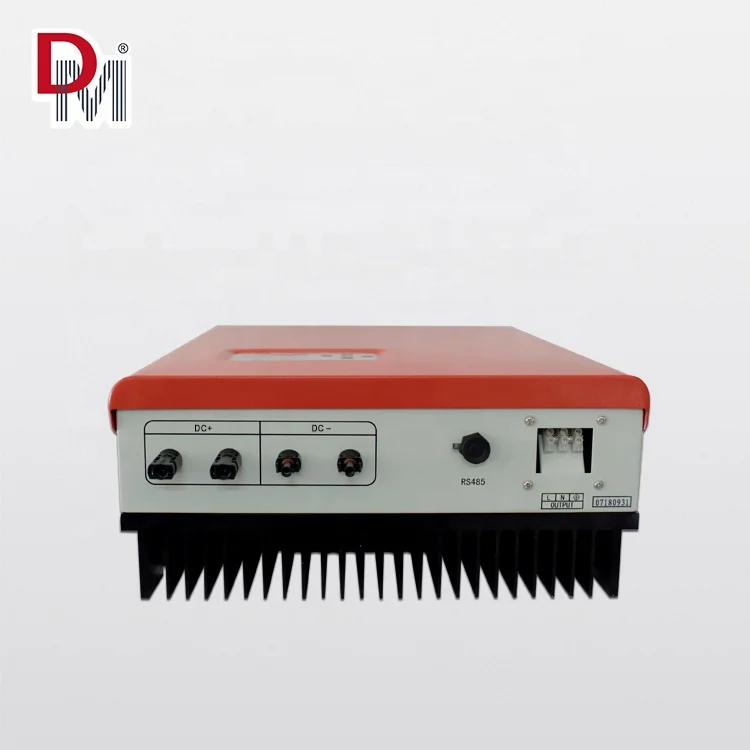

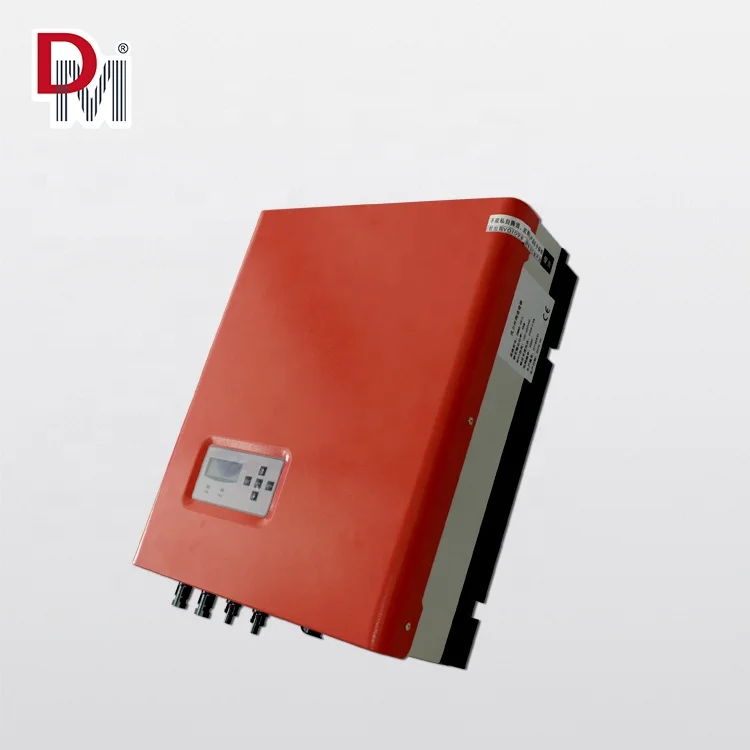

Product photo


 -01



Technical Parameters

  Technical parameters

Model

DMWG-5KTL

Maximum DC input power

5.5KWp

Maximum input voltage allows the fan

450Vdc

Maximum Power Point Tracking (MPPT) range

100Vdc-400Vdc

Maximum input current

50A

Nominal AC output power

5KW

Max. AC output power

5.5KW

THD of AC current

<3%(Rated power)

Power factor

>0.99

Max. efficiency

94%

Euro efficiency

92%

Output rating voltage

220Vac 50HZ

Allowed Grid Voltage Range

180~265Vac

Allowed Grid Frequency Range

47.5~51.5Hz

Internal power consumption an night

<10W

Automatically put into operation conditions

DC input and power to meet the requirements, the inverter automatically run

Automatic restart after power failure time

2min

Protection

Reverse polarity, short circuit, island, overheating and overload etc

Comm. interfaces

RS485(Modbus Agreement)

Operating Temp.

-25℃~+60℃

Relative humidity

0~90%,Non-condensing

Altitude(m)

6000 meters (over 2000 m with derating required)

Cooling method

Forced air cooling

Noise

≤60dB

Protection degree

IP20(indoor)

Dimensions (W * D * H mm)

570*340*640

Weight(KG)

45

Communications monitoring

Inverter via RS485 communication for start-stop control and routine data monitoring

*It means the function is optional, if you want it, please tell us before your order.



Above parameter only for referenceCould be custom made to user specifications.





Parts

Optional Parts

     Service guarantee<>

         As our corporate users, you enjoy the following service:

        (1) The machine warranty for free in 2 year;

        (2) Technical support;

        (3) Within 24 hours for respond after receiving notification;

        (4) Cost maintenance forever.

        When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.



        However, any of the following situation happened, are not included in the warranty:

       (1) Non-permitted by the company, went ahead with repair and damage;

       (2) Install or modify arbitrarily;

       (3) Incorrect operation or use;

       (4) Do not depending on the manual to do cleaning or maintenance;

       (5) Abnormal environment condition exceed the specifications, result in damage;

       (6) The deliberate destruction of man-made;

       (7) Irresistible natural disasters.
