SJT Power cable
| FOB Price: | US $0.5 - 2 / Meter Get Latest Price |
|---|---|
| Port: | GUANGDONGDONGGUANG |
| Minimum Order Quantity: | 5000 Mile/Miles KFT |
| Supply Ability: | 30000 Mile/Miles per Week |
| Payment Terms: | L/C,D/A,D/P,T/T |
[
Guangdong,
China (Mainland)
]
Report Suspicious Activity
Quick Details
| Place of Origin: | Guangdong China (Mainland) | Brand Name: | Wenchang | Model Number: | SJT power cable |
| Insulation Material: | PVC | Type: | Medium Voltage | Application: | Power Station |
| Conductor Material: | Copper | Jacket: | PVC | UL style: | SJT |
| Part name: | outdoor Power cable | Product code: | anti-disturbance Power cable | Product name: | ul cable |
| color: |
Brown,Red,Orange,Yeuow,Green,Blue,Purple,Gray,White,Black
|
UL attestation: | E214500 | CSA attestation: | LL210593 |
| SGS: | RoHS,REACH,PHAS | OEM:: | Welcome |
Packaging & Delivery
| Packaging Detail: | 2KFT(610M)&1KFT(305M)/R. |
| Delivery Detail: | 3-5 working days or for the customer's requiremnet |
Specifications

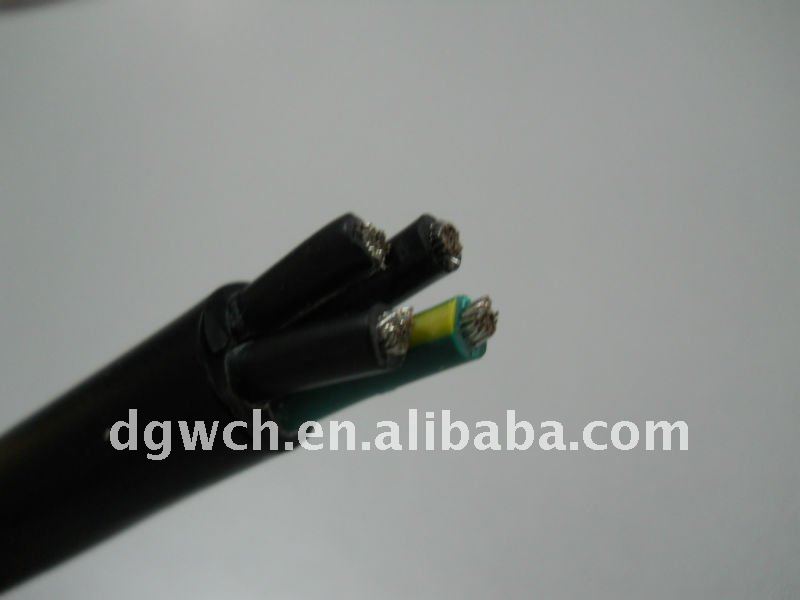

SJT Power cable, outdoor electrical cable
105C, 300V PVC insulation
Stranded copper
VW-1 passed
SJT Shielding cable, outdoor electrical cable, power cables
Product Description:
Unshielded:
1) Bare stranded copper or tinned stranded copper conductor.
2) Color-coded PVC insulation.
3) Cores twisted together with fillers.
4) Separator over core.
5) PVC jacketed
6) Rated temperature: 60°C, 75°C, 105°C. Rated voltage: 300Volts.
7) Passes UL VW-1 vertical flame test.
Shielded:
1) Bare stranded copper conductor.
2) Color-coded PVC insulation.
3) Cores twisted together with fillers.
4) Aluminum/mylar.
5) Tinned bare copper braid shield, 85% coverage.
6) Color-coded PVC jacketed.
7) Rated temperature: 60°C, 75°C, 105°C. Rated voltage: 300Volts.
8) Passes UL VW-1 vertical flame test.
Applications:
1) Unshielded: for portable hand tools, washing machines, polishers, sanders, vibrators, shop lights, therapeutic machines, dish washers, medical equipment and office machines.
2) Shielded: for power supply cord of computers to eliminate EMI and RFI.
| UL Style & CSA Type | Conductor | No.of Cores | Insulation Thickness | Jacket Thickness | Overall Diameter | Standard Put-up | ||
| AWG | No/mm | mm | mm | mm | Ft/coil | M/Coil | ||
| SJT (Stranded) | 18 | 41/0.160 | 2 | MIN Average 0.76 MIN 0.68 | MIN Average 0.76 MIN 0.68 | 7.50±0.20 | 500 | 152.50 |
| 16 | 26/0.250 | 2 | 8.10±0.20 | 500 | 152.50 | |||
| 14 | 41/0.250 | 2 | 9.00±0.30 | 500 | 152.50 | |||
| 12 | 65/0.250 | 2 | MIN AVG 1.14 MIN 0.91 | 9.90±0.30 | 500 | 152.50 | ||
| 18 | 41/0.160 | 3 | MIN Average 0.76 MIN 0.68 | 7.80±0.20 | 500 | 152.50 | ||
| 16 | 26/0.250 | 3 | 8.50±0.20 | 500 | 152.50 | |||
| 14 | 41/0.250 | 3 | 9.30±0.30 | 500 | 152.50 | |||
| 12 | 65/0.250 | 3 | MIN AVG 1.14 MIN 0.91 | 10.80±0.30 | 500 | 152.50 | ||
| 18 | 41/0.160 | 3 | MIN Average 0.76 MIN 0.68 | 8.60±0.20 | 500 | 152.50 | ||
| 16 | 26/0.250 | 3 | 9.30±0.30 | 500 | 152.50 | |||
| 14 | 41/0.250 | 3 | 10.30±0.30 | 500 | 152.50 | |||
