|Products Status:||Stock||Type:||industrial panel pc||Screen Size:||15"|
|Processor Brand:||Intel||Memory Capacity:||2GB||Hard Drive Capacity:||250GB|
|Graphics Card Type:||Integrated Card||Display Type:||LCD||Widescreen:||No|
|Optical Drive Type:||NO||Processor Main Frequency:||580M/ 620M||Brand Name:||TFTBAY|
|Model Number:||TB-IPPC-150CHB-i5/i7-nf||Place of Origin:||Guangdong China (Mainland)||CPU:||Intel i5/i7|
|LCD Size:||15 inch||Brightness:||1000 nits||Fanless:||Fanless|
|Speaker:||2 speakers optional||Wirless:||WIFI-3G optional||Touch screen:||5-wire resistive|
|Color:||black or white||resolution:||1024*768||Aspect ratio:||4:3|
|Packaging Detail:||Dimensions:390x313x66mm Packaged Dimensions:490x390x163mm Net Weight:5.6kg Gross Weight:7.1kg|
15 inch kiosk pc
1000 nits high brightness
6 COM ports

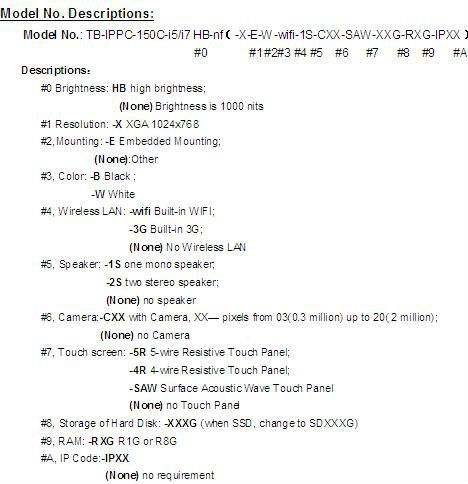

15.0 inch i5/i7 series (TB-IPPC-150CHB-i5/i7-nf)
high brightness Fanless Industrial Touch Panel kiosk PC Datasheet
15 inch kiosk pc
With15.0inchTFTLCD, 1024x768 resolution, Industrial 5-wire resistive touch screen, ruggedized, 6 COM ports, high performance price ratio. High brightness,IP65 or IP66 (Front shell) is available. Embedded Mounting is optional.
TB-IPPC-150CHB-i5/i7-nf industrial panel PC series is ideal for industrial control, truck and ship control, assemble line management, medical applications, multi-media gather and process and so on. The industrial panel pc is a powerful, inexpensive and compact system offering current PC technologies with innovative system integration features that are demanded for today's applications.
Heat Emission: TB-IPPC-150CHB-i5/i7-nf has rugged shell made of aluminum and steel, those provide better heat emission ability. I7 620m/i5 580m CPU and chipset consumptive made the PC reliable and high speed quality functions.
Dust and Water Resist: Unique aluminum alloy front shell is made this series PC more reliable and more fashionable. They can effectively resist dust and water. The front panel accord with the IP65 standard.
Touch Screen: Several kinds of touch screen are available. We provide industrial 5-wire resistive touch screen, IR and also Surface Acoustic Wave touch screen.
WIFI: This series Panel PC is Built-in WIFI optional with high sensitive antenna.
Mounting: Provide serial mounting methods to fit widely usage. Standard VESA100X100mm, are available in a variety of mounting options including panel mount, VESA mount, rack mount, console mount and desktop.
Storage: Hard disk, SSD optional.
Power supply: 12V DC In, Low power consumptive.
OS: Support Microsoft windows XP, Vista, windows 7 and Linux etc.
Accessories: 100-240V AC to 12V-6A DC Power Adapter;
Main Board Driver CD; Touch screen Driver CD;
Hooks for Embedded Mounting (Embedded PC only)
Built-in GEN 5.75
DDR3 800,1066 Mhz 2G
Up to8GB (optional)
250G Hard disk(other storage capacity is optional, SSD optional)
2X10/100/1000 M bits /
Built-in Realtek ALC 888HD
4xCOM (RS232), 2Xcom(RS485/422/232) 7xUSB
15.0" Diagonal color TFT
2304(H) x (RGB) x 1024(V) = 2,359,296 (dots)
1000nits / CCFL Backlight
5-wire Resistive Touch Panel (USB)
2 x 2W Stereo Speakers(optional)
0.3million up to 2 million (optional)
-10°C- 50 °C
-20 - 70 °C
Back: Aluminum Heat Sink,Q235
Entrance size for embedded mounting
Embedded Mounting (optional)
