IP65 white high power led module
| FOB Price: | Get Latest Price |
|---|---|
| Port: | shwnzhen |
| Minimum Order Quantity: | 5 Piece/Pieces |
| Supply Ability: | 2000 Piece/Pieces per Week |
| Payment Terms: | L/C,D/P,T/T,Western Union |
- Comprehensive capabilities verified by Bureau Veritas
- Facilities onsite checked
-
Certifications: ISO 9001:2008
Report Suspicious Activity
Quick Details
| Type: | LED Modules | Model Number: | LM47B6521 | Emitting Color: | Warm White |
| Luminous Flux(lm): | 65-80 | Power: | 1.2-1.4,1.2W-1.4W | Viewing Angle(°): | 120 |
| Operating Temperature(℃): | -20 - +60 | Storage Temperature(℃): | -30 - +80 | Place of Origin: | Guangdong China (Mainland) |
| Brand Name: | ILLUSION | Certification: | CE,RoHS | Working Voltage: | DC12V |
| Viewing angle(: | 120degree | Lifespan: | 50,000h | LED quantity: | 2pcs |
| Standard connection quantity: | 20pcs | IP rank: | IP65 |
Packaging & Delivery
| Packaging Detail: | carton |
| Delivery Detail: | 7-15 days |
Specifications
1 LM47B6521
2.LED type 5730Warm white
3.Luminous flux(lm) 65-80
4.Wavelength range(nm or K)6000~7000
IP65 white high power led module
Production introduction
SMD5730 2- LED Injection waterproof Module is the newest goods designed by our company. Which adopt high brightness, large viewing angle and good consistency SMD5730 LED as light source.
The led adopts silica gel material package, high efficiency, working 1000Hrs at rated working condition without light fades, Lifespan is 50000Hrs. Working voltage is DC12V, built-in constant-current circuit, safe for using. Low power consumption, long lifespan, no need to maintenance.
Anti-static, anti-UV, flame-retardant engineering plastics shell, strong weather resistance,no change of color. Beautiful, generous, elegant high-end.
Widely used in advertising decoration, indoor decoration, scenic tour indoor and outdoor
environments, Can adapt to different temperature and humidity, the good quality materials guarantee the goodswill not be damaged during the transportation and installation process.
Technical parameters
Part No. | L M47C6521 | LM47W6521 | LM47B6521 | |
LED type | 5730Cool white | 5730Pure white | 5730Warm white | |
LED quantity | 2pcs | |||
Viewing angle(2θ1/2) | 120° | |||
Lifespan | 50,000h | |||
| 65-80 | 65-80 | 65-80 | |
Wavelength range(nm or K) | 9000~12000 | 6000~7000 | 2700~3300 | |
Electric | Working Voltage | DC12V | ||
Power | 1.2W-1.4W | |||
Driving way | Constant current circuit driver | |||
Connect | UL1007 20#wire ,Gray and white wire,Gray wire is Anode, White wire is Negative electrode, The cable length is 100 mm | |||
Standard connection quantity | 20pcs | |||
The biggest characteristic of cascade | ≤20pcs | |||
Appearance parameter | Shell | Anti-static,anti-UV,PVC+PC cover. | ||
dimension | 59*17*6mm | |||
color | beige | |||
Fixed Method: | Screw | M3*15 Screw | ||
Tape | 3M Tape | |||
Environmental parameters | working temperature | -20°C~ +60°C' | ||
Storage temperature | -30°C ~ +80°C | |||
Storage environment | Indoor ventilation, air should be no corrosive gas, and avoid direct sunlight. | |||
IP rank | IP65 | |||

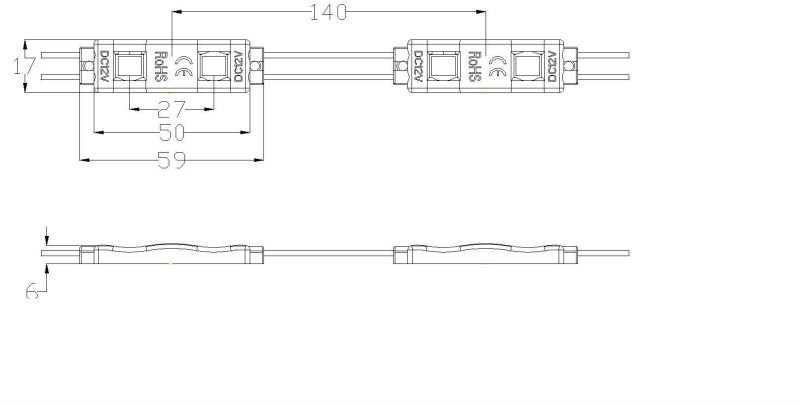

Size(mm)
Method(unit:mm)
Notice
Caustic or dissolved chemicals may damage the protection crust.
Normal working temperature : -40°C-60°C, if overrun the range, it will effect the lifespan of lamp. Storage temperature is -50~80°C
We will takes no responsibility, Bad consequences made by some components which are not provided by our company
