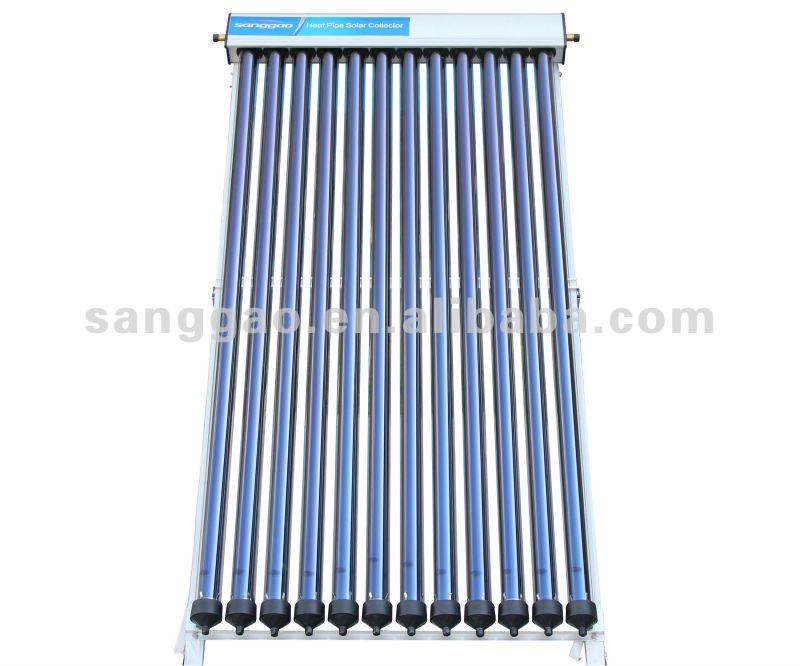

Compact heat pipe solar water heater
| FOB Price: | US $45 - 450 / Set Get Latest Price |
|---|---|
| Port: | Shanghai/ Ningbo/ Hangzhou |
| Minimum Order Quantity: | 3 Set/Sets ,more discount |
| Supply Ability: | 5000 Set/Sets per Month |
| Payment Terms: | L/C,T/T |
[
Zhejiang,
China (Mainland)
]
Report Suspicious Activity
Quick Details
| Type: | Evacuated Tube | Pressure: | Pressurized | Circulation Type: |
Indirect / Closed Loop (Active)
|
| Heating System: | Thermosyphon (Passive) | Connection Type: | Split | Installation: | Freestanding |
| Housing Material: | Aluminium alloy | Certification: | CE | Capacity: | 120 |
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Sanggao | Model Number: | SGR58-15 |
Packaging & Delivery
| Packaging Detail: | Cartons with plastic foam,or accord to customers' demand |
| Delivery Detail: | 15days after received the 30% of deposite |
Specifications
Heat pipe is a kind of hi-tech heat-transfer element.The heat pipe collector has a simple structure and is easy to dismounting.
15days after received the 30% of deposite
Detailed Product Description
Advantages
1.High thermal efficiency, and the use of the whole year: Advanced heat pipe heat transfer mode, excellent solar selective absorbing coating and high vacuum insulation state make the daily average thermal efficiency of the collector system (even in the winter of northern China) reached more than 50%. Adoption of new technologies,strong pressure: TJ casing and tank are fused by welding, the test pressure of products can reach 11kg/CM2, solve the problem of scaling, efficiency droop, flow is small and unstable. Overcoming the problem of vacuum tube pipe explosion, sealing andmetal heat pipe glass and metal sealing at present.
2.Installation and maintenance are convenient:The collector is unit structure, easy to carry and install. When a vacuum tube in the system is in need of repair, replacement, it is no need to prevent the running system.
3.Antifreeze, anti-hail impact:The high-performance heat pipe heat transfer system can work normally in the temperature condition of -30 degrees, and has the ability to resist 25mm diameter hail impact.
4.Suitable for engineering installation: Since using the split shape of water tank and collector, it is more appropriate to be together with the housing supporting, especially more suitable for large engineering use. And it is also the first choice of supporting product of the"green" "energy saving" residential quarters.
5.Product performance:Sunlight intensity 850W/CM2, every square meter can produce 1750-1800 calories, the thermal efficiency of> 50%
characteristics
lSuperconducting heat pipe collector is suitable for high-end villas and engineering installation.
lAluminum alloy shell and bracket is anticorrosive,which is more optimal. The factory profilesshowprofessionalquality.
lThe built-in copper runner makes the water quality more clean, more difficult to corrosion.
l Can be used under pressure, the maximum pressure is 10kg/cm2., Multiple sets can be connected in series to achieve a large-capacity collector.
lThe collector tube uses the titanium copper tube, higher thermal efficiency.
lThe tube watertight, no fear of bombing
model | Specification and quantity | tube picth (mm) | Dimension (m) | Collector area (m²) | pressue capacity(Mpa) | outlet, |
SGR58-10 | Φ58mm*1800mm*10 | 75 | 0.84*1.5*1.5 | 1.45 | 1 | 22 |
SGR58-12 | Φ58mm*1800mm*12 | 75 | 0.99*1.5*1.5 | 1.72 | 1 | 22 |
SGR58-15 | Φ58mm*1800mm*15 | 75 | 1.26*1.5*1.5 | 2.13 | 1 | 22 |
SGR58-20 | Φ58mm*1800mm*20 | 75 | 1.59*1.5*1.5 | 2.8 | 1 | 22 |
SGR58-25 | Φ58mm*1800mm*25 | 75 | 2.01*1.5*1.5 | 3.48 | 1 | 22 |
SGR58-30 | Φ58mm*1800mm*30 | 75 | 2.34*1.5*1.5 | 4.15 | 1 | 22 |
Sanggao is pronounced like Sun God in English, also means the God of the Sun in Chinese.
The brand of Sun God was originated in 2006, and it has been registered successfully in our State Trademark Bureau.
Our Enterprise vision is to value model and to bring hot to the world; the product vision is the good use the best. And we will try our best to shape the expert image, which advocates the practical usage as the core.
When the company is set up, we have been certified by ... View detail
The brand of Sun God was originated in 2006, and it has been registered successfully in our State Trademark Bureau.
Our Enterprise vision is to value model and to bring hot to the world; the product vision is the good use the best. And we will try our best to shape the expert image, which advocates the practical usage as the core.
When the company is set up, we have been certified by ... View detail
