|Application:||Laser Cutting||Condition:||New||Laser Type:||CO2|
cutting 10mm acrylic different material
|Cutting Speed:||100mm/s,0-500mm/s||CNC or Not:||Yes||Cooling Mode:||Water Cooling|
|Control Software:||Leetro 6525 or 6535 or Ruida||Graphic Format Supported:||
|Place of Origin:||Shandong China (Mainland)|
|Brand Name:||Dowell||Model Number:||DW-1280||Certification:||CE,ISO,GS,SGS,UL,CCC|
|After-sales Service Provided:||
Engineers available to service machinery overseas
Reci 80w(60w,100w,120w,150w for option)
|Positioning precisio:||≤±0.01mm||Control system:||Speedy DSP||Supporting system:||
|Engraving speed:||0-1000mm/s||Interface:||1500W-5000W||Working voltage:||AC220V,50HZ OR 60HZ|
|Support:||by calling or email or training|
|Packaging Detail:||all the goods put in a plywooden box|
|Delivery Detail:||within 7 days after receiving deposit|
acrylic laser cutting machine
2.Leetro 6515 or 6535 or Ruida
3.Hi-win square guide
4.Reci laser tube
acrylic laser cutting machine
1.Total introduce of acrylic laser cutting machine
1000*600mm,600*400mm,500*300mm for option)
Guide:Hiwin square guide from Taiwan
Control system:Leetro 6515 or Leetro 6535 and Ruida
Mirror and Lens:metal refector with high reflectivity
Laser head:Long life-span laser head
2.other model of acrylic laser cutting machine
|3.acrylic laser cutting machine technical Parameter|
|4.Four manufacturing process of acrylic laser cutting machine|
1.Mechanical system:Cover,Guide rail,Mirror frame and other
2.Optical system:Laser tube,Laser power supply,Three mirrors and one len
3.Transmission system:Three high-precision four equilibrium imported linear guide rail,Belt,Two or three stepper motor and many gears
4.Control system:High-speed control card,Switching power supply,Stepper motor drive
5.Auxiliary system:circulating industry chiller, Blow gas compressor, Smoke exhaust fan
|5.Standard configuration of acrylic laser cutting machine|
1) Complete machine:Perfect out-look, small dimension, adopt DSP system, could be work in office/store/house,hot sales equipment.
2) Worktable:Adopt AL blades worktable, platform size 1240*840mm, clearance on the platform for sucking smoking.
3) Control system/Driver:High stability control card & driver, adopt DSP control way, support 3h/ 2h stepper motor,high engraving speed with good quality, support *cdr,*dxf,*ai,*plt,*bmp format files.
4) Laser tube: Laser power 60w/80w/120w/150w for option, adopt domestic high stability& quality Co2 laser tube, water circle cooling system, guarantee time for 3 month.
5) Cooling system: Water cooling system, water pump as standard accessory
6) Exhaust fan: Sucking smoke, power 550w,voltage 220-240v,frequency 50HZ or 60HZ
7) Air pump: Blow air ,air pipe on the laser head. Avoid burning& keep lens clearly.
|6.Optional configurations of acrylic laser cutting machine|
1) Up-down worktable:distance about 360mm, could be controlled by panel.
2) Honeycomb platform: used for cutting paper/cloth etc soft goods. The size according to the machine workarea.
3) Rotary attachment: it can engrave cylinders , such as bottles, cups, bamboo etc.
4) Red dot position: Auto foucse and Red dot position this function used for show the laser beam, easy to see where is the laser dot and working area.
5) Industrial chiller: the function as same as water pump,but the power is much bigger than it, and could set the temperature range for extending the lifetime of laser tube.CW5000,CW5200 for option.

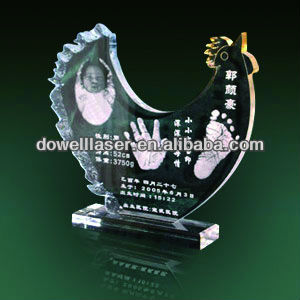

|7.Cutting sample of acrylic laser cutting machine|
10.Tools box and package acrylic laser cutting machine
|11.How to choose a good advertisement acrylic laser cutting machine?|
1) Machine quality.If you plan to choose a so cheap machine,maybe the quality is bad.And you have to order another machine after you use it for a period.This situarion will have a bad effect on your producing.So the quality is most important foctors to choose a laser machine.
2) Future more, the after-sales service is very important,too.Good after-sales service represent the image of a company.After you use the machine and find some promblems of the machine, a good after-sale service can solve it effectively and protect the right of customers'.
3) The third is technical support. Because of time diffrent,there is a big problem to comunicate with the sellers. When you need help, maybe it is the sleeping time for your sellers. So effective contact and the good service is also important to you. Other sellers maybe can not do this, but our company can provid 24th service a day.
4) The last is company. A company with good reputation usually can produce good quality machine. As our company, we specialized in CNC laser machine more than 10 years, the professional engineer teams, the advanced equipment and the good after-sale service have earned us good reputation in world market.
|13.Certafication of Dowell company|
|Product/Service (We Sell):||Laser Engraving Machine,Laser Cutting Machine,Laser Engraver|
|Number of Employees:||51 - 100 People|
|Main Markets:|| North America
|Main Customers:||North America,Mid East,Easterm Europe,Westerm Europe|
|Total Annual Sales Volume:||US$50 Million - US$100 Million|
|Export Percentage:||71% - 80%|
|Total Annual Purchase Volume:||Below US$1 Million|
|Factory Size (Sq.meters):||1,000-3,000 square meters|
|Factory Location:||No. 171-79 Songliu Industrial Park, Huashang Town, Licheng District, Jinan|
|Number of Production Lines:||5|
|Number of R&D Staff:||5 - 10 People|
|Number of QC Staff:||5 - 10 People|
|Management Certification:||HACCP ISO 9001:2000 ISO 9001:2008|
|Contract Manufacturing:||OEM Service Offered|
