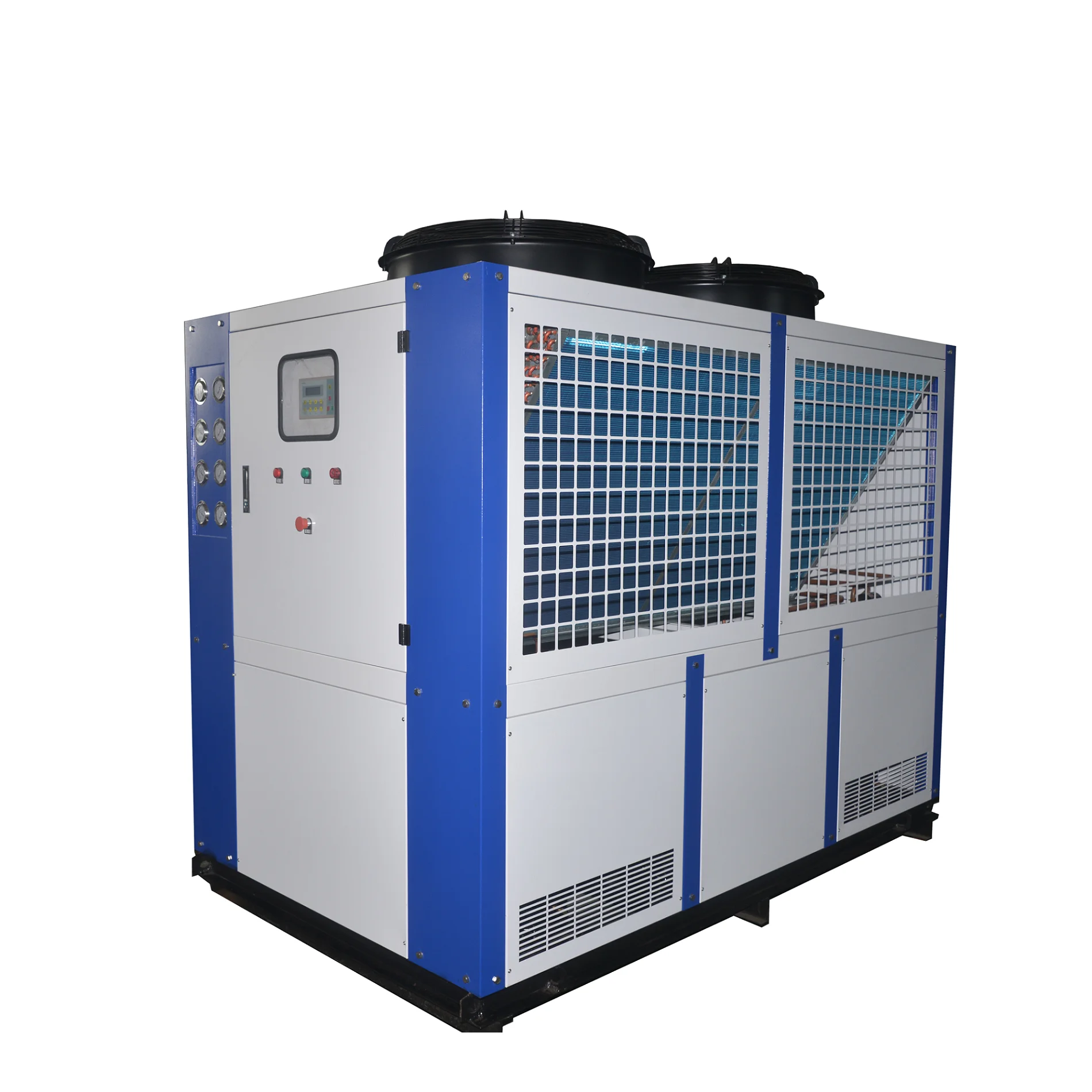

-5-30C industrial cooling machine chiller for machine and plastic injection molding chiller

  • >=1 Sets
    $13,200.00
Model Number:
MG-40C(F)
Cooling Capability(kw):
74.5kw
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support
Local Service Location:
Canada, Italy, Japan
Showroom Location:
Canada, Italy, Japan
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Core Components:
PLC, Motor, Pressure vessel, Pump, Compressor
Condition:
New
Type:
Air-cooled
Place of Origin:
Shandong, China
Brand Name:
Mgreenbelt
Voltage:
380V/415V/440V, or Meet Your Needs
Dimension(L*W*H):
2500*1460*2000mm
Weight:
1350kg
Certification:
ce
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Online support
Power:
40.18kw
Working Temperature Range:
--5-35℃
Key Selling Points:
High Productivity
Compressor type:
Hermetic Scroll Type(piston)
Compressor Brand:
Copeland \ Danfoss
Refrigerant:
R-22(R407c/R134a)
Keyword:
ChiIler
Evaporator type:
High Efficiency Copper Tube shell
Condenser Type:
High efficiency hydrophilic aluminum foll finned type
Controller:
PID Controller
Electric appliance:
Schneider
Temperature range:
5-30℃
Fan:
high efficiency and low noise
Product Certification certification
CE Certified.
Valid from 2018-03-22 until 2023-03-11
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
The package is fumigation free plywood case,inside with polyethylene film.The package is strong enough for air or sea transportation
Port
Qingdao,Shenzhen,Shanghai,Guangdong
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description
Water Cooled Scroll Chiller With China Manufacturers
Chiller/water chiller/industrial chiller/cooling machine/water cooling chiller/air cooled chiller
We are real manufacturer for industrial water chiller with factory in ShanDong, China!!!

  • Chiller Feature:

1. Employing all new imported compressor, with longer terms of service.
2. High efficiency evaporator and cooling condenser in use, to help save no less than 30% of your power rates.
3. High precision, temperature control to save energy.
4. Complete with safety protection and error indication system.

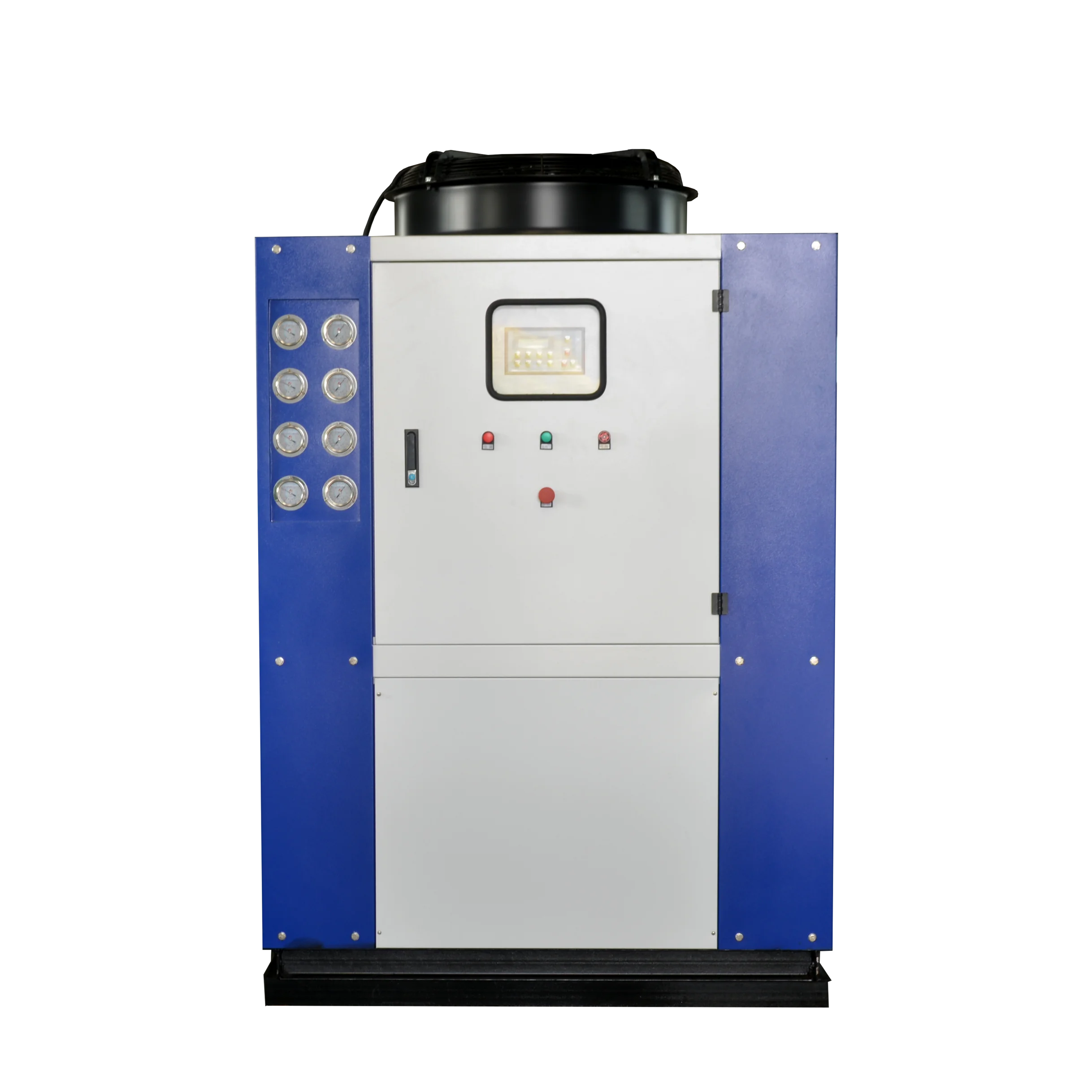

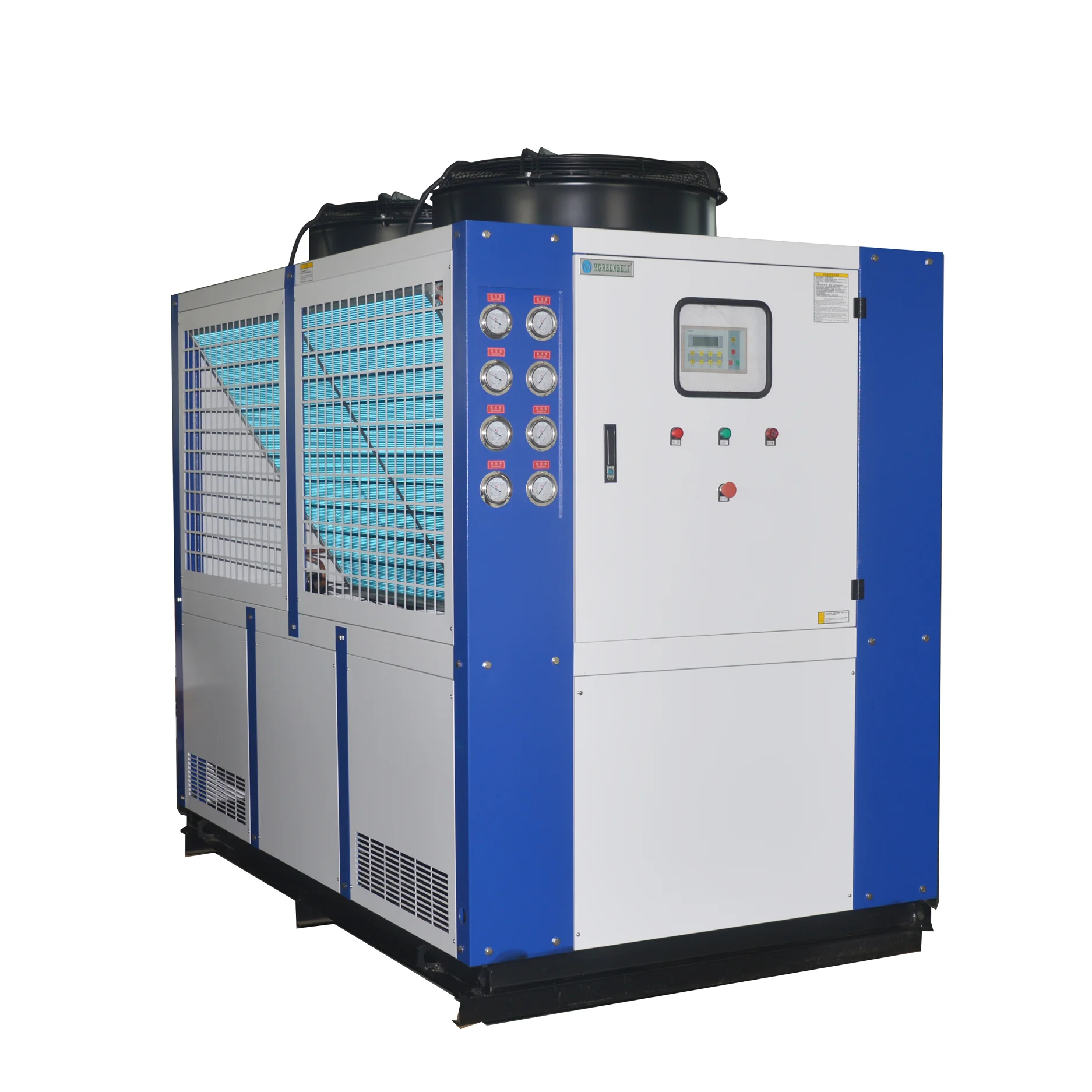

AIR COOLED SCROLL CHILLER
1.New Panasonic or copeland compressor.(Can be customized as customer requests)
2.Do not need to use with cooling tower.
3.Especially suitable for the area with bad water quality.
4.Stardard Input power is 380V/50HZ 3phase.(Can be customized as customer requests)
5.Computerized full-automatic program,easy to operate and maintain.
6.Using electrical control security design to ensure the safety of your personnels.
7.Auto alarm for overload and accidental failure.
8.3HP-50HP alternative.
Detailed Images


Compressor
1.high energy efficiency, saving energy consumption; 2. low noise, quiet operation; 3. use environmental protection refrigerant to protect the environment; 4. high reliability, long-term reliable operation.

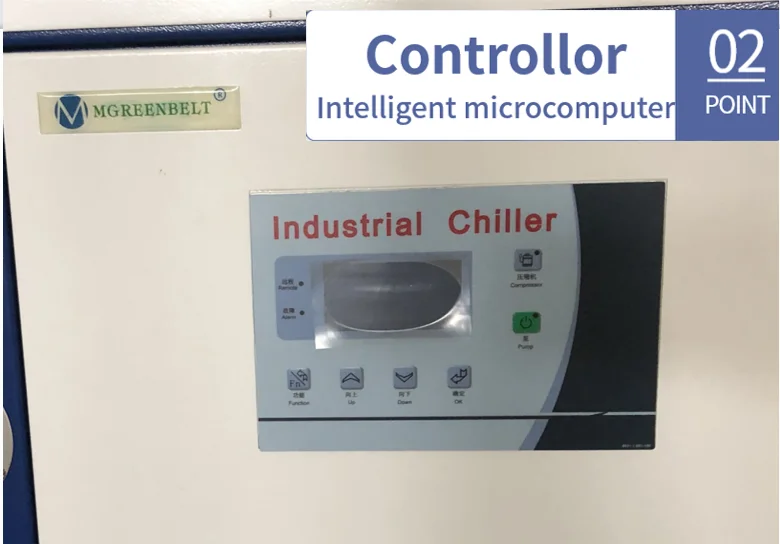

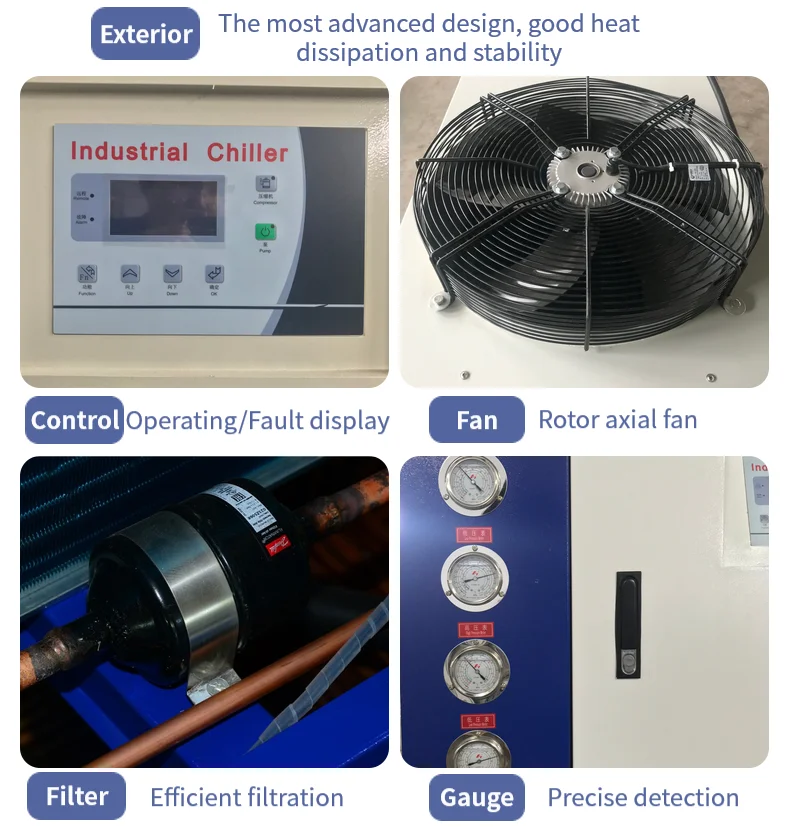

Controller
1.high anti-interference performance
2.more functions.
3.shift between English and Chinese,Text Display

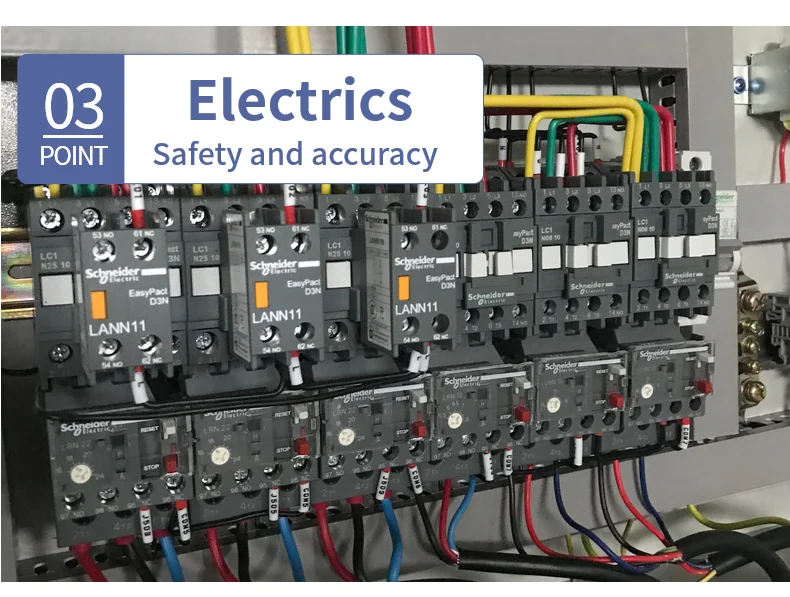

Electric Appliance
1.world famous brand Schneider
2.safe and reliable

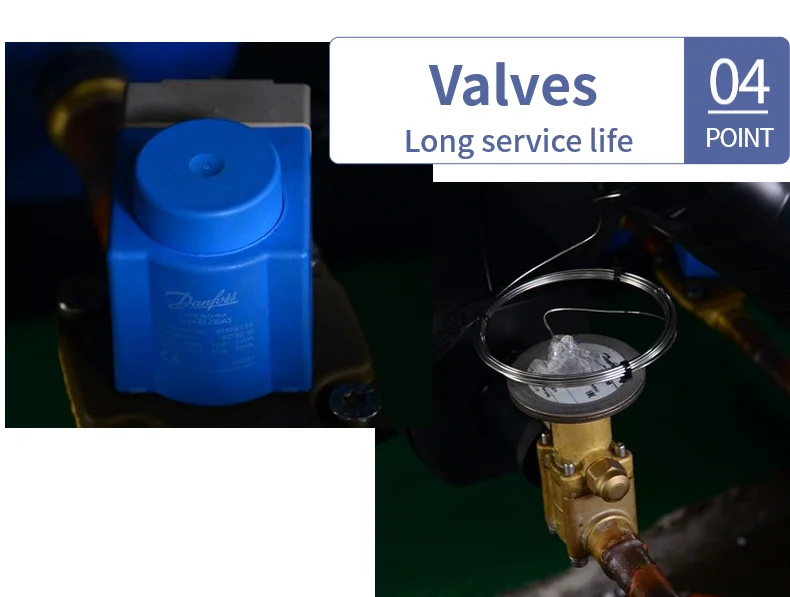

Valves
1.DANFOSS brand
2.long service life

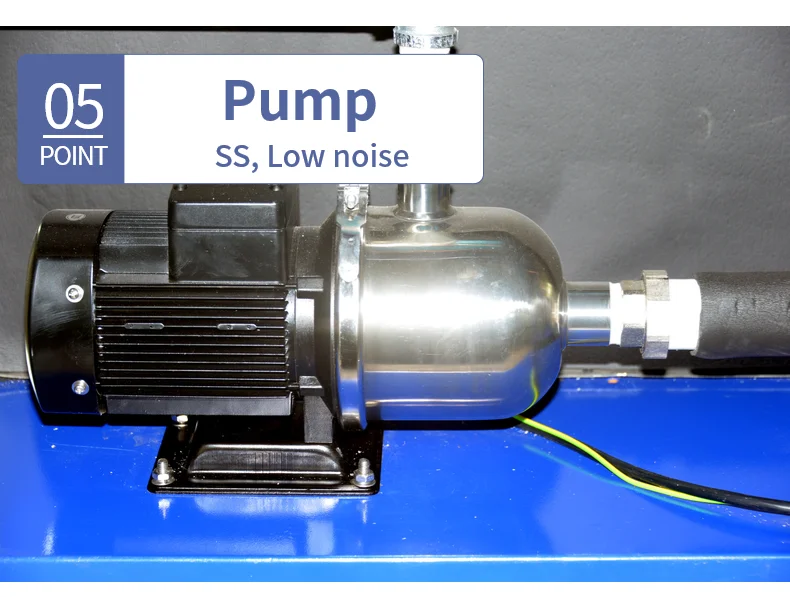

Pump
1.domestic famous brand
2.super high efficiency and low noise
3.Centrigual water pump

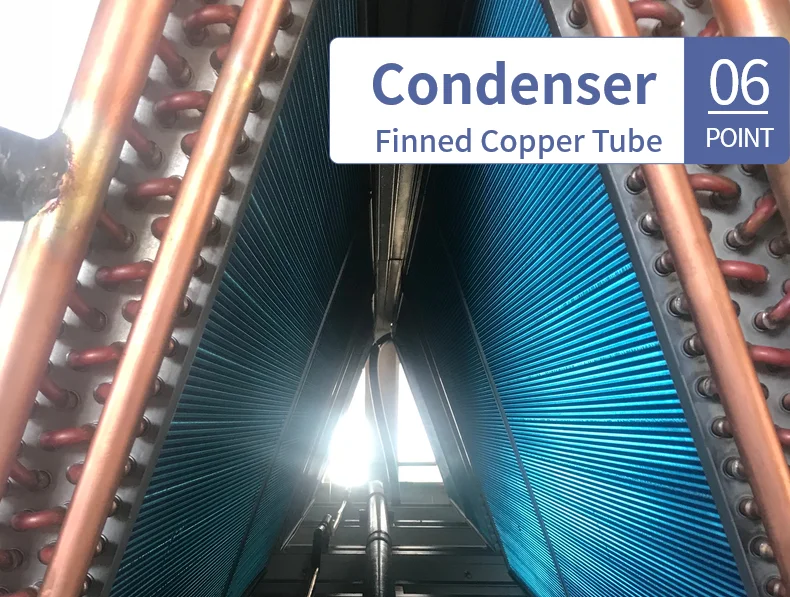

Condenser
1.high efficiency Finned Air Cooled Condenser
2.high efficiency 30% higher than normal
3.integral design and Anti-dirty
4.Able to working in humid conditions

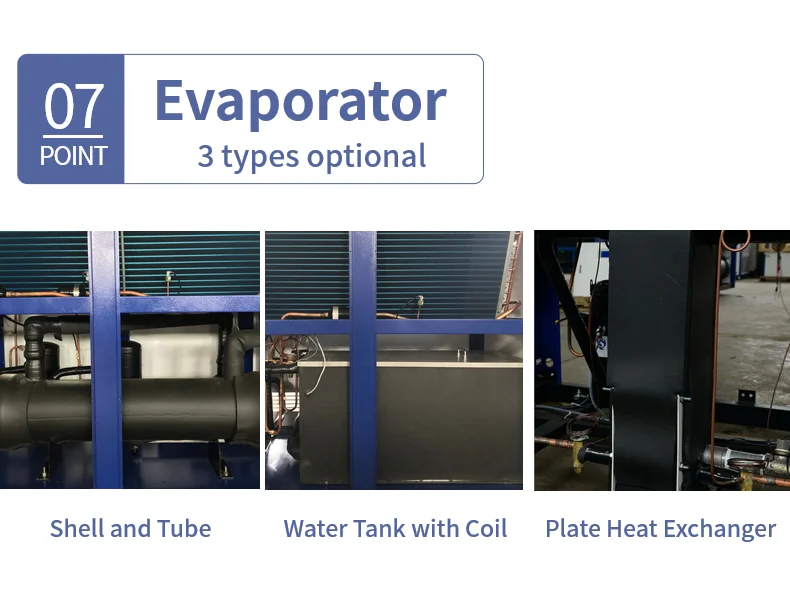

Evaporator
Three types evaporator for different machine requirements.
Specification
Model
MG-3C
MG-5C
MG-10C
MG-12C
MG-20CD
MG-30CT
MG-40CF
Cooling capacity
0℃
kw
6.8
10.5
22.8
24.8
44.2
66.9
87.7
-5℃
kw
5.7
8.9
19.3
21
37.6
56.8
74.5
Power
kw
3.45
5.45
10.54
12.33
20.51
31.81
40.18
Power input
3PH-380V-50HZ
Refrigerant
Type
R22/R407C
Control
Thermostatic expansion valve
Compressor
Type
Hermetic scroll type
Power
kw
2.84
4.36
4.4*2
5.2*2
8.7*2
8.7*3
8.7*4
Evaporator
Type
SS Tank with coil or Shell and tube
m³/h
Flow
0℃
1.288421053
1.989473684
4.32
4.698947368
8.374736842
12.67578947
16.61684211
-5℃
1.172571429
1.830857143
3.970285714
4.32
7.734857143
11.68457143
15.32571429
Capacity
L
50
70
200
200
350
450
580
Inlet/Outlet
DN25
DN32
DN40
DN40
DN50
DN65
DN65
Condenser
Type
High efficiency hydrophilic aluminum foll finned type
kw Power
0.19
0.52
0.46*2
0.46*2
0.78*2
1.32*2
0.78*4
pump
Type
Centrigual water pump
Power
kw
0.37
0.55
0.55
0.55
1.5
2.2
2.2
lift
m
24
25
20
20
20
21
20
Protection System
Compressor overheat protection, high/low pressure protection,
phase missing/sequence protection,
flow rate protection, anti-frozen protection.
Dimension
L
mm
1120
1220
1610
1610
2120
2700
2300
W
mm
600
690
820
820
1000
1120
1860
H
mm
1200
1200
1500
1500
1720
1800
1800
Wight
kg
150
200
450
500
850
1150
1350

NOTE:

1.Normal conditions:Chilled water inlet temp is 0℃,outlet temp is -5℃,Ambient temp35℃; 2.Temperature condtion:Chillerd water range is -5℃--20℃,This series of unit requires the chient to use the liquid with the freezing point below the required temperature as the refrigerant. 3.Input power:3P-380V-50HZ,Allowable buctuate voltage:±10%.Allowable voltage difference in phase:±2% 4.Actual head lift is pump head lift minus the machine internal head loss(1mH2O=9.8KPa); 5.The above parameters are based are Refrigerant R22,for other parameters of Refrigerant R134A,R407C ect.refrigerants,plcontact us. 6.Due to technology updating, size ¶meters listed data may change;The above datas are for reference only,please feel free to contact us for the latest data.
Related Products
Packing&Shipping
Why Choose Us

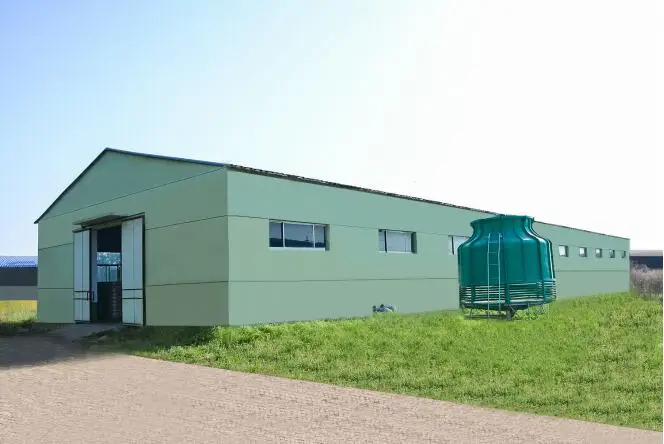

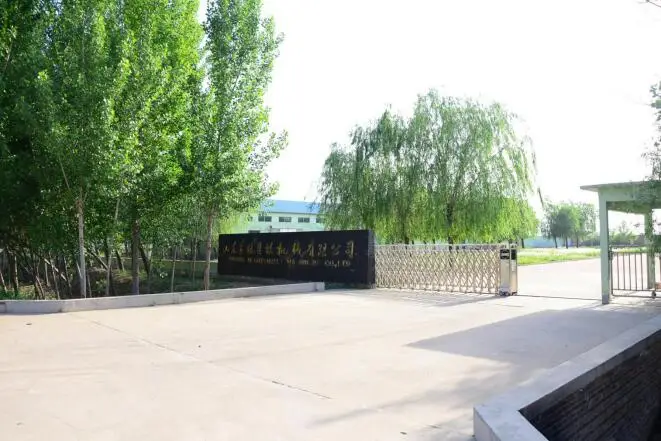

Company Introduction
Mgreenbelt is a professional refrigeration equipment manufacturer, producing air cooled chiller, water cooled chiller, glycol chiller for various industrial applications; we was established since 2003, with 34,000 squre meter workshop, all of our product with CE certificate, can supply the SASO, SGS, COC and etc documents.Mgreenbelt have a professional engineer team for design,they can design the special machine according to your demands,such as customized cooling capacity, special material for ship use, seawater, corrosive,food industry, juice and wine process and etc.

Our Services & Strength

A.Order service Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Payment-Production-Testing --Balance Payment- Packing &Delivery--Documents sent- Assist of custom-cleaning --Instruction of Installation&Operation-Feedback B. Technical service 1, We calculate the capacity and recommend the best models. 2, We design and develop the new products according to your requirement besides our standard products. 3, We supply you the professional refrigeration technical support and electronic technical support for your installation,debugging and operation. 4, We supply the spare parts and technical support in & after the warranty time. 5, We supply the training course to your workers at our factory if you need. C. After sale service 1. One-Year guarantee for whole unit and all parts free 2. Life time maintenance 3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation. 4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging,operation and maintenance. 5. Supply free training course to your workers at our factory if you need. 6. Supply the spare parts and technical support in & after the warranty time. 7. Spare parts and technical support at most economic prices after the warranty. 8. 24 hours on line service each day by telephone.
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below: 1. Payment Terms: T/T - 30% deposit before production,70% balance before delivery, or other terms 2. Delivery Detail: About 20 workdays after payments. 3.Pacage Terms: International Standard Wooden Case for Export Pls kindly offer the following information: 1.Cooling capacity 2.Inlet /outlet water temperature 3.Chiller water flow rate 4.Retrigreant 5.Voltage/Frquency
