[8-32"] 3m touch screen overlay,23 inch SAW touch panel,23 Touch screen

FOB Reference Price:Get Latest Price
$30.00 - $45.00 / Pieces | 1 Piece/Pieces Cheap SAW touch screen (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
23"
Type:
SAW touch screen
Interface Type:
D-Sub, DVI, Serial, USB
Resolution:
4096(W)*4096(D)
Brand Name:
ThinkTouch
Model Number:
CTB230C-4K-001
Place of Origin:
Guangdong, China
Material:
Pure glass/ tempered glass
Screen thickness:
3mm/ 4mm/ 6mm
Screen hardness:
4H/ 7H
Light transmittance:
> 95%
Multi Touch:
Multi points optional
Linearity error:
<1.5%
Accuracy:
< 2mm (0.080inch)
Altitude:
Up to 5,000m
Warranty:
3 year
Customized:
Yes
Supply Ability
Supply Ability:
100 Piece/Pieces per Week Cheap SAW touch screen
Packaging & Delivery
Packaging Details
Infrared Touch screen panel---Safe packing before shipment
1pc in one carton
10pcs in one carton
EPE pckaging inside
Port
shenzhen
Lead Time :
Sample available within 3 days

3m touch screen overlay,23 inch SAW touch panel,23 Touch screen

Product Description



Main Features



  • Same driver for both USB and RS232 from 7” to 32”
  • 8"-32" SAW touch screen 4mm/6mm glass,Support Win/Linux/Android operating system
  • 5V/12V USB interface(RS232 is optional)
  • High image clarity
  • Free of drift
  • Z-axis pressure recognition
  • Strong mechanical strength
  • Short response time
  • Compact size for easy integration
  • Customization available on glass sensor size, driver, accessories
Our 8"-32" SAW touch screen
Click on the "Drawing",you can check the touch screen size and drawing.

SizePart No.Active AreaViewable AreaGlassOut LineDrawing
L*W(mm)L*W(mm)L*W(mm)L*W(mm)
8.4"CTB084C-4F172x130176x134197x156200x158Drawing
10.0"CTB100C-4F-FFT203x152207x156229x179232x181Drawing
10.4"CTB104C-4F213x160217x164239x187242x189Drawing
12.1"CTB121C-4F247x185251x189273x212276x214Drawing
CTB121C-4F-GDS250x189252x191275x209278x211Drawing
CTB121C-4K265x168272x175311x214314x216Drawing
13.3"CTB133C-4K-STIGH295x167299x171325x197328x199Drawing
14.1"CTB141C-4K-AVA304x190307x193322x214325x216Drawing
15.1"CTB150C-6F-HC-YY291x219293x221320x242.5323x244Drawing
CTB151N-4F304x228307x232325x254328x256Drawing
CTB151C-4F306x230310x234338x263341x265Drawing
15.6"CTB156C-4K347x197351x201381x231384x233Drawing
CTB156C-4K-VIV345x195350x200382x233385x235Drawing
17"CTB170N-4F338x271342x275362x299365x301Drawing
CTB170C-4F342x272344x276371x304374x306Drawing
18.5"CTB185C-4K410x231413x234439x263442x265Drawing
19"CTB190N-4F382x305386x309413x335416x337Drawing
CTB190C-4F382x305386x309417x341420x343Drawing
CTB190N-4K414x262417x265444x294447x296Drawing
20"CTB200C-4K-RA440x250446x256480x290483x292Drawing
20.1"CTB201N-4F410x308412x310442x340445x342Drawing
21.3"CTB213C-4F432x324436x328470x361473x363Drawing
21.5"CTB215N-4K474x266480x273506x308509x310Drawing
CTB215C-4K477x268480x271511x306514x308Drawing
21.8"CTB218C-4F-BX443x334445x336480x374483x376Drawing
22"CTB220C-4K476x297480x302511x338514x340Drawing
23"CTB230C-4K510x287514x291549x326552x328Drawing
23.6"CTB236C-4K525x297529x301559x331562x333Drawing
24"CTB240C-4K-VB531x299535x303570x339573x341Drawing
CTB240C-4K520x326523x329558x366561x368Drawing
26"CTB-F260C-4K580x328585x333617x365620x367Drawing
27"CTB-F270C-4K597x336601x340627x365630x367Drawing
32"CTB-F320C-4K702x397710x405746x442749x444Drawing



Pictures of SAW touch screen

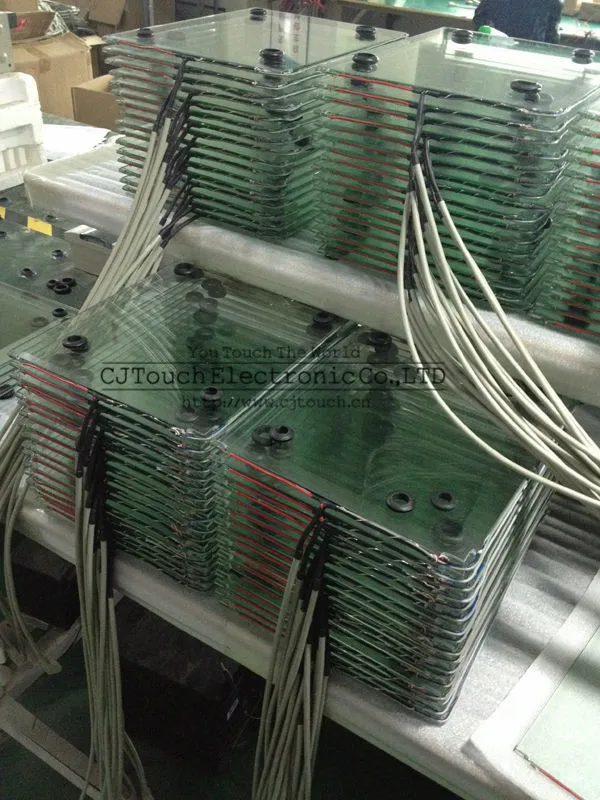

3m touch screen overlay,23 inch SAW touch panel,23 Touch screen;

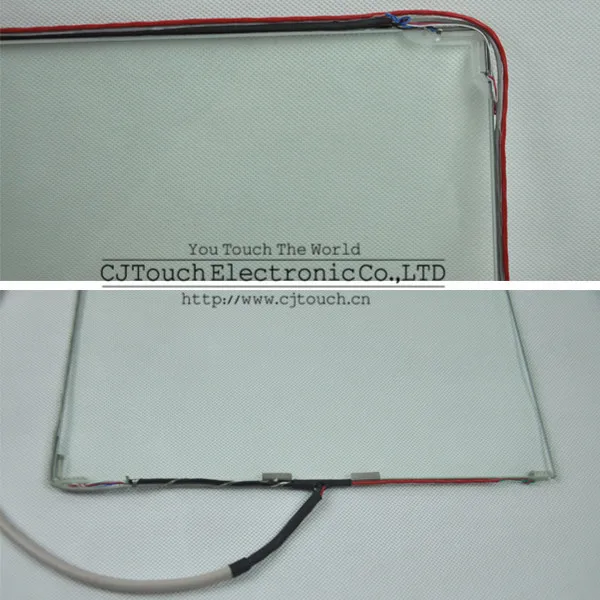

3m touch screen overlay,23 inch SAW touch panel,23 Touch screen;

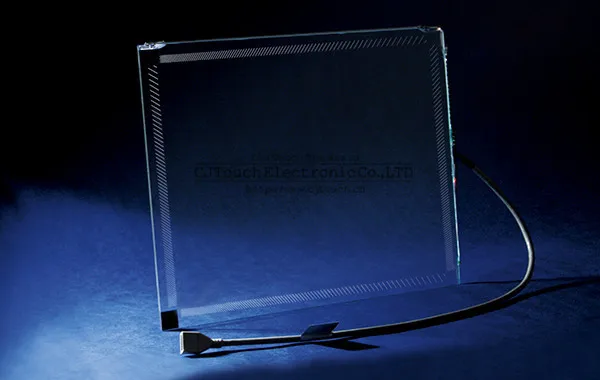

3m touch screen overlay,23 inch SAW touch panel,23 Touch screen;
3m touch screen overlay,23 inch SAW touch panel,23 Touch screen;



Technical Specifications



SAW touch screen panel technical specification



TechnologySurface Acoustic Wave(SAW)
Sizes7” to 32” (extending)
Resolution4096 x 4096 ,Z-axis 256
MaterialPure glass(Vandal-proof ,Anti-glare can optional)
Transducer positionGlass bevel angle, up surface 0.5mm
Accuracy< 2mm
Light Transmission >92% /ASTM
Touch Force30g
Durability

Scratch-free;

More than 50,000,000 touches

 in one location without failure.

Surface HardnessMohs' 7
Multi-touchOptional , software support
Operating Temp.-10°C to +60°C
Storage Temp.-20°C to +70°C
Humidity10%-90% RH / 40°C,
Altitude3800m
PartsConnect cable,Double-sided adhesive, dustproof strip
Certificates CE, FCC, RoHS

Controller LED diagnostic features



LED flicker frequencyFunction
Long light goes out after 5 secondsThe controller power-on self-test
Slow flashingNormal operation, no touch state
Rapid flashingTouch state
Keep brightCould not find the touch screen

Controller technical specification



InterfaceUSB,RS232 can optional
Size(PCB)85mm×55mm×10mm
Working voltage12V±1V & 5V±0.5V optional
Working Current80mA
Maximum Current100mA
Response time≤16ms
Operating temperature0-65℃
Operating humidity10%-90%RH.
Storage temperature-20℃-70℃
MTBF> 500,000 hours
CertificatesCE, FCC, RoHS
Operate systemWinXP / Win7 /WinXPE / WinCE / Linux / Android



Exploded View of 23 “ SAW touch screen

Special Touch screen Products



1. Dust-proof Touch screen (P Series)

  • Compliant with IEC IP6X standards
  • Protect the reflective grating and transducers from the dust and other objects
  • Excellent maintenance-free and durability
  • Sealed well with Alloy-aluminium frame
  • Applicable to the outdoor environment where in unsupervised or industrial environments
  • Standard sizes available: 7” to 32”

2. Anti-glare Touch screen (G series)

  • Sunlight readable
  • Human engineering technology: eye fatigue reduction
  • Ideal solution for outdoor applications with strong sunlight
  • Standard sizes available: 7” to 32”

3. Vandal-Proof Touch screen (V series)

  • 4mm, 6mm tempered glass
  • Super impact-proof performance
  • Ideal solution for unsupervised applications
  • Standard sizes available: 7” to 32”

4. Water-proof Touch screen (W series)

  • Latest technology and design
  • Super-thin glass sensor SAW with Alloy-aluminium Frame
  • Easier integration
  • Free of maintenance
  • IP 65 Rated
  • Standard sizes available: 10”and19” (customization available)
  • Sealed well with Plastic frame or Alloy-Aluminium Frame



Accessories

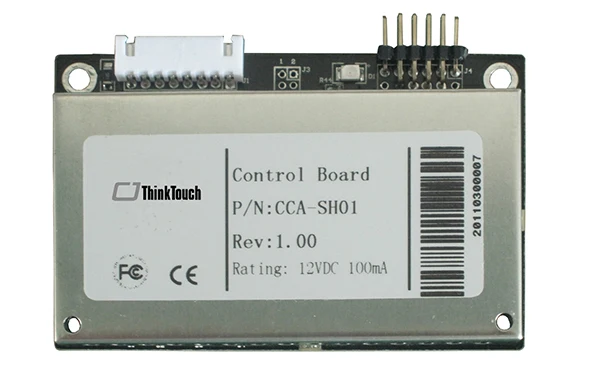

1. SAW Touch screen Controllers
