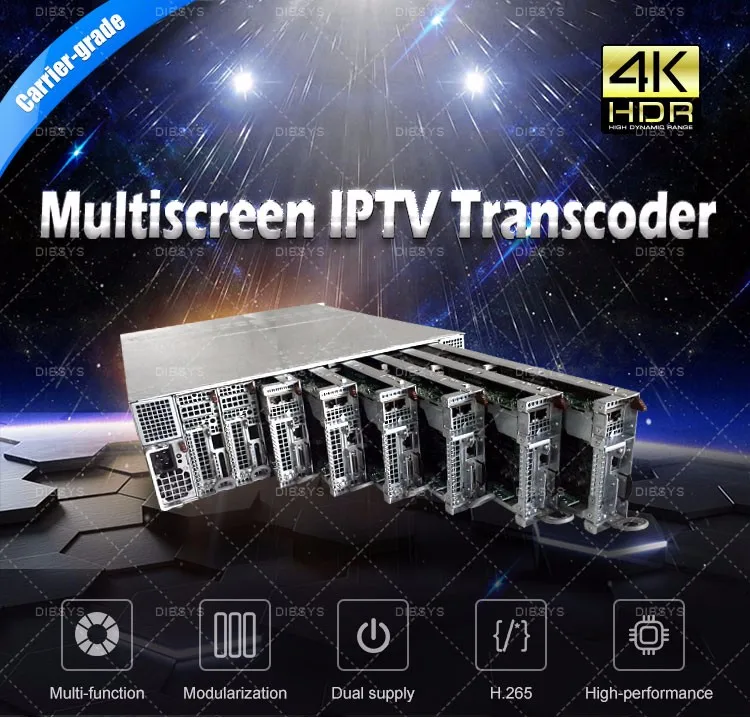

(Anystream428) 200 channels Multiscreen IPTV HEVC IP Streaming Transcoder For ISP IPTV Service Provider

FOB Reference Price:Get Latest Price
$29,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
Anystream428
Input:
Dual GbE interfaces
Output:
Dual GbE interfaces
Video encoding:
MPEG-2/MPEG-4/ AVC
Audio encoding:
MPEG-1 Layer II, AAC-LC, AAC-HE v1/v2
Protocol:
IOS, Android devices, Flash
Channels:
200 channels (SD@HEVC); 48 channels (1080p@HEVC); 8 channels (4K@HEVC)
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
CONVENTIONAL PACKING
Port
Shanghai/Hangzhou
For Better Service

Hi This is Amy

The sales manager from dibsys.

We are manufacturer for digital video broadcasting equipment,

projects involved:DVB,IPTV,OTT,Hospitality,Hospital,etc.

If there is special requirements like OEM, big quantity,or technical confirmation,

please contact for inquiry by "click here"

Your inquiry will be responded  in few mins.
Product Description

Anystream428 is a high video quality, high density compression perfect carrier-grade video processing solution, most OTT (over the top), Cable, DTH, Terrestrial, IPTV services will transition MPEG-2 or H.264/AVC to HEVC to deliver content to Huge Number of Users while Dibsys will take advantage of the standard's improved quality and lower bitrate to deliver better image resolutions. Dibsys's HEVC transcoder revolution video coding by using only half bitrates of H.264/AVC for the same quality of video service. Therefore, it helps many video service providers to save massive bandwidth and storage cost which won't limit the development.

It is a real-time multi-channel/format transcoder, which can support 25*SD or 12*720p or 5*FullHD (per Blade), Up to 8 Blades 200 streams Simultaneously. With the support for various encapsulation formats base on UDP, RTP/RTSP, Pull/Push HTTP, RTMP, HLS protocols, Anystream428 combined result of 1080p pixel density, 30 fps motion fluency, In-deep Delblocking Filter, I B P Slices and 8-bit sample depth is an unmatched viewing experience in 4:2:0 Chroma Format.

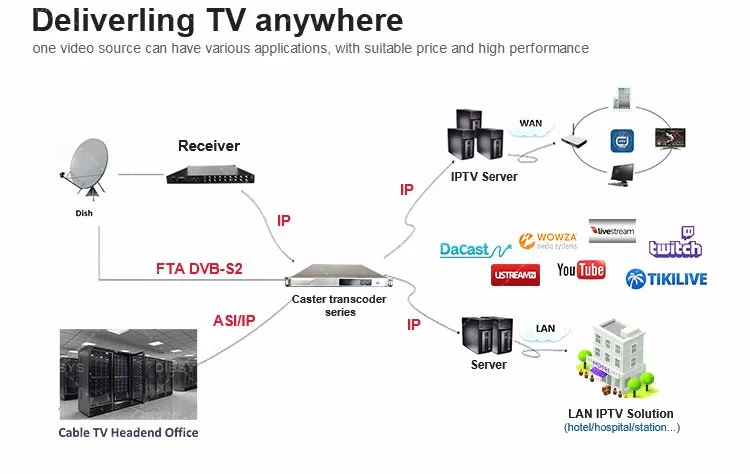

Depending on the configuration Of Cable TV headend platform, it forwards selected programs via IP datacasting; PAT, PMT, video PID, audio PID(s) and PCR PID are transmitted. It selects all required PIDs and multiplexes the demultiplexed transport stream packets into IP packets. Anystream428 is suitable for DVB front end MPEG-IP platform, Cable TV operator/Owner to launch IPTV/OTT new market business. With the increasing popularity of Cable hybrid STB and OTT/IPTV android box, HEVC cost advantages have become increasingly apparent, Anystream428 help the operators transit MPEG-S/AVC to HEVC video solution directly. With this solution, it is easier to transmit the video to more users with less investment.

Main Application

1.Distribute Lowest bitrate HD Video to Ethernet

2.Bandwidth reduction for Internet/OTT streaming and wireless networks

3.IPTV live stream transcoding

4.Transcoding for multi-screens and devices for set-top boxes, tablets, mobile phones

5.Small/Middle-Scale Headends for Multiple System Operators

6.Upgrade H.264 to HEVC Video headend solutions

7.VOD archives from live streams

Specifications
Inputs and Outputs









Connector
Two Gig Ethernet Ports per blade,

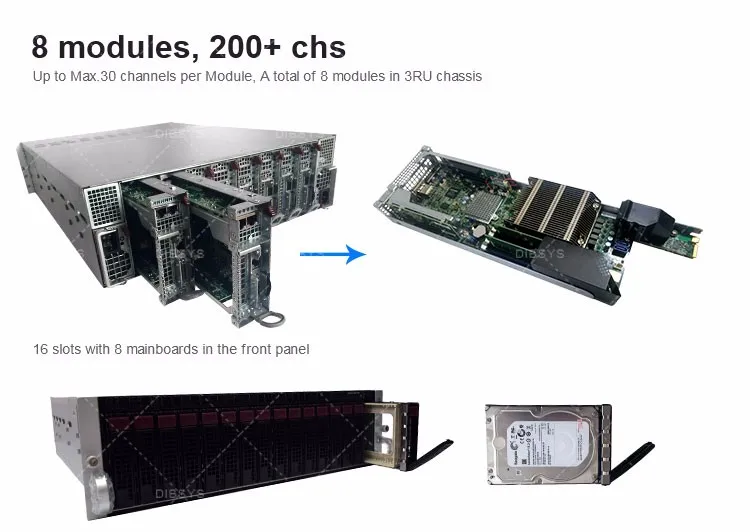

Up to 8 hot plug blades
RJ45 100/1000M - Auto Negot
MPEG-TS(MPTS or SPTS) Over IP input
MPEG-TS (SPTS) Over IP out
TS  Over UDP/RTP/HTTP
RTP over HTTP
FLV Over HTTP
RTMP
MP3 over HTTP
FLV
ASP
HTTP Live streaming Apple HLS (m3u8)
Pre-processing
LOGO insertion
Subtitle Overlay
Option Static or roll subtitle, up to 3 way
Deinterlace
default, Close, Linear, Blend, Bob, Yadif
PID Configuration
PMT/Video/Audio PID;
PCR delay/disp interval





Advanced  Processing
In-loop De-blocking filter Scene detection,
CABAC. CAVLC Entropy coding Automatic
PicAFF, MBAFF Interlaced coding Automatic
Flexible Macroblock Ordering(ASO) and Arbitrary
Slice Ordering(ASO) in Baseline profile
8x8 vs, 4x4 Transform Adaptivity in High profile
Quantization Scaling Matrices in High profile
I,B and P Slices,Multiple Reference Frames
Video Processing
Bitrate Control
VBR, CBR, ABR, NearCBR
Frame rate
2-30fps
Screen Ratio
4:3, 16:9
Option
Multiple concurrent outputs per each encoding input



Video codec
H.265/ HEVC Main profile Level 4.1&5.1
H.264 Main/High Profile 3.0- 5.1
H.264 Baseline Levels 1, 2, 3
H.263 Profile Levels 10, 20, 30
MPEG-4 SP, Levels 0, 0b, 1, 2, 3
Encoding delay
1000-1500ms
B-Frame
0-5
Reference Frame
1-6
Key frame rate
1-18
Video Bitrate
32kbps to 10Mbps
Video Delay
0-1000ms
Scale
Ordinary, Auto Padding intelligent Scale
Fast Mode
Quality Priority,Balanced, Speed Priority
MPEG-2 Input
H.264 Output
Max.Channels
SD/480i inputs @4 Mbps
SD @800kbps, 480p
25
720p inputs @10 Mbps
720p @2Mbps
12
1080i/p inputs @18Mbps
1080p @ 4Mbps
5-6
4k/H.264 @20Mbps
4k @ 12Mbps
1-2


Resolution
3840x2160p(UHD)
1920x1080p,1280x720p
720x576p, 720x480p, 640x480p, 480x360p,
Configurable
Audio Processing
Numbers of encoding
2 audio Channels per one video source
(Provides up to 8 audio channels for customization)

Audio encoding
AAC,AACv2,AMR
D Digital(AC-3)/D Digital Plus(EAC-3)
MP2A,MP3A,Transparent
Audio Channel
Single, Dual, 5.1 Channel
Audio Track
0, 1, 2, 3
AV Sync
0s, 0.5s, 1s, 3s, 4s, 5s, 6s
Sample rate
8khz to 48khz
Bitrate rate
8kbps to 384kbps
Volume
Ordinary,Intensity1,Intensity2,Intensity3
AGC
On, Off
Management
Local interface
Power On/Off buttonPower On/Off button
Power LED; Blade status LED
Configuration
Web-based user's interface
Port
RJ45, 10/100/1000M BaseT
Language
English
Environment
Fans
4x 8cm Heavy duty fans with optimal cooling zone
Form Factor
3RU

Power Supply
Dual hot-swappable
1000W: 100-120V,50-60Hz, 12-10Amp
1620W: 180-240V,50-60Hz, 10.5-8Amp
Operation temperature
0~50℃ (32 -122°F)
Storage temperature
-40-70°C (-40-158°F)
Power consumption (per blade)
1620W high-efficiency redundant
Dimensions
590mm (W) x 440mm (L) x 140mm (H)
Weight
40kg (62.2lbs)
Related Products

25-CH H.264 Transcoder

200-CH H.264 Transcoder


H.265 4K Encoder


25-CH H.265 Transcoder


200-CH H.265 Transcoder


H.265 RTMP To HD-SDI Decoder

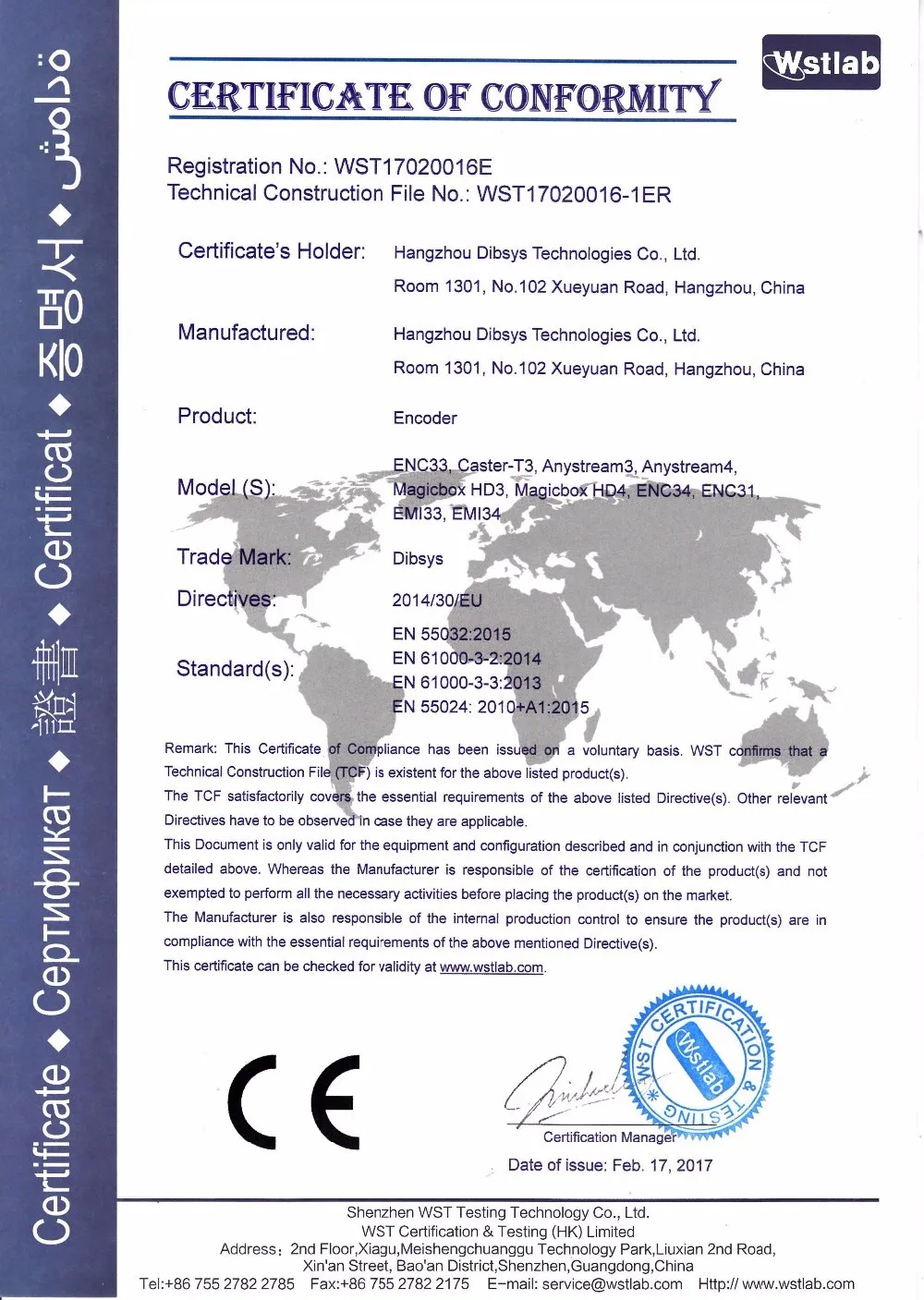

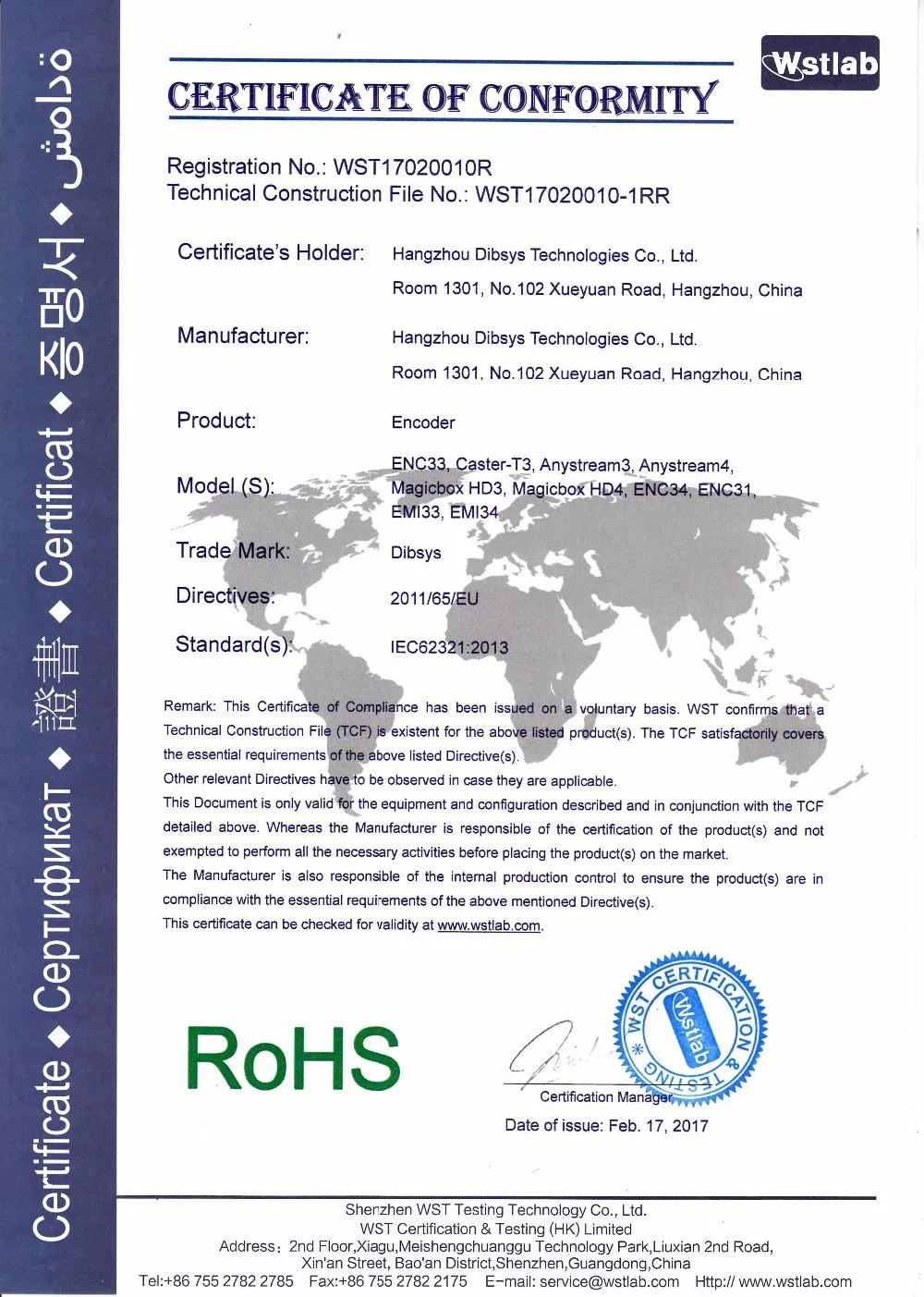

Our Co and Cert
Packing & Delivery
FAQ
Payment terms: 100% in advance, T/T, Western Union,Paypal,Alibaba Trade Assurance all supported

Lead time: Around 3~7 days after payment received. Confirm with sales engineer with product model number.

Delivery Method: Door to door by international express,UPS/DHL/FEDEX/TNT/EMS,etc.

After sale service: DIBSYS has professional technical service team and customer service team,feel free to contact us for any questions involved.

Warranty: DIBSYS offers 5 years warranty service,welcome to send your advice and feedbacks on the products to help us improve the service.

OME service: Available according to product quantity,kindly contact sales engineer with product model number for details.
