(ENC3381) 8 In 1 Cable TV Digital Headend H.264 IP HD MI ASI Video Encoder For CATV Headend,Hotel Digital TV System

FOB Reference Price:Get Latest Price
$500.00 - $1,999.00 / Sets | 1 Set/Sets (Min. Order)
Customization:
Customized logo (Min. Order: 10 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
ENC3381
Input interface 1::
8xHD MI(HDCP) or 8*HD-SDI
Input interface 2::
1 x ASI
Output interfaces::
ASI and IP
DVB IP out::
8 encoding MPTS stream out
IPTV IP out::
8 encoding spts stream out seperately
encoding format::
H.264/AVC High Profile, level4.0
Audio encoding::
MPEG-1 LAYER,AAC(option)
Resolution::
1080p,1080i,720p, (480, 576 option)
video bitrate::
0.8~20 Mbps (each channel)
Application::
High quality digital headend systems
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Carton Package, or as per customer's request. carton. One Set Per Carton
Port
shanghai
For Better Service

Hi This is Amy

The sales manager from dibsys.

We are manufacturer for digital video broadcasting equipment,

projects involved:DVB,IPTV,OTT,Hospitality,Hospital,etc.

If there is special requirements like OEM, big quantity,or technical confirmation,

please contact for inquiry by "click here"

Your inquiry will be responded  in few mins.
Product Description

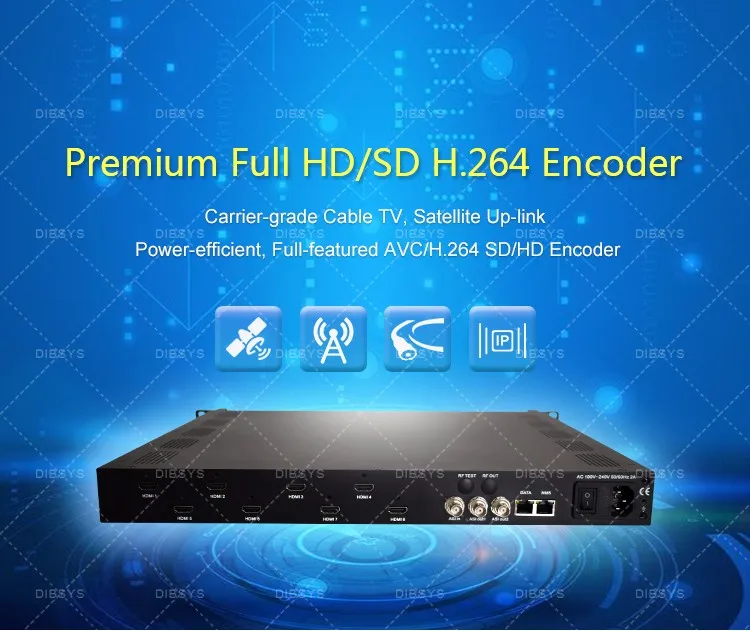

ENC3381 Power-efficient, Full-featured AVC/H.264 SD/HD Encoder is the best choice for any operator who wants to compress high-definition video using highly efficient MPEG-4 AVC compression. The video inputs can be from SDI or HD MI while the audio input can be embedded audio interface. It provides Simultaneous each or All encoding Channels IP as well as the DVB-ASI outputs that meets MPEG2-TS stream standard.

ENC3381 is the most advanced HD encoding platform for IPTV, Satellite, Video-to-the-handheld, Cable or Terrestrial DVB-T2, ISDB-T applications available today, and it can distribute Up to 8 Channels 1080p@60fps and SD Video Signals All in one MPTS as mirrored of ASI to Next digital TV equipment as like Multiplexer, IPQAM Networks and Push 8*SPTS Over UDP/IP to LAN IPTV Network Simultaneously. With high density, high reliability and advanced compress arithmetic, it is equipped with the latest advances in video compression technology to deliver unsurpassed video quality at low bitrates and low latency. Moreover, it has an ASI input to multiplex the input TS with the 8 encoded SPTS to generate a MPTS output.

ENC3381 Cable and DTH satellite operators can quickly and efficiently launch new HD services and improve service-carrying capacity by combining several MPEG-4 AVC HD channels in a single statistical multiplex. For Telcos and other IP-based service providers, its highly bandwidth efficient MPEG-4 CBR encoding and native IP output make it possible to deliver exciting and competitive HD services to broadcast operators.

Features

●4/8 channels HD MI or HD-SDI per 1RU chassis

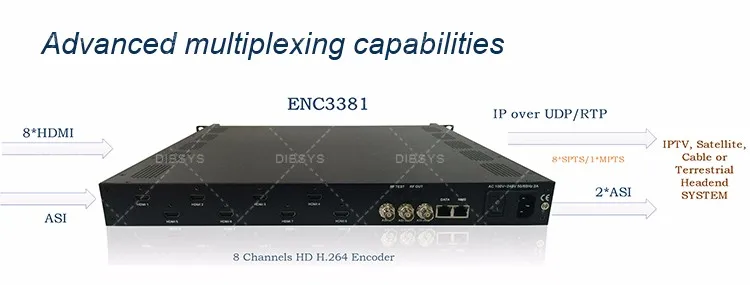

●Advanced multiplexing capabilities for cascading and multi-services through DVB-ASI input

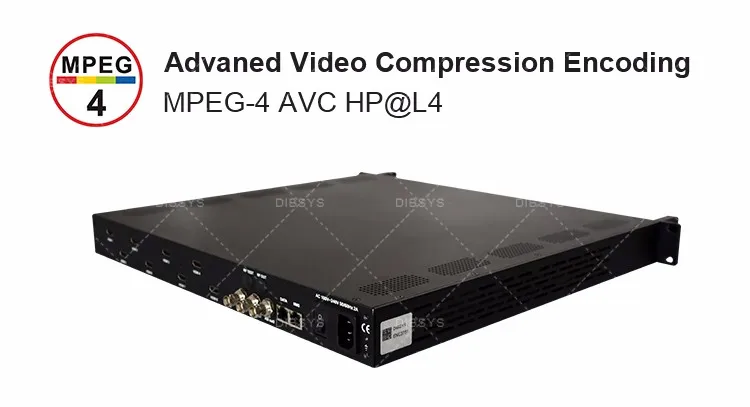

●Advanced MPEG-4 AVC HP@L4 video compression

●ASIC technologies which offer best-in-class picture quality,

●Real-time Transport Protocol (RTP) and User Datagram Protocol (UDP) support

●Simultaneous outputs via 8*SPTS/MPTS over GbE IP Port

●Time to Live (TTL) support

●Selectable Any One SPTS or MPTS over IP as mirrored of DVB-ASI out

●Broadcast-grade HD to SD down converter

●Supports SD/HD formats and frames including 1080p, 1080i, 720p, 480i, 576i@50/59.94/60fps

●MPEG-1 Layer2, (HE-AAC(V2) or LC-AAC option) audio encoding, AC3 Passthrough for HD MI only

●Feature to adjust the audio volume prior to encoding

●Low delay 50-500 ms available

●PID Remapping & Filtering

●Null Packet Filter & Insertion

●Easy-to-Use System Management via Web and local front panel

●Built-in time base correction and video pre-processing

●Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours

Main Application

●Carrier-grade Cable TV, Satellite Up-link

●Terrestrial DVB-T/T2 and ISDB-T/Tb

●TV studio station

●Video over Coax Cable solution in Hotel, Campus, Enterprise

●1080p@60fps FullHD Video encoding of IPTV

Technical Specification

Input Interfaces
Number of Channels
4 Ports or 8 Ports


SD/HD-SDI
SMPTE 259M-C,SMPTE292M
800 mVpp nominal, 75Ω, BNC
270Mbit/s, 1.485 Gbit/s ±10 ppm
HD MI 1.4a, HDCP
Embedded in SDI, HD MI (1 pairs per video)
Stream Output
Total Bitrate
1-180Mbps (Should be More than Encoding bitrate)
ASI and IP streaming simultaneously
DVB-ASI
2 identical ASI output, 75Ω, BNC, 188Bytes
MPEG-2 TS over DVB-ASI (EN 50083-9)




RJ45 Port
8*SPTS, 1*MPTS 1000M Base-T GbE Port
MPEG-2 TS over UDP, unicast, and multicast streaming
MPEG-2 TS over RTP
7x188Bytes
Filter Null Packet
Null packet insert(SPTS setting) Bitrate 0.5-5Mbps
TTL configurable values 0-255
TS Multiplexing
DVB-ASI Input
Built-in multiplexer for encoder cascading
75 Ω , BNC type, 188Bytes, ≦150Mbps

PSI/SI
PID Remap, SDT Insertion
Program Number, Program Name
Video/Audio/PMT/PCR PID
Video Encoding
Video Compression
MPEG-4 AVC /H.264
Profiles and Levels
H.264 Main,High Up to L4.2
Low delay
50-500 ms
Bit rate
0.8Mbps~20Mbps
Encoding Schemes
VBR,CBR
GOP Structure
IBBP
Advanced Preprocessing
Noise reduction, Sharpening
Audio Encoding
Sampling Rates
48KHz
Bit rate
64, 96, 112, 128,160, 192,224, 256, 320, 384kbps

Audio encoding
MPEG-1 Audio Layer
AC3 pass through for HD MI only
HE-AAC V2, LC- AAC-Option
Quantization
24bit
Audio gain
0-400
Resolution
Downsacle Resolution
1080i/720p to 576p/480p


Encoding Resolution
1920×1080_60P, 1920×1080_50P
1920×1080_60i, 1920×1080_50i
1280×720_60P, 1280×720 _50P
720×576_50i, 720×480_60i
Management
Management Port
Web-GUI, RJ45, 100M
Configuration
Save/Restore/Facture Set/Backup/Load Setting
English language
Keyboard
Up, Down, Left, Right, Enter, Esc, Lock
Front-panel LCD configuration
LED indicate light
Environment
Electromagnetic Compliance
Comply to GB13837-92 & GB8898-88
Power Supply
AC 100-250V±10%, 50/60Hz
Power consumption
25W
Operation temperature
-10 - 50°C
Storage temperature
-10 - 75°C
Dimensions (H x W x D)
440mm x410(mm) x44.5mm (1RU)
Weight
4kg
Models
Description
ENC3381
8Channels HD MI Inputs
ENC3385
8Channels SD/HD-SDI Inputs
ENC3341
4Channels HD MI Inputs
ENC3345
4Channels SD/HD-SDI Inputs
