[Grandway Original] Visual Fault Locator VLS-8-01 1mW 5km VFL Visual Laser source 650nm portable type

Feedback Ratings
  • 1-64 Pieces
    $13.00
  • 65-184 Pieces
    $12.00
  • >=185 Pieces
    $11.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
F2H/Grandway
Model Number:
VLS-8-01
Output Power:
≥1mW
Detecting Range:
About 5km
Optical Connector:
universal 2.5mm addapter (FC/SC/ST)
Output wavelength:
650nm
Dimension:
L120mm *W33mm*H30mm /67.8g
Battery:
2*AAA dry batteries
OEM:
Yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X8X2 cm
Single gross weight:
0.5 kg
Package Type:
Standard Carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 200 >200
Est. Time(days) 3 To be negotiated

Know before you buy

Look For Quality Goods

To protect your Rights & Interests and enjoy best After-Service  & Warranty

Please buy only from"Shanghai Grandway Telecom Tech . Co., Ltd" , or contact me:vanessa(at) grandway.com.cn  Skype: grandway.vanessa

----------------------------------------------------------------------------------------------------------



In Stock!!! Grandway VFL Visual Fault Locator VLS-8-01



  1)Output power: ≥1mw

  2)Detecing Range: About 5km

  3)1 year free warranty

  4) Free software upgrade(if any)

  5)8:00am~ 11:30pm Online (UTC+8)

  6) Accessories: Main Unit, 2*AAA Dry Batteries, Carrying Bag, Test Report, Manual

Specification:

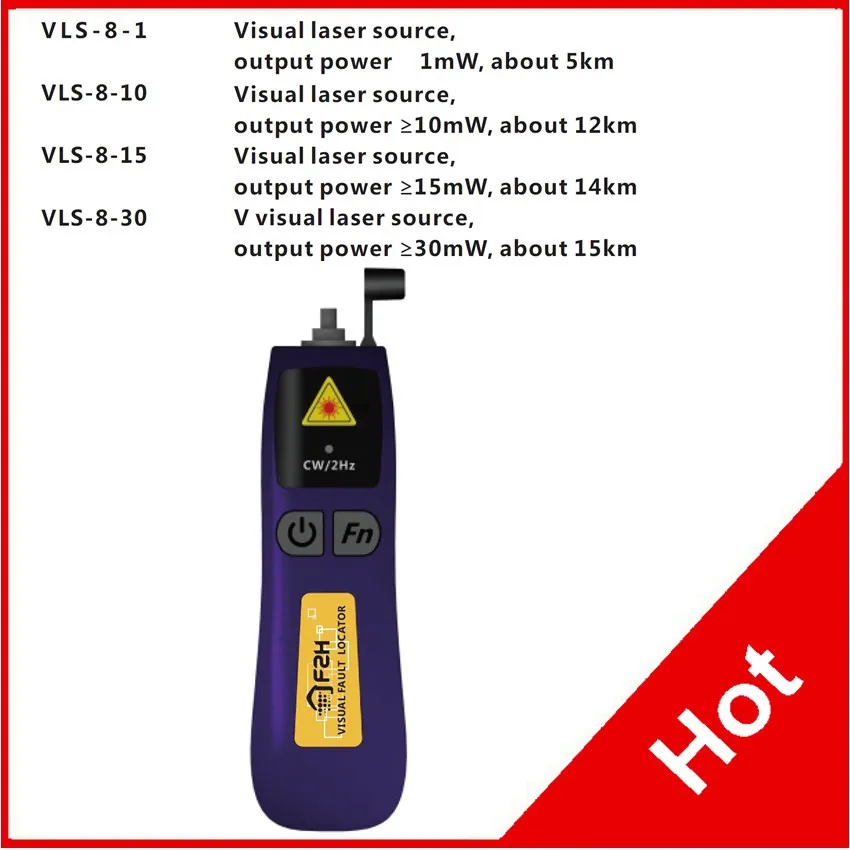

ModelVLS-8-1VLS-8-10VLS-8-15VLS-8-30
Laser Launcher Level(1)CLASS IIIACLASS IIIBCLASS IIIBCLASS IIIB
Output Power(2)≥1mW≥10mW≥15mW≥30mW
Detecting Range(3)About 5kmAbout 12KmAbout 14kmAbout 15km
CW Mode Battery Life(4)About 13 hoursAbout 6 hoursAbout 5 hoursAbout 3 hours
2Hz Mode Battery Life(4)About 23 hoursAbout 12 hoursAbout 10 hoursAbout 6 hours
Laser Launcher TypeLD
Optical Connectoruniversal 2.5mm adapter (FC/SC/ST)
Output Wavelength 650nm±10nm
Modulation FrequencyCW / 2Hz
Power 2*AAA dry batteries
Working Temperature -10℃~+50℃; <90%RH
Storage Temperature-20℃~+70℃; <90%RH
Dimension & WeightL120mm×W33mm×H30mm / about 67.8g
Standard Accessories:
2*AAA batteries, carrying bag, user manual
Optional Accessories:
Male FC to female LC adapter for LC connector (model: HD078)
Note:(1)It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing.
(2)The output power is figured out by multi-mode optical fiber at 23℃±3℃.
(3)Detecting range will be different with different fibers.
(4)Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AAA batteries.

What is VFL?



 VFL Visual Fault Locator is a testing equipment in Fiber Optic field. It is also called Visible Laser/Light Source, Visible

Red Light Source and etc. No matter what it is called, the point is the light it launched and transmitted in a fiber is

visible by human eyes. Normally the central wavelength is 650nm, so the light can be seen as a bunch of red light.



What is This Device for?



The VFL is used for check and location the defects and broken points of a fiber link. If a fiber is damaged or with

some defects the red light will escape from the fiber, though the outer jacket and seen by seen by the testing staff.
