Attributes
OriginalBrand Name

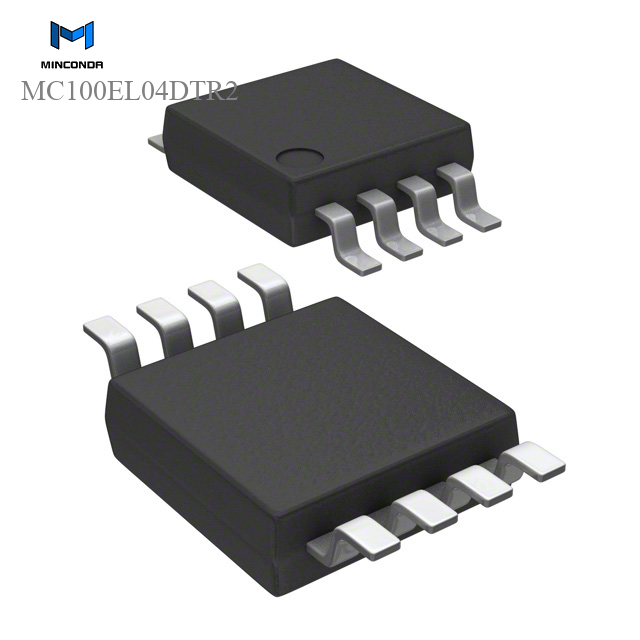

MC100EL04DTR2Model Number
SurfaceMountMounting Type
United StatesPlace of Origin
LogicGates and Inverters - Multi-Function, ConfigurableType
100ELSeries
Description:IC GATE AND/NAND ECL 2IN 8-TSSOP
Packaging Type:8-TSSOP
Function:Standard13
Application:Standard14
Operating Temperature:-40°C ~ 85°C
Package / Case:8-TSSOP
Voltage - Supply:Standard15
Number of Elements:Standard16
Features:Standard17
Logic Type:AND/NAND Gate
Current - Output High, Low:Standard18
Number of Bits per Element:Standard19
Output Type:Differential
LogicType:AND/NAND Gate
Number of Circuits:1
Number of Inputs:2
Schmitt TriggerInput:No
Output Type:Differential
Current - Output High, Low:Standard
Voltage - Supply:4.2V ~ 5.7V
Operating Temperature:-40°C ~ 85°C
Mounting Type:SurfaceMount
PackageCase:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Selling Units:Single item
