#SUPER DEAL 9.20 FOR SALE ONLY# CE TUV Approved 250VAC 10A Plastic Roller Limit Switch 8108 (TZ-8108)

Feedback Ratings
  • 10-49 Pieces
    US $2.95
  • >=50 Pieces
    US $2.84
10 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CNTD
Model Number:
TZ-8108
Protection Level:
IP65
Operating Temperature:
-5~+65C (with no icing)
Max. Current:
10A
Max. Voltage:
250V
Type:
Limit switch
Contact Form:
NO, NC
Service Life:
Mechanical: above 10,000,000 times; Electrical: above 500,000 times
Single Weight:
approx.130~190g
Humidity:
<95%RH
Inrush Current:
N.C:below 24A, N.O:below 12A
Ambient temperature:
-5℃ to +65℃
Feature:
Water-proof and oil-proof construction,wide varity of actuators use
Degree of protection:
IP65
Certificate:
TUV, CCC, CE

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
25X14X7 cm
Gross weight per batch:
2.5 KG
Package Type:
CNTD color box for single product & middle box; Standard export master box.
Lead Time :
2




CNTD Best Products for Import CE TUV Approved 250VAC 10A Plastic Wheel Limit Switch 8108 (TZ-8108)



Features



  • Double circuit type of limit switch
  • Highly rigid construction, consists of intensive plastic and zinc cast (Head and cover snugly fit in box)
  • Small volume, water-proof and oil-proof construction
  • Built-in basic switch with double spring mechanism, longer mechanical life
  • Smooth operation with greater OT
  • Easy-to-wire circuit opening design
  • Wide variety of actuators, easily use

Product Description

  Characteristics



Operation speed

0.5mm-50cm/sec

Operating frequency

Mechanical: 120 operations/minute, Electrical: 30 operations/minute

Contact resistance

25mΩ max. (initial value)

Insulation resistance

100mΩ min. (at 500VDC)

Dielectric strength

1000VAC, 50/60HZ for 1 minute between terminals of the same polarity



1500VAC, 50/60 HZ for 1 minute between currentcarrying

and non-current-carrying metal parts



1500VAC, 50/60 HZ for 1 minute between each terminal and ground

Vibration

10-55HZ,1.5mm double amplitude

Shock

Mechanical durable: 1, 000m/Sec2 (about 100G'S)

Malfunction: 300m/Sec2 (about 30G'S)

Ambient temperature

-5℃ to +65℃

Humidity

<95% RH

Life

Mechanical: 10,000,000 operations above

Electrical: 500,000 operations above

Weight

About 130 to 190g

Degree of protection

IP65

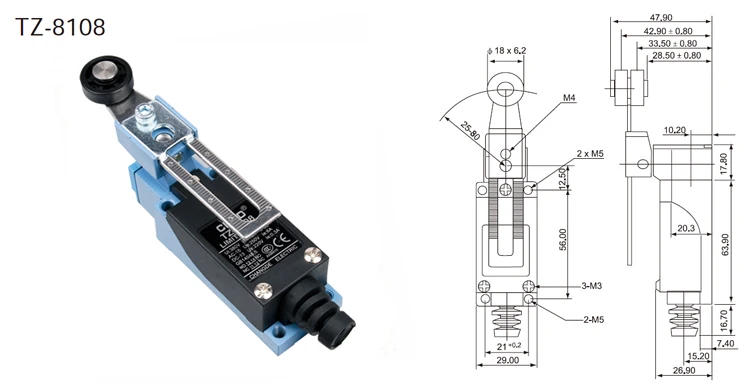

Appearance and Dimension


Operating Characteristics



Models

TZ-8104

TZ-8108

TZ-8107

TZ-8111

TZ-8112/8122

TZ-8166/8167/8168/8169

OF Max.

750g

750g

750g

900g

900g

150g

RF Min.

100g

100g

100g

150g

150g

-

PT Max.

20º

20 º

20 º

1.5mm

1.5mm

30mm

OT Min.

50 º

50 º

50 º

4mm

4mm

-

MD Max.

12 º

12 º

12 º

1mm

1mm

-

OP

-

-

-

26 ± 0.8mm

37 ± 0.8mm

-





Packaging & Shipping
  • Payment terms: 30% deposit in advance, 70% before shipment, 100% T/T in advance
  • Lead time:7-10 working days after payment received
  • Shipping Ways: Express, Air shipment and Sea shipment as per customers' request
