(YOGA X Active Sys 1) Active self powered line array speaker

FOB Reference Price:Get Latest Price
$5,000.00 - $50,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Type:
PROFESSIONAL SPEAKERS
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
YME
Model Number:
Active system
Power:
HF 80W LF 350W
Frequency Range (Hz):
80Hz-20K Hz
Low frequency Low Frequency(-10dB):
80Hz-20K Hz
Max SPL:
HF 137dB SPL, LF 134dB SPL
LF Driver:
1x10" (65mm voice coil) neodymium
HF driver:
(1.4 "throat) neo compression driver (75mm VC)
Power rating:
HF 80W LF 350W
Nominal coverage angle:
90 ° (H), Vertically adjustable maximum 10 °
Weight:
20kg
connection:
1+1- LF, 2+2- HF
line array speaker:
line array speaker
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. patented packing method
2.carton with foam inside
3.Flycase
Port
Guangzhou or Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 25 To be negotiated
Feature

(YOGA X Active Sys 1) Active self powered line array speaker


* YOGA X Active Sys 1 is with 4 tops + 2 bass(4pcs YG75+2pcs YG 30A) , which is  suitable for 500-800 audience event performance, YG 75 is single 10" biamp 2 way passive full range speaker, 75mm voice coil, neodymium driver; YG 30A is dual 15" active bass speaker, 100mm voice coil, neodymium driver

Product Description
 Item Code
Description
Qty.
YG 75
Single 10" passive line array full range speaker
4
YG 30A
Dual 15" active bass speaker
2
100.YSL.002
YOGA X system trucking lid
2
100.FYZ.004
YOGA X system 2+1 protection coat
2
100.WJ.036
YOGA system transportation security iron piece
4
100.WJ.079
YOGA magnetic pin
4
100.WJ.053
Speaker pole with screw threads, length: 380mm
2
100.WJ.054
Speaker pole with screw threads, length:580mm
2
100.XC.001
4 pin speaker cable, 0.6 meter with 2 x Neutrik NL4 connectors
2
100.XC.002
4 pin speaker cable, 2 meters with 2 x Neutrik NL4 connectors
2
100.XC.001
1.5 meter Neutrik powercon plug
2

*Active system, that means it is self power system, no need extra amplifier and processor, powered by 3 chaneel Class D amp-module 2x2500w@4Ω+1x1000w@4Ω, all of the data is ready before shipping, all you have to do is to set up, plug in the power cable, speaker cable, mixer, then SHOW TIME!

* This active system was born with unique advantages with below : No extra amplifiers, no extra processors, minimum loudspeaker cables, easy to transport, no need to debug , faster setup and tear-down, small size, high output

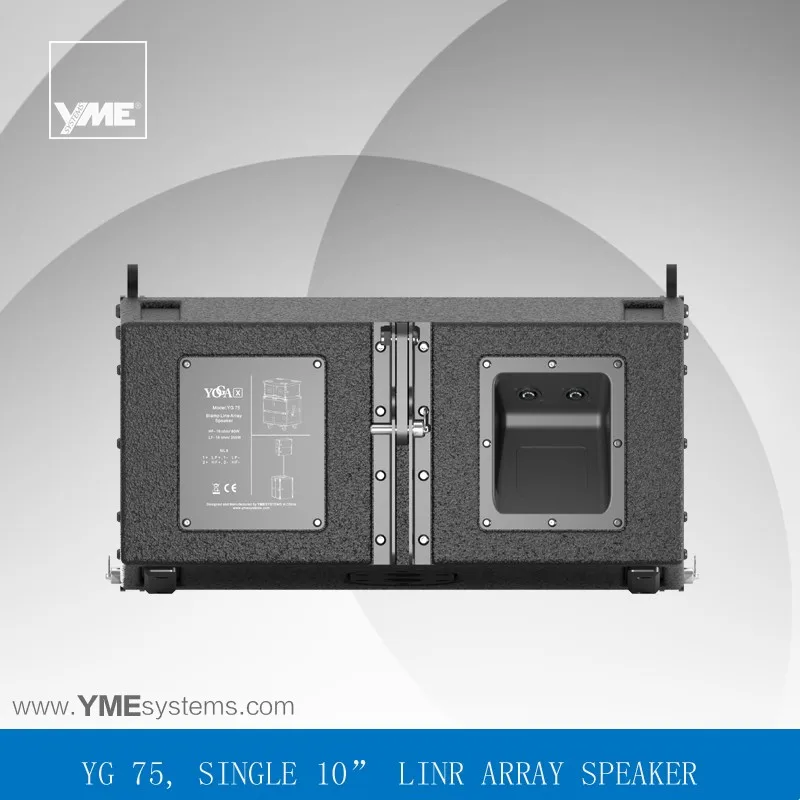

Top: YG 75 Single 10 inch Passive biamp 2 way full range speaker

LF: 1X10" 75mm voice coil, neodymium;
HF: 1x3",1.4" exit 65mm voice coil, neodymium;
Frequency response:80Hz-20KHz(-10dB);90Hz~18KHz(±3dB)
Sensitivity:HF:112dB,LF:103dB;
Power(AES):HF:80w,LF:350w;
Max.SPL:HF: 131 dB,137dB peak, LF: 128dB, 134dB peak;

Connection:Neutrik NL4x2
Connection Method: LF:1+1-, HF:2+2-
Enclosure:15mm, 18mm Multilayer birch plywood
Nominal Coverage Angle:90°(H), Vertically adjustable maxium 10°
Nominal impedance:16Ω

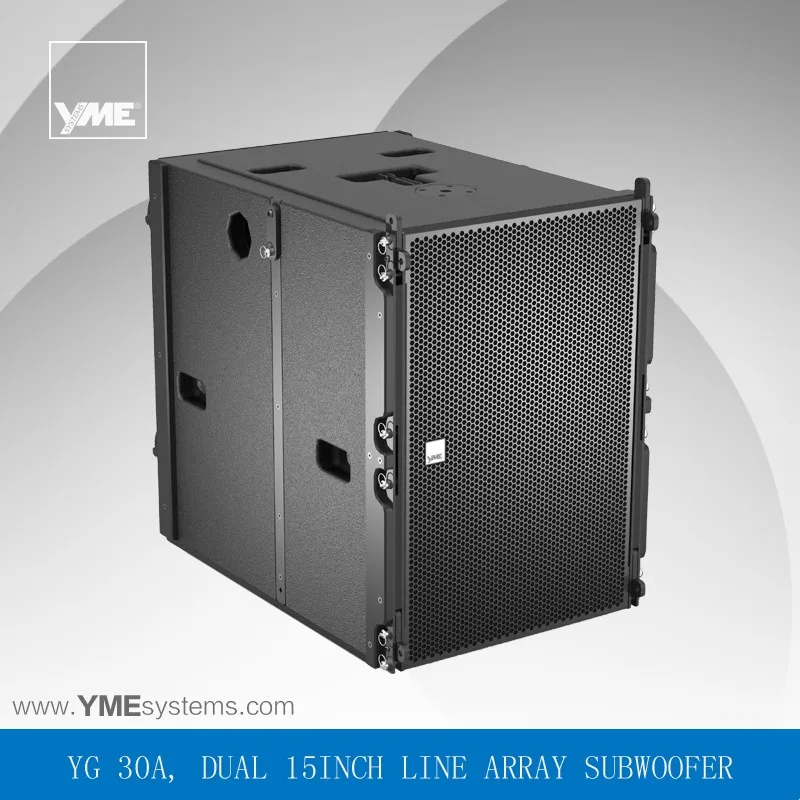

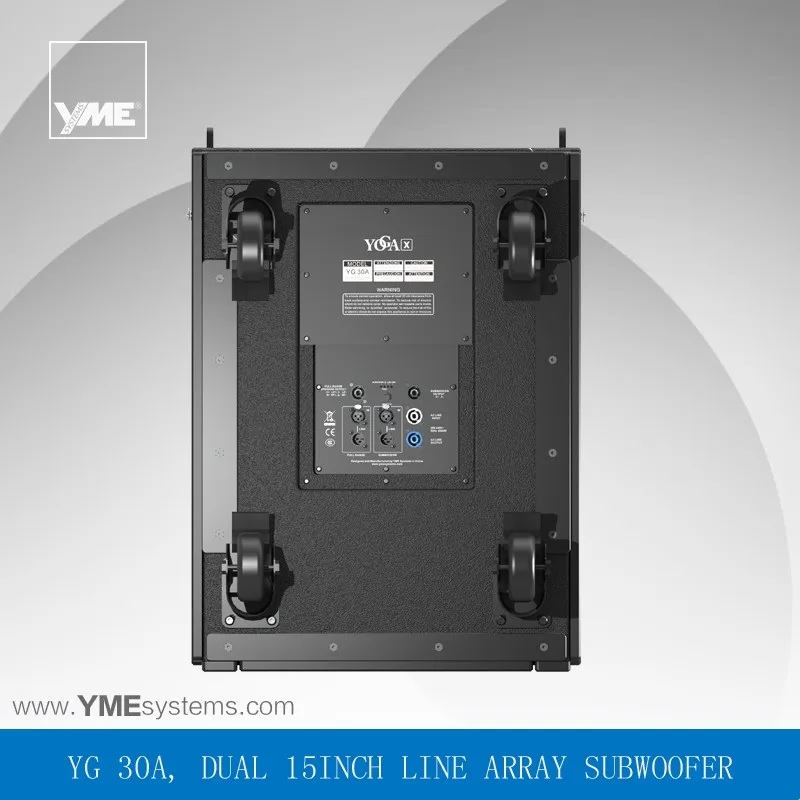

Bass: YG 30 A dual 15 Inch Active Bass Speaker

3 channels D-class amplifier module(2 X 2500W + 1 X 1000W, 4Ω);
Frequency Response: 45Hz~100Hz(±3dB), 35Hz~150Hz(-10dB)
LF: 2X15" 100MM voice coil,Neodymium;
Power(AES):1000w;

Frequency response:35Hz-150Hz(-10dB);
Sensitivity:99dB;
Max. SPL:LF: 129dB, 135dB peak
Enclosure:15mm, 18mm Multilayer birch plywood

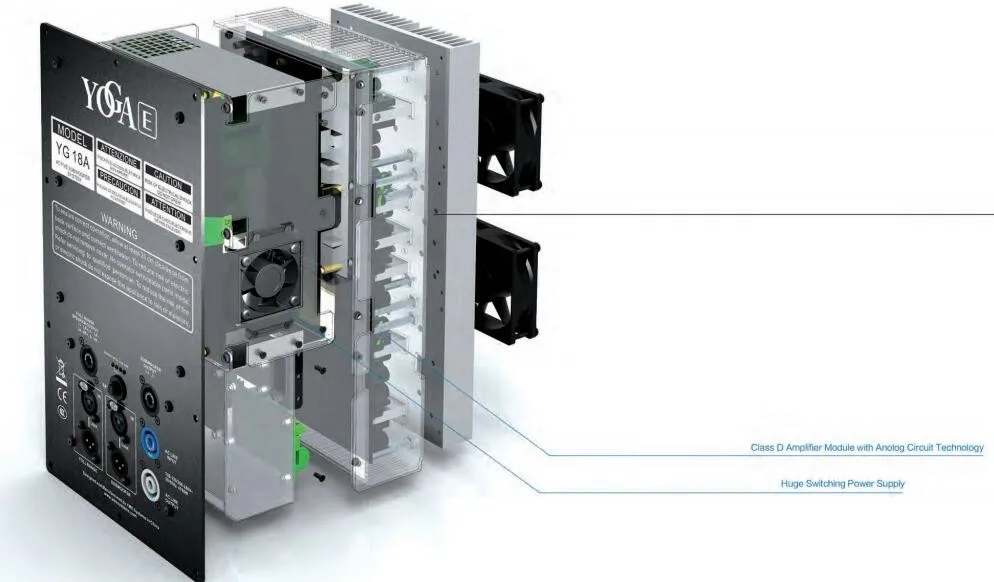

YMESYSTEMS AMP-MODULE

--Thanks the highly powerful multi-channels D class switching power amplifier module (1 X 1000W@4Ω + 2 X 2500W@4Ω), one active YG 30A can drive maximum 4 pieces passive YG 75 .
--The amplifier module is developed by exceptional analog circuit technology which is without unwanted DSP treatment, it deliveries widely open and crystal clear sound. The built-in analog crossover and limiter makes the system well-protected and truly plug and play.

PS: active version and passive version share the same design, passive version can be converted to activ version by simply installing the amplifier module.

YOGA Series

Various Combinations & Choices

It is suitable to different preferences and scale of applications. YOGA series offers various choices such as the economical YOGA E, the high performance YOGAX, the plug-play YOGA active and tunable YOGA passive. YOGA is always herewith a proper solution that meets your need.

Incredibly extendable. To Be Small or Big? It is Not A Question

The true modular design provides YOGA series amazing flexibilities to be combined, split and extend freely from 300 people to8000 people scaled application, from the simplest 2+1 mono to 4 way large system.
The FOH engineers' imagination at application can be achieved by easy combinaiton in different ways. Which is just as simple as a building block game.

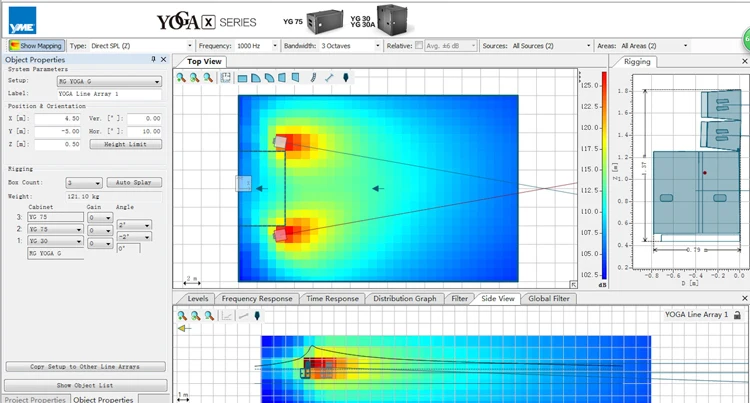

EASE FOCUS 3 GLL

EASE Focus 3LL is an acoustic modeling software for line array systems and configurable loudspeakers. YMESYSTEMS now provides office GLL data of EASE Focus 3 for GT 13,GT21, YG75,YG30,YG30A and iA110. The download of the software and the system defintions for YMESYSTEMS is free.
Check this out for more details: focus.afmg.eu/index.php/fc-brands-en.html

Patent pack method

(Patented Packing Method (Patent No.:ZL 2015 2 0796950.X))

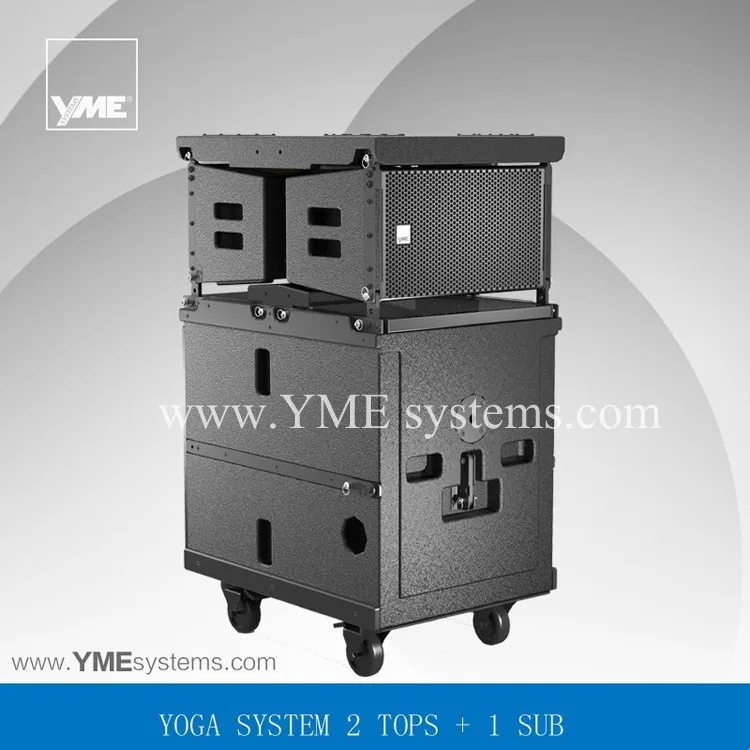

--2 PCS YG 75 Top(or YG 65 Top)
--1 PCS YG 30A(or YG 18A Bass)
-- Top Cover
--2pcs 0.6m 4pin Neutrik Speaker cable
--1pcs 1.5m Power cable
--2pcs peaker pole with screw threads, length: 380mm
--2pcs Speaker pole with screw threads, length:580mm
--1pcs waterproof protection coat
