1 & 2 &3 Tracks USB Portable Magnetic EMV MSR Chip Card Reader Writer MSR 606

  • 1-9 Units
    $130.00
  • 10-999 Units
    $120.00
  • >=1000 Units
    $105.00
Model Number:
MSR 606
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized packaging (Min. Order: 500 Units)
Samples: $130.00 /Unit, 1 Unit (Min. Order): Buy Samples
Contact Supplier
Samples - $130.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
HCCTG
Power requirements:
+24VDC +/- 5%
Power supply:
External switching power 24V/2.5A
Interface:
Serial interface or USB
Ripple:
50mVp-p or less
Dielectric strength:
500 VDC for 1 minute
Coercive force:
Read/write 300-4000 OE magnetic card
Card thickness:
0.76-1.2mm
Write speed:
5-30ips
Body material:
ABS 94V-0
Swipe:
Manual, single direction

Packaging & Delivery

Selling Units:
Single item
Single package size:
29X18X10 cm
Single gross weight:
1.5 kg

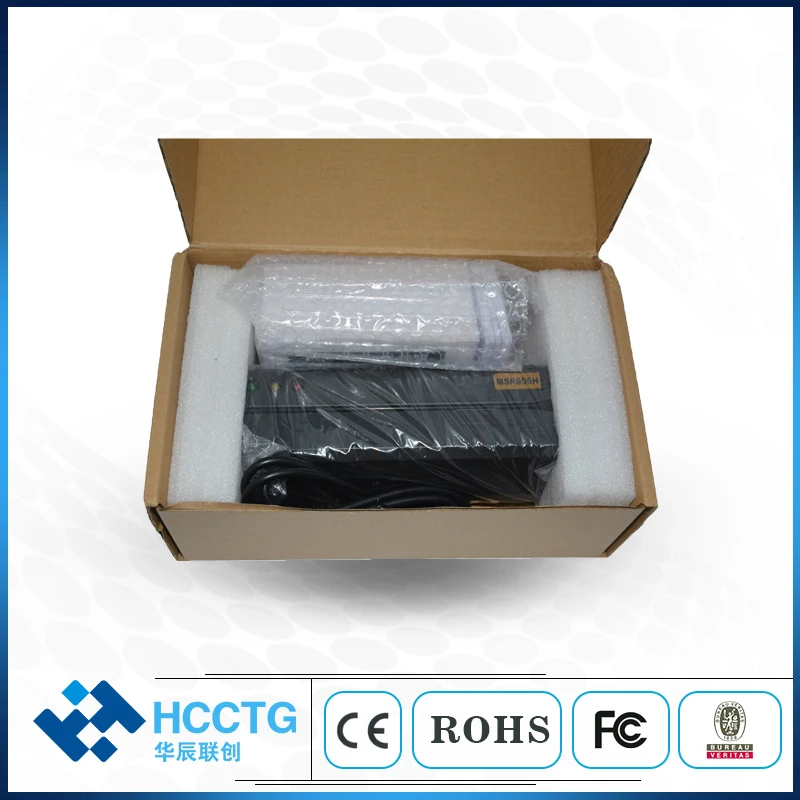

Package Type:
General Packing For 1 & 2 &3 Tracks USB Portable Magnetic EMV MSR Chip Card Reader Writer MSR 606
Lead Time :
Quantity(Units) 1 - 10 11 - 100 >100
Est. Time(days) 7 15 To be negotiated

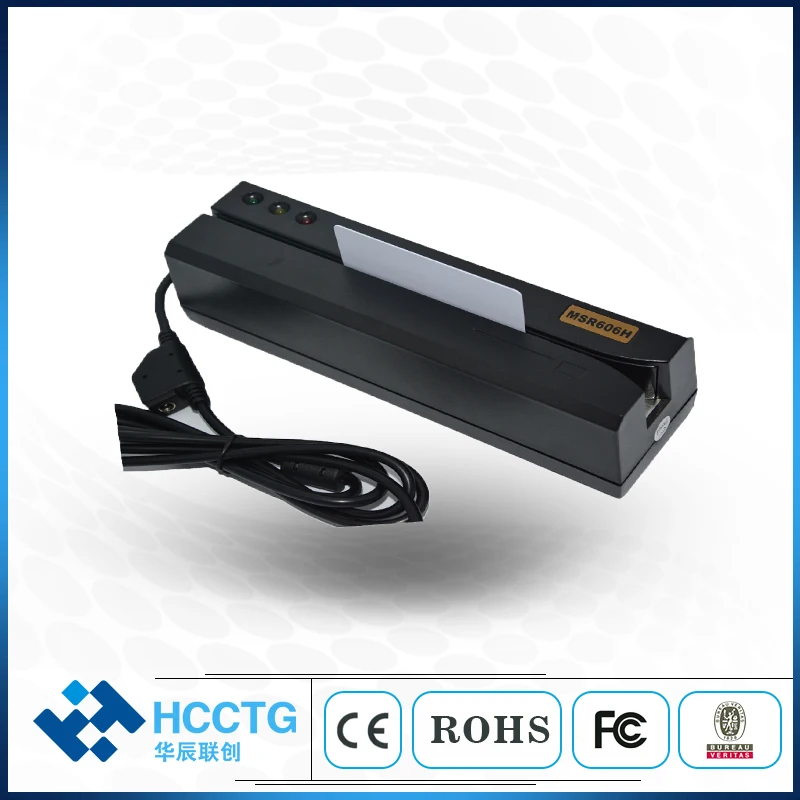

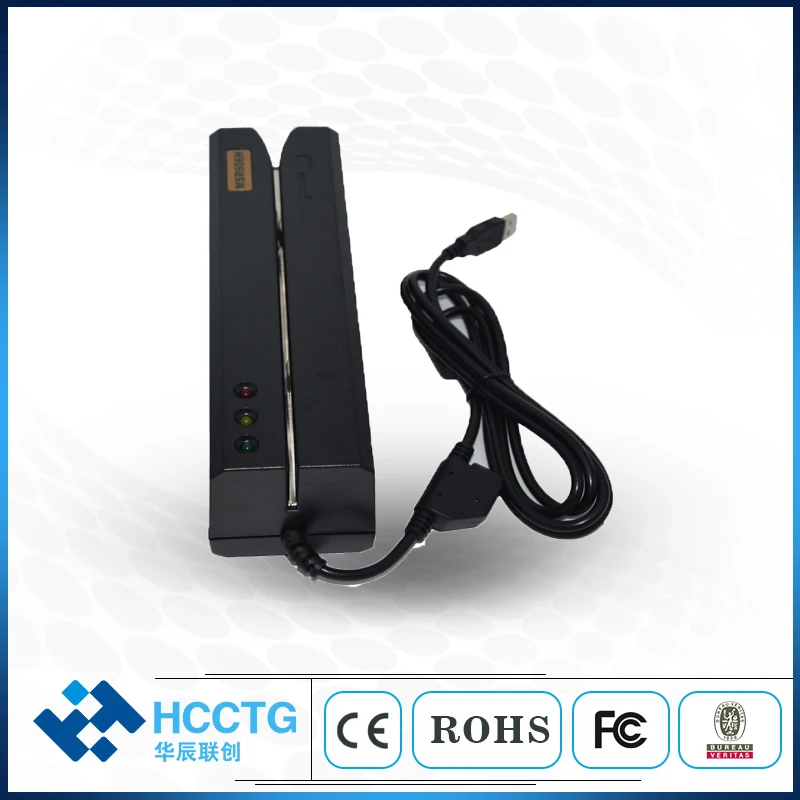

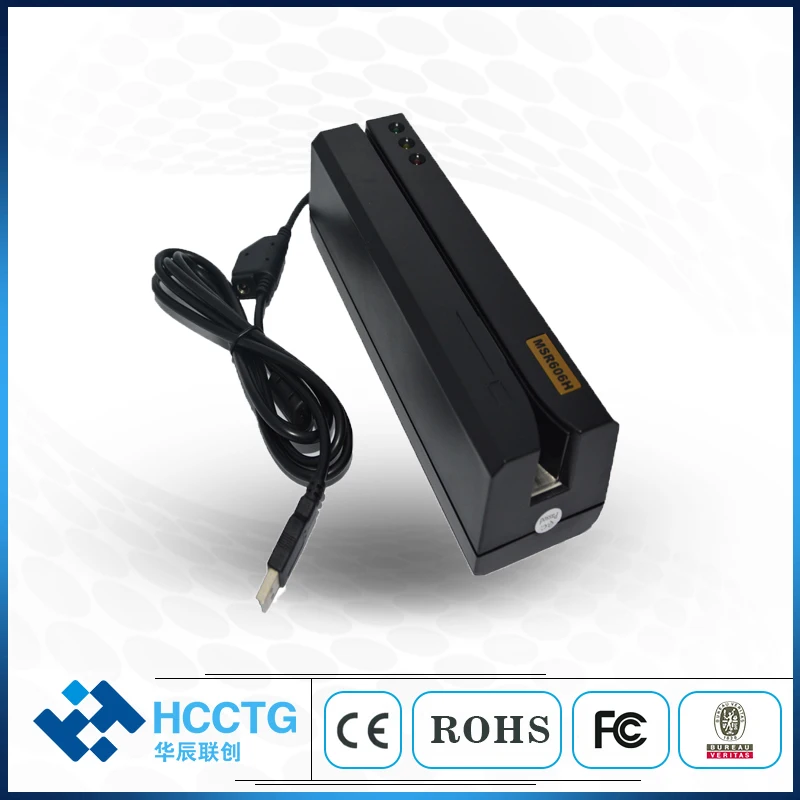

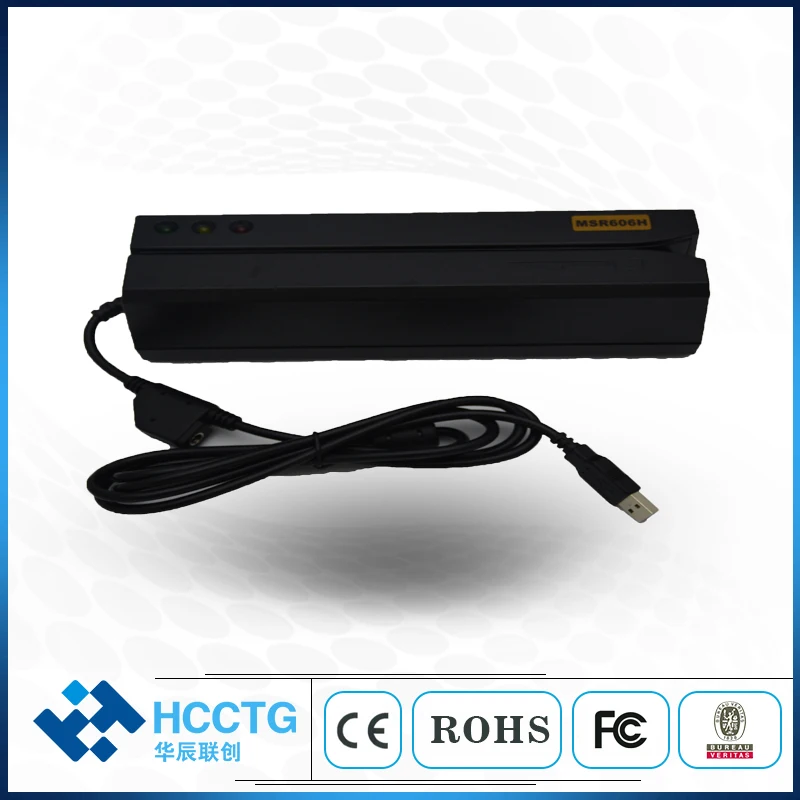

1 & 2 &3 Tracks USB Portable Magnetic EMV MSR Chip Card Reader Writer MSR606



General

It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR606 reader/writer.

The MSR606 is designed to offer a reading and writing solution for high and/or low COERCIVITY cards that will attractively complement an existing system.



Feature

1. Read/Write magnetic stripe card complied with ISO formats

2. Read/Write Drivers Licenses

3. Read/Write High & Low  COERCIVITY (300~4000 OE)

4. LED provides operational status

5. Writes any track combinations of 210 and/or 75 bpi data density

6. Program software for Windows 98/Me/XP /Vista

7. Manual Swipe to read and/or write card with RS-232 /USB output

8. Writing &verifying data on single, dual, or triple track in one swipe

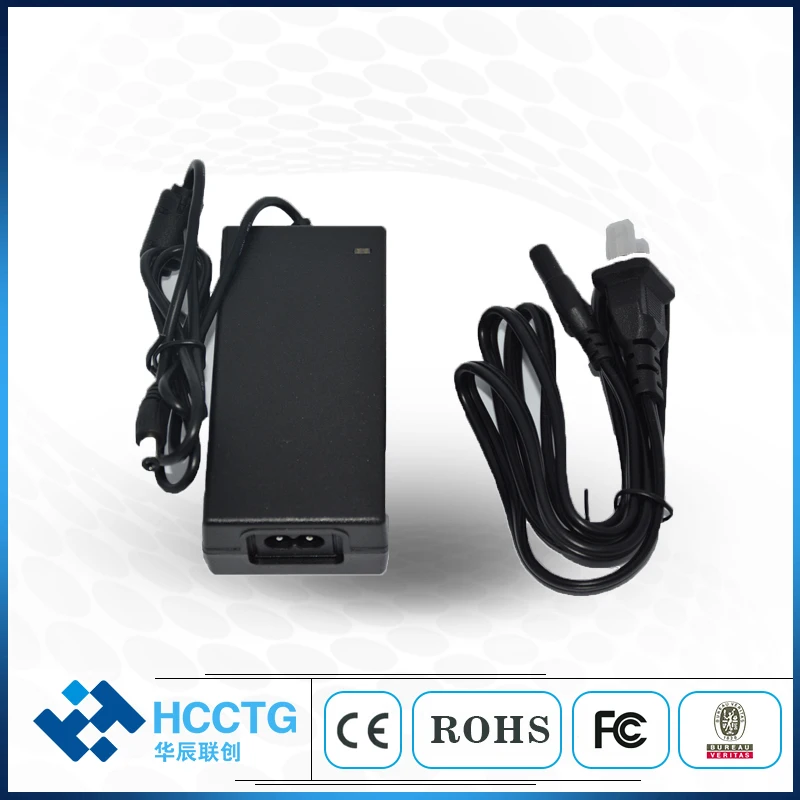

9. +24VDC, 2.5A Max external power adapter attached

10. Dimension of 212(L) x 64(W) x 63(H) mm

11. Dimension of Box 290(L) x 180(W) x 100(H) mm





Specification

Power Reference

Power requirements

  +24VDC +/- 5%

Consumption

  Typical 350mA Max.  600mA plus for each writing track

Power supply

  External switching power 24V/2.5A

Interface

  Serial interface or USB

Ripple

  50mVp-p or less

Dielectric strength

  500 VDC for 1 minute

Performance

Read card

  Track1

  Track2

  Track3

Bit per density

  210 bpi

  75/210bpi

  210 bpi

Coercive force

  Read/write 300-4000 OE magnetic card

Card thickness

  0.76-1.2mm

Read speed

  STD card

  Jitter +/-15%

  Amp. 60%



  5-55ips

  5-50ips

  5-50ips

Write speed

  5-30ips

Write jitter

  Interval < +/- 10%, Sub-interval < +/- 12%

Error rate

  Read < 0.5%



  Write < 0.8%

Head life

  Min. 1000K swipes for both read/write head

Physics

Body material

  ABS 94V-0

Weight

  Approx. 1.4kg

Dimension

  212L x 64W x 63H mm

Swipe

  Manual, single direction

Environment

Operation

  -10 to 55oC, 10 to 85% humidity

Storage

  -30 to 70oC, 10 to 90% humidity

Safety Approval

Certificate

  FCC , CE , UL, CUL,ROHS




 MSR606-1MSR606-3MSR606-4MSR606-6MSR606-7MSR606-2
