1,2 or 4-port E1 over Ethernet TDM Pseudowire Access Gateway , E1 over IP converter

FOB Reference Price:Get Latest Price
  • 1 - 99 Cartons
    $300.00
  • >=100 Cartons
    $250.00
Customization:
Customized logo (Min. Order: 50 Cartons)
Customized packaging (Min. Order: 50 Cartons)

More

Graphic customization (Min. Order: 50 Cartons) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
PHOTEL
Model Number:
PT-10 0008
Ethernet number:
5
E1number:
8
E1 conncetor:
RJ45
Ethernet conncetor:
RJ45 and one SFP
NMS:
Support
Power supply:
-48V DC or 220V AC
Supply Ability
Supply Ability:
1000 Carton/Cartons per Month
Packaging & Delivery
Packaging Details
standard package
Port
shanghai
Product Description

  As a cost effective solution for the traditional telecom services migrate to the IP packet networking technology, the TDMOIP adopts the innovative TDM over IP technology, it transports the legacy E1 data through the existing Ethernet or IP network.
The 8E1 TDMOIP is the new generation of the TDM over IP equipment with IP circuit emulation that supports transportation of 8 E1 and two local Ethernet ports over Ethernet or IP network. The uplink ports and user data ports are IEEE 802.3 compliant, 10/100 Base-T auto-sensed Ethernet port.
Telecom and Enterprise users can save a lot of access and equipment costs and generates new revenue by offering different types of service over existing Ethernet networks. It is also suitable for connecting to the wireless equipment to achieve fast deployment of E1 services. One particular application is to build E1 links with low cost Wireless LAN bridges, replacing much more costly microwave radios. Operators can use 8E1 TDM over IP to provide legacy TDM services over wired or wireless packet network.

Main Features

1)Providing up to 8 E1 interfaces;

2)Provide 4 FE electrical ports and 1 FE optical port, 2 uplink ports, 2 local data ports or monitoring ports;
3)Provide one optical ethernet,this optical port can be used for uplink or local data;
4)Having the high transmission efficiency, and the transmission delay can be adjusted;
5)Supporting point to point and point to multipoint application;
6)Supporting E1 framed, unframed setting;
7)Supporting E1 loss alarm indication;
8)Adopting UDP encapsulation, and supporting different types of Ethernet transmission channels;
9)Supporting Ethernet PING package function;
10)Ethernet supports 10/100M self-adaptive, half/full duplex self-adaptive;
11)Supporting E1 package QOS assurance;
12)The equipment firmware and software supports remote update function;
13)Support AC220V or DC-48V (optional).

Specifications

 E1 Interface
Bit rate: 2.048Mbps ± 50ppm
Code type: HDB3 code, G.703 standard
Input impedance: 75ohm or 120ohm
Frame structure: G.704, G.706
Jitter: G.742, G.823

Ethernet Optical Interface
Bit rate: 155Mbps ± 50ppm
Output optical power: ≥-15dBm
Receiving sensitivity: ≤-35dBm
Optical wavelength: 1310nm/1550nm
Connector: FC/SC

Ethernet Electrical Interface
Bit rate: 10/100Mbps, half/full duplex auto
Standard: IEEE 802.3, IEEE 802.1Q (VLAN)
Connector: RJ45

Power Supply
Input voltage: -48Vdc or 220Vac
Voltage range: -36Vdc ~ -72Vdc, 180Vac ~ 260Vac
Power consumption: <5W

Mechanical Structure
Dimension: 224mm x 148mm x 44mm
Net weight: 0.6Kg

Operation Environment
Working temperature: -10°C ~ 50°C
Working humidity: 5% ~ 95 % (non-condensed)
Storage temperature: -40°C ~ +80°C

Applications

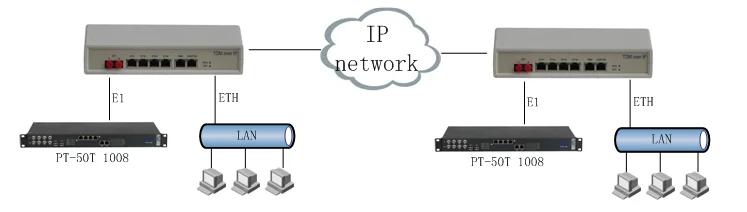

Point to point application

Point to multi-point application
