1-20L small sized vibratory ball mill for sale

FOB Reference Price:Get Latest Price
$100.00 - $3,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hunan, China
Brand Name:
Tencan
Model Number:
ZM-1
Voltage:
380V
Certification:
CE ISO
Type:
Ball Mill
Color:
White accept custom order
Origin:
China
Model number:
ZM
Product name:
mini ball mill,vibrating ball mill
Warranty:
1 year
After-sales Service Provided:
Overseas third-party support available
Power(W):
1.1kw
Weight:
different type,different weight
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard plywood case or according to customers' requirements
Port
depend on customers' request
Lead Time :
7-25 working days after we get your deposite.

 1-20L small sized vibratory ball mill for sale

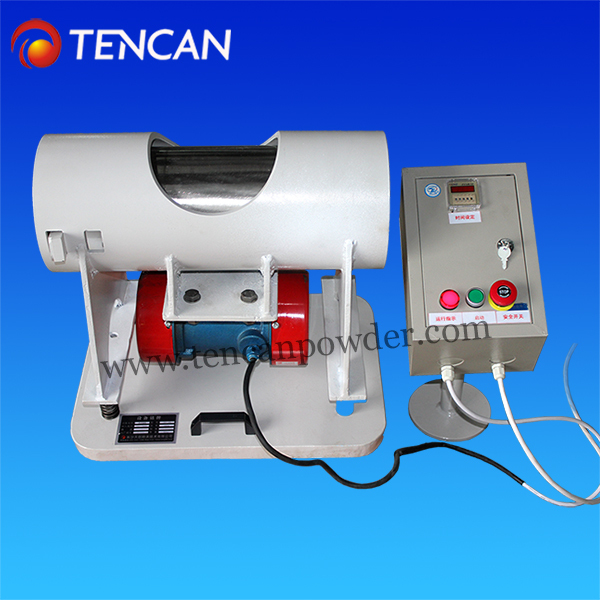

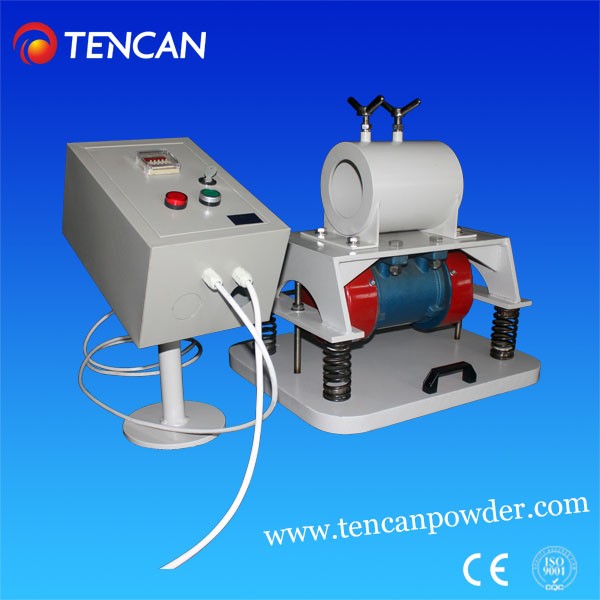

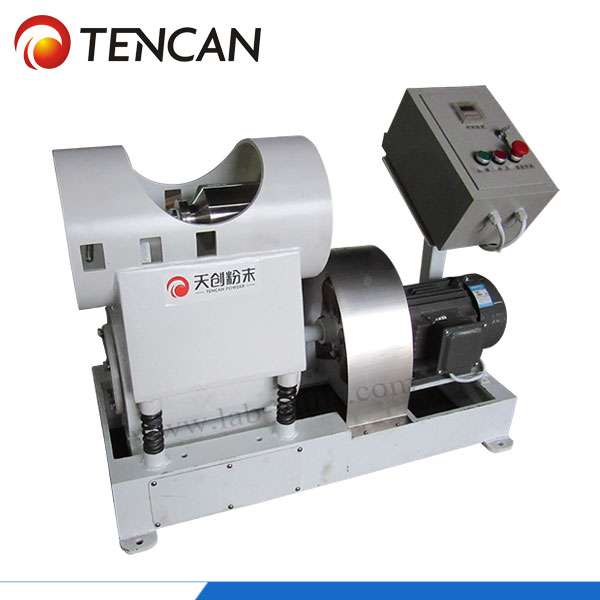

The experimental vibration mill of TIANCHUANG is a kind of ball mill that fastened together the milling chamber and vibration mechanism of below.



Making two adjustable eccentric block vibrate via vibrating the motor.So make the tank vibrate. Force grinding media and materials in cylinder high-frequency vibration, so that the material would be subjected to the impact, friction and shearing of grinding media to be crushed.



 Fine particles through the lower part of the grinding chamber and peristaltic pump to re-enter the milling chamber. Coarse particles remained in the the grinding cavity and continued milling.



The structure or process configuration of this machine are very mature; It is widely used in the field of electronics, ceramics, chemicals, powder metal, tungsten, Calcium carbide, rubber compounds, magnetic materials and High- -frequency porcelain material and pharmaceutical of radio industries.



Special Items: the cylinder lining: an optional stainless steel, ceramic (alumina), zirconia, ceramic tile, nylon, polytetrafluoroethylene,edible grade rubber or polyurethane, etc.



Features
1.Easy to operate, reliable work, easy to clean, strong ability to adapt to the working conditions.
2.No environmental pollution, can be dry, wet milling.
3.Light weight, small size, high efficiency, and can be made continuous production





Grinding tank volume

1~10L accept customs order

Cylinder lining:

stainless steel, ceramic, zirconia, nylon, polytetrafluoroethylene,

polyurethane,etc for choosing

Maximum capacity

Materials and grinding media is less than two-thirds of the whole volume

Size of input granules

Crispy materials less than 20 mm, the other is less than 10 mm

Size of output granules

Minimum to 0.5 microns

The frequency and amplitude

of vibration

The frequency is 5~23HZ,the amplitude is 5mm

Speed adjusting

Frequency control of motor speed

The voltage

380V



2



1

HTB1sY0LLpXXXXXiXpXXq6xXFXXXZ





1













Service:



 A. To pick up machine more easy & correct.



   First, We need client to provide below information about their product:



   1) The requirement of raw material:  we require powder or grains with good fluidity & dry, can fall down from cone charging barrel.



   2) We need know the size, shape of tablets / pills.  Yield(capacity) in your request.



    So we can figure out if our machine can compress and which models will meeting with your requirement.



B. We can design, customize and make dies for customers.
