1-30 Tons Daily Industrial Big Cube Ice Making Machinery Square Cube Ice Machine

FOB Reference Price:Get Latest Price
$5,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
KW-C10
Report Suspicious Activity
Overview
Quick Details
Power(W):
42KW
Ice Shape:
cube/square ice
Dimension(L*W*H):
5830*1980*2320mm
Warranty:
12months
Condition:
New
Capacity:
10tons/24hrs
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
KINGWELL
Voltage:
380V,50hz,3P/customized
Weight:
3840kg
Certification:
CE
Compressor:
Bitzer
Control system:
Siemens PLC program control
Cooling:
Water
Compressor Power:
2*28HP
Refrigerant:
R404a/R22
Material for mainframe:
304# stainless steel
Ice size:
29mm*29mm*22mm /22mm*22mm*22mm
Machine Gloss weight:
3840KG
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month even more
Packaging & Delivery
Packaging Details
Standard woodcase protect machine
Port
Guangzhou, Shenzhen
Product Description

1-30 Tons Daily Industrial Big Cube Ice Making Machinery Square Cube Ice Machine

Water cooling system: the machine consists of 2 parts: cube ice maker part and cooling tower,  they are connecting by water pump and water pipes.

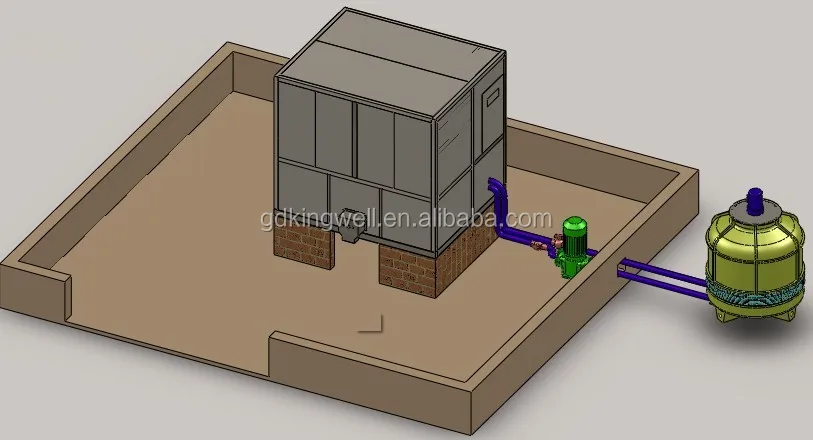

Layout of two parts

Cube ice maker part & cooling tower

SPECIFICATIONS FOR 10 TON ICE CUBE MAKING MACHINE (MODEL: KW-C10)


Compressor
Brand
Bitzer, Germany brand
Horse power
2*28HP
Model
4FE-28-40

Cooling tower
Cooling water flow
39.24 m³/h
Air flow
330 CMM

Measurement
Machinery unit
5830mm(L)*1980mm(W)*2320mm(H)
Cooling tower
1880mm(L)*1880mm(W)*1750mm(H)

Main Features

1) Food-grade: we use the food-grade material to manufacture the machine, all the parts which are contacting water and ice are stainless steel 304.
2) Easy and safe operation: we use PLC micro-computer program and touch screen to control the machine, so it is easy to operate the machine; all the wires are well-protected, and the Freon gas is a kind of stable and safe gas, so it is safe to operate it.

3) The ice thickness can be adjust by the touch screen.

4) The machine will stop automatically when the ice storage bin is full.
5) Power consumption: about 70~80KW*H to make 1 ton ice.

     Water consumption: about 1.05 tons water to make 1 ton ice.

Detailed Images

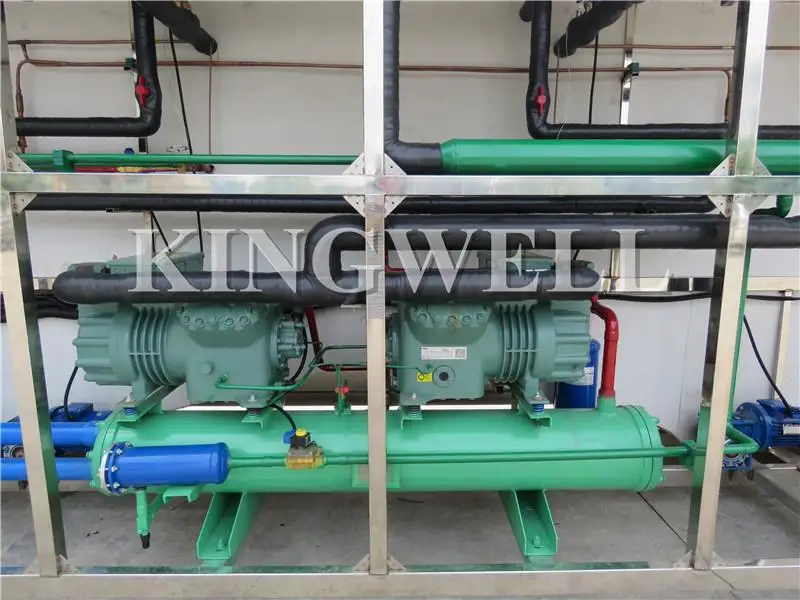

Compressor

Name: Bitzer

Brand: Germany brand

The compressor is the only engine of the refrigeration system, it's just as the heart for a human being, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.

PLC Program controller

Name: SIEMENS
Brand: Germany brand

This PLC is just as the brain for a human being, it controls all the electrical parts of the machine, to guide all part when to work and stop, so the whole ice making and ice falling process are totally automatic. SiEMENS brand is also widely used over the world.

Touch Screen

Name: Weicon
Brand: Taiwan brand

This touch screen can adjust some datas and ice thickness, all the working states and working histories can be seen clearly on the screen, so when there is some error of the machine, you can show the video and picture to the factory, problems can be judged quickly.


Ice Maker Grids

Brand: Kingwell
Material: Nickel-plated copper

Function: for forming cube ice
This ice maker grids is totally matched food-grade standard, and the size of each cube ice can be optional. There are 2 sizes: 22x22x22mm and 29x29x22mm.

Crystal Cube Ice



The cube ice is totally clean and crystal, good ice for drinking with juice, coco-cola, etc. It is widely used in hotels, bars, drinking store, gas station, restuarant etc. There are two sizes for option:

Size of cube ice
Freezing time per cycle
22x22x22mm
about 20 minutes
29x29x22mm
about 23 minutes
Packing system

Screw conveyor

This conveyor will convey ice out automatically when you step on pedal switch.

Digital Scale to weight ice

Putting the digital scale right below the ice outlet, weigh each bag according to the market, 2kg, 5kg, or 10kg etc.

Sealing machine to seal bags well

Finally, using sealing machine to seal ice bags well. After that, you need keep the bags into cold room for long-term storage.

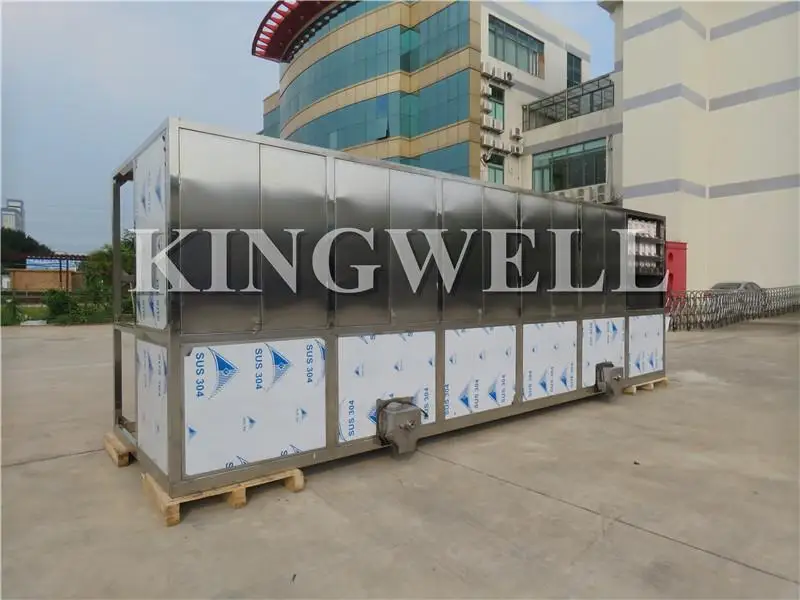

Cube ice maker under packing.

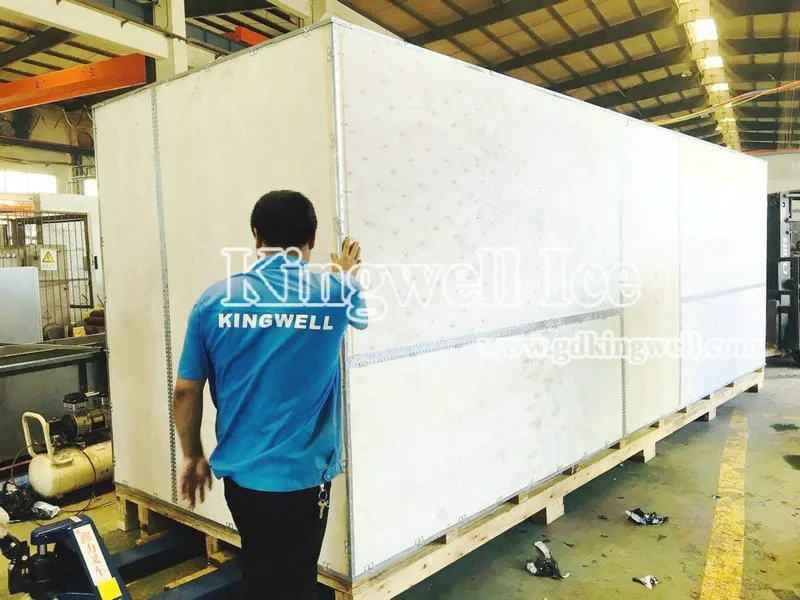

Cube ice maker packed by exporting plywood case, for good protection

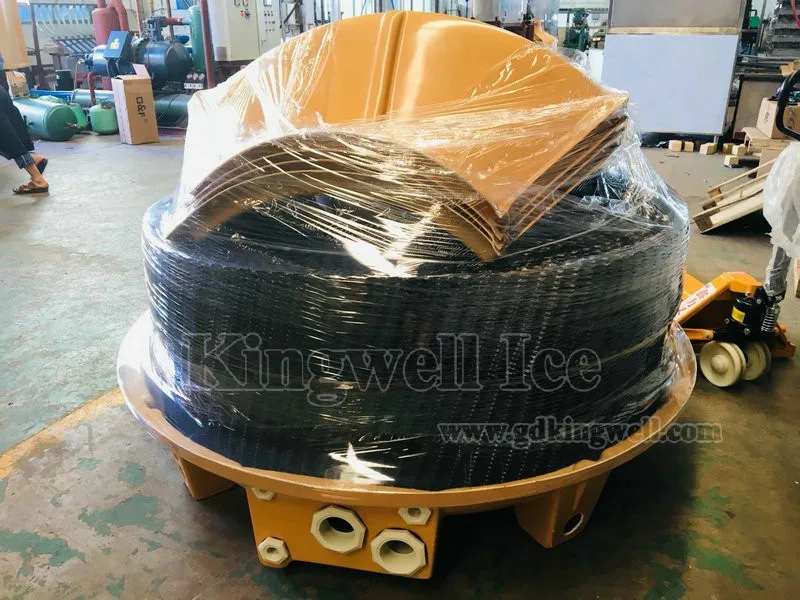

Water cooling tower knocked down to save space.

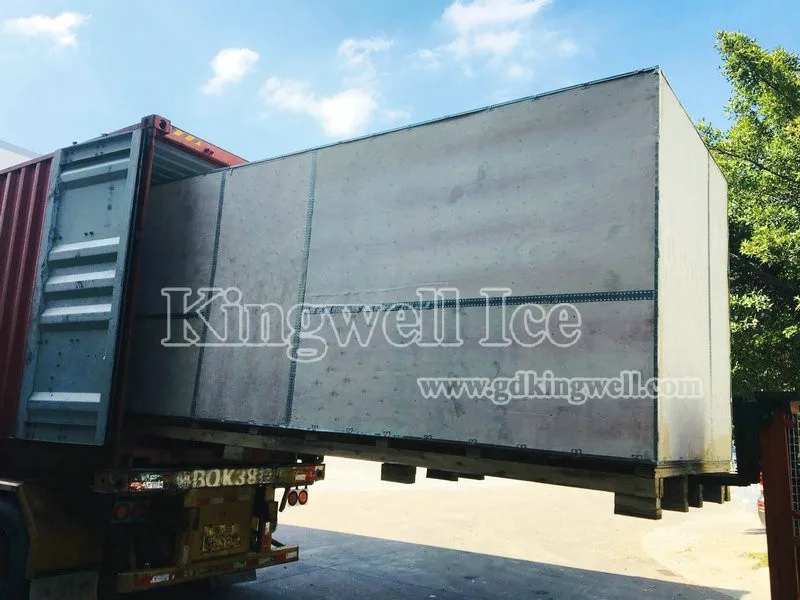

Loading of cube ice maker.


40 feet container for shipping.


Our Service
Our clients

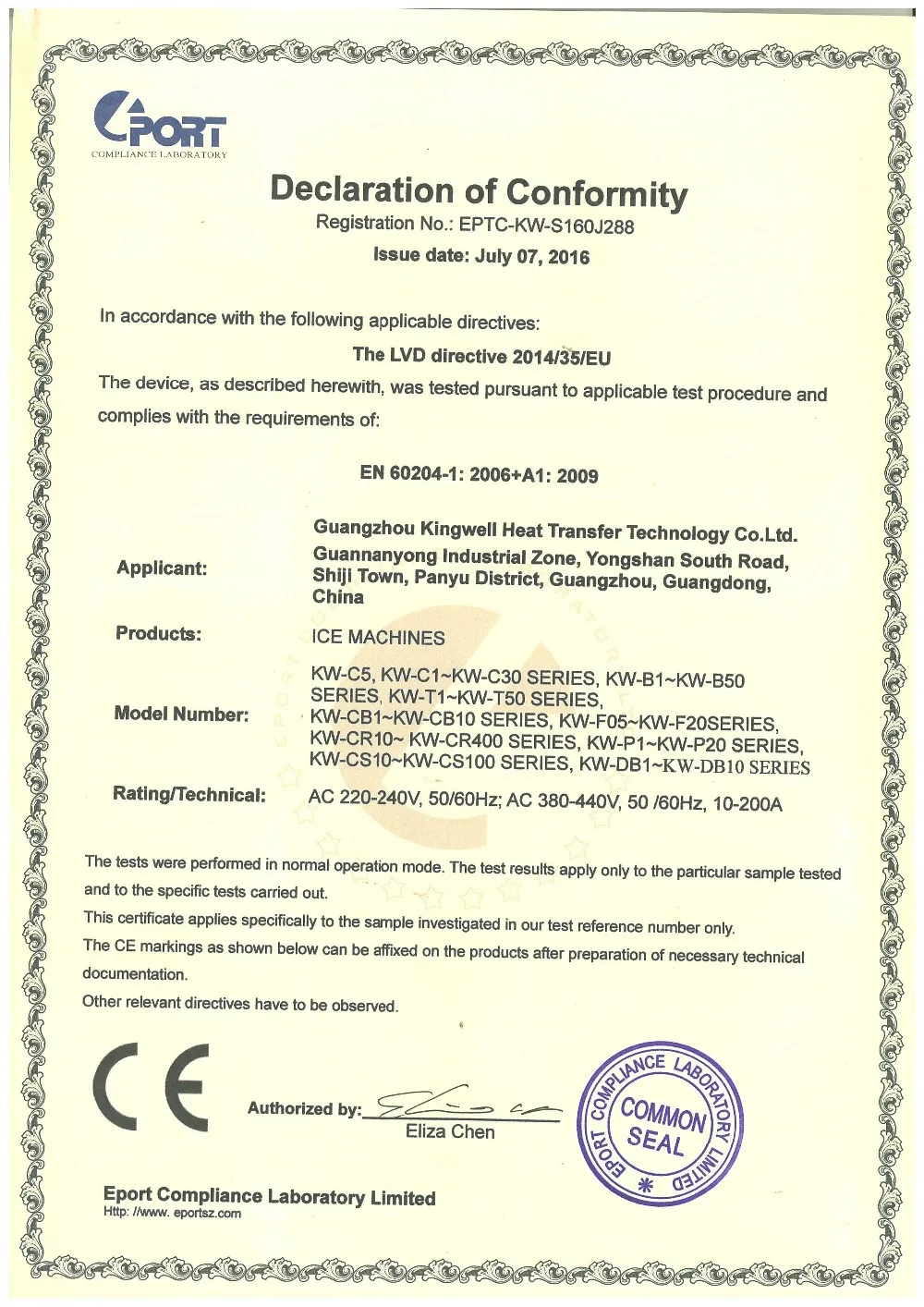

Certifications
