1/4" Tube x 1/4" NPT Twin Ferrule Compression Tube Instrumentation Fittings 316 Stainless Steel 90 Male Elbow tube fittings

FOB Reference Price:Get Latest Price
$3.00 - $20.00 / Piece | 3.0 Piece/Pieces (Min. Order)
Type:
ELBOW
Pipe size:
1/16”~1”; 3mm~25mm
Material:
Other SS
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 7 10 14 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 2000 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
SINYA
Model Number:
SK2 (NPT) Male Elbow
Technics:
Forged
Connection:
Double Ferrule
Shape:
Equal
Head Code:
Hexagon
Size:
1/16"~1" 3mm~25mm
Customization:
Available
Working Temperature:
-325℉~800℉ (-198℃~426℃)
Thread End Working Pressure:
6000 Psig (413 bar)
OEM service:
Available
Certificate:
ISO 9001, CE
Product Certification certification
CE Certified.
Valid from 2019-06-17 until 2024-06-16
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plastic Bag,Carton box, Wooden case or according to your requirement.
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 7 10 14 To be negotiated

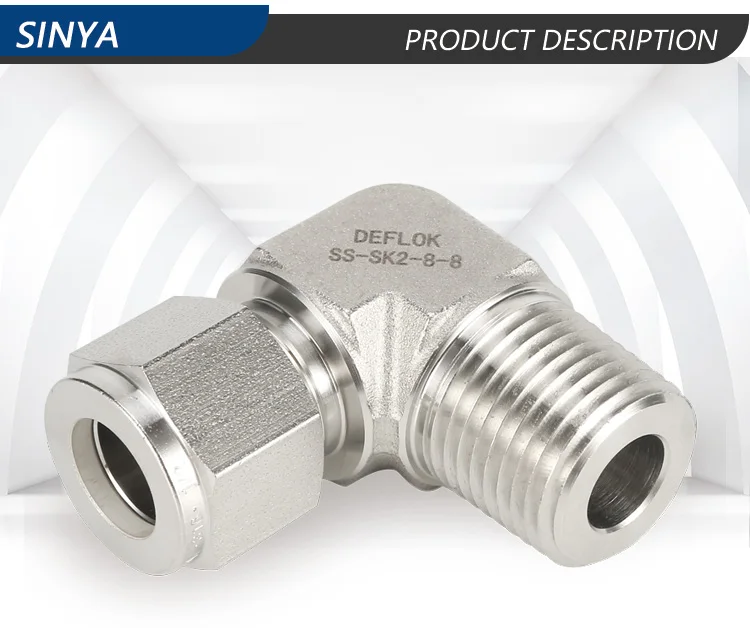

Product Description
1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.

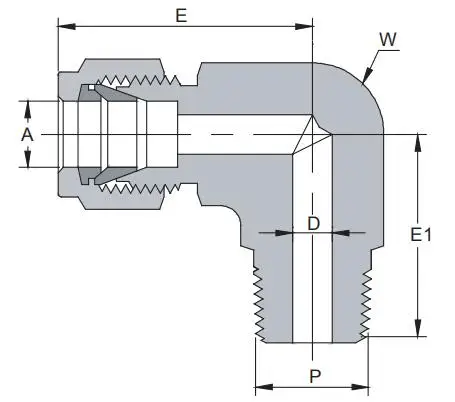

-SK2 (NPT) Male Elbow(in)

Order information
A
P
D
W
E
E1
in
mm
NPT
mm
in
mm
mm
mm
-SK2-1-1
1/16
1.58
1/16
1.27
3/8
9.52
19.05
17.78
-SK2-1-2
1/16
1.58
1/8
1.27
7/16
11.11
19.05
17.78
-SK2-2-1
1/8
3.17
1/16
2.28
3/8
9.52
23.62
17.78
-SK2-2-2
1/8
3.17
1/8
2.28
7/16
11.11
23.62
17.78
-SK2-2-4
1/8
3.17
1/4
2.28
5/8
15.9
24.64
23.37
-SK2-3-2
3/16
4.76
1/8
3.04
1/2
12.7
25.4
18.8
-SK2-3-4
3/16
4.76
1/4
3.04
5/8
15.9
25.4
23.37
-SK2-4-2
1/4
6.35
1/8
4.82
1/2
12.7
26.92
18.8
-SK2-4-4
1/4
6.35
1/4
4.82
1/2
12.7
26.92
23.37
-SK2-4-6
1/4
6.35
3/8
4.82
13/16
20.6
29.71
26.16
-SK2-4-8
1/4
6.35
1/2
4.82
15/16
23.8
31.75
33.02
-SK2-5-2
5/16
7.93
1/8
4.82
5/8
15.87
28.7
19.81
-SK2-5-4
5/16
7.93
1/4
6.35
5/8
15.87
28.7
24.38
-SK2-5-6
5/16
7.93
3/8
6.35
13/16
20.6
30.48
26.16
-SK2-6-2
3/8
9.52
1/8
4.82
5/8
15.87
30.48
20.83
-SK2-6-4
3/8
9.52
1/4
7.11
5/8
15.87
30.48
25.4
-SK2-6-6
3/8
9.52
3/8
7.11
13/16
20.6
31.24
26.16
-SK2-6-8
3/8
9.52
1/2
7.11
15/16
23.8
33.28
33.02
-SK2-6-12
3/8
9.52
3/4
7.11
11/8
28.6
37.08
36.83
-SK2-8-4
1/2
12.7
1/4
7.11
13/16
20.63
36.07
28.19
-SK2-8-6
1/2
12.7
3/8
9.65
13/16
20.63
36.07
28.19
-SK2-8-8
1/2
12.7
1/2
10.41
15/16
26.8
36.07
33.02
-SK2-8-12
1/2
12.7
3/4
10.41
11/8
28.6
39.88
36.83
-SK2-10-6
5/8
15.87
3/8
9.61
15/16
23.81
38.1
30.23
-SK2-10-8
5/8
15.87
1/2
11.94
15/16
23.81
38.1
35.05
-SK2-10-12
5/8
15.87
3/4
12.7
11/8
28.6
39.88
36.83
-SK2-12-8
3/4
19.05
1/2
11.94
11/8
28.6
39.88
36.83
-SK2-12-12
3/4
19.05
3/4
15.74
11/8
28.6
39.88
36.83
-SK2-14-12
7/8
22.22
3/4
15.74
13/16
30.2
44.7
41.66
-SK2-16-12
1
25.4
3/4
15.74
13/8
34.9
49.02
41.66
-SK2-16-16
1
25.4
1
22.35
13/8
34.9
49.02
46.48
-SK2-20-20
1 1/4
31.75
1 1/4
27.7
1 11/16
42.9
66.5
47.8
-SK2-24-24
1 1/2
38.1
1 1/2
34
2
50.8
78
60.5
  -SK2 (NPT) Male Elbow(mm)

Order information
A
P
D
W
E
E1
mm
NPT
mm
in
mm
mm
mm
-SK2-3mm-2
3
1/8
2.4
7/16
11.1
23.6
17.8
-SK2-3mm-4
3
1/4
2.4
5/8
15.9
24.6
23.4
-SK2-4mm-2
4
1/8
2.4
7/16
11.1
25.4
18.8
-SK2-4mm-4
4
1/4
2.4
5/8
15.9
25.4
23.4
-SK2-6mm-2
6
1/8
4.8
1/2
12.7
27.0
18.8
-SK2-6mm-4
6
1/4
4.8
1/2
12.7
27.0
23.4
-SK2-6mm-6
6
3/8
4.8
13/16
18.5
29.8
26.2
-SK2-6mm-8
6
1/2
4.8
15/16
23.8
31.8
33.0
-SK2-8mm-2
8
1/8
4.8
5/8
15.9
28.8
19.8
-SK2-8mm-4
8
1/4
6.4
5/8
16.0
28.8
24.4
-SK2-8mm-8
8
1/2
6.4
15/16
23.8
32.6
33.0
-SK2-10mm-2
10
1/8
4.8
11/16
17.5
31.5
21.6
-SK2-10mm-4
10
1/4
7.1
11/16
17.5
31.5
26.2
-SK2-10mm-6
10
3/8
7.9
13/16
17.5
31.5
26.2
-SK2-10mm-8
10
1/2
7.9
15/16
23.8
33.5
33.0
-SK2-12mm-4
12
1/4
7.1
13/16
20.5
36.0
28.2
-SK2-12mm-6
12
3/8
9.5
13/16
20.5
36.0
28.2
-SK2-12mm-8
12
1/2
9.5
15/16
24.0
36.0
33.0
-SK2-12mm-12
12
3/4
9.5
11/8
28.6
39.8
36.8
-SK2-15mm-8
15
1/2
11.9
15/16
24.0
38.0
35.1
-SK2-16mm-6
16
3/8
9.5
15/16
24.0
38.0
30.2
-SK2-16mm-8
16
1/2
11.9
15/16
23.8
38.0
35.1
-SK2-16mm-12
16
3/4
12.7
11/8
28.6
39.8
36.8
-SK2-18mm-8
18
1/2
11.9
11/8
28.6
39.8
36.8
-SK2-18mm-12
18
3/4
15.1
11/8
28.6
39.8
36.8
-SK2-20mm-8
20
1/2
11.9
13/16
30.2
44.6
41.7
-SK2-20mm-12
20
3/4
15.9
13/16
30.2
44.6
41.7
-SK2-22mm-12
22
3/4
15.9
13/16
30.2
44.6
41.7
-SK2-22mm-16
22
1
18.3
13/8
35.0
44.6
46.5
-SK2-25mm-12
25
3/4
15.9
13/8
35.0
49.1
41.7
-SK2-25mm-16
25
1
21.8
13/8
35.0
49.1
46.5
Our Services
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery.
Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability
1.Custom design, CAD drawing
2.P&ID
3.Component selection
4.Bill of material
5.Professional services such as bending and welding
6.Testing to guarantee the system
7.Professional packaging and delivery
Products Display
Contact us to get more information :
Tube Fittings
Check Valves
Manifolds Valves
In-line Filters
Thermowells
Pipe Fittings
Relief Valves
Distribution Manifolds
Instrumentation Tubing
Syphons
Needle Valves
Air Headers
Bleed & Purge valves
Sample Cylinders
Tube Clamps

Ball valves
Gauge Valves
T-type Filters
Pots and Vessels

Packing & Delivery
Mode of packing: Export standard package or as your detail request.
Delivery time: 2 weeks  after receipt of payment
Mode of shipment: By Express like DHL,Fedex,TNT Ups.
Our Company
1.Established in 1995.
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories.
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium.
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide.
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding.
6.Always available to discuss your requirements and ensure full customer satisfaction.
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc.
8.We have obtained ISO9001 certificate, CE Certificate
9 Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries..
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us.
