1.5M USB Type C Compatible Support 40Gbps 5A 100W 4K 5K Thunderbolt3 to Thunderbolt 3 Cable

Feedback Ratings
  • 100-499 Pieces
    $17.45
  • 500-1999 Pieces
    $16.15
  • >=2000 Pieces
    $14.55
Color:
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Contact Supplier
Samples - $20.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Cable Length:
1.5m
Brand Name:
UMATECK
Model Number:
T101-015
Place of Origin:
Zhejiang, China (Mainland)
Use:
Mobile Phone, Computer
USB Type:
Type-C
Product Name:
Thunderbolt 3 cable
Version:
Passive
Connector 1:
Thunderbolt 3 Male
Connector 2:
Thunderbolt 3 Male
Conductor:
Siver Plated Copper
Product Color:
Black
Power Delivery:
5A 100W
Resolution:
5K@60Hz
Data Transfer Speed:
40Gbps
Certificate:
RoHS, REACH

Packaging & Delivery

Selling Units:
Single item
Single package size:
16X10X0.1 cm
Single gross weight:
0.05 kg
Package Type:
1pc/poly bag, 200pcs/carton
Lead Time :
Quantity(Piece) 1 - 2000 2001 - 5000 >5000
Est. Time(days) 15 25 To be negotiated
Product Description

1.5M USB Type C Compatible Support 40Gbps 5A 100W 4K 5K Thunderbolt3 to Thunderbolt 3 Cable

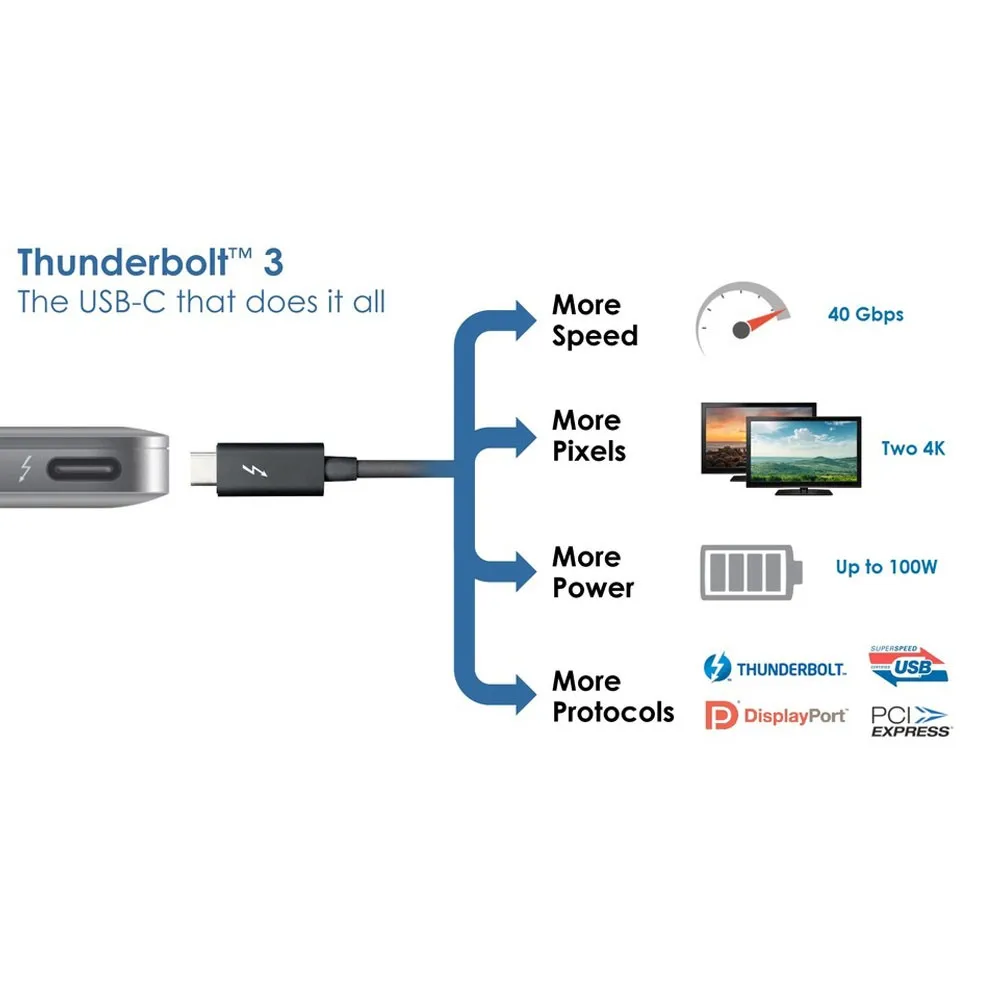

Key Features

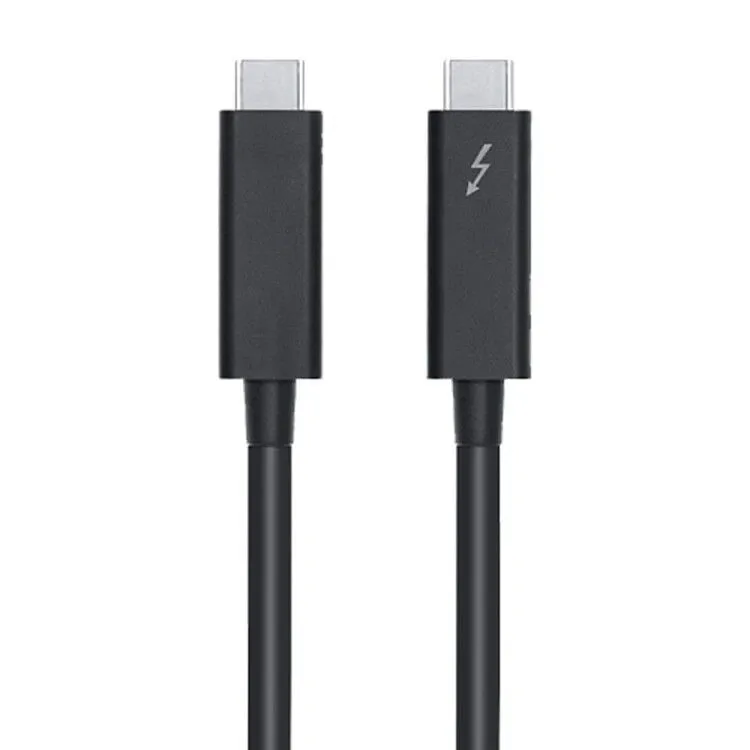

• High Quality Thunderbolt 3 Male to Male Cable
• Support up to 4Kx2K(4096x2160) @60HZ video resolution
• Support super fast data transfer speed up to 40Gbps

• Support 100W power delivery between two Macbooks

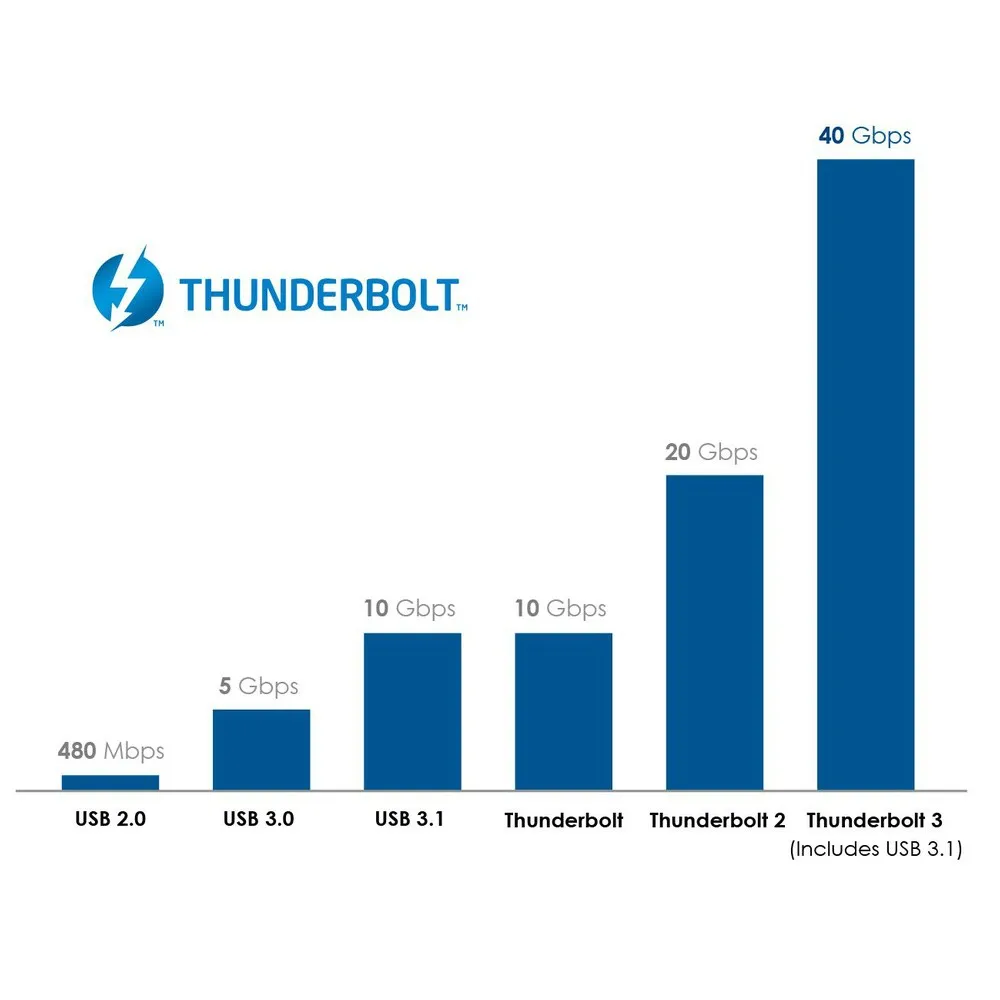

• 8 times faster than USB 3.0 and 4 times more video bandwidth than HDMI

• Transfer a 4K movie in less than 30 seconds

• Capable of charging and syncing USB-C mobile devices
• Thunderbolt Networking allows 10Gb Ethernet connection between computers
• Reversible Thunderbolt 3 Connector allows for plugging in any way
• Daisy-chain up to six Thunderbolt 3 devices

Technical Spec

Electrical Characteristics

• Nominal Velocity of Propagation – 40Gbps
• DC Resistance - 300V
• Dielectric Strength - AC 500V/minute
• Insulation Resistance - 10MΩ
Physical Characteristics:
• Voltage Rating - 30V

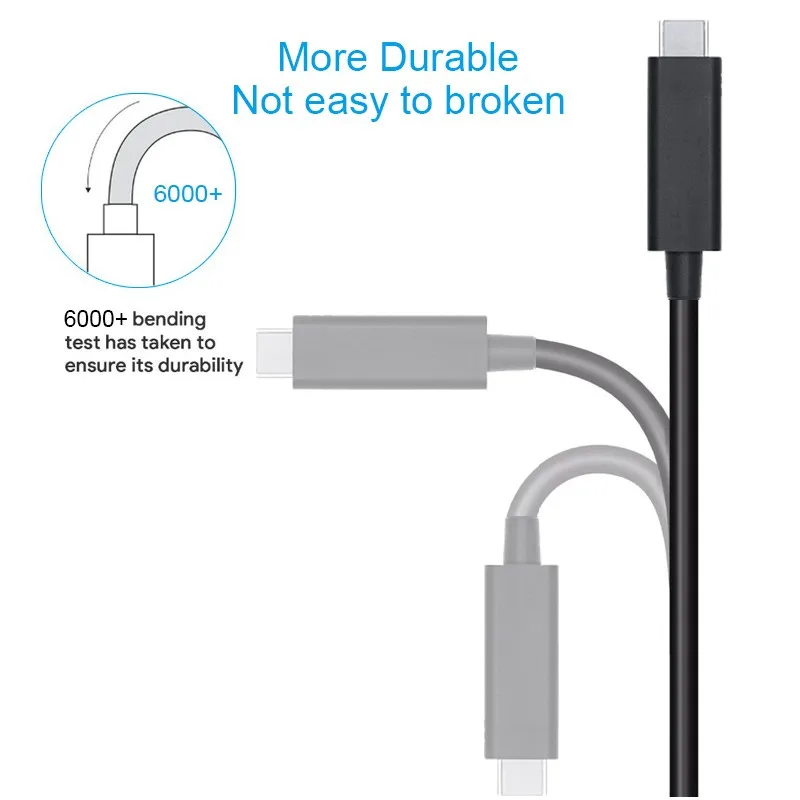

• Maximum Bend Radius - 90mm
• Temperature Rating - 80℃
• Operating Temperature Range - -20℃- 80℃
• Storage Temperature Range - -25℃- 85℃
• Approvals – RoHS, REACH, CE, UL Compliant

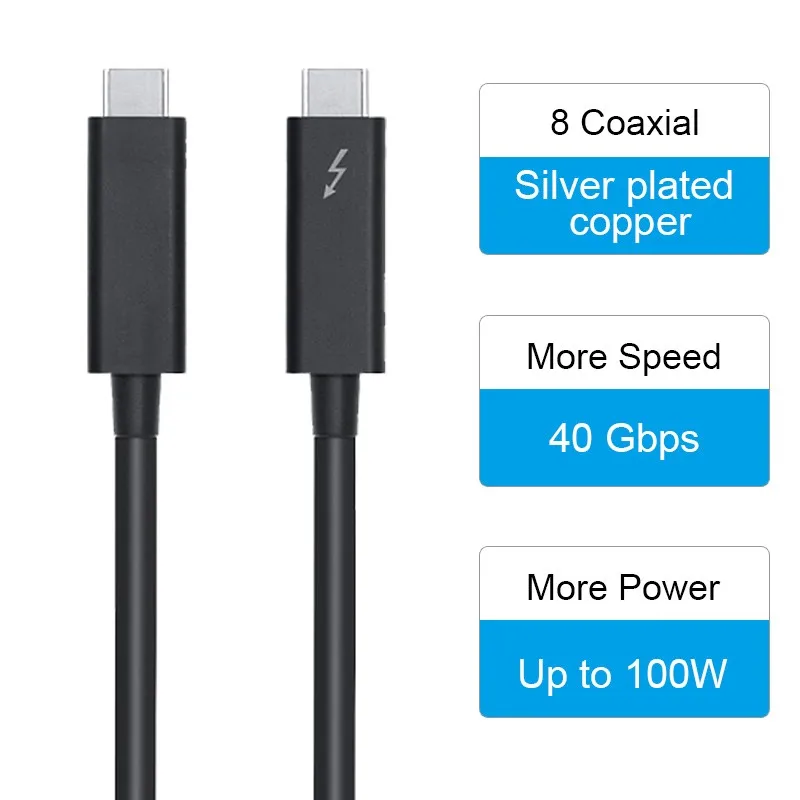

Conductor 1 (8 Coaxial Conductors)
• Conductor Type - 30AWG Silvered Copper
• Insulation - Foamed PE SKIN
Conductor 2 (1 pair)
• Conductor Type - 34AWG Tinned Copper
• Insulation - Foamed PE SKIN
• Drain Wire - 34AWG Tinned Copper
• Shield - Aluminum Foil, 100% Coverage

Conductor 3 (4 conductors)
• Conductor Type - 26AWG Tinned Copper
• Insulation - Foamed PE SKIN
Conductor 4 (4 conductors)
• Conductor Type - 32AWG Tinned Copper
• Insulation - Foamed PE SKIN
Overall Cable
• Foil Shield - Aluminum Foil, 100% Coverage
• Braided Shield - 16/16/0.05, Tinned Copper
• Jacket - PVC, Black, O.D.: 4.8±0.2mm
Connector 1
• Connector Type – Thunderbolt 3 Male
• Pin Construction - Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel
Connector 2
• Connector Type - Thunderbolt 3 Male
• Pin Construction - Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel

Order Information
SKU
SPECIFICATION
T101-005
Thunderbolt 3 Male to Male cable, Support 40Gbps, 100W, 4K@60Hz, Black, 0.5 meter / 1.7ft
T101-010
Thunderbolt 3 Male to Male cable, Support 40Gbps, 100W, 4K@60Hz, Black, 1 meter / 3.3ft
T101-015
Thunderbolt 3 Male to Male cable, Support 40Gbps, 100W, 4K@60Hz, Black, 1.5 meter / 5ft
T101-020
Thunderbolt 3 Male to Male cable, Support 40Gbps, 100W, 4K@60Hz, Black, 2 meter / 6.6ft
