10 Years Factory Professional custom size TBI Linear Guide Rail Ball Slide Block Bearing ball screw linear guide rail TRH20FE

  • 1 - 19 Pieces
    $25.24
  • 20 - 49 Pieces
    $24.26
  • >=50 Pieces
    $23.29
Guide Width or Diameter:
63
Guide Length:
75.6
Lead Time:
Quantity(Pieces) 1 - 1 2 - 5 6 - 20 >20
Est. Time(days) 5 7 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Graphic customization (Min. Order: 1 Pieces)
Samples:
$25.24 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China, TW
Brand Name:
TBI
Model Number:
TRH20FE
Condition:
New
Warranty:
3 Months
Material:
Bearing Steel
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Energy & Mining, General mechanical parts
Product name:
TAIWAN TBI TRH-F
Load Type:
Heavy Load
Guide Length:
We Can Offer 100-4000mm
Precision Of Linear Guide:
C,H, P, SP, UP
Delivery Details:
5-15 days after order
Rod Length:
Customized
Application:
Automatic System
Feature:
High Accuracy
Performance:
Low Noise
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Products are packaged with plastic, carton box Original Package Wooden Box
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 1 2 - 5 6 - 20 >20
Est. Time(days) 5 7 10 To be negotiated

10 Years Factory Professional custom size TBI Linear Guide Rail Ball Slide Block Bearing ball screw linear guide rail TRH20FE_01.jpg





  Product Name  Taiwan TBI
  Material  Bearing Steel
  Advantage

  High Precision, Large Load Capacity, Low Noise, High Rigidity

  Delivery Details  5-15 Days After Order
  Applications

  CNC Machine Tools,Electronic Equipment,Automation

  Equipment,Laser Equipment, Medical  Equipment

  (CT),Lathe,Standing Uniform

  Floor,Horizontal MilingMachine,Planer,Shearing Machine Etc.





Product Description

TBI Linear Guide that achieves low noise, small torque fluctuations and long-term maintenance-free operation by using the four-row design with equal load rating and two-row Gothic design..

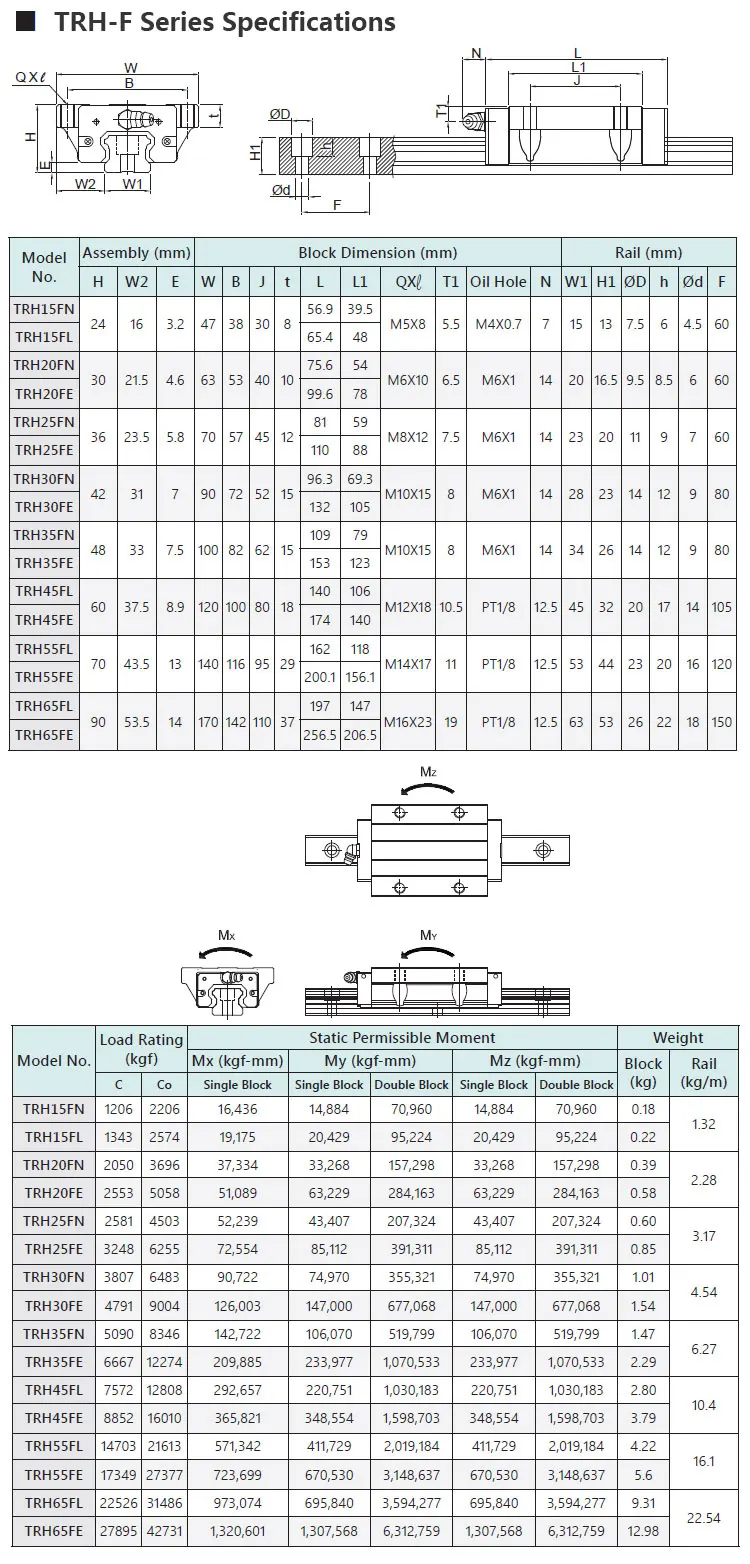

"TR series can be classified into interchangeable and non- interchangeable types. The sizes are identical;
the only difference between the two types is that the accuracy of non-interchangeable types
could reach up to UP grade since TBI MOTION makes the linear guide set under strict international regulation. Interchangeable blocks and rails can be freely exchanged; however, the accuracy could be up to H grade only due to technical issue. It is much more convenient for customers who do not need linear guides with high accuracy to have interchange blocks and rails."





 RSR_06TBI -3


Product Details

 Linear Guide


Related Products 2


About Us

 Linear GuideAbout us 222_03.jpg



FAQ

 Linear Guide

1. Q: How about the quality of your product?

A: 100% inspection during production.



2. Q: What's the delivery time?

A: Generally it is 5-10 days if the goods are in stock ,or it is15-20 days if the goods are not in stock ,it is according to quantity.



3. Q: What's your packing?

A: Our Normal packing is bulking in PE bag, and then into plywood Cartons.We also can pack products according to your requirement.



4. Q: What about the warranty?

A: We are very confident in our products,and we pack them very well to make sure the goods in well protection.



5.Q: Could you send me your catalogue and price list?

A: As we have more than hundreds of products,it is really too hard to send all of catalogue and price list for you.



6.Q:There are a lot of companies which export bearings, why do you choose us?

A: As we are a genuine linear guide supplier .and we are really factory, you need not pay the profit for middlemen. so we can offer you the lowest and competitive price .



7.Q:Do you provide samples? is it free or extra?
A:If the sample is simple and of little value, then free samples are provided, but the buyer must bear the international delivery fee.If the sample needs to be ordered, the guest must bear the sample fee and the international express fee.Please inform us the style you interested, we can offer the pricelist for your reference.
