10 bbl stainless steel brewery brew tanks for sale

FOB Reference Price:Get Latest Price
$2,000.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
10 bbl
Customization:
Fermenter diameter and height (Min. Order: 1 Sets)
Fermenter configuration (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tiantai or OEM
Processing Types:
Alcohol
Voltage:
single phase or 3 phase power
Power(W):
15-70Kw depends on size
Dimension(L*W*H):
Various in different models
Weight:
Various in different models
Certification:
CE ISO
Warranty:
3 years from commissioning
Appearance:
Stainless steel or Red Copper clading
Thickness of Tanks:
3mm for interior shell/2mm for exterior shell
Color Available:
Mirror SUS, Luxury red copper
Heating:
Electric/Steam/Direct fired
Heat Insulation:
Heat Insulation
Inner Polishing Precision:
0.4 Micrometer
Volume Design:
Properly according to the capacity request
Controlling System:
Temperature, Pressure auto control
Plants Type:
Turnkey or Customerized
Application:
brewery
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Year stainless steel brewery tanks
Packaging & Delivery
Packaging Details
Wooden/Veneer case for LCL; Plastic film wrapped and iron frame fixing for FCL
Port
QINGDAO PORT CHINA
Introduction

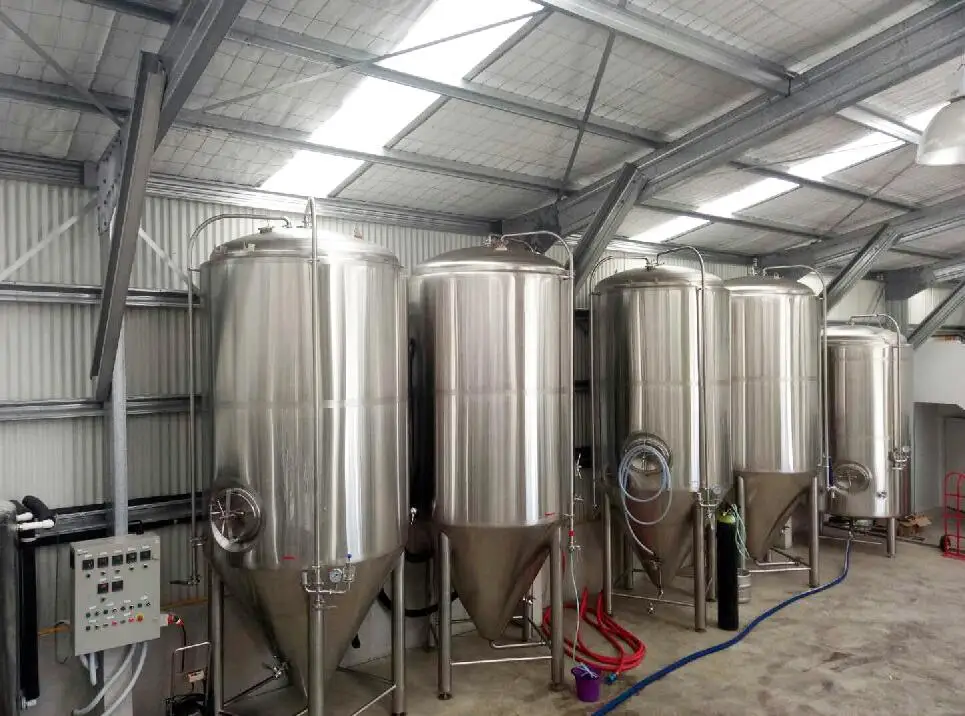

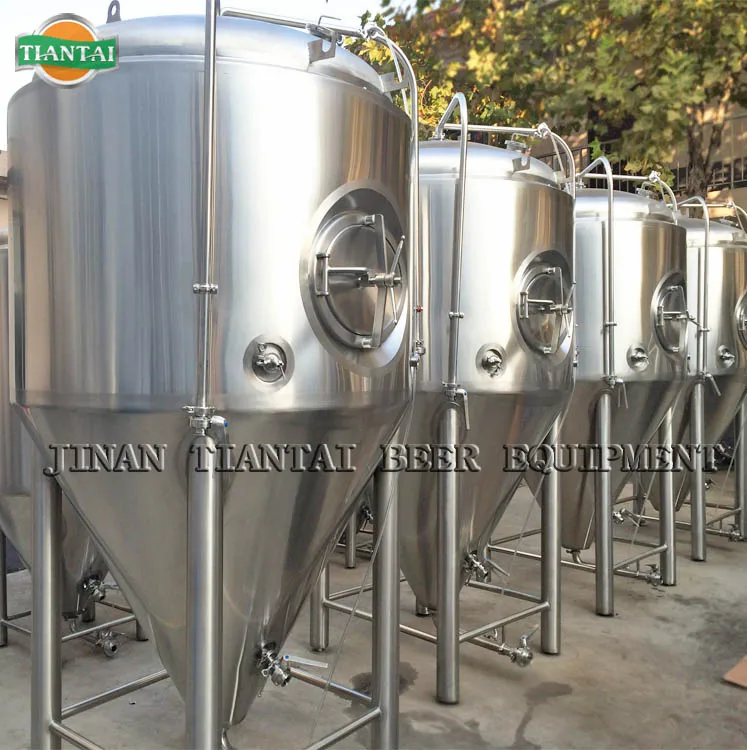

Conical stainless Steel Brewery tanks

Conical stainless steel brewery tanks are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), primary fermentor or unitanks as they are used both for fermenting and lagering.Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

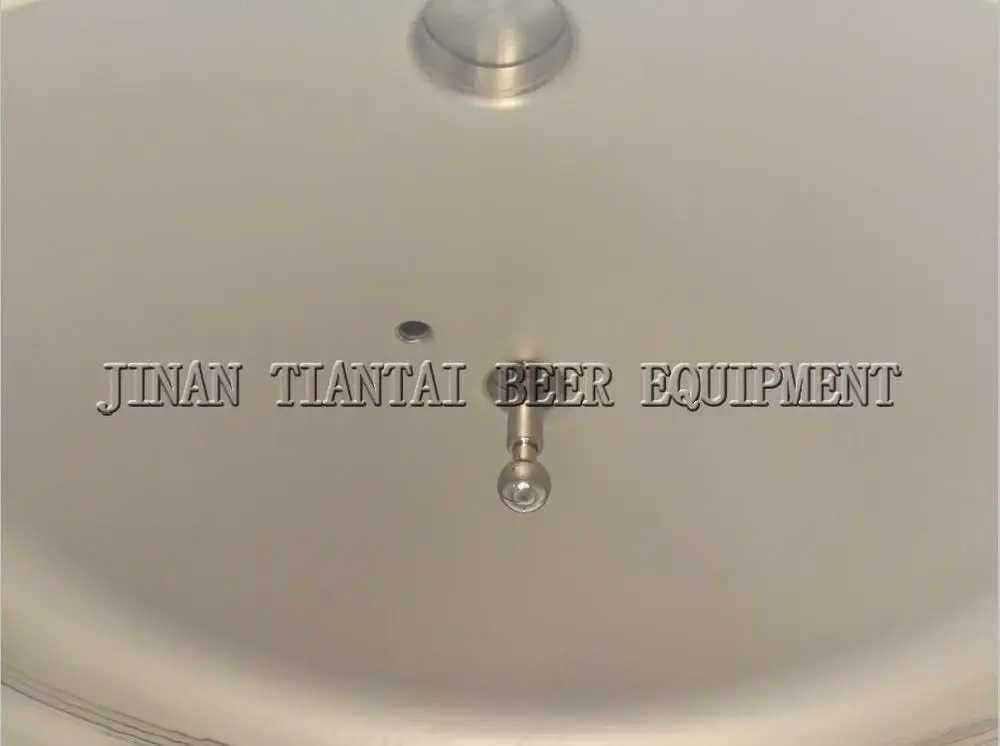

Our conical brew tanks can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such over-pressure and under pressure valve(PVRV), CIP arm, sanitary sample valve, manway etc. The design of fermenter is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenter&lagering capcity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into condieration.

Certifications
Specification

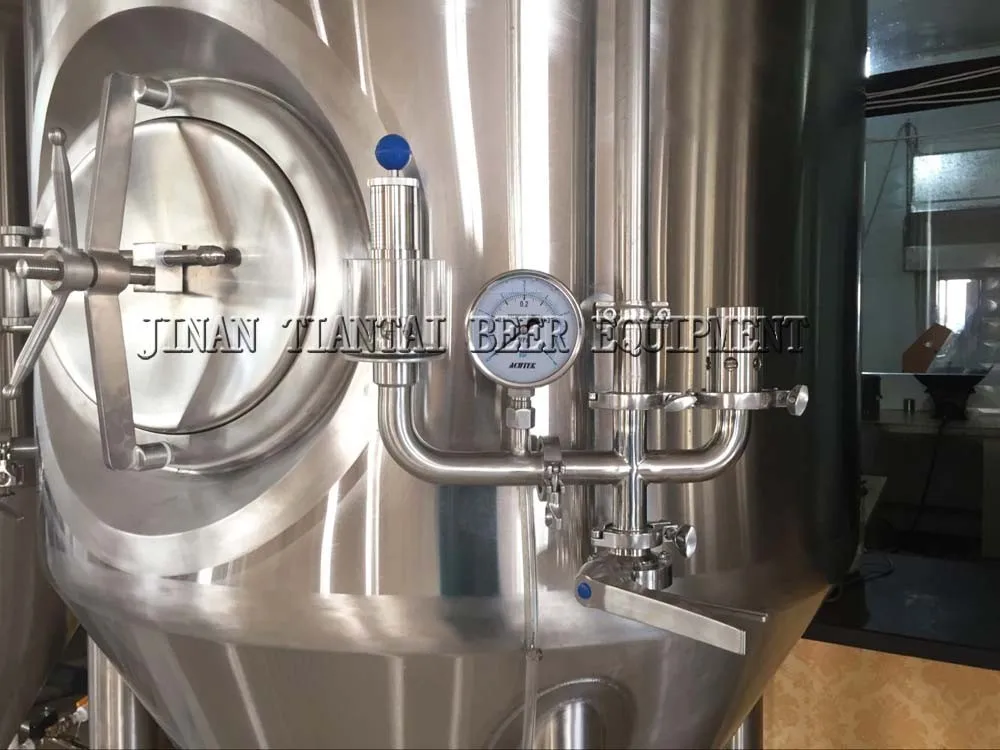

Pressure relief valve of 10 bbl brew tanks

The pressure relief valve can be designed to 1 bar, 1.5bar or 2 bar. It means when the beer pressure inside reaches 1/1.5/2 bar, the pressure relief valve can open automatically to relief pressure. At the same time, this type valve can also avoid negtive pressure forming.


Side or top manway of 10 bbl brew tank
The manway can be located on side wall or top. Some customer want to decrease the port quality on side wall in oder to avoid contamination as far as possible. In this case, top manway is preferred. But, with capacity increasing, the brewmaster has to reach the top manway by a ladder. It is not very convenient. So, there are also some customers liking side manway more.


Sample valve and port of 10 bbl brewery tank
The sample valve we use is Perlick type. It is sanitary enough for beer brewing and sampling as there is no thread inside.

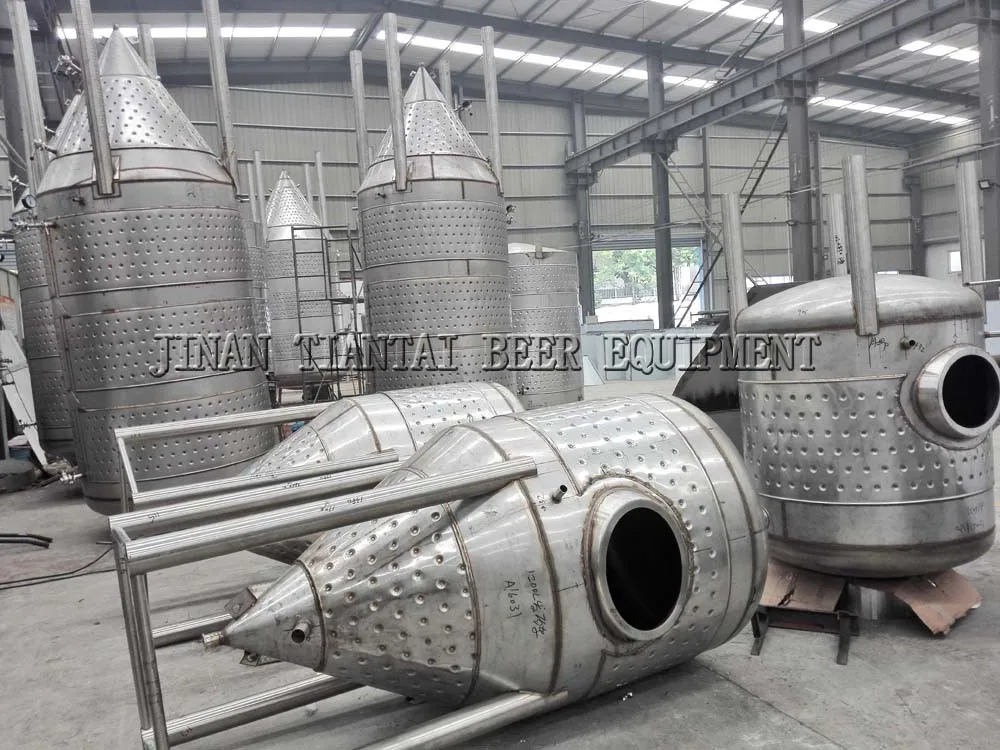

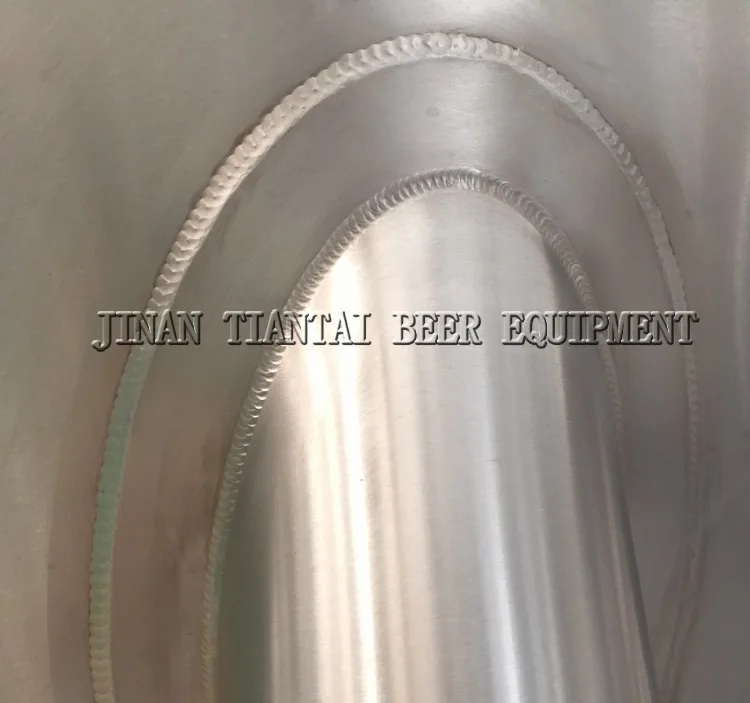

Glycol jacket of 10 bbl stainless steel brewery tanks
We use dimple plate as glycol jacket for beer cooling. The cooling efficiency is much higher than belt. And we designed two glycol inlets and outlets at least per tank, which can guarantee both bottom and side wall can be cooled at same time.
Our Service

Pre-Sales Service of fermenter stainless steel

a.) Free consultation service before, during, and after sales; Your questions would be replied within 24 hours by our sales team.

b.) Project planning and design services;
There are professional engineers and technicians in our company, so we can customize the equipment
according to your requirements. What is more, both 2D and 3D drawings can be supplied for your reference.

After-Sales Service of fermenter stainless steel

a.) Free debugging instruction of equipment Training of equipment maintenance and operating;
We would send profession engineers to help you assemble all of the tank and train the operator freely.

b.) Warranty;
Provide 36 months complete warranty for tanks body and lifetime maintenance service;
All of the accessories and auxuliaries facilities are guaranteed for one year.

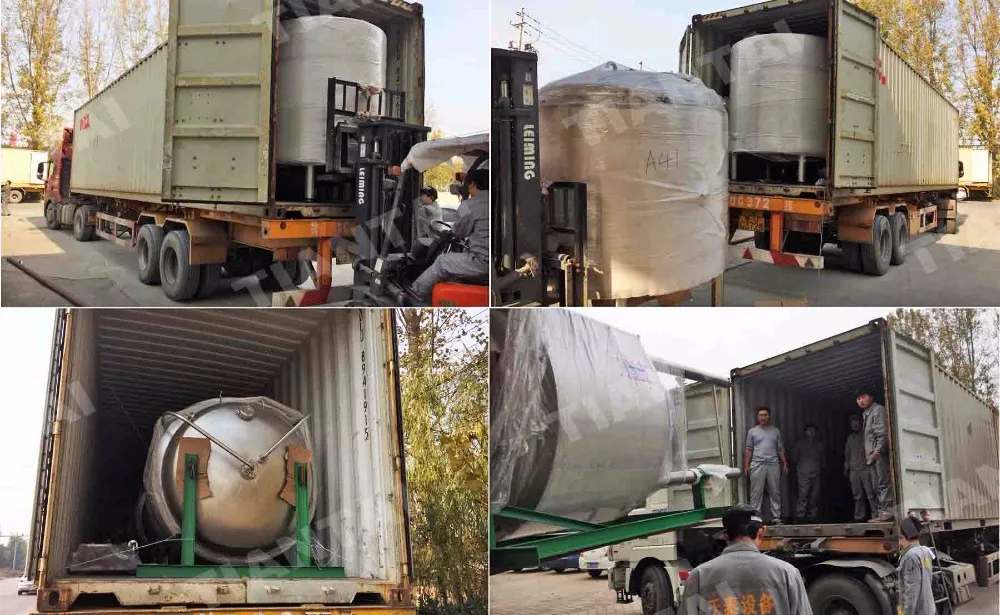

Packing & Delivery
Packaging
Size
20 or 40 feet container or frame container
Weight
2000kg-6000kg per container



Packaging Details
Wooden/Veneer case for LCL; Plastic film wrapped and iron frame fixing for FCL
