3 high-performance military batteries last for 10 years
Global quad-band GSM/GPRS850/900/1800/1900MHz
1 meter deep water for 30 minutes IP67
less than 1uA
with AGPS assisted positioning
Packaging & Delivery
Single package size:
Single gross weight:
1 - 2
To be negotiated

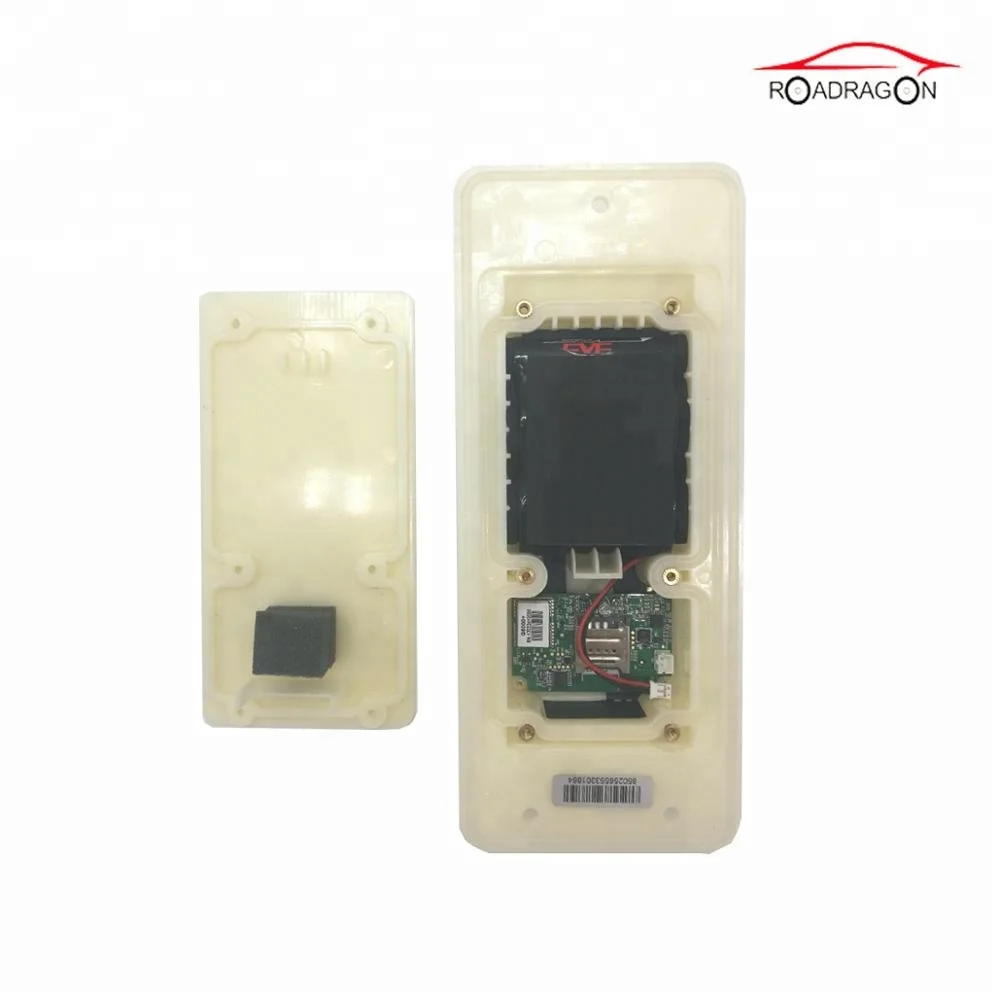

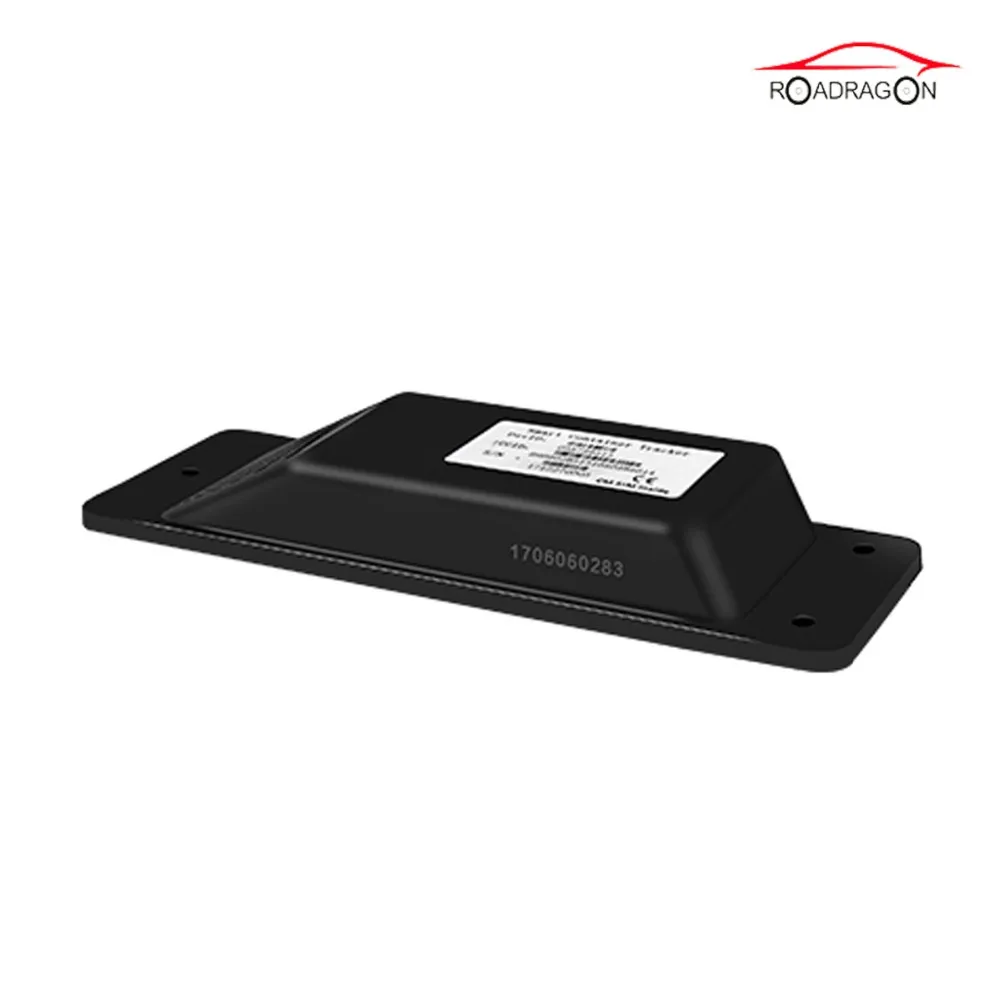

The container satellite positioning information collection terminal (model LTS-J10Y) is a GPS positioning terminal specially designed for container positioning monitoring. The LTS-J10Y uses a high-performance military battery that wakes up every 24 hours and sends positioning information, then returns to deep sleep mode for up to ten years. Through the GSM/GPRS communication technology, LBS base station positioning and GPS positioning technology, combined with the flexible configuration of the multi-mode of the location service monitoring and management system, the container can be monitored and tracked. Mobile assets can be queried and tracked through IE browser, Android mobile APP, Apple IOS mobile APP.
Wake up and return location data according to the set time interval, such as every 30 minutes
You can set 1~5 groups of wake-up alarms every day, automatically wake up at the set time, and then sleep after returning the position data, such as 8:00, 12:00, 16:00, 17:00, 23:00
Weekday alarm mode
You can set the terminal to wake up the alarm from Monday to Sunday, and automatically wake up and return the location data at the set time. For example, you can set Monday, 2nd, 3rd, 4th, and 5th at 12:30. You do not need to work on Saturdays and Sundays.
Emergency tracking mode
When an alarm is encountered or continuous monitoring is required, an emergency tracking command can be issued to continuously track the terminal.
Terminal parameter configuration
Remotely set IP, port, APN, working mode, wake-up period, etc. by issuing commands from the platform.
Historical parameter query
Query history configuration parameters through the platform
Battery power inquiry
The terminal automatically returns the current battery power, and the user can query the remaining power through the platform.
Low battery alarm
When the battery reaches the threshold, the terminal automatically sends a low battery alarm to the platform.
Wiring free installation
No external wiring is required
1) Working voltage: DC3.6V 2) Working current: 10~20mA 3.6V 3) Standby current: less than 1uA 4) Size: L203.5mm*W85mm*H36mm 5) Positioning method: GPS positioning + base station positioning 6) Auxiliary positioning: with AGPS assisted positioning
7) Positioning error: GPS positioning error <10m (empty environment); base station positioning error <50~200m (urban area)
8) Communication network: GSM/GPRS 9) Working temperature: -30 ° C ~ +75 ° C 10) Storage temperature: -40 ° C ~ +85 ° C 11) Battery capacity: 17000mAH 12) Waterproof rating: the terminal meets the requirements of IP67 in QC/T 413-2002 3.6, waterproof and dustproof.

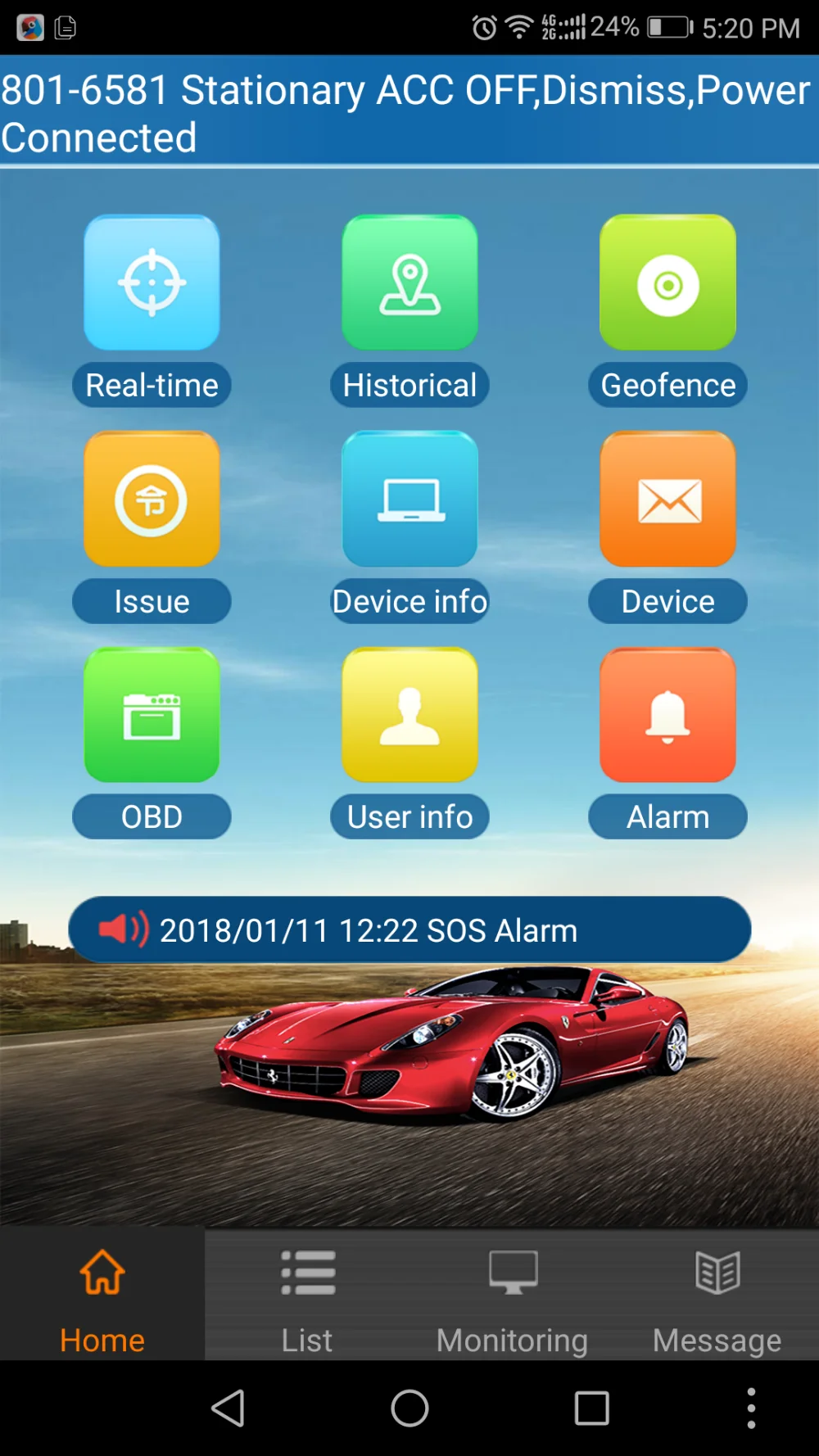

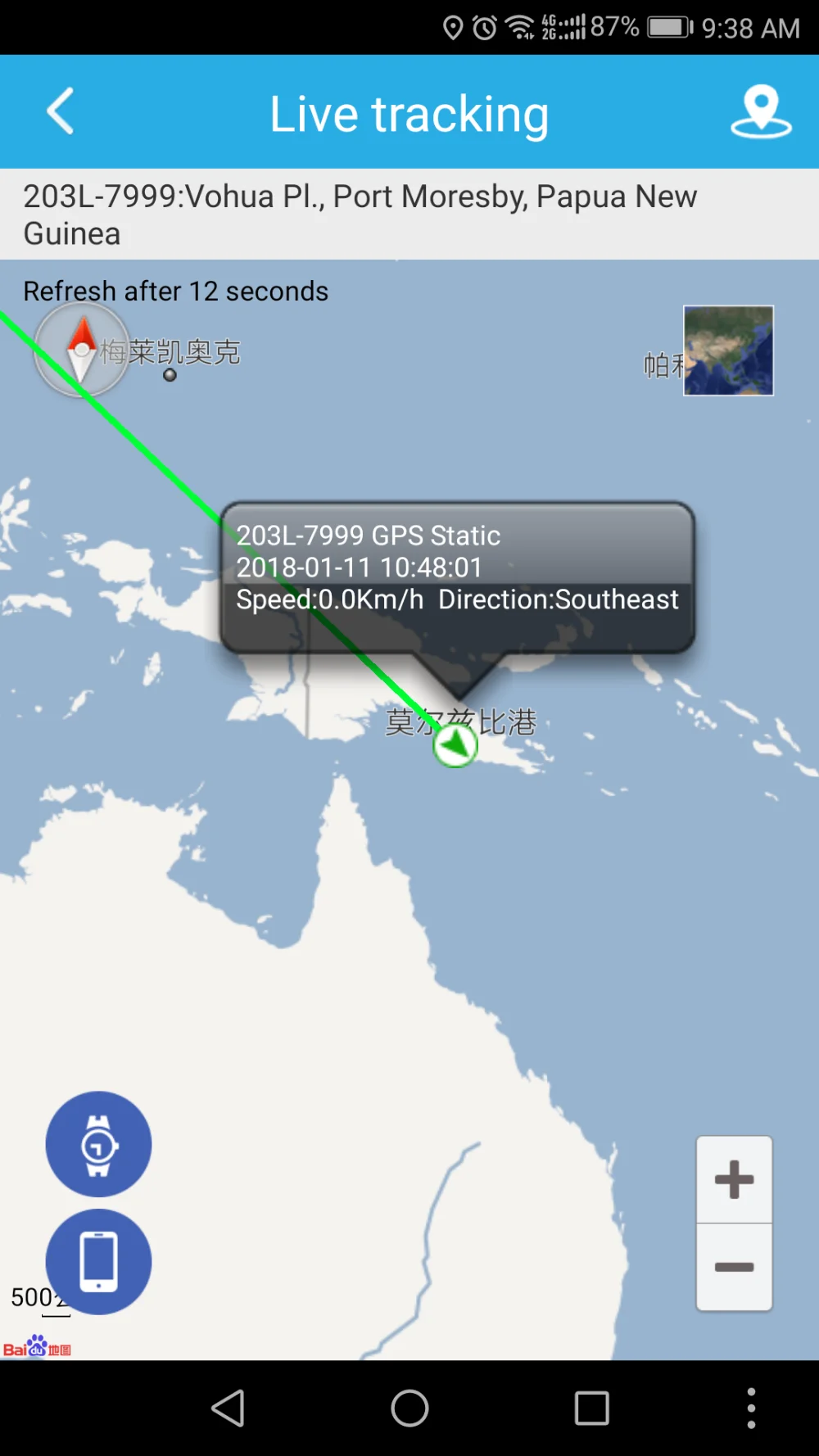

platform & APP

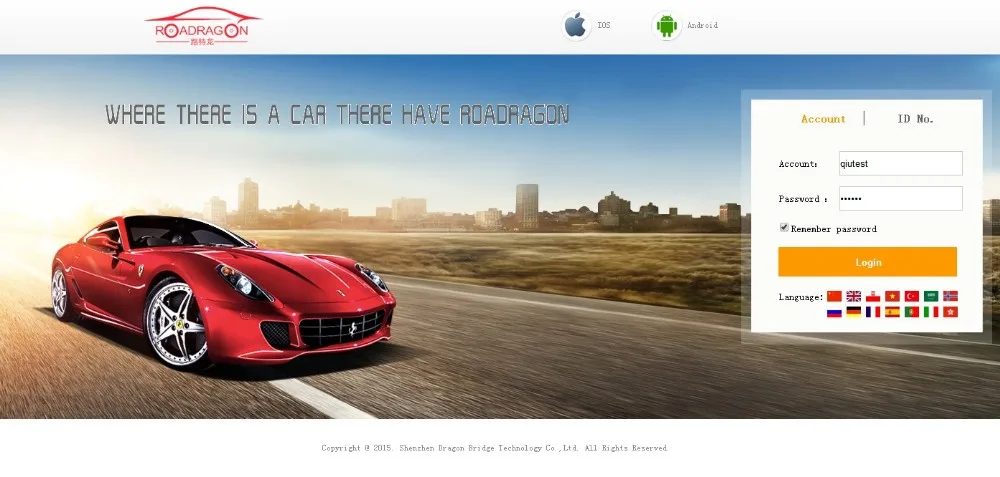

http://www.dbgps.com/ test account : test1 code: 123456
Packing & Delivery
The tracker will reply a location SMS if there is any authorized number makes a phone call to it. Tracker has built-in terminals of GPS (global positioning system) module and GSM communication module, which used for getting location data and send it to authorized phone number via SMS, and tracking through free maps Google Earth or Google Map.
Rechargeable version: The default return time is 5 minutes, the platform can send instructions to modify. Locks in standby mode, through the GPRS and the platform to maintain a regular connection, if the line will be disconnected as soon as possible. Lock in standby mode, do not open GPS positioning, return data using the last GPS positioning or LBS positioning data.
Lock operation will trigger a GPS positioning. Locks, the lock will detect vibration, general vibration will sound buzzer warning, violent vibration will trigger mobile alarm, will send alarm data to the platform. Through Bluetooth or platform remote unlock, unlock and lock operation will trigger alarm data, respectively, to the platform to send unlock alarm and lock alarm data.
