100-240v 50-60hz wall 12v 1a power adapter

FOB Reference Price:Get Latest Price
$0.50 - $2.00 / Pieces | 500 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 2000 2001 - 5000 >5000
Est. Time(days) 15 20 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Top Power
Model Number:
TPS-1201000zz
Output Type:
DC
Connection:
Plug In
Input Rated Voltage:
100 to 240VAC
Input Voltage Range:
90 to 264VAC
Input Rated Frequency:
50/60Hz
Input Current:
0.4A Max
Efficiency:
81% Min Average Level V
Output Voltage:
12VDC
Output Current:
1A
Load Regulation:
±5%
Protection:
OCP OVP SCP OPP
Operating Temperature:
0 to 40℃
Packaging & Delivery
Lead Time :
Quantity(Pieces) 1 - 2000 2001 - 5000 >5000
Est. Time(days) 15 20 To be negotiated
Product Description

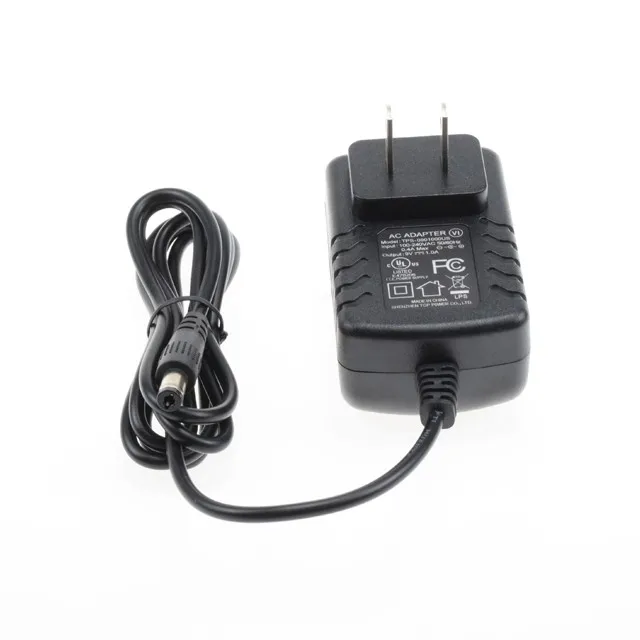

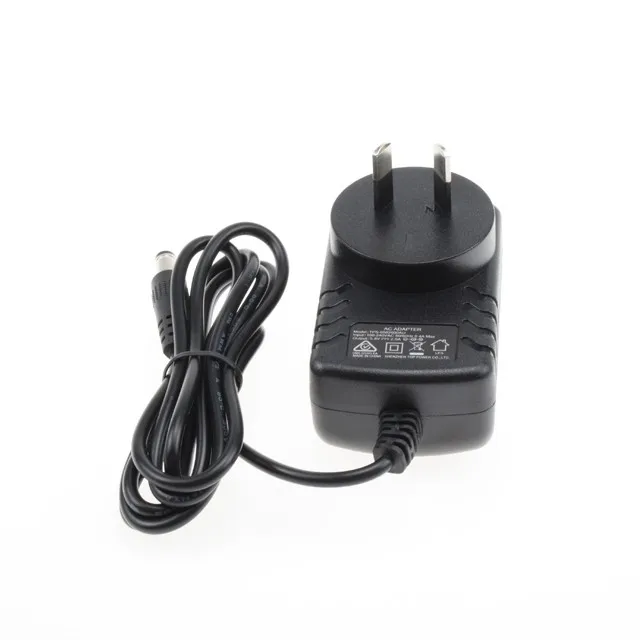

Appearance >>>>>>

Main Character >>>>>>

MODEL
TPS-1201000zz
AC Cable Style
US,UK,EU,SAA,KC,PSE----
Input Volt.&Freq.
100~240VAC&50-60Hz Typ.


Input Current
0.4A Max.
Inrush Current
80A Max.
Leakage Current
0.25mA @ 230VAC
No-load Consumption
<0.1W
Energy Level
Level V
Withstanding Voltage (Betweem Pri. and Sec.)

3000VAC 1Minute 10mA Max.
Output Voltage
12VDC
Output Current
1A
Output Power
12W Max.
Ripple&Noise
<120mV
Load Regulation
±5%
Dimension
71.6 mm*43 mm *38 mm
Burn-in
100%, full-load 4Hours Min.
Protection
SCP, OCP, OPP
No-load Consumption
<0.1w
Burn-in
100%, full-load 4Hours Min.
Mean Time Between Failures
Over 100K Hours Full Load@25℃

Operating Temperature
-10~40℃
Storage Temperature
-20~80℃
Relative Humidity
20%~80%
Safety Standard
UL,cUL,FCC,CE,CB,ROHS,SAA,C-Tick

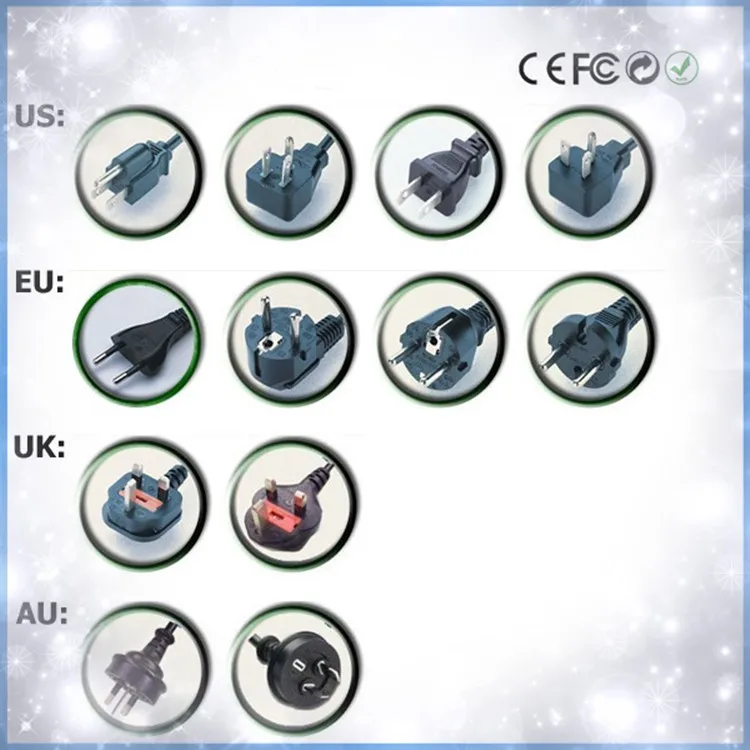

DC connector&AC plug and socket  >>>>>>

Company Overview

Top Power established in 2013,located in ShenZhen China,has over 50 skilled workers
7.5W-120W all series power supplies have gotten UL/cUL/CB/GS/CE/FCC/SAA/C-Tick/RoHS Level VI certificates to meet worldwide clients requirements.

Professional R&D team can achieve clients' customized demand of power supplies.
Qualified QC team strictly control whole process of incoming material,manufacturing,testing,packing to be sure wonderful products delivered.
Energetic sales can make your Pre-sales&After-sales questions solved in soonest time.

Creating high value and top quality products for clients is always our principle and pursuing.

PCB Assembley

Carefully check every details.

Case Assembly

Skilled workers assemble plastic shells carefully.

Hi-Pot Test

Assure each product pass through 1KV testing .

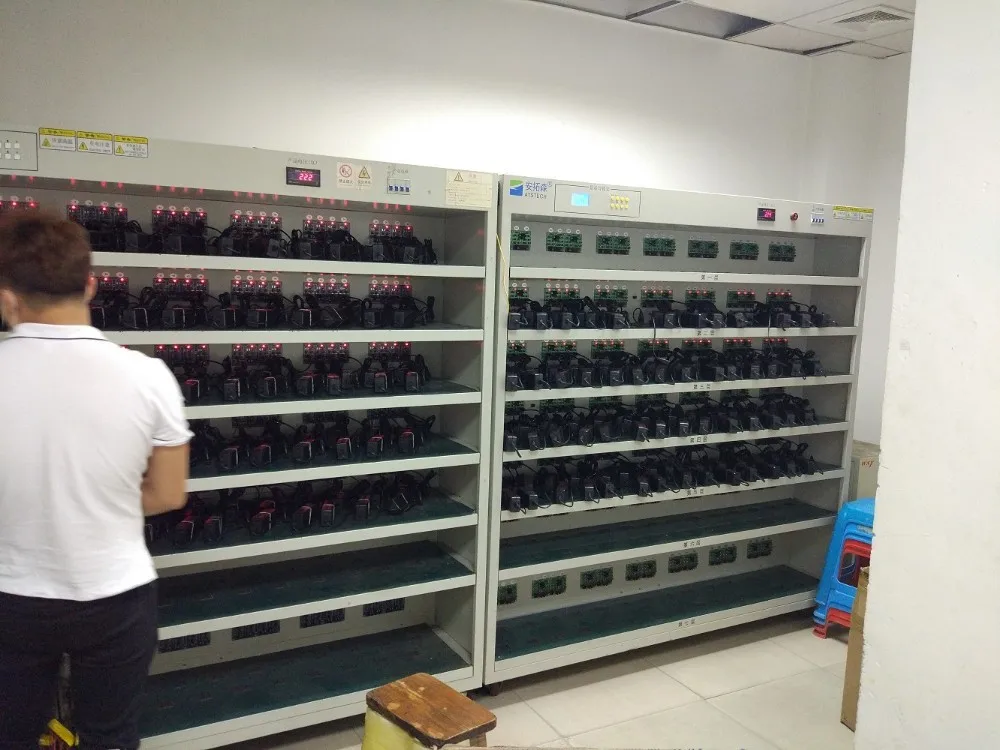

Burn-In Test

Every  piece burn-in 2hours.

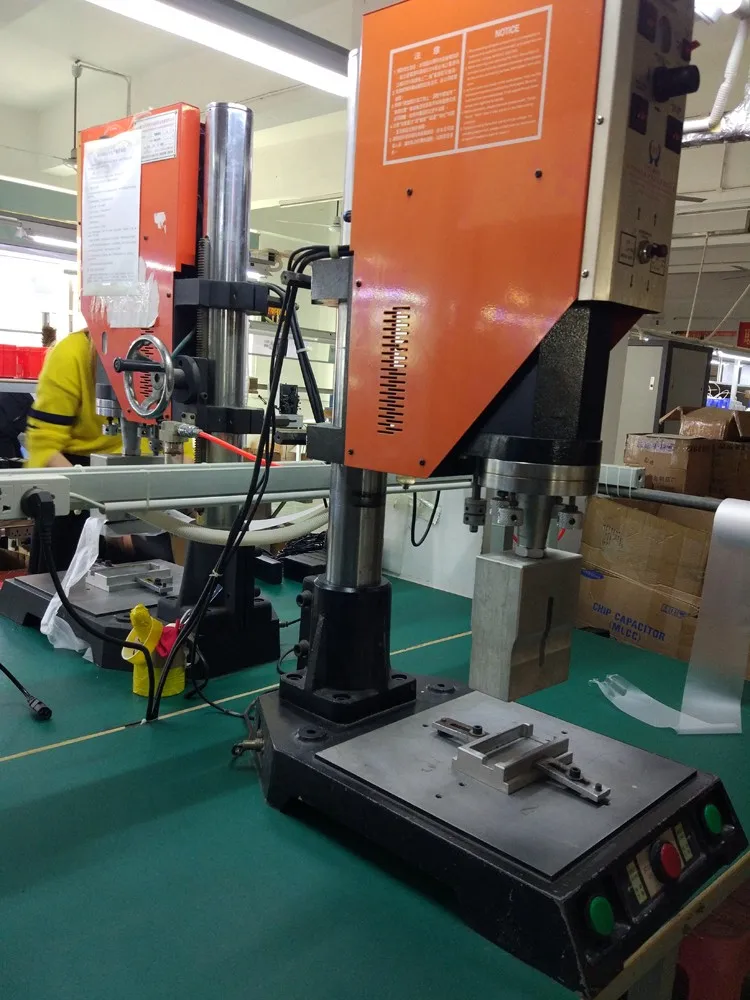

Ultrasonic

Good appearance products come out.

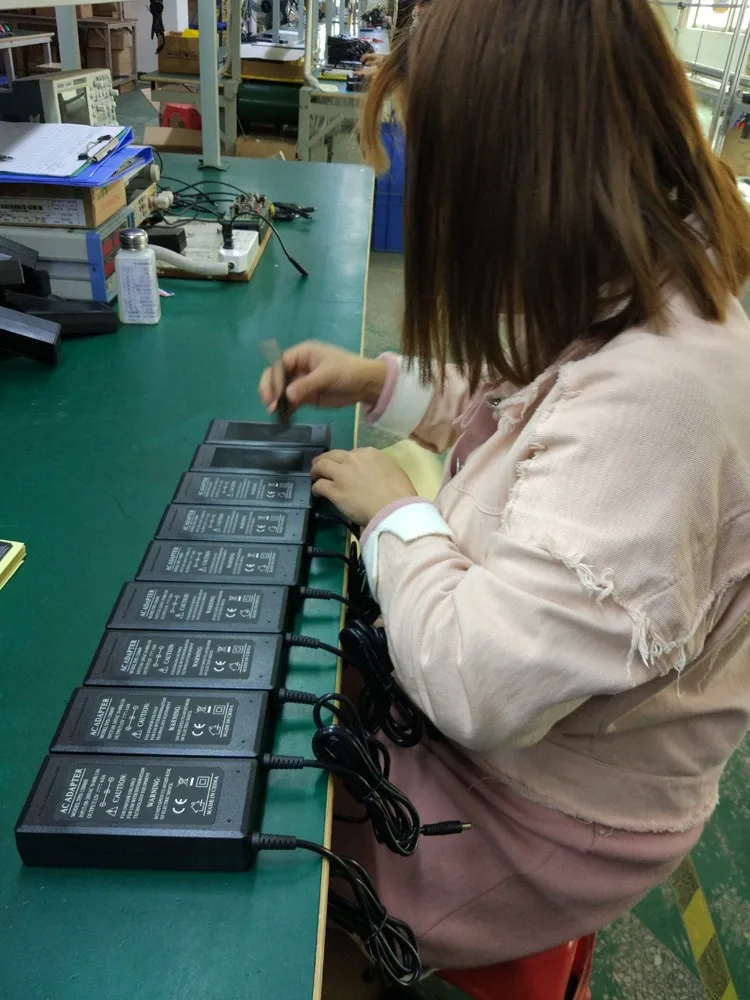

Whole Set Test

Automatically test each power supply.

Labeling&Appearance Cheking

Clean the surface of shell.

A line of Package

Export carton provide protection.

Load Container

Deliver shipments in soonest time.

Certifications
Packing & Delivery

Our acceptable payment ways are as below.

Packing

Standard & Customized package are both acceptable.

Delivery

We have long-term stable air&sea shipping forwarder, with absolute safety assurance and first-level delivery service.


Exhibitions
Contact Us
FAQ

Q1: Are you factory or trade company ?
A1: We are real factory, located at ShenZhen baoan area, close to ShenZhen  international Airport.

Q2: What is the warranty of your products?
A2: There is 2 years warranty for all of our products.

Q3: Does your factory provide OEM&ODM service?
A3: Yes, customized power supply solution are acceptable based on your Q'ty.


Q4: Why we have interest for your products ?

A4: Our products have top quality, best price, good lead-time.


Q5: Can you offer samples firstly ?

A5:  Yes, samples can be offered to you for making testing.


Q6: How can we contact you ?

A6: Our alibaba TM is online within 24hours every day.


Q7: What is your MOQ ?

A7: Our trail moq is 300-500pcs, and common model in stock moq can be 100pcs such as: 12VDC 1A/3A/5A, 24VDC 1A.


Q8: What is your delivery time ?

A8: Normal lead time is 20-25days after payment except important holiday like National Day, Chinese New Year.
