mobile highspeed railway double truss gantry crane
According to your demand
Main electrical parts:
Weight overload protection:
Voltage loss protection function:
Polyurethane materials buffer:
100 Set/Sets per Month
Packaging & Delivery
Electric hoist and electricals of the mobile highspeed railway double truss gantry crane are package by high quality plywood crates, main beams are package by plastic woven cloth.
Qingdao, Tianjin, Shanghai Port, China
Mobile highspeed railway double truss gantry crane

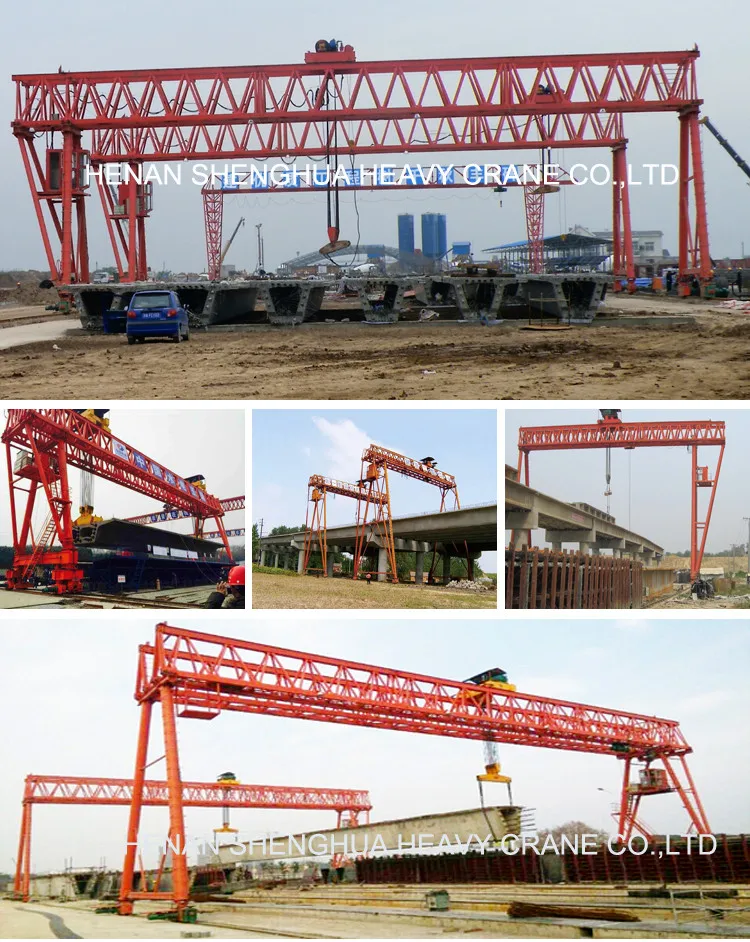

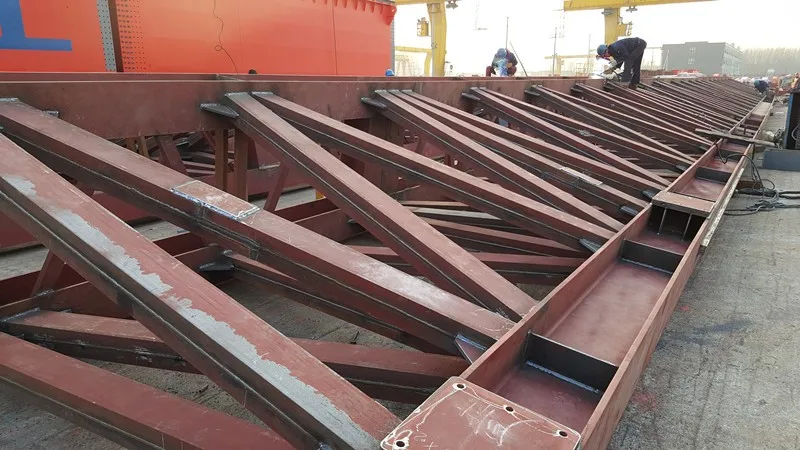

mobile highspeed railway double truss gantry crane is suitable for highway, bridges and so on construction factory general loading and unloading operations. Its main girder design is mainly used triangle truss structure, bent steel welding employment with Xiaxian core board , add with channel steel weiding core board, abdominal pole adopts double , girder stanra,joint with pin shaft link. Teams legs used steel structure, steel pipe with legs between WenDingGan connected into triangle stable structure. This crane by bridge,cart machanism, trolley and electric equipant,etx. All agencies have in manipulating indoor crane manipulation.Conductive form cent cable and slide touch now two kinds.
eavy loading capacity; wide span; the whole crane stable and variety; Novel structure, attractive appearance, and advanced technology; Flexible operation, safe and reliable; Standardization, generalization and serialization of the spare parts
Double welded box beams, with the camber line more strict than national standard. High safety, high steel degree Adopts high quality carbon steel, Q235B or Q345B. The main welding is submerged arc automatic welding, nondestructive flaw detection. The end truck adopts 10.9 high strength bolt connection. The crane traveling mechanism adopts separated driving, and it can use trinity drive too, safe and reliable.

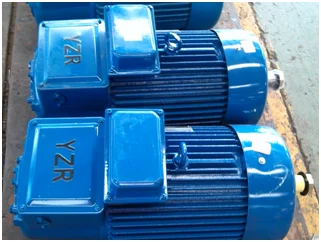

t includes motor, speed reducer, brake, coupling, wheels, and coiling blocks. No asbestos brake pad and brake block insert use card outfit, safe and reliable; The speed reducer use hard-toothed surface reducer, compact structure, and durable; Trolley travelling use separate drive; High loading ability, long service life moving stable;
Module control speed, micro-speed and double speed; Traveling and lifting smoothly; The power for trolley moving adopts flat cable, sliding smoothly; Control box layout is reasonable, easy to repair; Protection class IP55; Optional main power source; All external cable line number with mark;
Capsule driver room which has open eye shot, linkage machine control, easy to operate The closed cab of double girder truss construction gantry crane 100t is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner,acoustic alarm and interphone which can be furnished as required by user.
• Crane traveling limit switch • Weight overload protection device • Lifting height limit device • Voltage lower protection function • Phase sequence protection function • Emergency stop function • Rain cover for outside hoist, driving units, electrical cubicle.

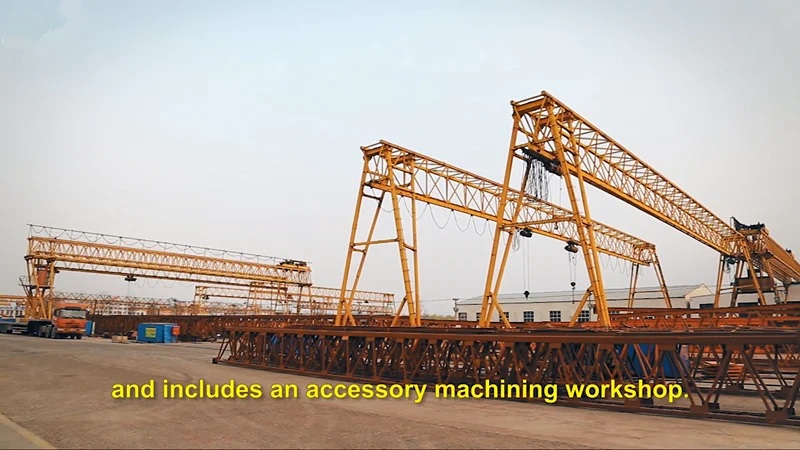

Henan Shenghua Heavy Crane Group is a big enterprise specialized in researching, developing, producing and exporting.
It mainly produces mobile highspeed railway double truss gantry crane and all kinds of accessories, which widly cover machinery, metallurgy, electric power, railway, water conservancy, ports, terminals and other industries.
Shenghua Heavy Crane Group have more than 600 stuff, and covers 200,000 square meters. Our advantages: a.More than 50 R&D personnels with advanced Science and technology. b.More than 400 sets advanced Production processing equipment and inspection equipment c.Independent intellectual property rights to develop energy saving bridge cranes, gantry cranes, and electric hoist d.Obtain ISO 9001 certificate and more than 10 series of patent certificates e.Efficient service and competitive products f.Export more than 100 countries
Packing & Delivery
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
1.If the size of mobile highspeed railway double truss gantry crane is suitable for container ship, usually by container; 2.If the size is too big, usually by bulk ship or by container after truncation; Transport ways are based on reducing cost for you and keep the crane performance.
Within 30 to 40 working days after the receipt of deposit.
Generally 35 days to 50 days to destination port.

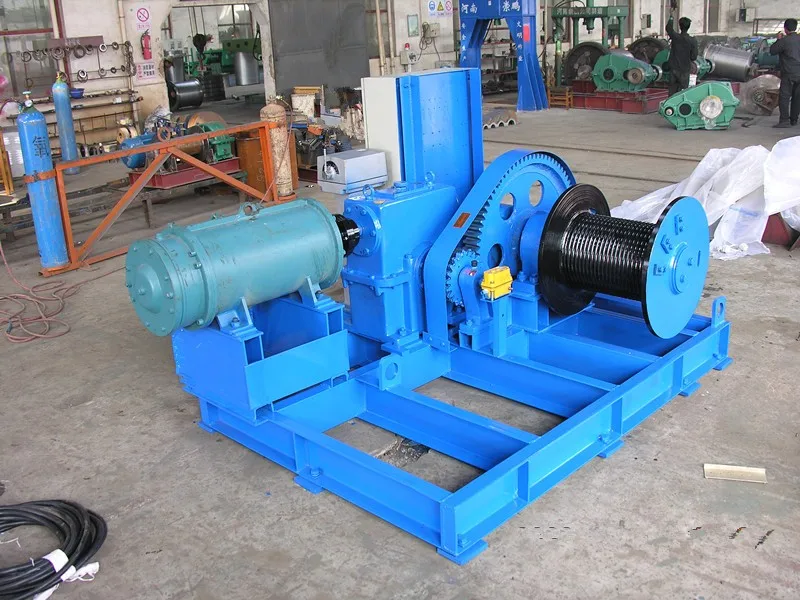

Winches are equipped with double breaking system. Upon request we provide Triple braking system.
Emergency stop button, Limit switch, sensor are located at designated location. Lighting and spare-parts are part of the items coming with underslung 1600 ton span by span launching gantry manufacturer for railway erection.

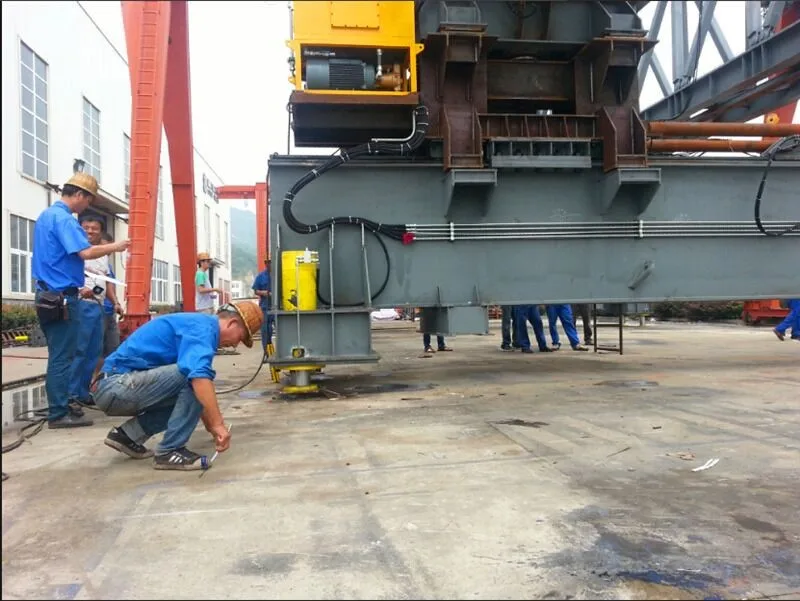

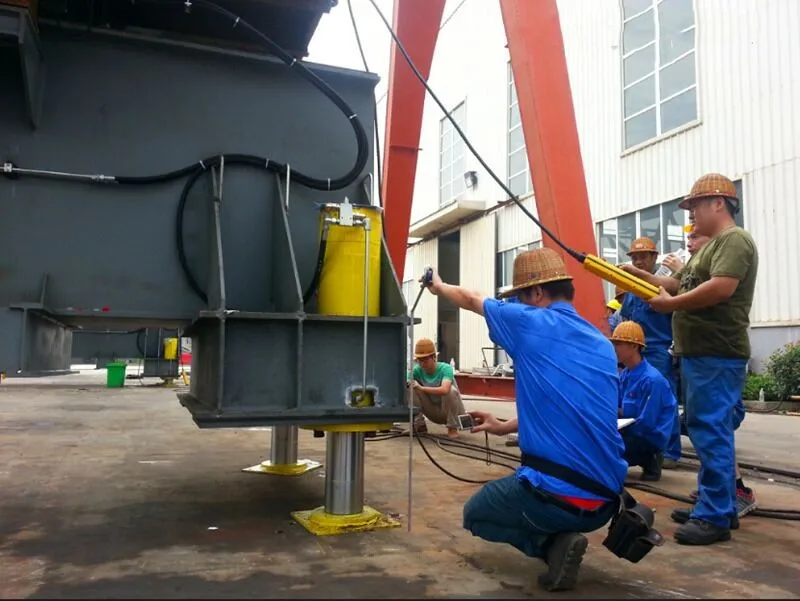

Test before shipment
1. What's the information should I provide when inquiry? More details or drawings, more better. A: Lift capacity B: span C: lift height D: power source Or other specials you give us will be more appreciated.
2. How many operating methods for my selection? Standard operating methods: A: pendent controller with push buttons. B: remote control with push buttons C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment? Sure! Can customize for you, acid proof or explosion proof, no problem for that.
4. How long is your warranty? Our warranty is 18 months after received the goods.
5. Can you provide various lifting tools? Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
6. Usage period About 30 years under common use.

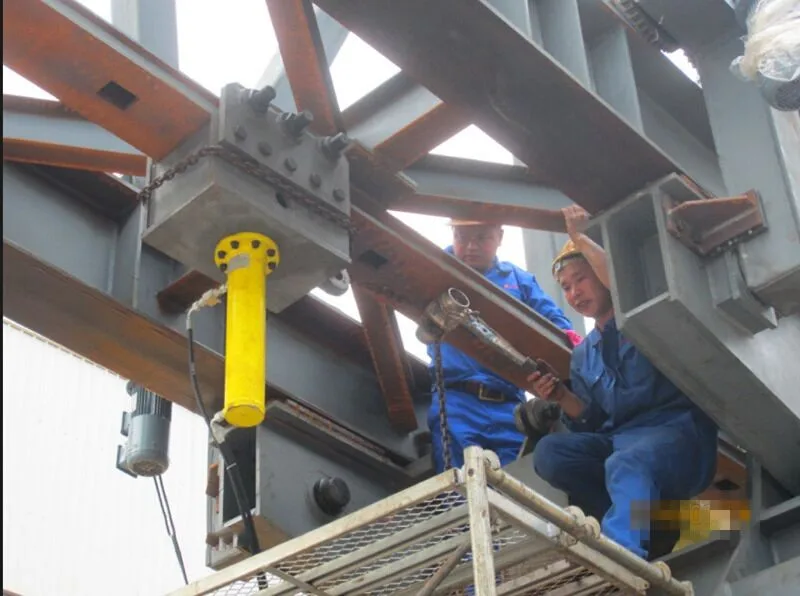

7. How can we install the mobile highspeed railway double truss gantry crane? Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
8. Safety device Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.
