1000 HP API F-1000 triplex drilling Mud Pump and mud pump spare part

FOB Reference Price:Get Latest Price
US $75,000-76,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Lake
Model Number:
all size
Theory:
Reciprocating Pump
Structure:
Piston Pump
Usage:
Oil
Power:
diesel
Standard or Nonstandard:
Standard
Fuel:
Diesel
Pressure:
High Pressure
Application:
Cryogenic
Model:
F-500 F-800 F -1000 F-1300 F-1600
color:
blue
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
bulk mud pump packge is Bare , parts and tools packge is :tie box
Port
main chinese port
Lead Time :
in stock,after payment,delivery at once!

                                                      F series  Mud Pump



Main feature:

       F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying perfor-mance effectively and extended the lifetime of expendable

parts in the fluid end greatly.

       The power end uses combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and promote the service life of power end.

       This series mud pump are strictly manufactured according to API Spec 7k “the Equipment Specification of Well Drilling and Repairing”, and are tested accordingly when leave factory.

Parameter:



Model

F-500

F-800

F-1000

F-1300

F-1600

Type

Triplex single acting

Triplex single acting

Triplex single acting

Triplex single acting

Triplex single acting

Rated Power

373kw

500HP

596kw

800HP

735kw

1000HP

969kw

1300HP

1193kw

1600HP

Rated Speed

165 SPM

150 SPM

140 SPM

120 SPM

120 SPM

Stroke(mm/inch)

190/7 1/2″

228.6/9″

254/10″

305/12″

305/12″

Max.Liner Dia.

170/6 3/4″

170/6 3/4″

170/6 3/4″

180/7″

180/7″

Gear Type

Herringbone

Herringbone

Herringbone

Herringbone

Herringbone

Valve Pot

API-5

API-6

API-6

API-7

API-7

Gear Ratio

4.286:1

4.185:1

4.207:1

4.206:1

4.206:1

Suction Inlet

203/8″

254/10″

305/12″

305/12″

305/12″

Discharge Inlet

4″Flange

5000 psi

5″Flange

5000 psi

5″Flange

5000 psi

5″Flange

5000 psi

5″Flange

5000 psi

Lubrication

Forced&

Splash

Forced&

Splash

Forced&

Splash

Forced&

Splash

Forced&

Splash

Max. Pressure

27.2Mpa

3945 psi

34.5Mpa

5000 psi

34.5Mpa

5000 psi

34.5Mpa

5000 psi

35Mpa

5080 psi

Overall Size(in)

144*106*86

156*79*66

163*89*70

174*121*78

181*129*106

Weight(kg)

9770

14500

18790

24572

24791

Note: 1Ratings are based on 100% volumetric efficiency and 90% mechanical efficiency.

          2Recommended strokes and input powers are under continuous operation.

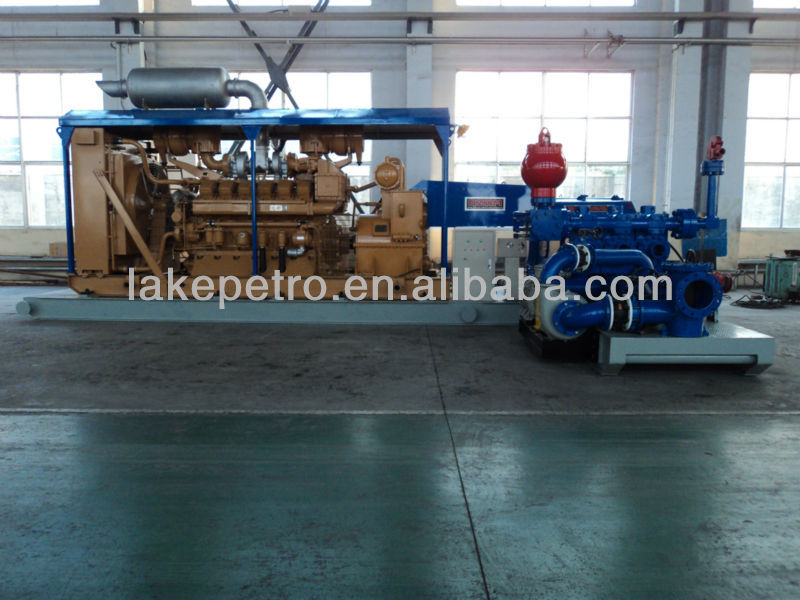

mud pump for dring.jpg

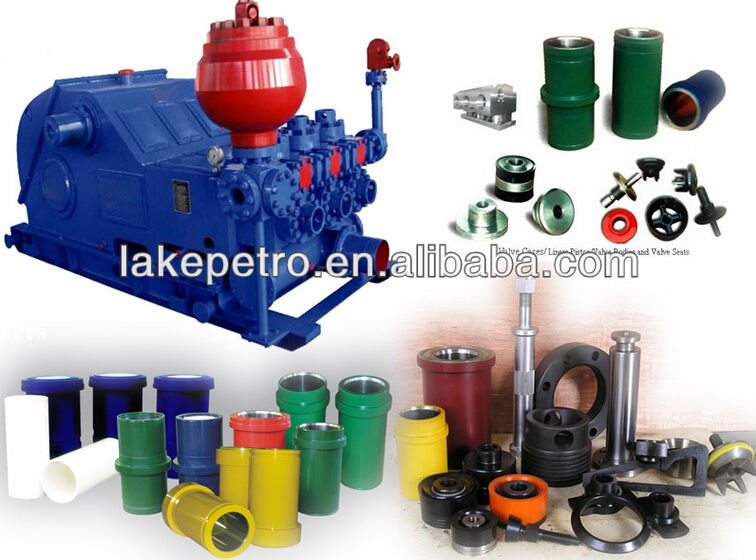

 mud pumpmud pump spart part 4
