1000 gpm Split Case High Lift Industrial Diesel Water Pump 350 hp with 6 inch Outlet

FOB Reference Price:Get Latest Price
$752.00 - $10,266.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MIMO
Model Number:
XS500-650
Structure:
Single-stage Pump
Usage:
Water
Application:
Water/Sewage
Power:
Electric
Fuel:
Electric
Pressure:
High Pressure
Pump Head:
8.6-200m
Pump Flow:
25-15000 m3/h
Pump Driving type:
Motor, Diesel, Gasoline, Solar, Turbine
Pump Impeller No.:
Single-Stage Pump
Influent Type of Impeller:
Double Suction Pump
Position of Pump Shaft:
Horizontal Pump
Pump Casing Combined:
Horizontal Split Pump
Transport Package:
Plywood Case
Specification:
ISO, SGS,CE
Pump Impeller:
Closed
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
600 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Packaged by Sandwich Plate/ Ply Wooden Case/ Wooden Box/As customer required
Port
Tianjin/ Qingdao/ Shanghai/Guangzhou/As customer required
Lead Time :
Within 15 days after received payment
Video Description
Product Description

Product Introduction

The S serial single stage double-suction centrifugal pump has the high head, large flow characteristics, widely used in engineering. It is late-model energy-saving horizontally split pump newly developed by us on the base of the old style double suction pump at home and abroad.
They are used to handle clean water or other liquids similar to water in physical and chemical properties, the maximum temperature is not exceeding 80°C.This series of pumps are suitable for water supply and drainage in factories,mines and cities, power stations, irrigation and drainage of farming and soon.Shaft sealing is soft packing sealing.

Type
Flow Rate
Head
Media
Application
Other characteristics

XS500-650
Min.: 2520m3/h
Min: 35m

Multi water

Handing

Horizontal
Max.: 4500m3/h
Max: 53.7m

 MS Double Suction Water Pump Series

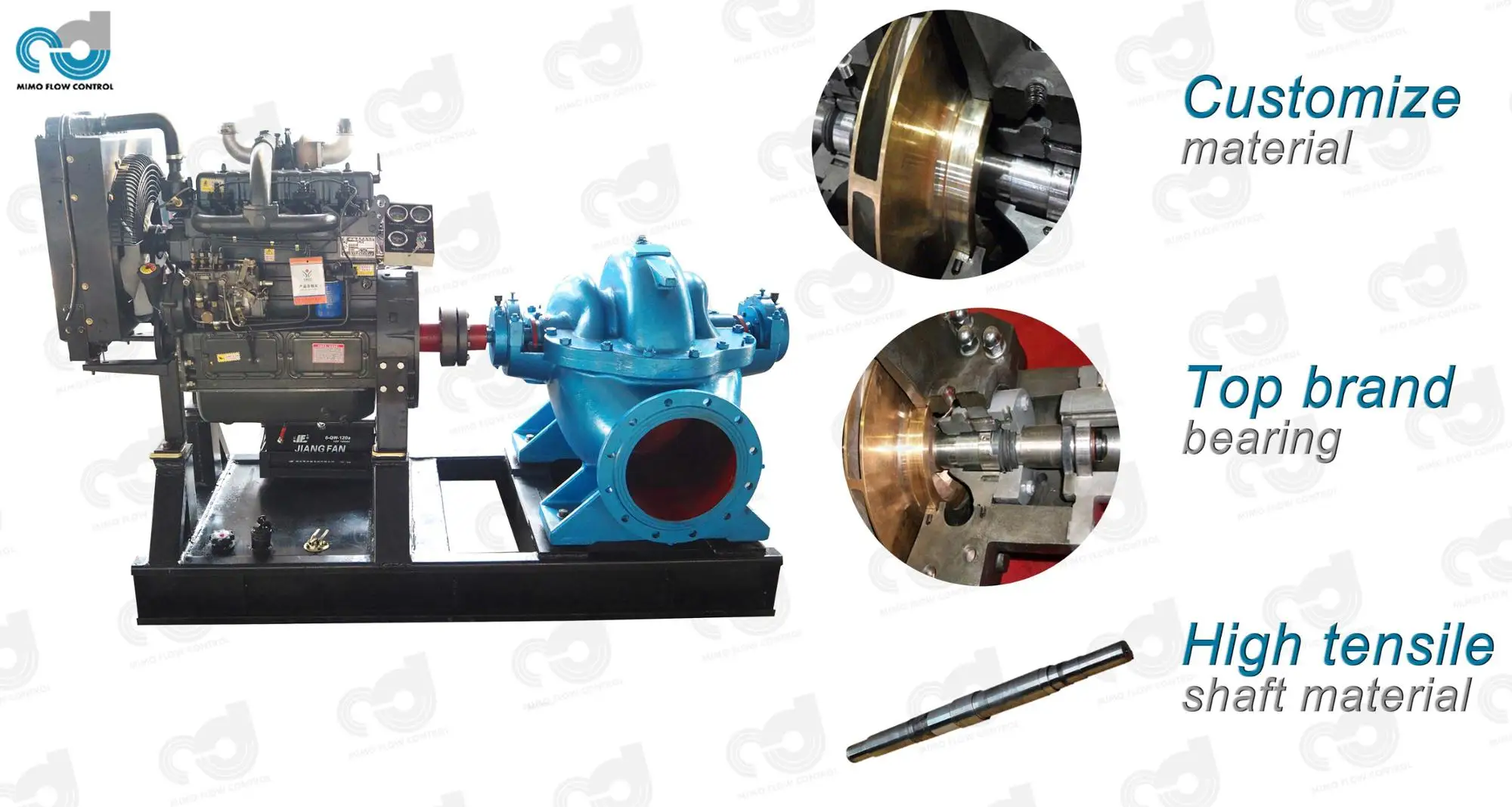

• Cast-iron,duct alloy,carbon,steel,zinc free bronze,silicon brass or stainless steel construction (other materials available   on request)
• High efficiency double suction impeller
• Durable, low noise, long life bearing
• Premium quality mechanical seal
• Electric or diesel drive

Specification
No.
Type
Speed
Flow
Head
Motor Power
Eff
NPSHr
Weight

Model
rpm
m3/h
m
       Kw
%
m
mm
1
200S-95
2950
234
93.5
90
71
4.45
309
2
250S-65
1470
486
65.1
132
76.5
3.65
596
3
300S-90
1470
792
90
315
77.5
3.5
857
4
350S-125
1470
1250
125
710
74.5
7.6
1500
5
500S-98
980
2020
98
800
79.5
4
4330
6
600S-75
980
3170
75
900
88
6
4300
7
800S-76
730
5500
76
1600
88
6
7900
MS Pump Structure
No.
Part Description
Material Specification
Material Options
1
Gland of Mechanical Seal
Cast Iron
SS304/SS316/AL2205
2
Sealing Ring
Cast Iron
SS304/SS316/AL2205
3
Pump Cover
Cast Iron
SS304/SS316/AL2205
4
Impeller
Cast Iron
SS304/SS316/AL2205
5
Shaft Sleeve
Cast Iron
SS304/SS316/AL2205
6
Stuffing
Cast Iron
SS304/SS316/AL2205
7
Gland of Stuffing
Cast Iron
SS304/SS316/AL2205
8
Shaft
Cast Iron
SS304/SS316/AL2205
9
Mechanical Seal Hard Alloy
Hard Alloy

10
Pump Casing
Cast Iron
SS304/SS316/AL2205
11
Bearing Assembly
Cast Iron
SS304/SS316/AL2205
12
Coupling
Cast Iron
SS304/SS316/AL2205

Bolts
Zinc Plated Steel

Applications

1)Fire Protection
2)Water Transfer
3)Municipal Water Supply
4)Irrigation
5)Industry
6)Process Water
7)Raw Water Supply
8)Dewatering (Clean Water)
9)Flood Mitigation
