1000L Steam Two Vessel Micro Brewery Equipment UK

FOB Reference Price:Get Latest Price
$58,690.00 - $84,350.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 70 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Other
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TIANTAI
Model Number:
1000L
Voltage:
Customzied, Customzied
Power(W):
15KW-200KW
Weight:
200KG-2000KG
Dimension(L*W*H):
Volume
Processing Types:
Beer
Certification:
ISO CE
Warranty:
3 Years
Application:
Beer Brewing
Capacity:
10BBL
Material:
SUS304/SUS316/Red Copper
Heating Method:
Steam/Directf Fire/Electric
Model:
Two Vessel
Configuration:
Customized
Polish Precision:
0.2μm
Control System:
PID/PLC
Warrty:
3 Years
Supply Ability
Supply Ability:
120 Set/Sets per Year Micro Brewery Equipment
Packaging & Delivery
Packaging Details
Wooden/Veneer case for LCL; Plastic film wrapped and iron frame fixing for FCL
Port
QINGDAO PORT CHINA
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 70 To be negotiated
Beer Equipment

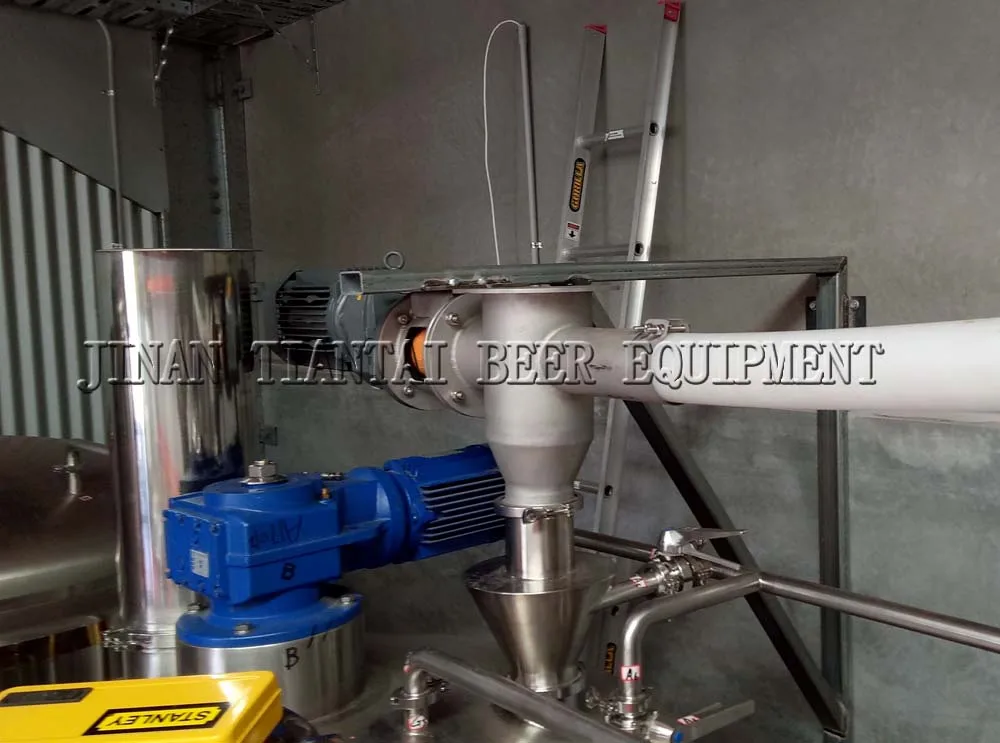

Grain Milling System for 1000L Microbrewery Equipment





Grain Miller
Function
Grain Crushing
Type
Double Roller
Standard Capacity
300-500kg/hr or Customized
Material
Stainess Steel or Carbon Steel
Roller Distance
Adjustable
Roller Speed
Adjustable
Cooperate Items
Hopper/Grist Silo/Flexible Auger

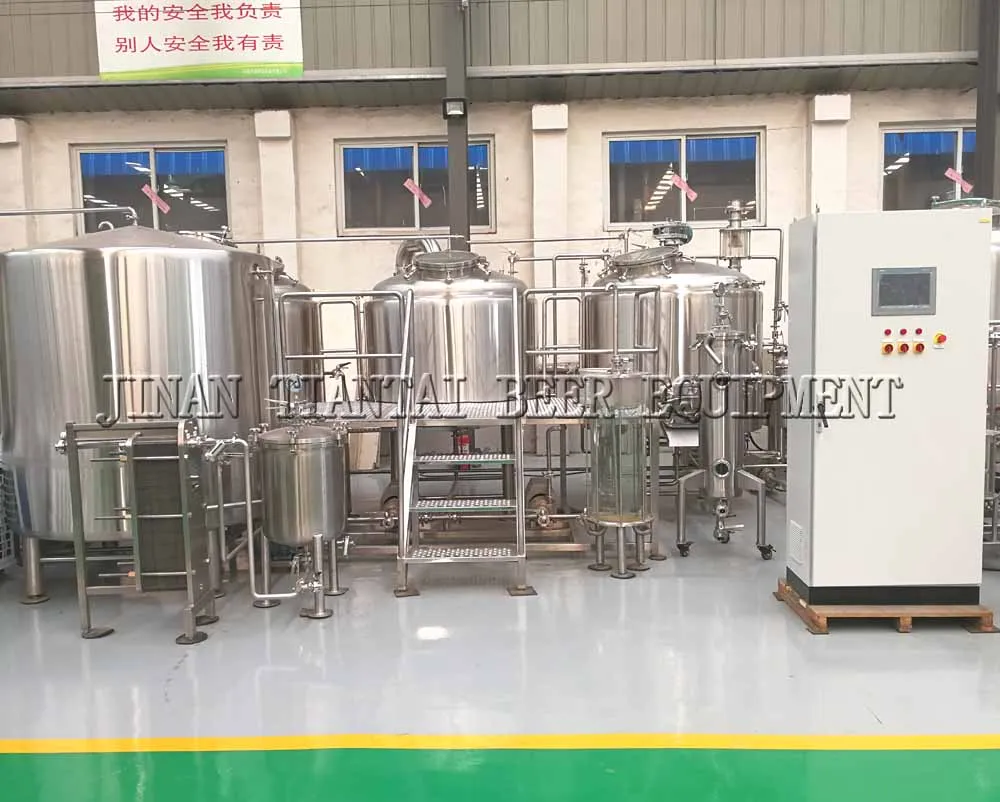

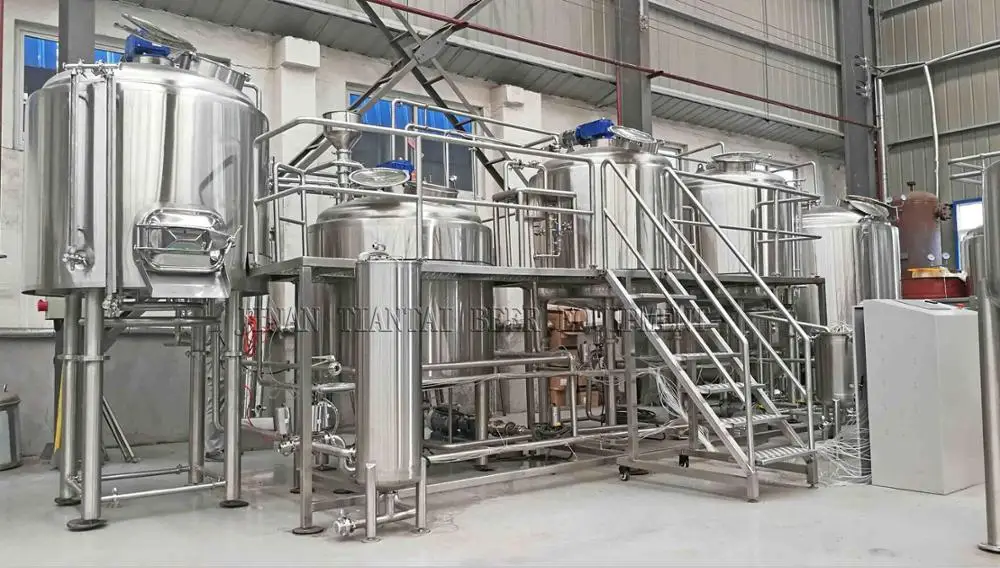

Brewhouse System











Beer
Brewhouse


Combination
Two Vessel Brewhouse
Mash/Lauter , Kettle/Whirlpool Tun or Customized
Three Vessel Brewhouse
Mash, Lauter, Kettle/Whirlpool Tun or Customized
Four Vessel Brewhouse
Mash,Lauter, Kettle,Whirlpool Tun or Customized
Material
SUS304, SUS316,SUS316L, Red Copper etc




Heating
Method

Steam Heating Method
It can provide uniform heating and temperature is easy control, which will not scorch the wort.           And it need extra steam boiler.

Direct Fire Heating
It need change the structure of brewhouse and certain premises height is necessary.                           (Fire room install under the bottom of kettle tank)
Electric Heating
Most economic way compare with other heating method, but there have a risk to scorch the wort
Process
Do acid wahsing and passivation to 0.2~0.4μm
Thickness
Interior Shell:3mm, Exterior Shell 2mm
Basic Configuraton
Grain rake with spent grain dozer, stainless steel manhole, wort grant, full stainless steel heat exchanger, pumps and valves etc

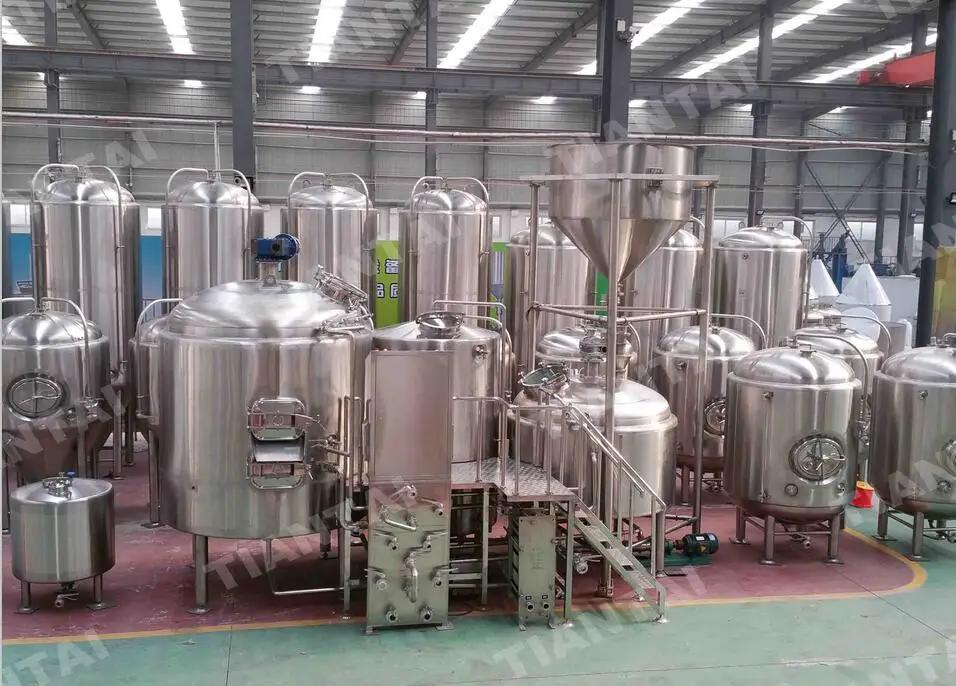

Fermentation System


Fermentation Tank
Capacity
One or Two times bigger than brewhouse or customized baseon  brewing ability
Material
SUS304, SUS316,SUS316L,Red Copper
Cooling Jacket
Dimpled plate on cone and side
Accessories
Sample Valve, Safe Valve, Manway, CO2 Blowoff Pipe, Discharge Port etc
Glycol System





Glycol Cooling System
Configuration
20BBL Glycol Water tank+2X5HP famous brank KANSA Chiller
Capacity
Base on standard configuration, it can assistant 8X20BBL tanks in total
Process
Wort to be cooled from heat exchanger by city water and glcyol water


Options
Add extra cold liquor tank into glycol cooling system. In this situation, the glycol water will go to cool fermentation tanks and cold liquor tank(can be regard as fermenter due to have glycol jacket), cold liquor tank will go to cool wort in the heat exchanger. It can assure enough cooling content, thus bigger expanding capacity in the later period.

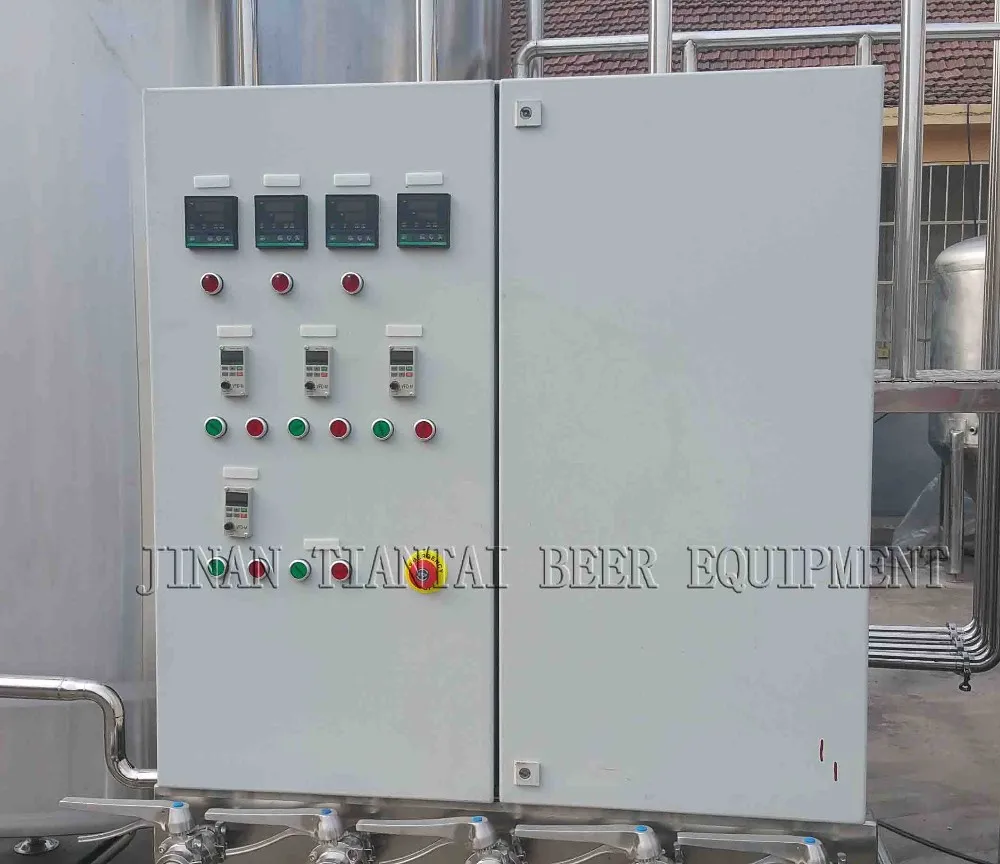

Controlling System



       Control System
Type
Floor Type/Wall Hanging
Material
Stainless Steel or Spray Paint
Function
Brewhouse and Fermentation Control
Automation
PID/PLC
Electric Elements
LG/ORMON/LS/SIEMENS/DELTA
Our Products
Our Company

Jinan tiantai beer equipment Co.,Ltd is a professional manufacturer of beer brewing equipment.Our team has 15 years experience in installing our brewery systems in brewpub,bar,restaurant,microbrewery,regional brewery etc. We have exported toUSA, Canada, Korea, Janpa, Russia, Australia, England, Italy,Spain, Romania, Belguim, Norway, Porland, Sweden, Sebia, Singapore, South Africa, South America etc.

Tiantai company supplies all-round service including layout design, customized equipment design, transporation, installation and training. All details take the humanity and brewmasters' intention into consideration.

Reliable quality is guranteed by professional technical support, advanced processing equipment, strict quality control and complete personal training.

Insisting the idea that craft beer brewing should be in a popular style, we always keep our system affordable which may help more brew masters to apporach their dream.

Tiantai,your honest brewery builder.

Tiantai Services

√Professional Service Team:free consulation service before, during and after sales;
√Experienced Thehnical Support:layout design,fabricated drawing and customized equipment design
√CE and ISO certifications
√Manufacturing Machine:cutting machine, cone rolling machine, bending machine,dimple producing machine etc
√Quality Control and Strict Testing:Ra testing, pressure testing, system testing
√Installation Service
