1000L price of glass lined electric heating cosmetic mixing tank

FOB Reference Price:Get Latest Price
$2,100.00 - $22,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
Medicine Processing, Chemicals Processing, Liquid, Glue, liquid
Condition:
New
Mixer Type:
Paddle, frame,anchor,paddle,turbine,combination
Product Type:
Cosmetic
Additional Capabilities:
cooling heating
Place of Origin:
Henan, China (Mainland)
Brand Name:
Datang
Max. Loading Capacity:
1000 l
Voltage:
380v
Power(W):
0.75-750kw
Dimension(L*W*H):
1300x1300x3100mm
Certification:
CE SGS
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Product name:
Glass Reactor
Name:
Reactor Kettle
Material:
SS316L,SS316
Capacity:
50-20000L
Heating method:
Oil,steam, water,electric heating
Machine type:
Chemical Batch Reactor
Model Number:
KF FF
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
packed in plywood case, on tray or according to your request.
All the goods will be for safe packing, packages are strong and abrasion.
Port
qingdao shanghai ningbo tianjin or as your request
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 45 To be negotiated
Video Description

continuous flow reactor methanol reactor biodiesel processor reactor

Product Description
1000L price of glass lined electric heating cosmetic mixing tank

  • Design Pressure:Vessel=0.2MPa,0.4MPa,0.6MPa,1.0MPa Jacket=0.6MPa
  • Agitator:Different Types(Optional)
  • Reducer:Vertical Type
  • Seal:Stuffing seal(0.2MPa) Single Mechanical Seal(0.4MPa) Double Mechanical Seal(0.6MPa,1.0MPa)
  • Glass lined mixing tnak with design pressure greater than 0.6MPa inside the vessel shall be ordered seperately.
  • Major Dimensions of the FF type reactorsconform to the National Standard for Glass-lined Equeipment (HG/T2372-92),and modifiations have been made for improvement by our company.

Accessories

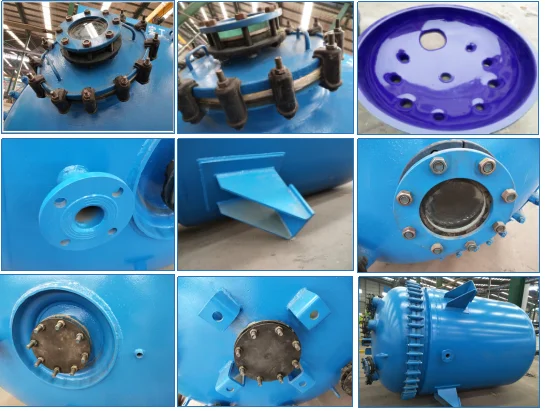

Glass lined part show



Powder spraying glaze 6~7 times (bottom) --- burning bottom glaze (6~7 times) --- spray surface --- burnt many times --- finished goods inspection

Product parameters



Parameters you should offer.

  1. How about the capacity of the reactor?
  2. What`s the pressure and temperature of inner tank and jacket?
  3. Which kind of materials are you feed with?
  4. What about the speed of the reducer?

With these parameters we can offer you reference drawings for you.



Packing with wooden pallets or channel steel tray.(Firmly fixed) Other accessories are packing in a wooden box.





Click here: Contact Us

Company Information





FAQ

Q1: You are manufacture factory or only trade company?

A: We are the largest manufacture in whole province, our workers have making experience more than 20 years.

Q2: If we can not make sure the model, could you give us some help.

A: Yes, our engineer team is service for you, only tell us your demands, pls.

Q3: Could we visit your factory?

A: Certainly, welcome, if you have no free time come to China, we could shoot video by whatspp/ wechat/qq/ skype, and take you travel our factory online.

Q4: Could help install the equipments if we need?

A: Yes, if you need oversea service for installtion, we could arrange engineer to your side help install together.
